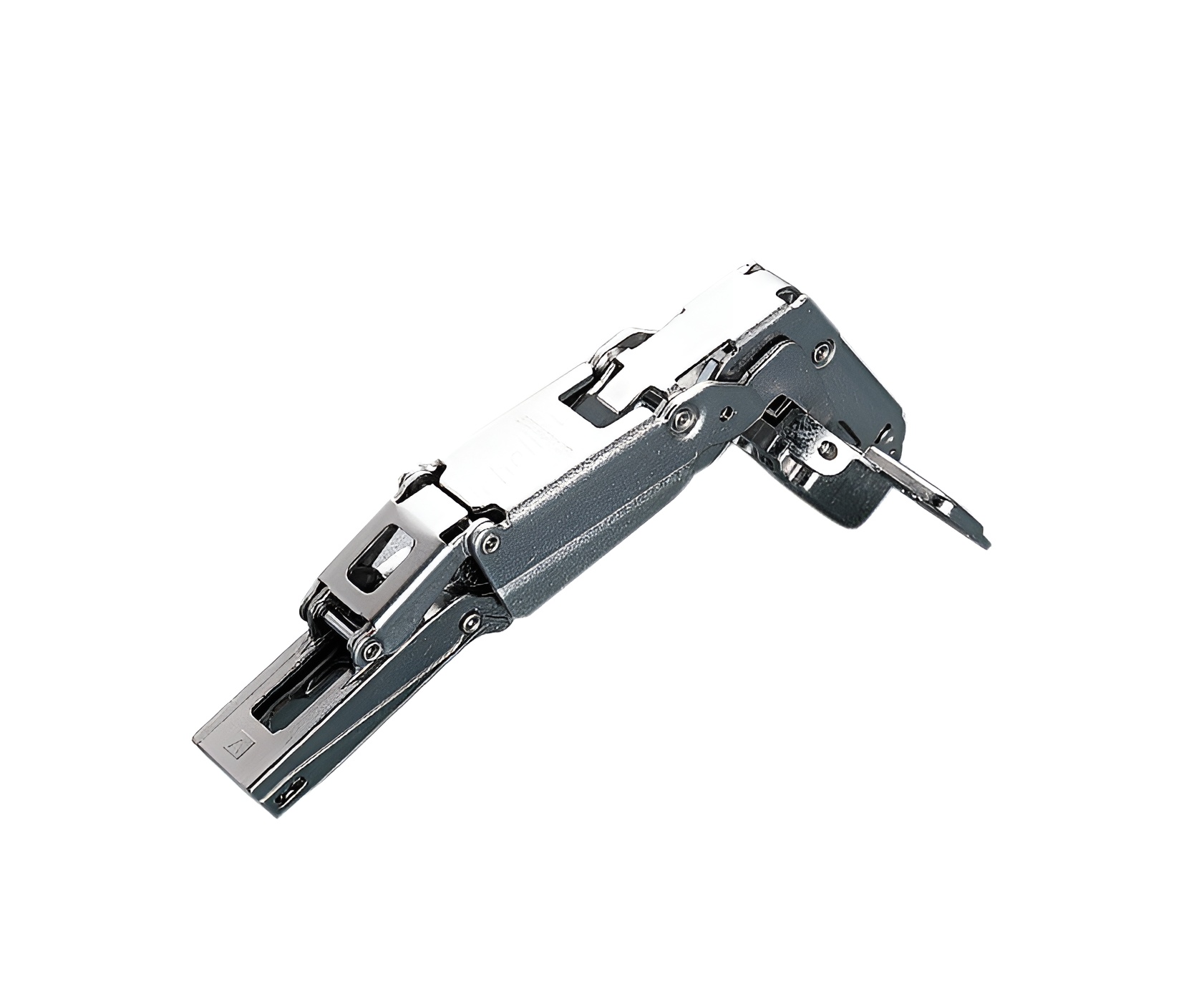

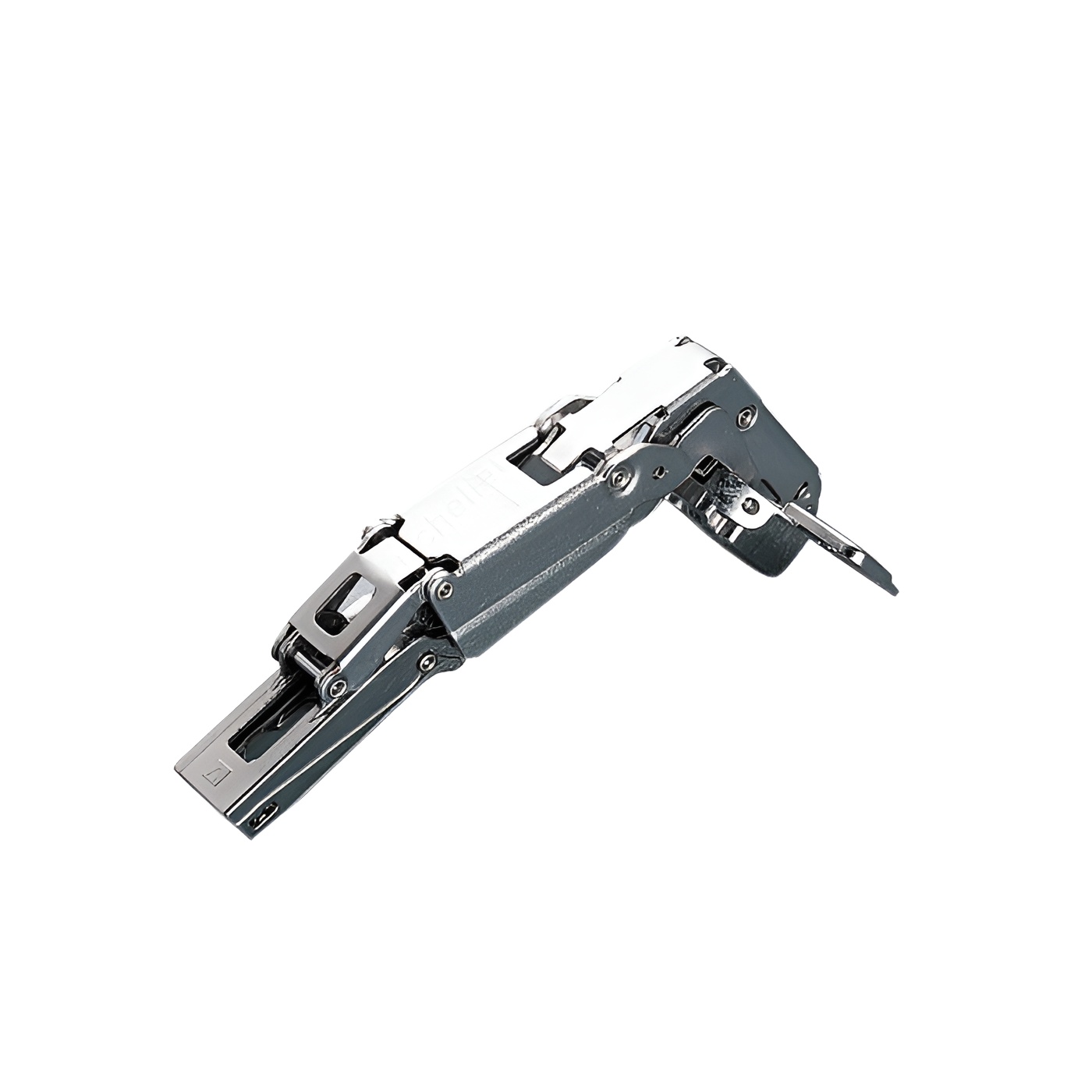

Richelieu H165C2RFA99 Serie 200 Concealed Hinges - 165 offer a sleek and efficient solution for frameless cabinetry, allowing for full overlay door applications. Designed with an 11 mm die-cast cup, these hinges provide a robust and durable mechanism suitable for standard doors. Their innovative spring closing feature ensures a smooth and secure closure every time, enhancing the overall functionality of your cabinetry. With a hinge opening angle of +165°, these hinges allow for maximum accessibility, making it easier to reach inside cabinets. They support a load capacity of up to 10 lbs, making them ideal for a variety of kitchen and storage applications. The drilling distance is adjustable, ranging from 3 to 8 mm, enabling easy installation and compatibility with existing setups. These hinges come finished in a sleek nickel color, adding a touch of elegance to your cabinetry. It’s important to note that base plates need to be ordered separately, using the same formulas as 94°/110°/120° hinges. Packaged conveniently at 100 per case, the Richelieu H165C2RFA99 hinges are readily available for quick shipping via UPS, ensuring you have the hardware you need when you need it.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2RFA99
Product number: H165C2RFA99
Product №: H165C2RFA99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
