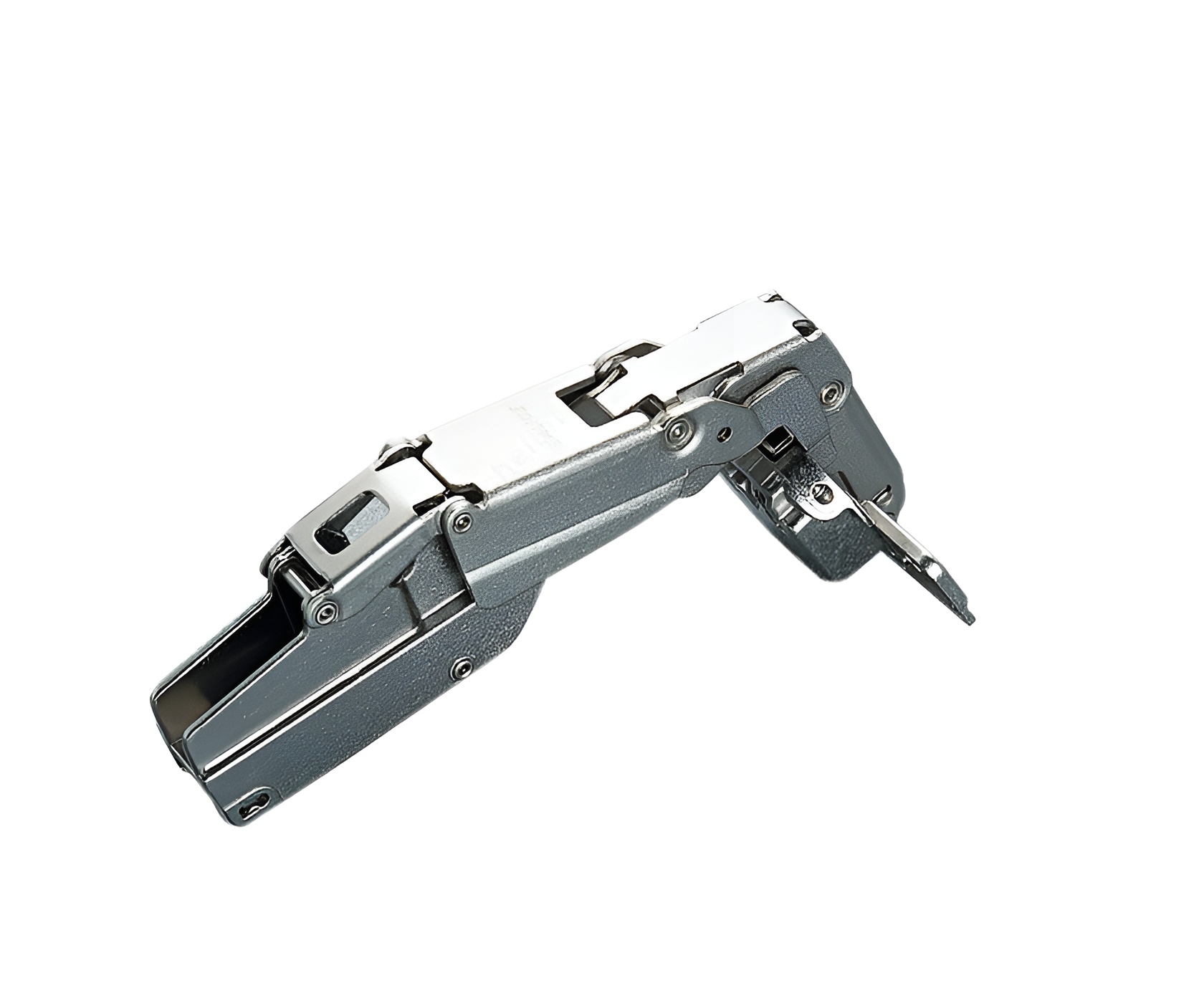

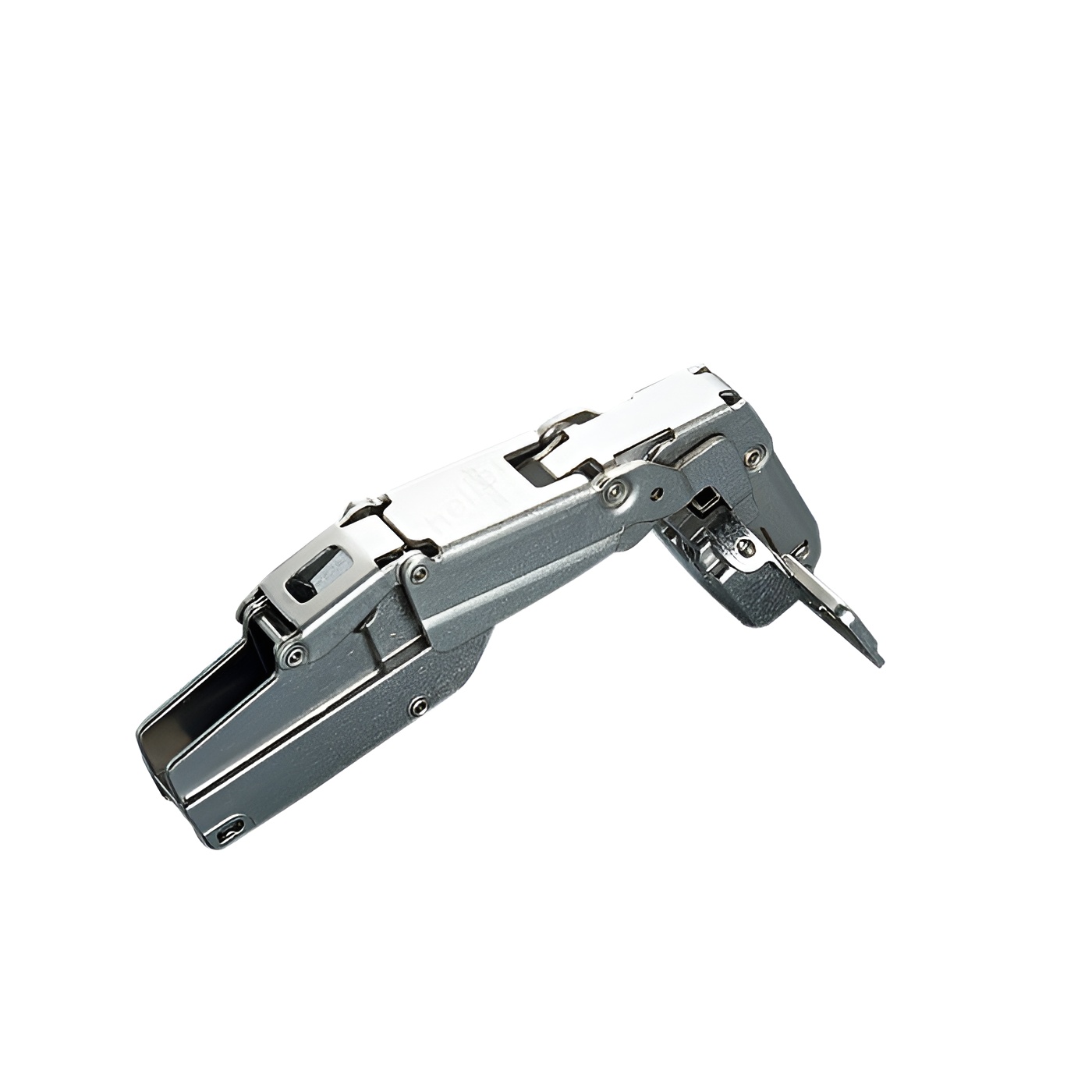

Richelieu H165C2RFP99 Serie 200 Concealed Hinges - 165 are expertly designed for frameless cabinet applications, providing a sleek and unobtrusive look. These hinges feature an 11 mm die-cast cup that allows for precise installation and a clean finish. With a hinge opening angle of +165°, they facilitate effortless access to your cabinets, making them ideal for standard doors. The H165C2RFP99 model accommodates a drilling distance of 1/8 to 5/16 inches, ensuring compatibility with various cabinetry configurations. Each hinge is equipped with a spring closing mechanism, offering a reliable and secure closure every time. With a load capacity of 10 lbs, these hinges are suitable for a range of cabinet doors. For optimal performance, it is recommended to order base plates separately, using the same formulas as the 94°/110°/120° hinges for compatibility. Packaged conveniently, each case contains 100 hinges, making it a practical choice for both professionals and DIY enthusiasts. Finished in a sleek nickel tone, these concealed hinges enhance any cabinet's aesthetic while ensuring functionality. Ship via UPS for quick delivery, ensuring your project stays on track. Upgrade your cabinetry with the Richelieu H165C2RFP99 Hinges for a combination of style and durability.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 21/32 in*
Diameter: 1 3/8 in*
Door Position: Inset
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2RFP99
Product number: H165C2RFP99
Product №: H165C2RFP99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
