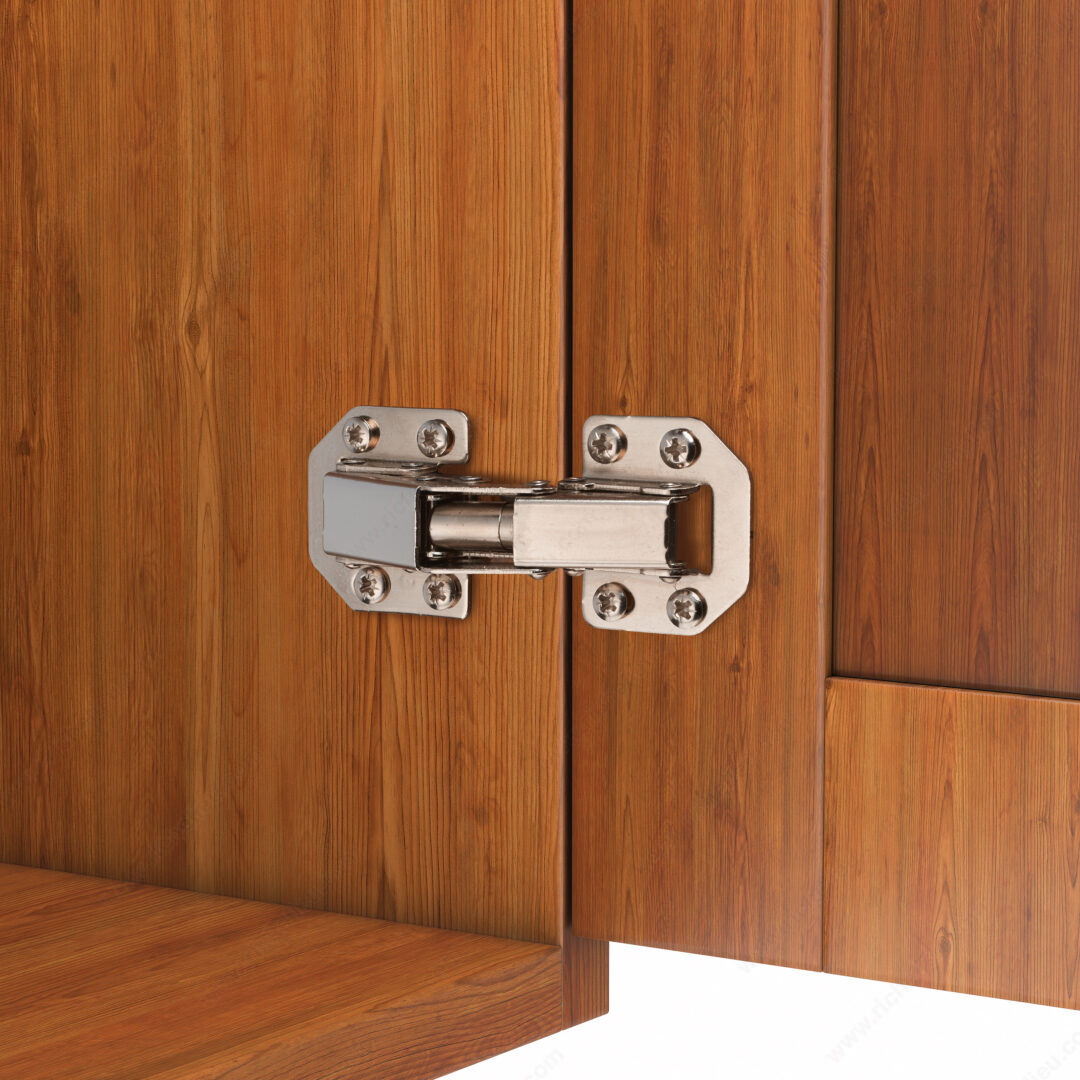

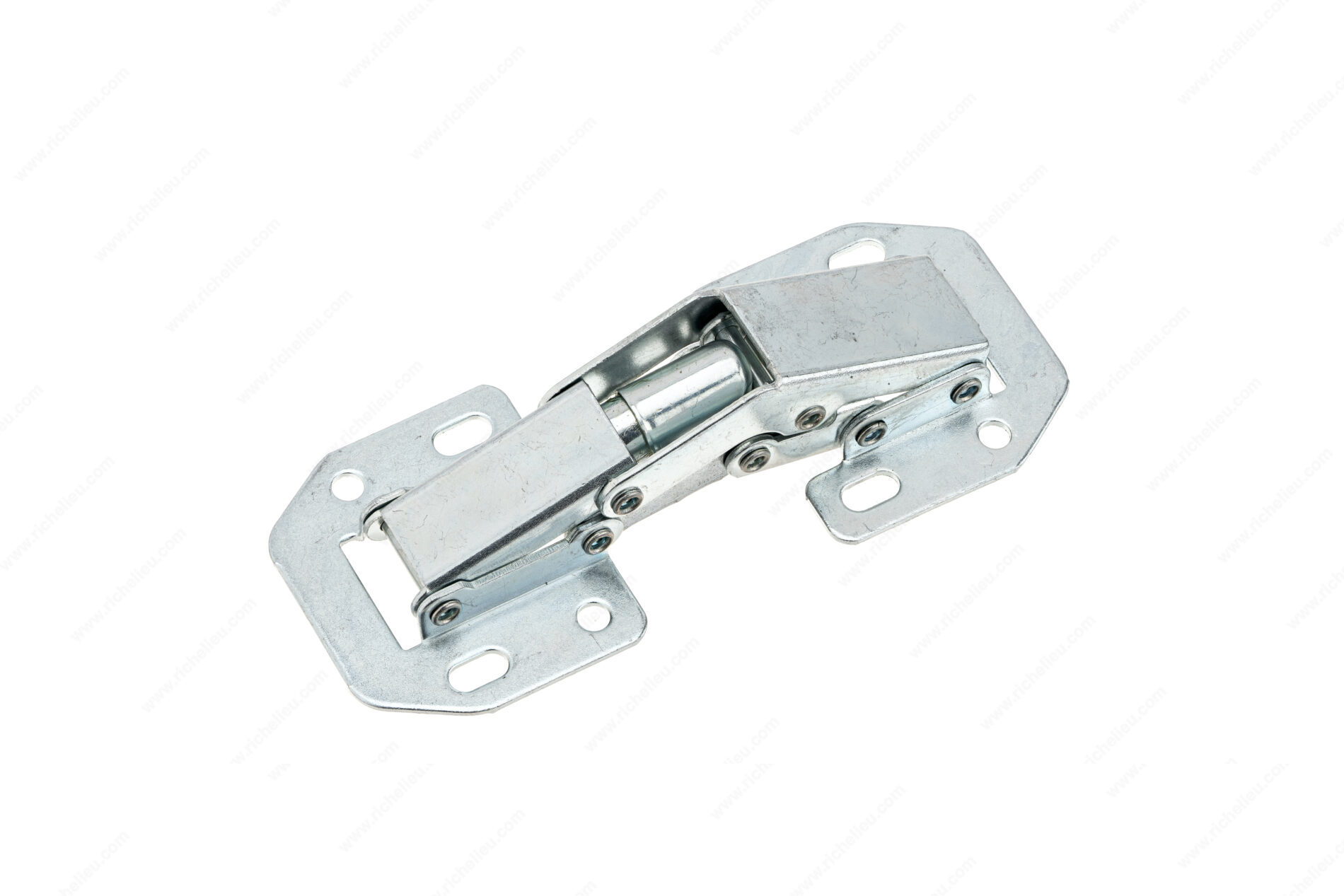

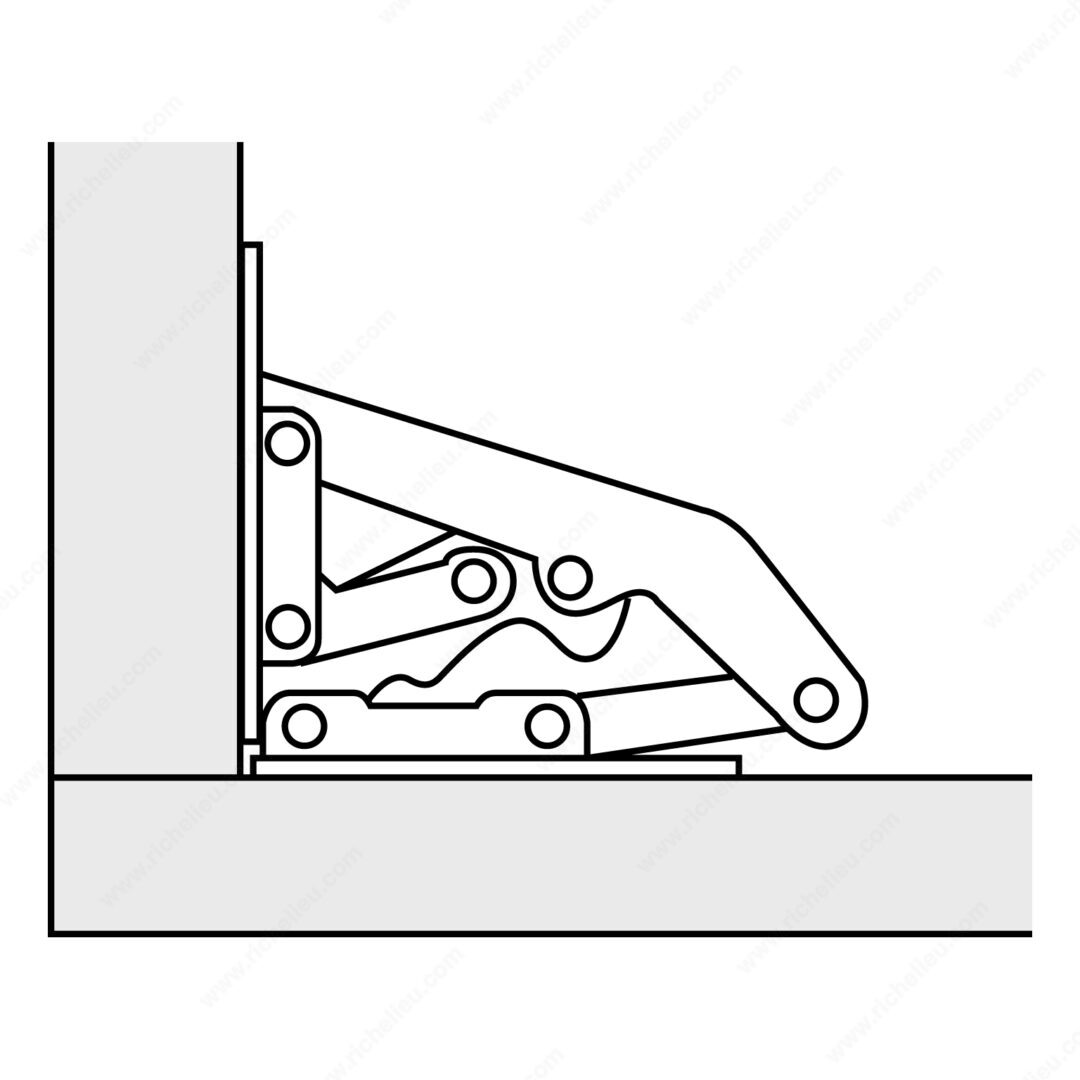

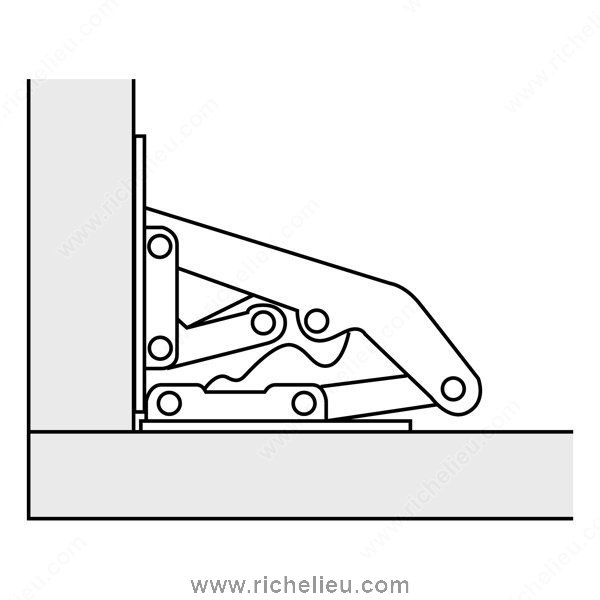

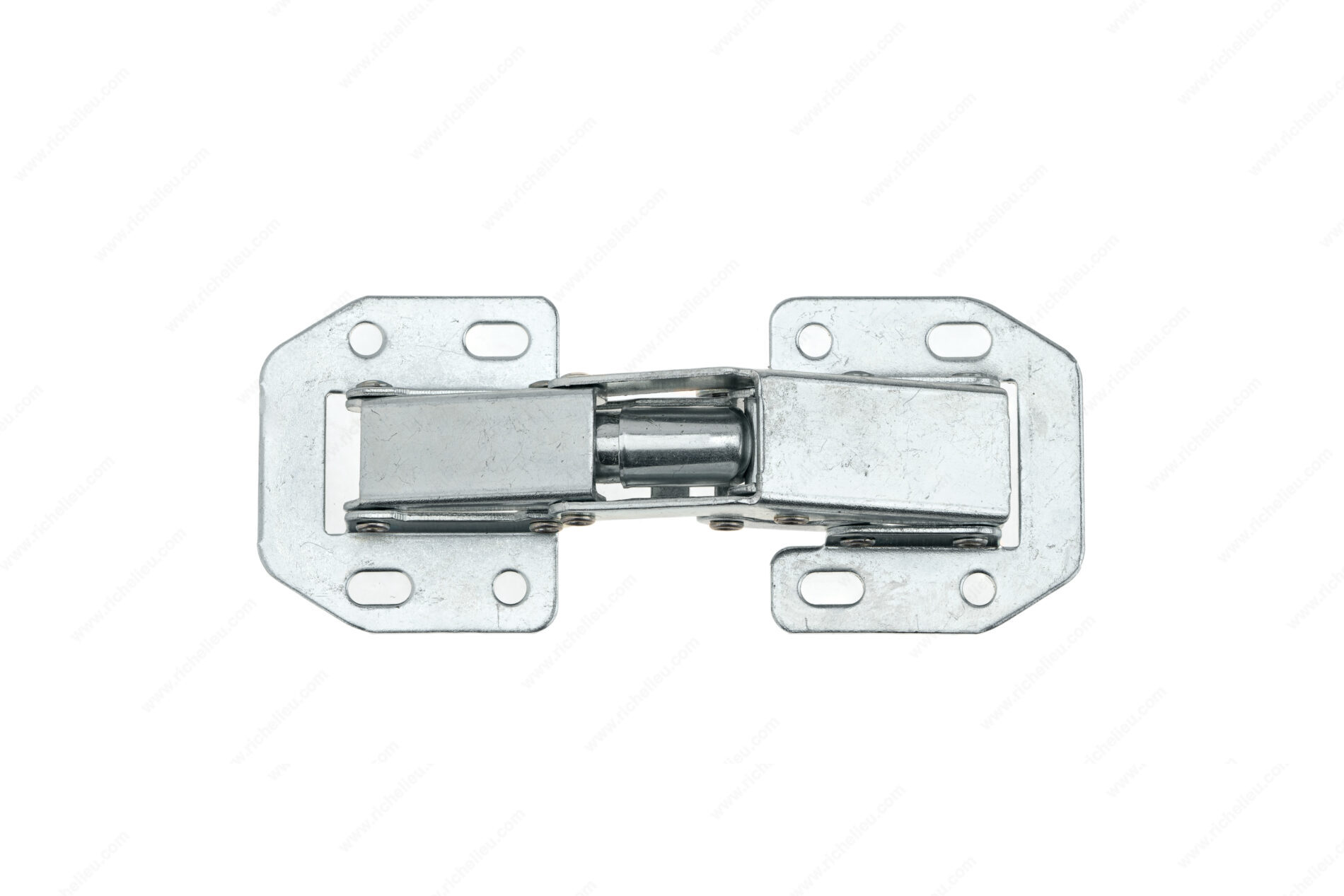

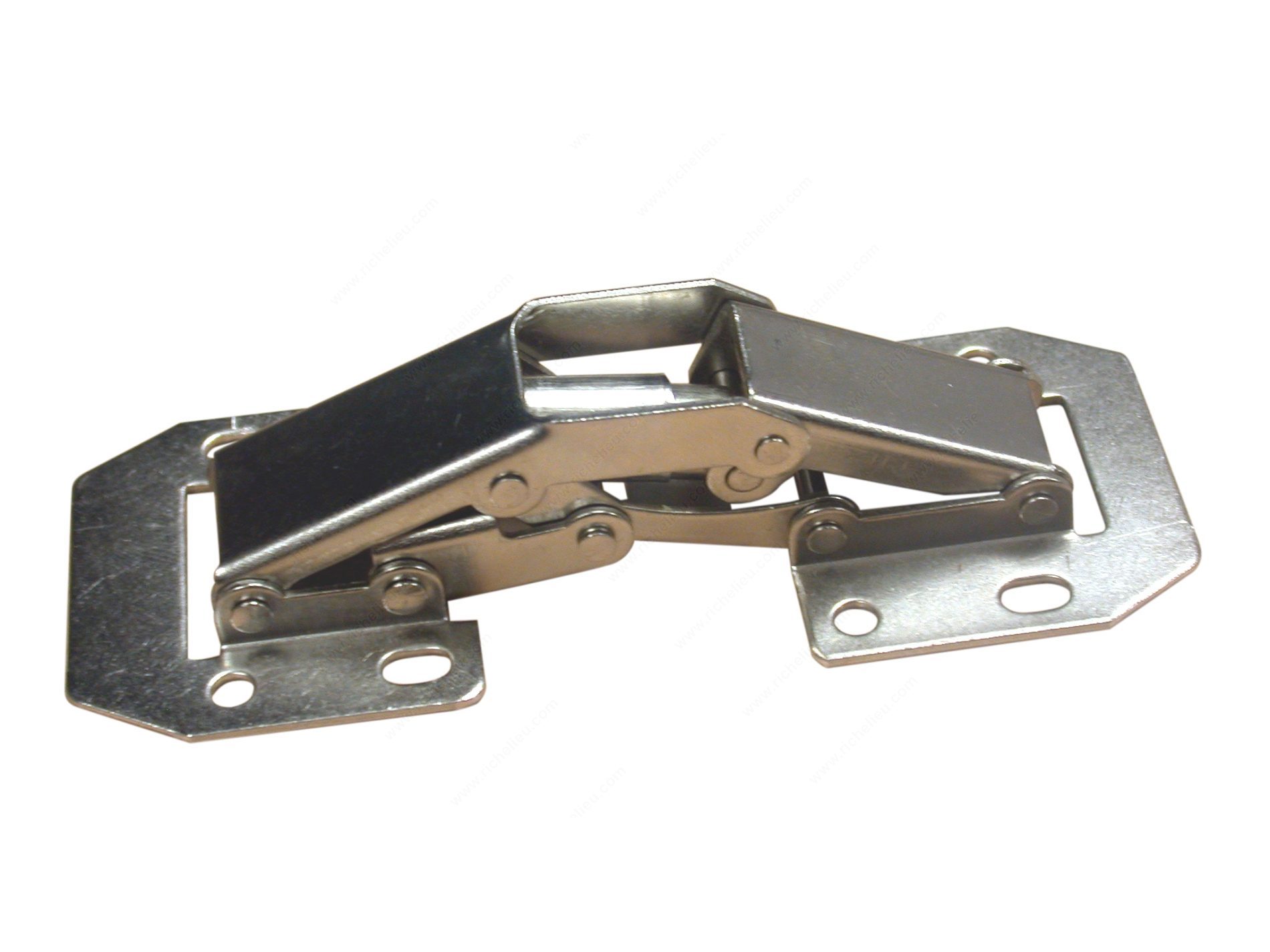

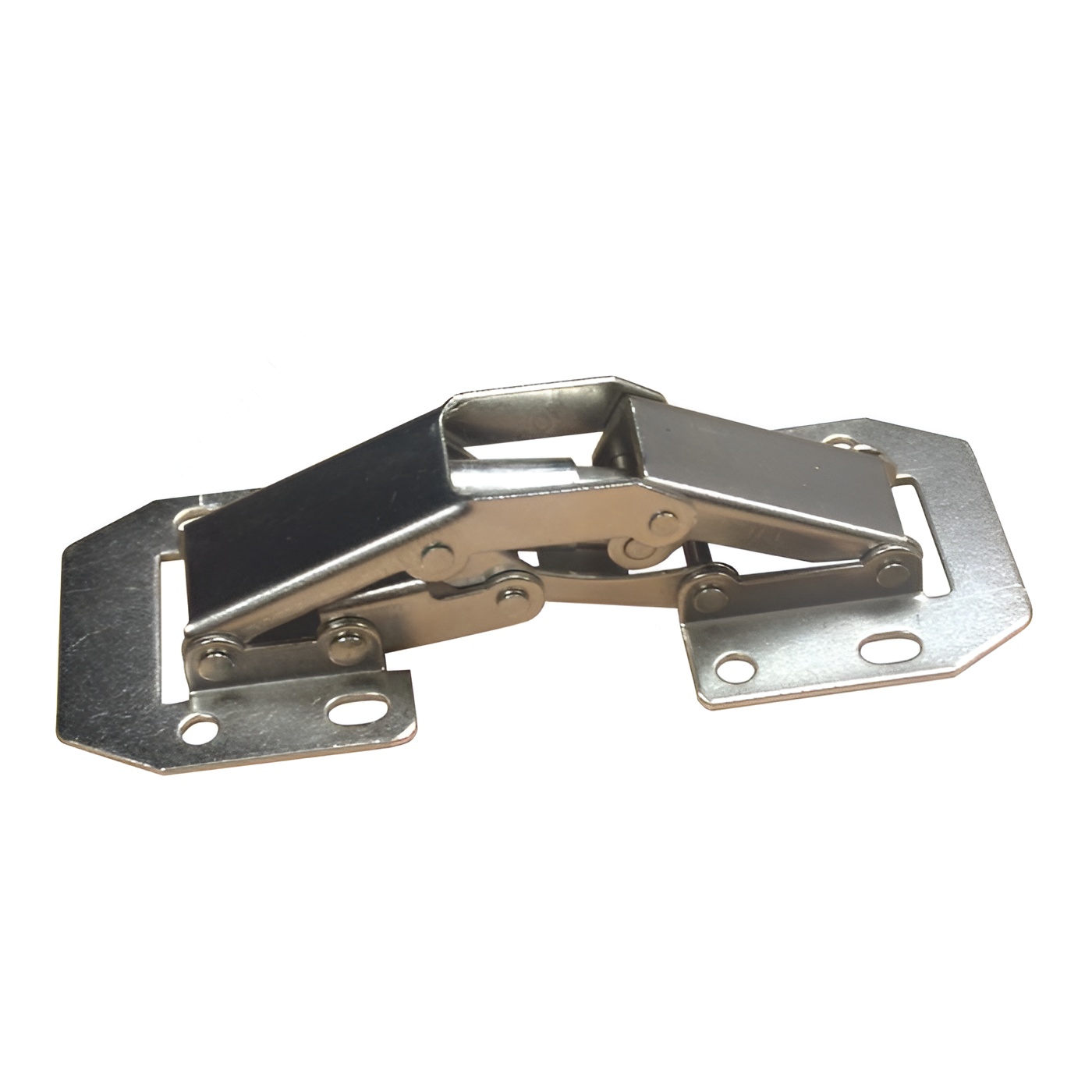

Richelieu AP1062G Invisible Hinges offer a perfect blend of strength and modern aesthetics, making them an excellent choice for frameless furniture, bathroom, and kitchen cabinets. Designed for inside cabinet mounting, these hinges feature a generous 90° opening angle, accommodating the most common cabinet configurations with ease. Constructed from durable steel and finished in sleek nickel, the AP1062G hinges ensure longevity while enhancing the visual appeal of your cabinetry. With a milling depth of 7/16 inches and a door thickness of 5/8 inches, they are tailored for standard applications. The spring closing mechanism guarantees that doors close softly and securely, promoting a seamless user experience. For optimal performance, especially on heavier or taller doors, it is advised to use more than two hinges, with a minimum of two hinges required per door. Each packaging unit contains ten hinges, making it convenient for larger projects. Installation is straightforward with a screw-on fixing type, utilizing #5 screws for secure attachment. Whether you are a builder or a savvy homeowner, Richelieu AP1062G Invisible Hinges deliver on functionality and style, ensuring your cabinetry maintains a clean, modern look without visible hardware distractions.
Invisible Hinges
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Color/ Finish: Nickel
Door Thickness: 16 mm
Fastener: À visser
Finish: Nickel
Fixing Type: Screw-On

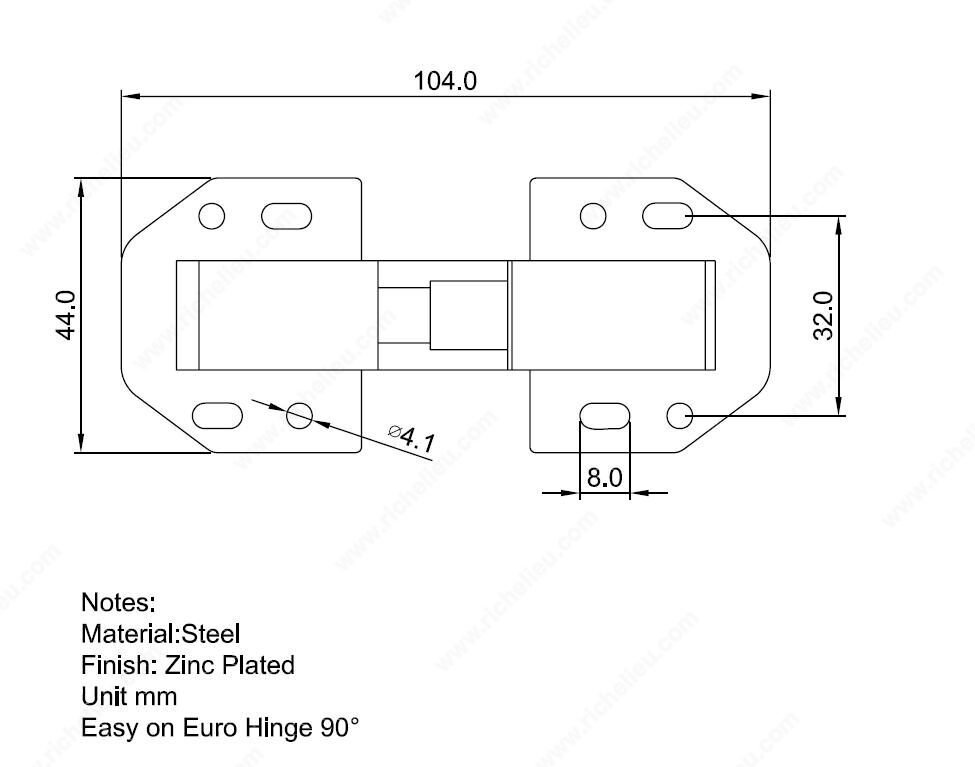

Height - Overall Dimensions: 1 23/32 in*
Hinge Opening Angle: +90°
Material: Steel
Mechanism: Spring Closing
Milling Depth: 11 mm
Mounting Type: Edge Mount
Packaging format: Bag of 10 units
Product #: AP1062G
Product number: AP1062G
Product №: AP1062G
Screw/ Nail: #5 Screw
Type: Overlay hinge
Unit: Bag of 10 units
Unit 1: carton - 10
Unit 2: carton - 10
Unit 3: case - 20
Use Type: Standard Door
Width - Overall Dimensions: 4 3/32 in*
