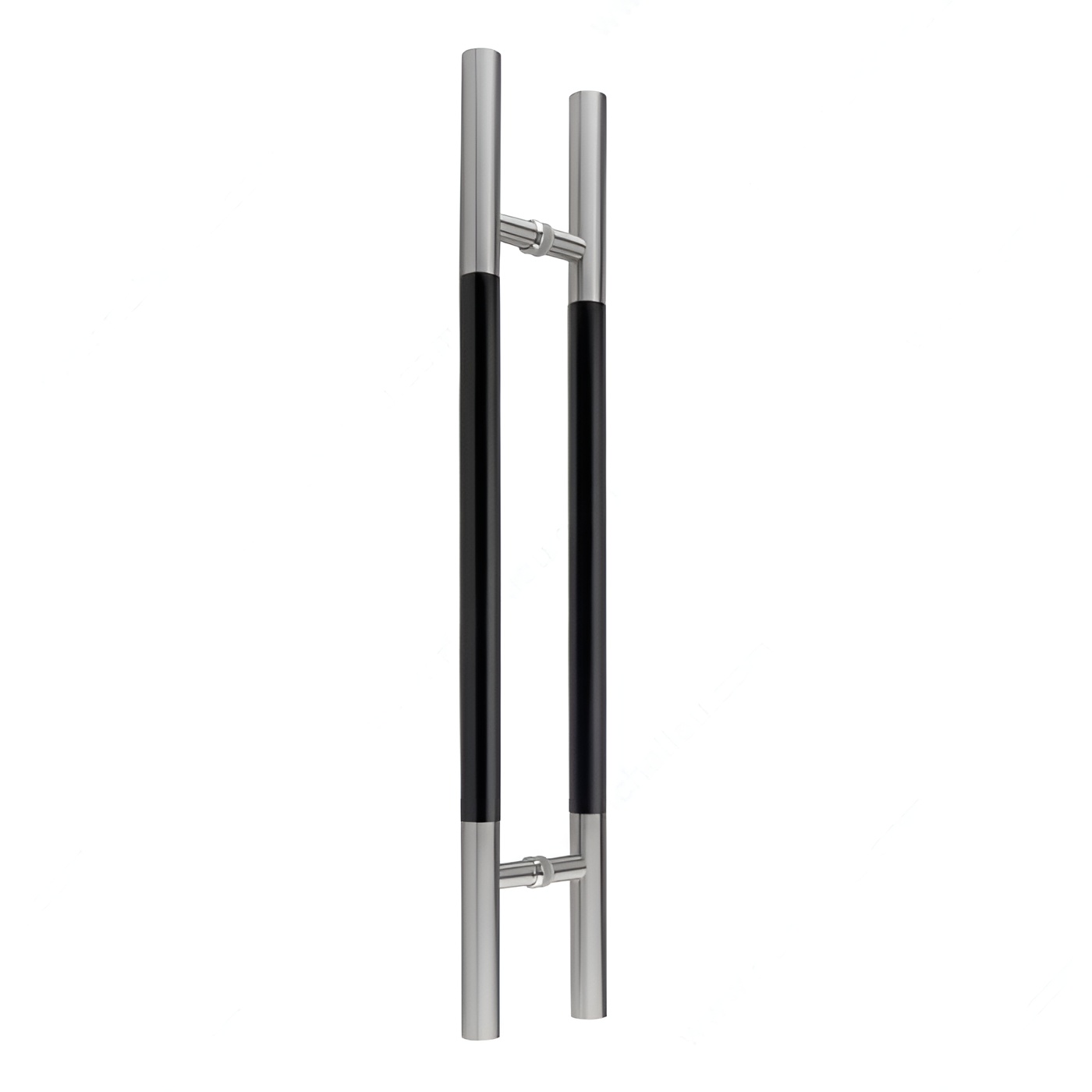

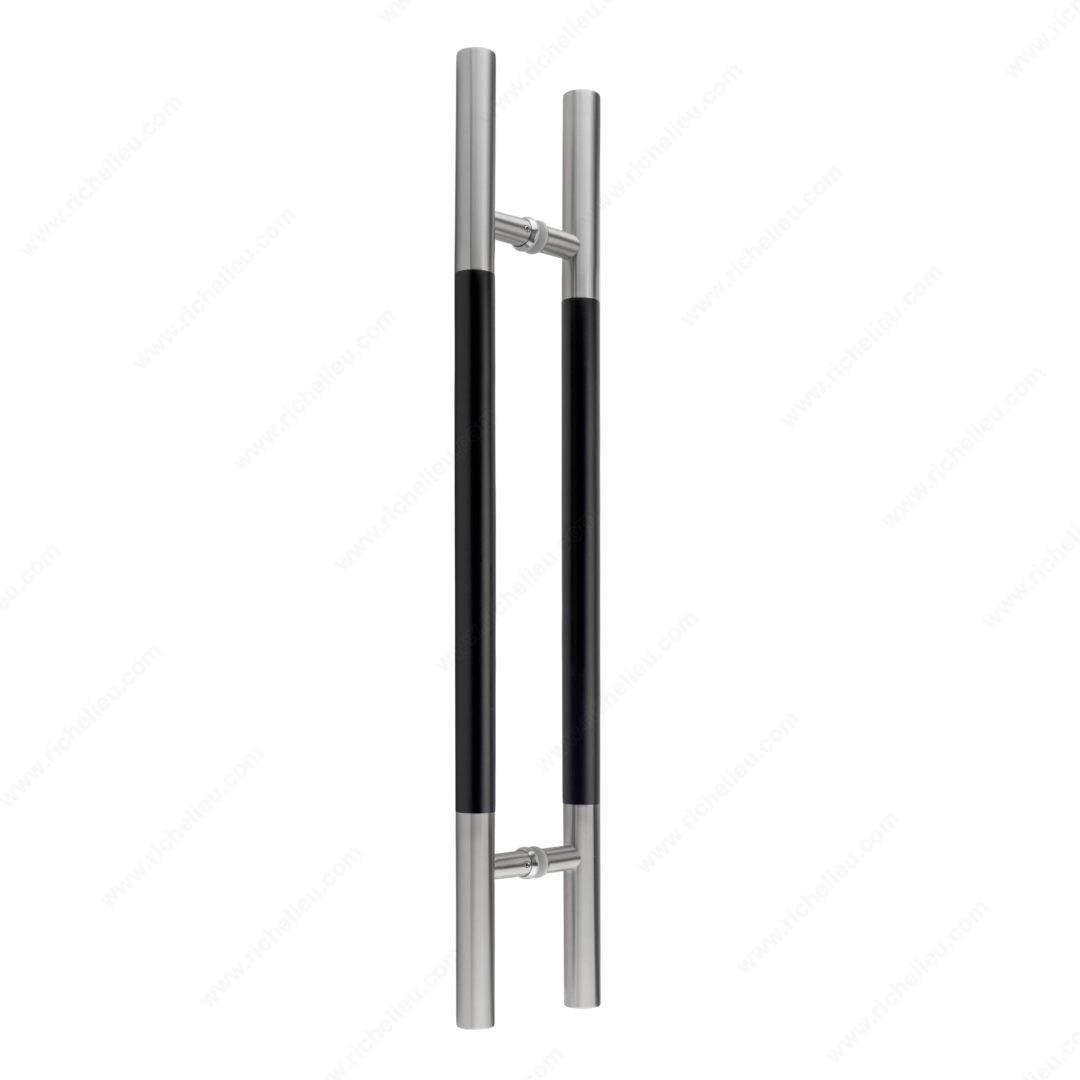

Richelieu 705483638BW170 Back-to-Back Ladder Handle with Wood Insert is a stunning choice for enhancing the functionality and aesthetic of your commercial spaces. Designed for both hinged and sliding doors, this handle combines modern sophistication with practical utility, making it ideal for offices, conference rooms, exhibition halls, and shopping centers. Crafted from durable Stainless Steel 304 with a stylish wood insert, the handle features a striking black and stainless steel finish that complements a variety of design themes. With a height of 48 inches and a diameter of 1 1/2 inches, it offers a comfortable grip while ensuring easy accessibility. The back-to-back design allows for seamless operation on glass, wood, or architectural doors, accommodating door thicknesses ranging from 1 3/8 to 1 31/932 inches and glass thicknesses between 5/16 to 15/32 inches. The handle comes with M8 screws for easy installation, and its 36-inch center-to-center drilling provides flexibility for various door styles. With a projection of 3 1/16 inches and included washers with a diameter of 1 1/4 inches, it is engineered for both form and function. Elevate your commercial development projects with the Richelieu 705483638BW170, where style meets performance.
Back-to-Back Ladder Handle with Wood Insert
Application

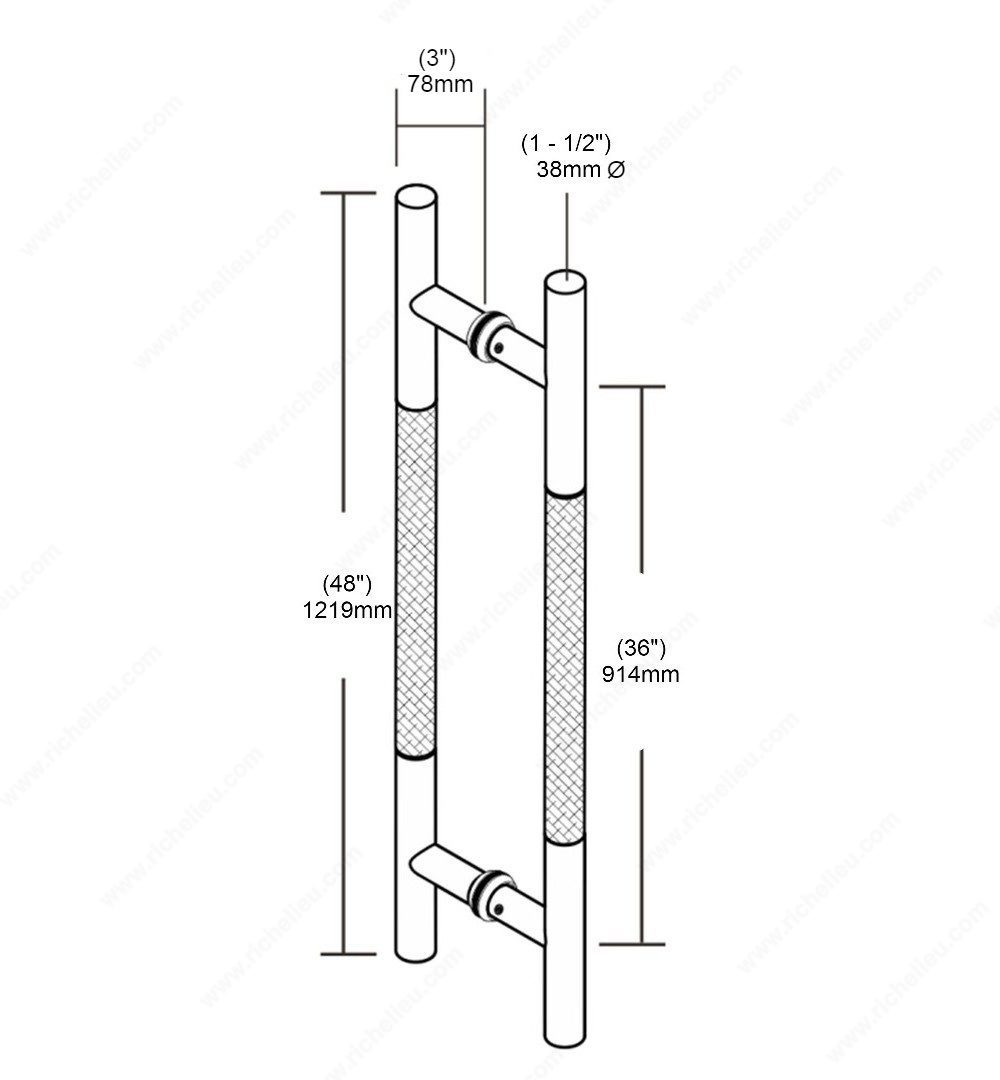

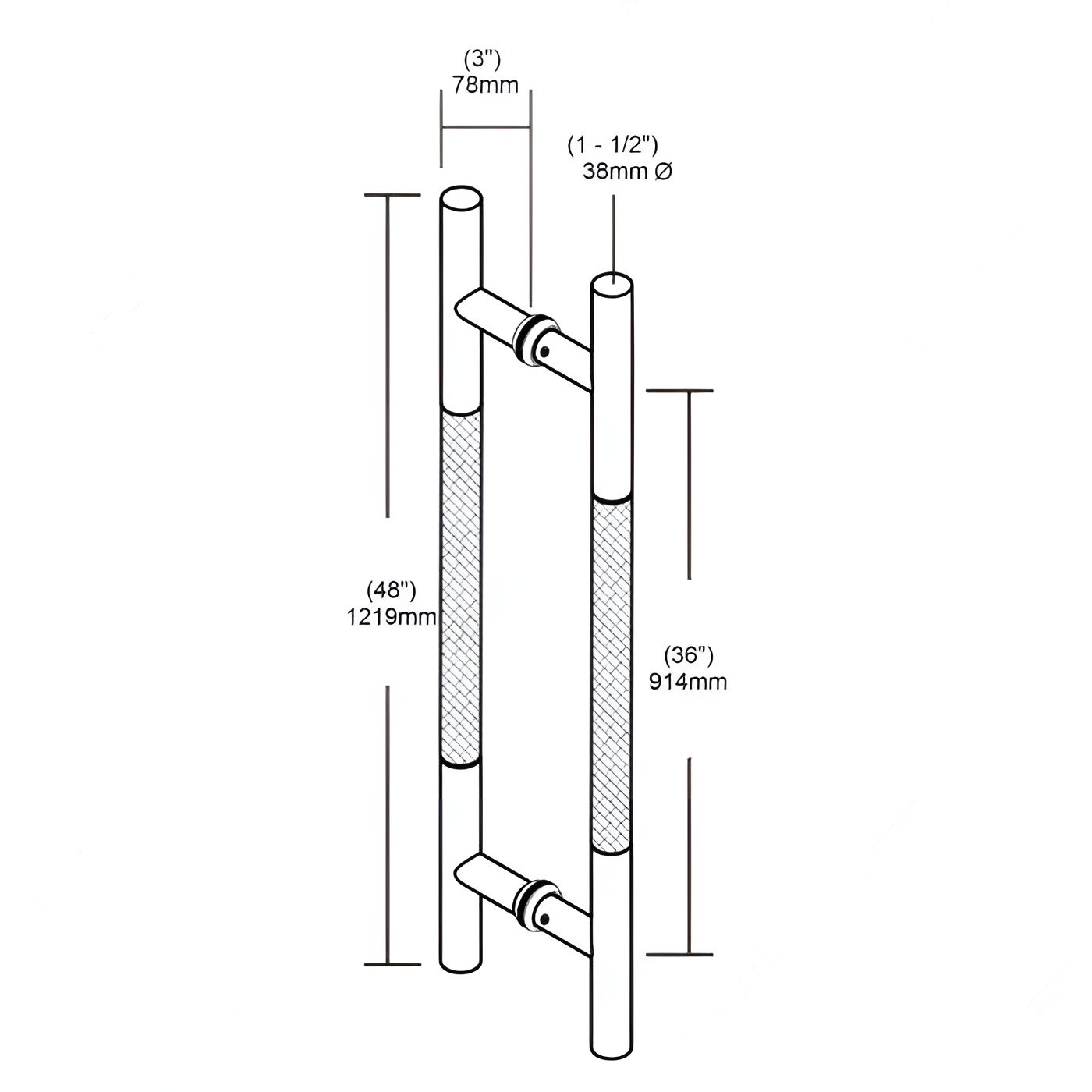

Center to Center Drilling ( Spacing): 36 in
Color/ Finish: Black, Stainless Steel
Diameter: 38 mm
Door Thickness: 35 to 50 mm
Door Type: Glass, Wood, Architectural
Function: Pull Handle
Glass Thickness: 10 to 12 mm
Height: 48 in
Manufacturing Material: Stainless Steel: 304, Wood
Material: Stainless Steel: 304, Wood
Milling Diameter: 12 mm
Product #: 705483638BW170
Product number: 705483638BW170
Product №: 705483638BW170
Projection: 78 mm
Screw/ Nail: Included, M8
Type: Round
Unit: Set
Unit 1: case - 8
Unit 2: case - 8
Usage: Sliding Door, Hinge Door
Washers Diameter: 32 mm
