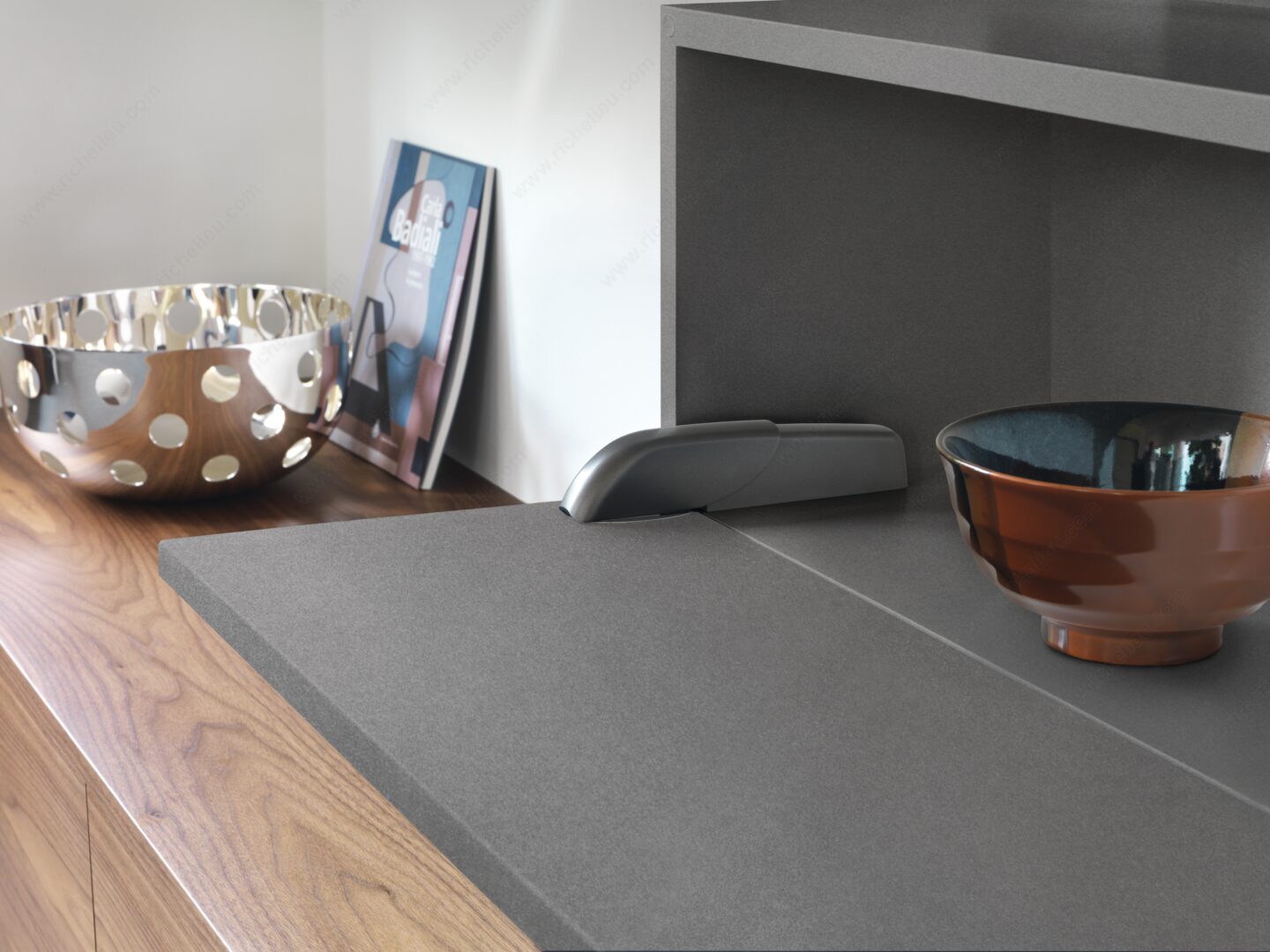

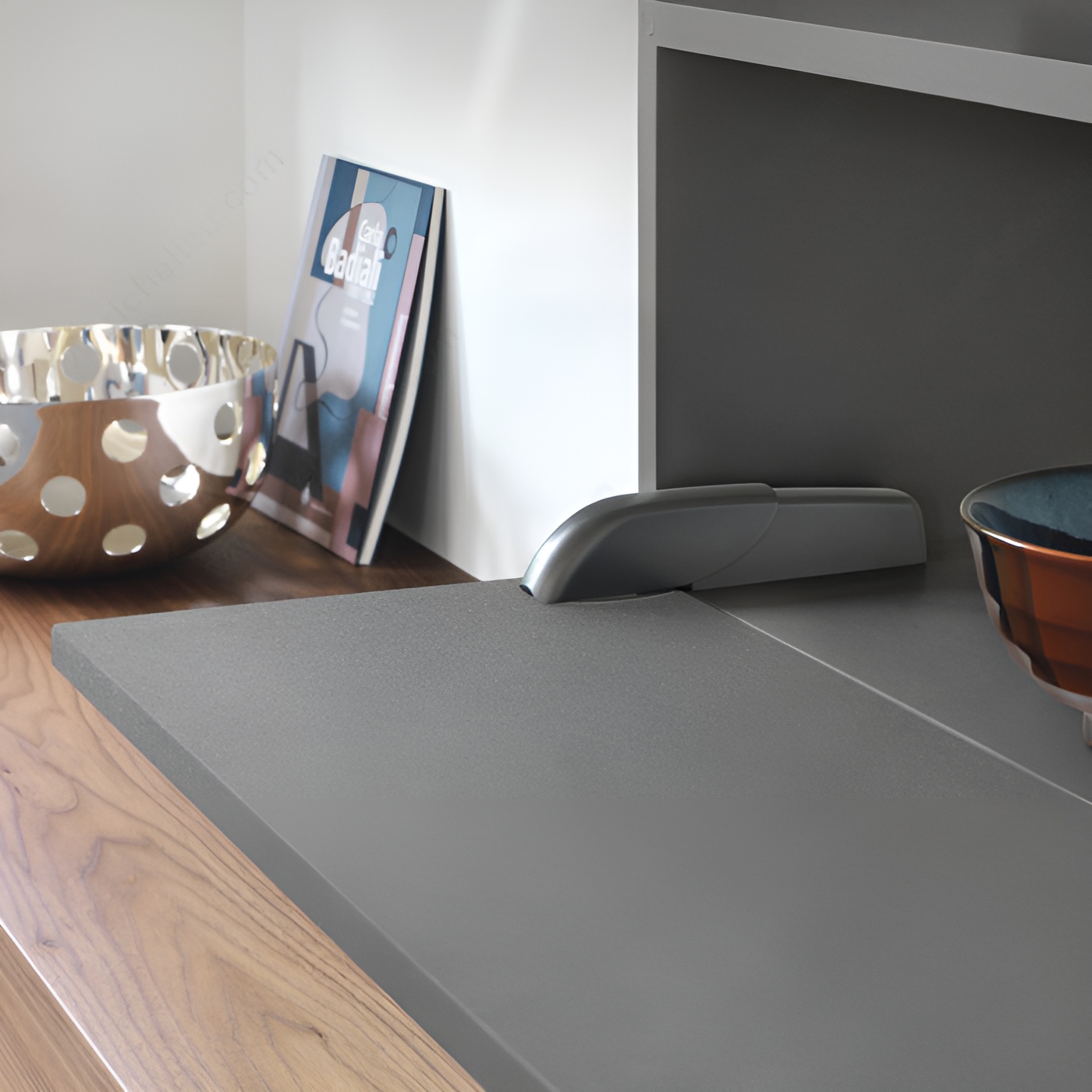

Richelieu FRBKFEXWSN9 Pacta Drop-Down Door System offers a sophisticated solution for those seeking a reliable and compact hinge for drop-down doors. This innovative system eliminates the need for additional stays or cables, ensuring a clean and sleek appearance. Designed for enhanced functionality, it features a decelerated opening action that allows the door to fall gradually and under controlled conditions, promoting safety and ease of use. When fully open, the door aligns perfectly with the bottom panel, creating a uniform and flat surface that enhances the overall aesthetic. The system includes two types of hinges: the main hinge for opening and closing, and an optional flap hinge that ensures precise alignment with the bottom panel. The box kit comes complete with two Pacta hinges, two mounting plates, and two Smove screws, providing everything you need for installation. Suitable for wood doors with a height range of 11 to 15¾ inches, this system supports a load capacity of 4.41 to 8.82 pounds. Made from durable steel, it offers robust performance and longevity. Available in various finishes and with a push self-opening option, the Richelieu Pacta Drop-Down Door System is the ideal choice for modern cabinetry and furniture designs.
Pacta Drop-Down Door System
Brand: Salice
Door Height: 280 to 400 mm
Door Type: Wood Door
Hinge Opening Angle: +90°
Load Capacity: 2 to 4 kg
Material: Steel
Model: Original
Motion Technology: Soft-Opening
Opening Types: Drop-Down Opening
Opening Types NEW: Drop-Down Opening
Product #: FRBKFEXWSN9
Product number: FRBKFEXWSN9
Product №: FRBKFEXWSN9
System Type: Pacta
Type of Opening: Drop-Down Opening
Unit: Set
Unit 1: box - 10
Unit 2: box - 10
