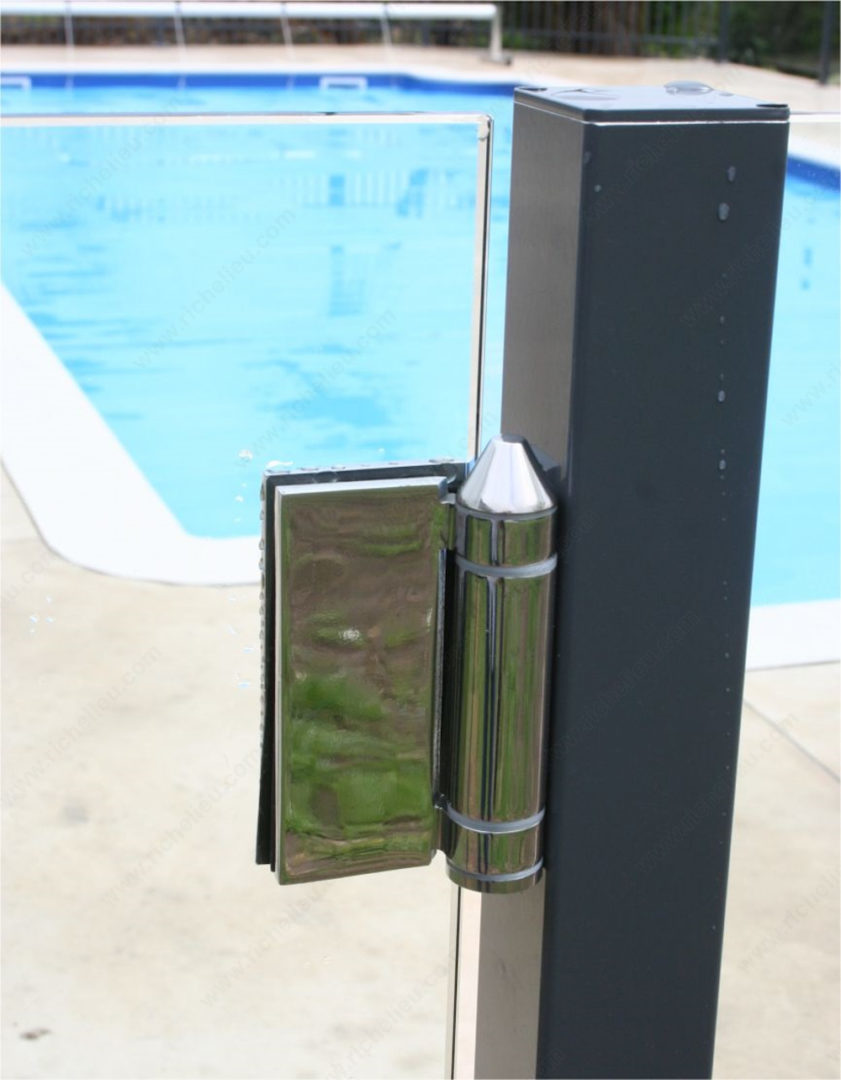

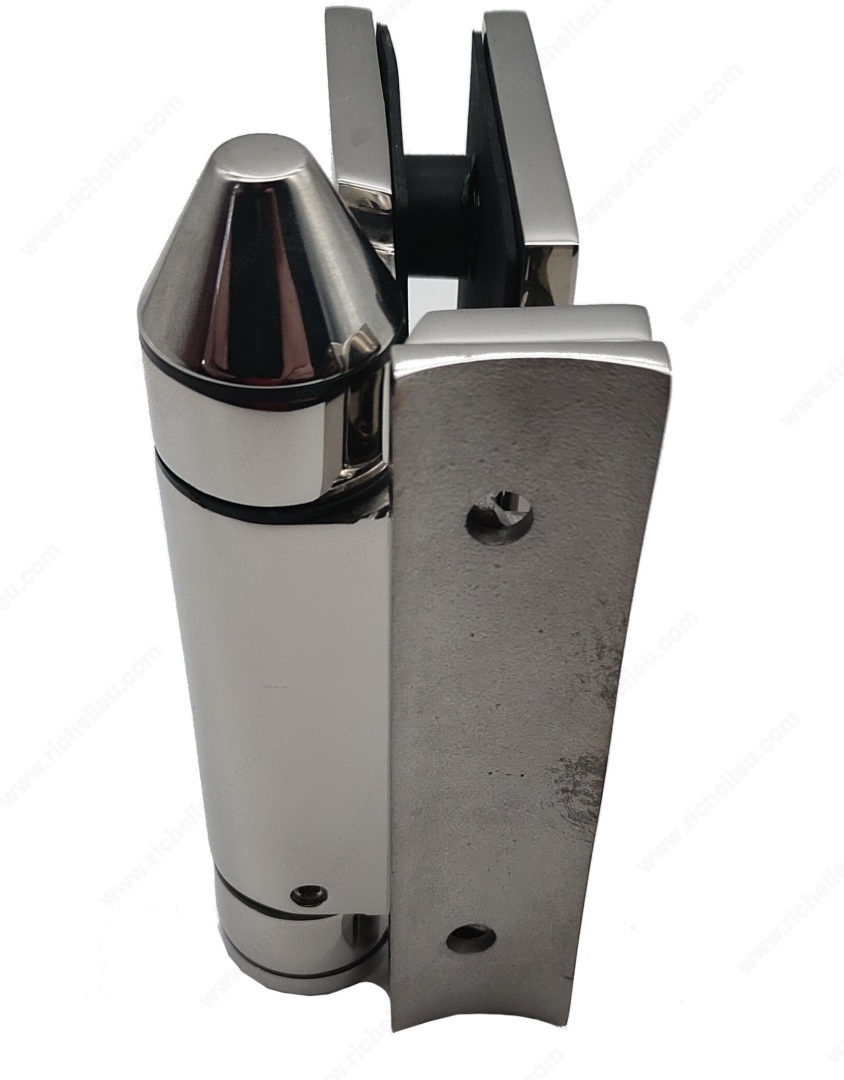

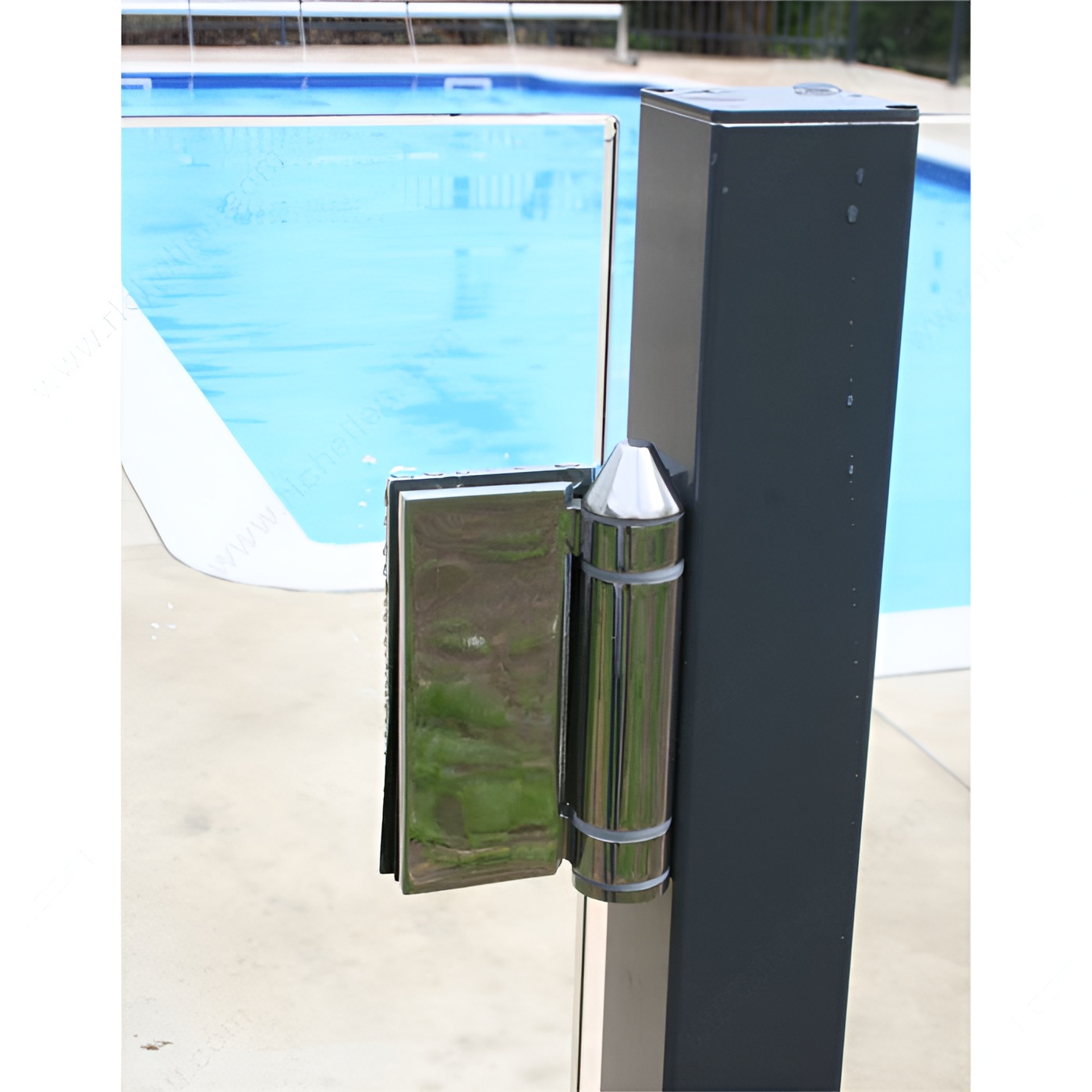

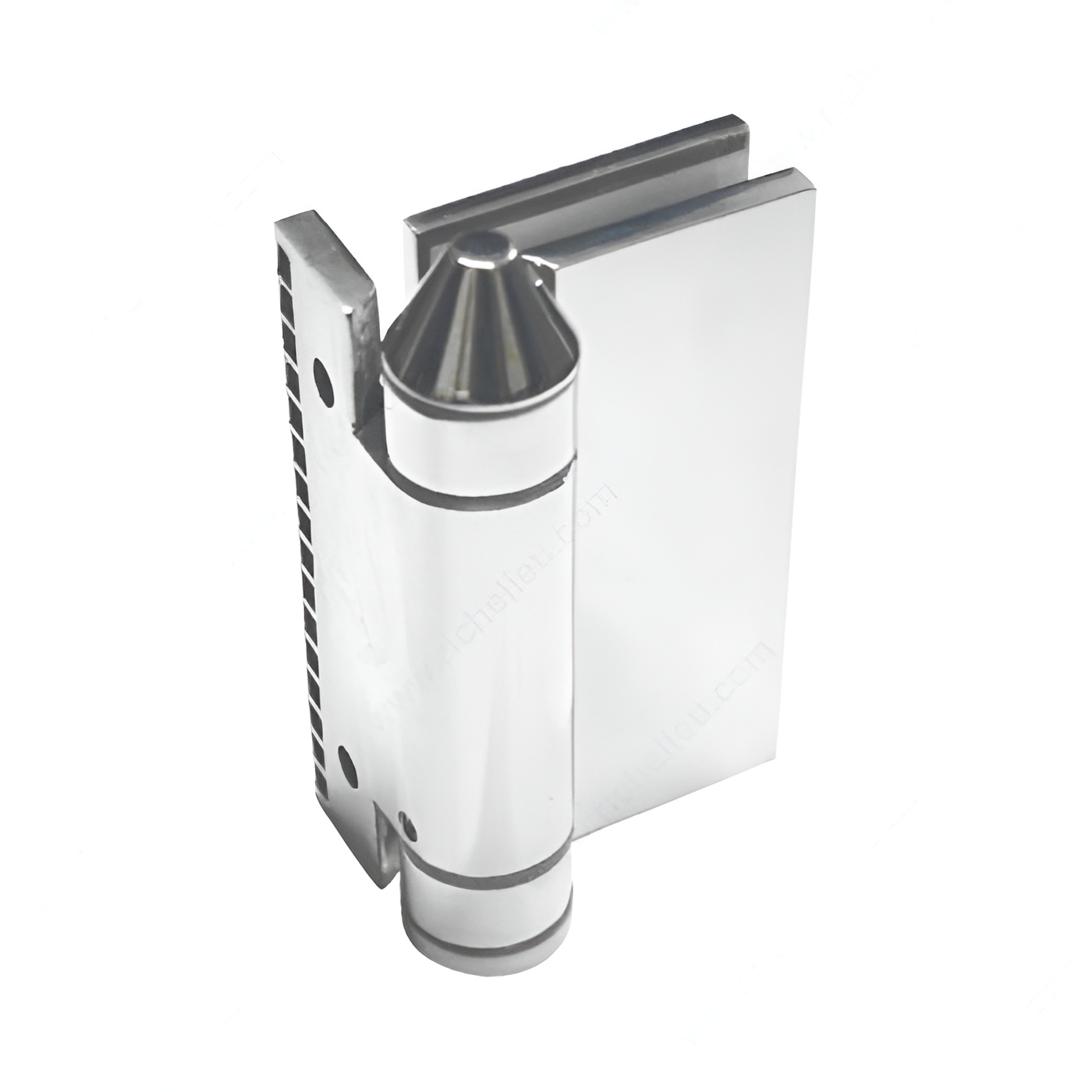

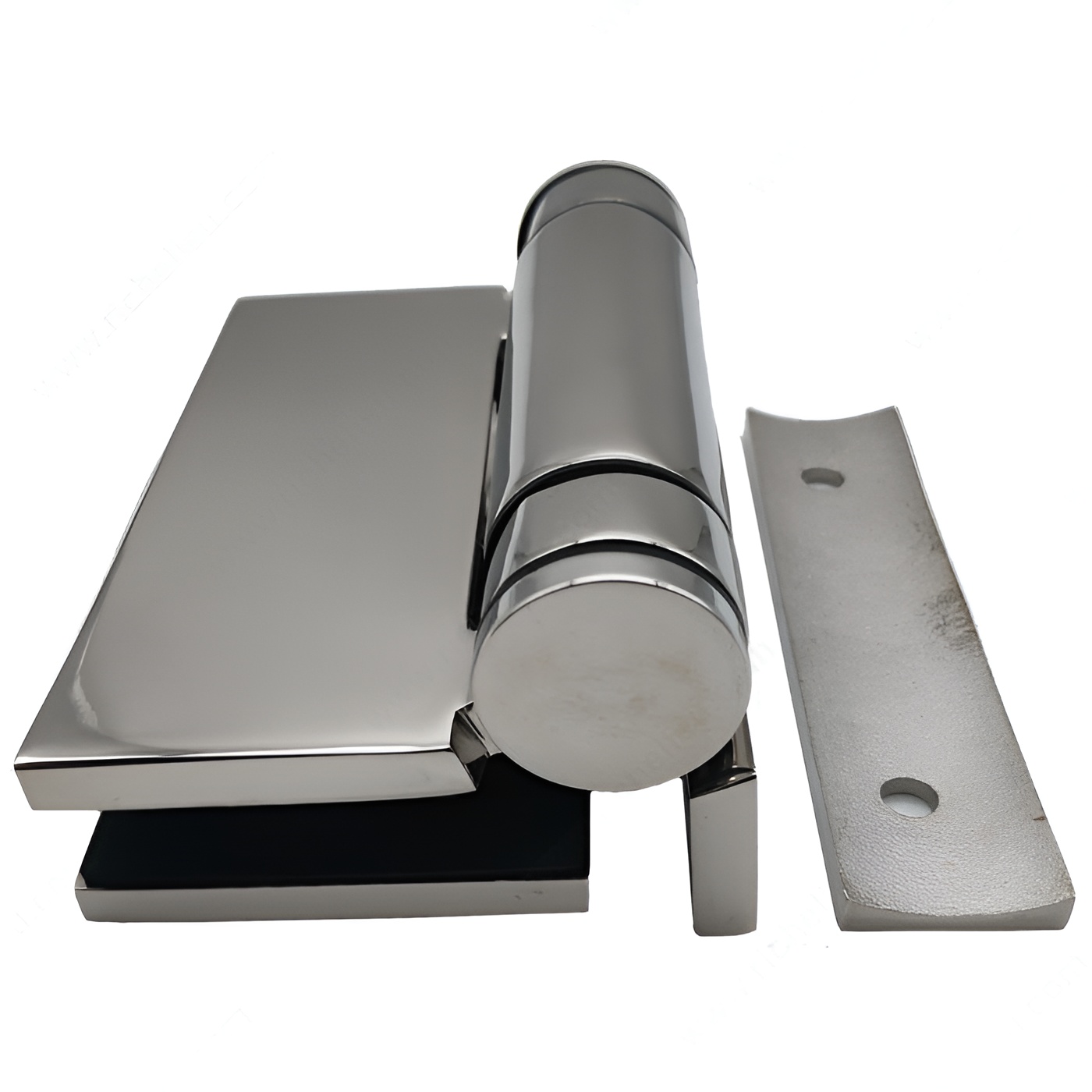

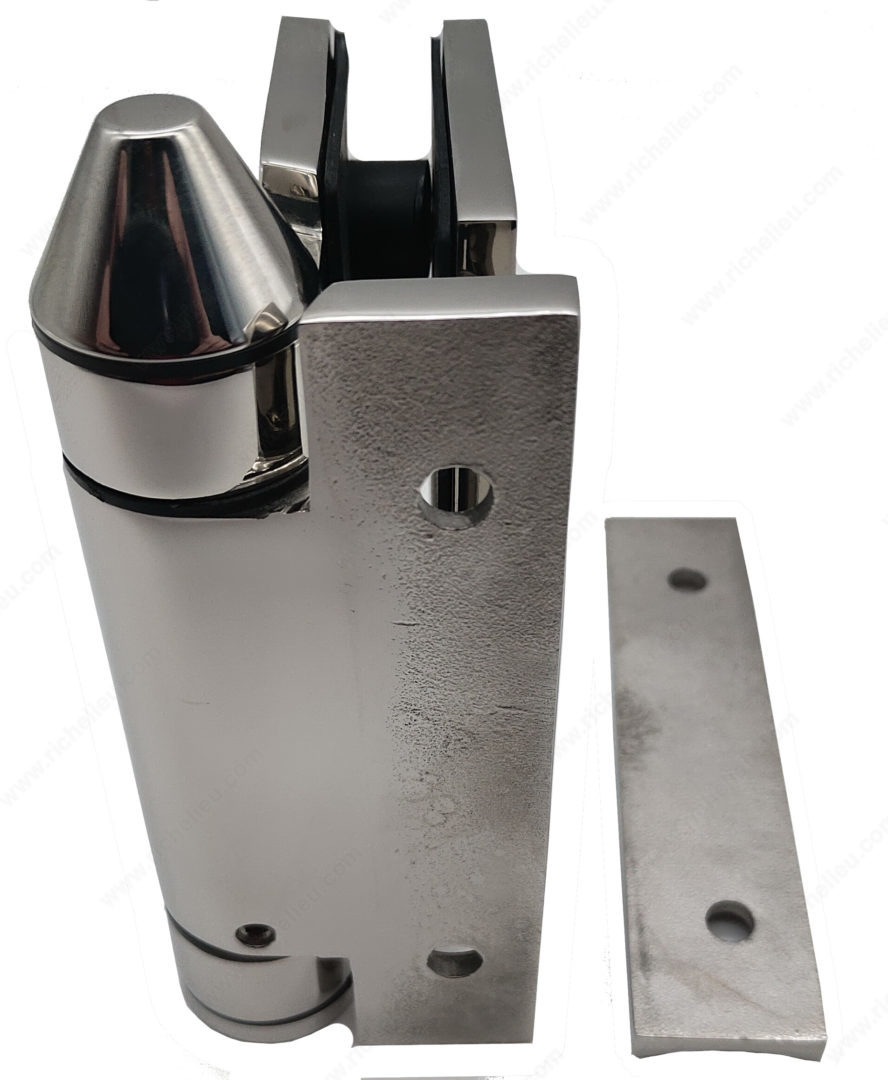

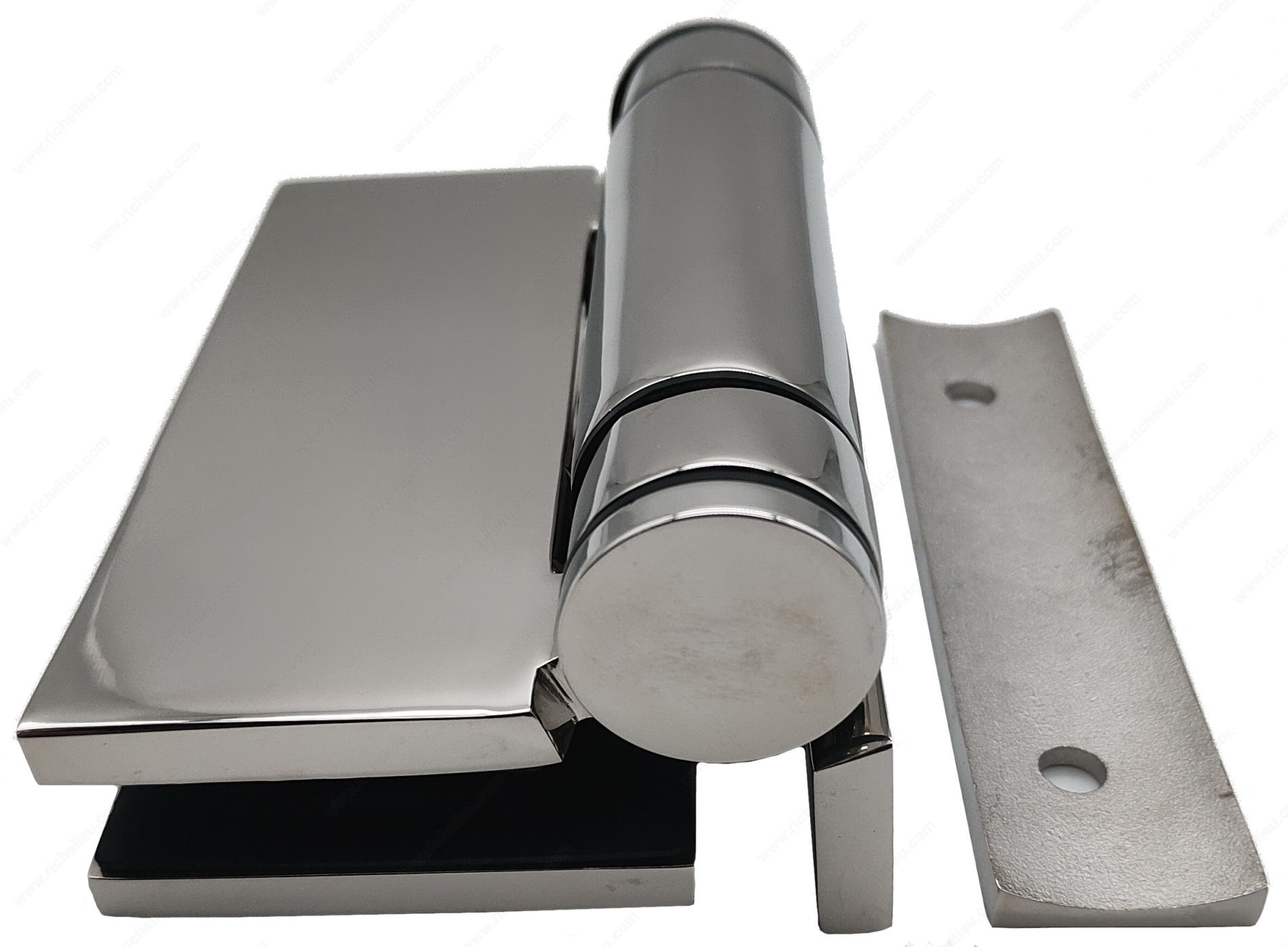

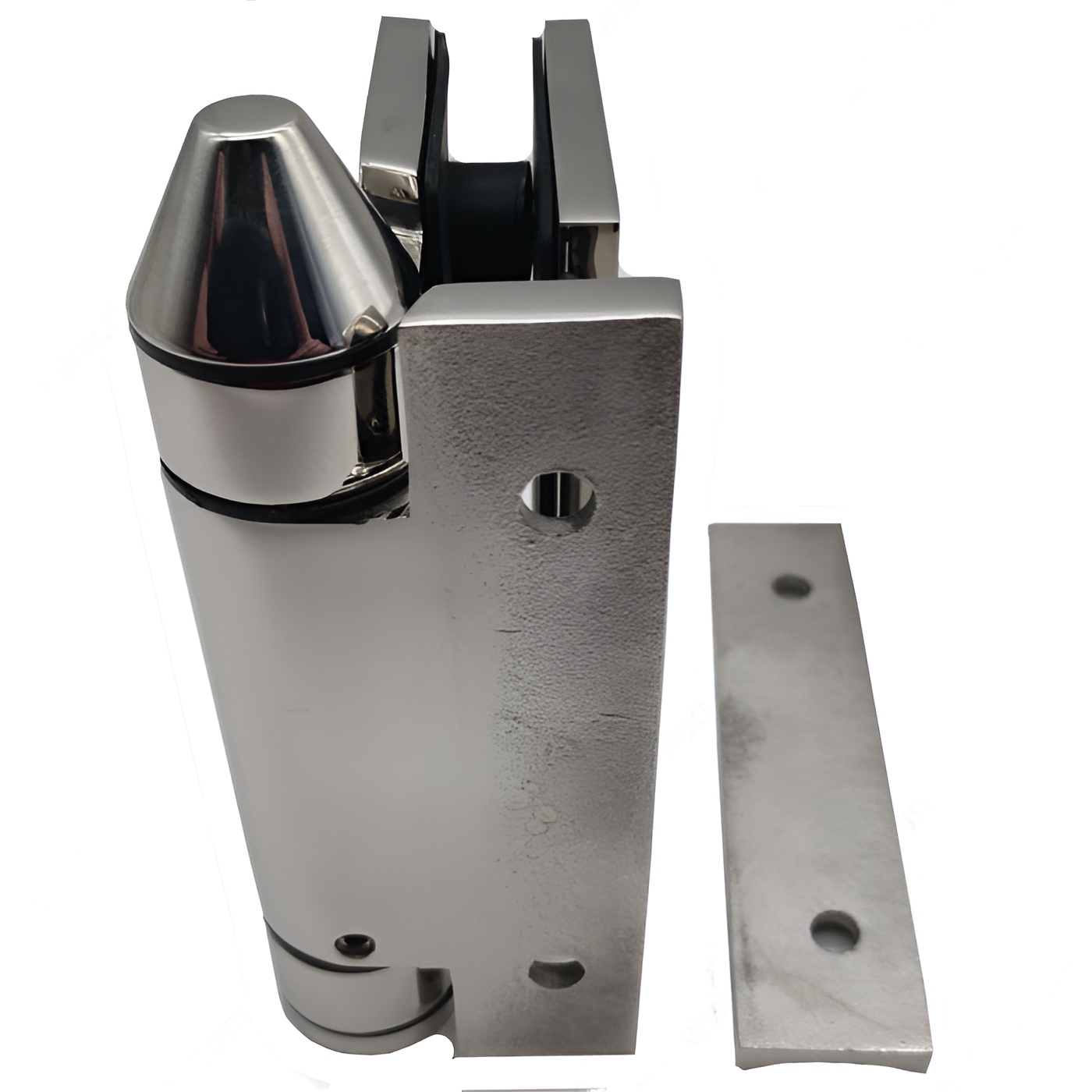

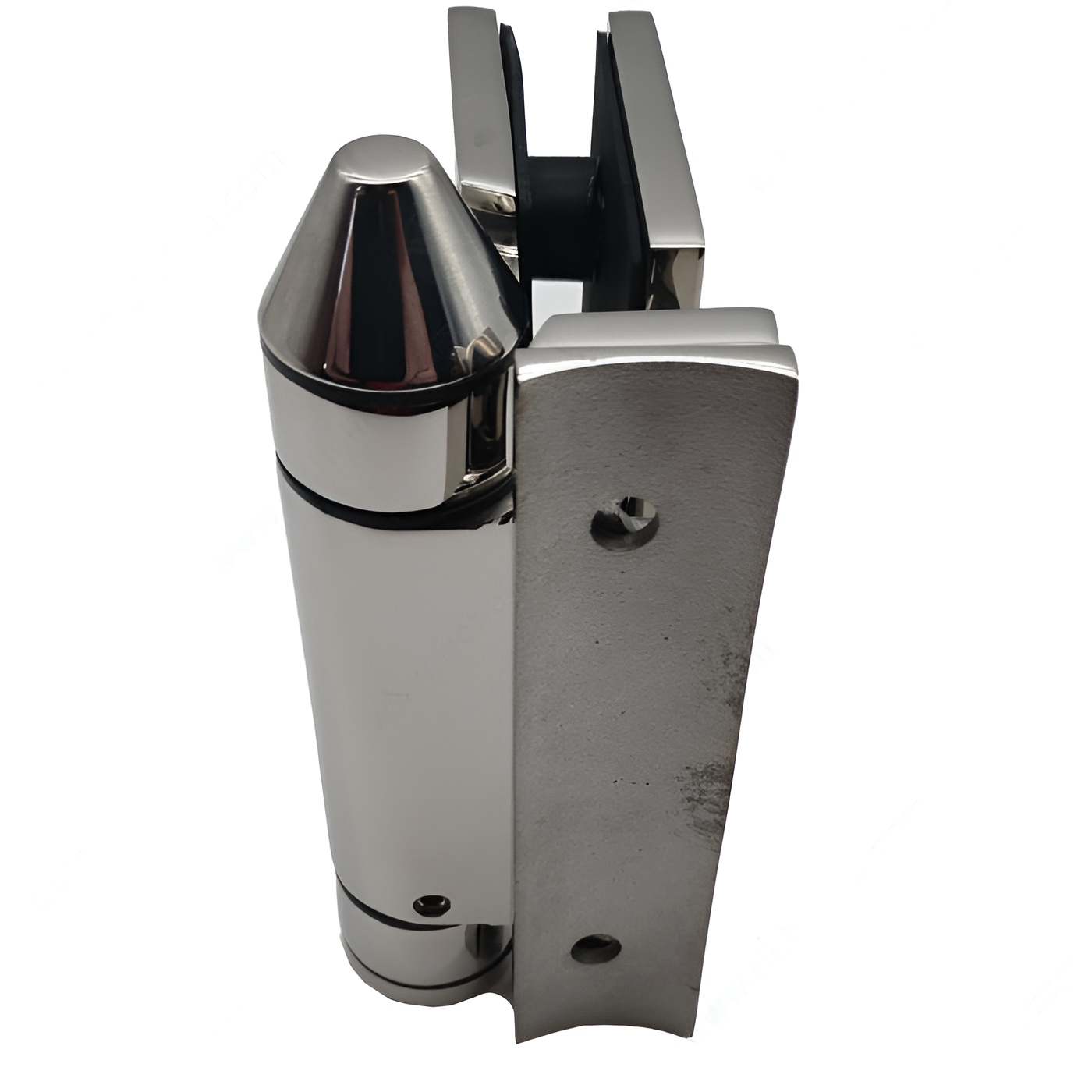

Richelieu PGHSQPG02171 Spring-loaded Adjustable 90 Wall/Post-to-Glass Pool Hinge is expertly designed for versatility in glass balustrade projects. This hinge allows for a smooth outward opening and can be installed on either a round or square post, or directly onto a wall, making it an ideal choice for various applications. With an adjustable tension feature, you can easily modify the hinge's strength by simply removing the coned cap, ensuring optimal performance. Crafted from durable Stainless Steel 316 and finished in polished stainless steel, this hinge not only provides strength but also enhances the aesthetic appeal of your installation. Measuring 4 17/32 inches in height and 2 3/4 inches in length, the hinge accommodates a maximum door width of 39 3/8 inches while supporting a weight capacity of up to 88.2 pounds with just two hinges. It requires glass cutting for installation, specifically for safety glass thicknesses ranging from 13/32 to 15/32 inches. Designed for both interior and exterior use, the Richelieu PGHSQPG02171 hinge is a reliable choice for your next project, ensuring safety and style in every application.
Spring-loaded Adjustable 90 Wall/Post-to-Glass Pool Hinge
Application
Baluster Post Type: Round Tube, Square Tube
Balustrade Post Type: Round Tube, Square Tube
Color/ Finish: Polished Stainless Steel
Finish: Polished Stainless Steel
Glass Drilling: Required
Height: 115 mm
Length: 70 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling C/C: 66 mm
Milling Diameter: 16 mm
Mounting Side: Right Side
Product #: PGHSQPG02171
Product number: PGHSQPG02171
Product №: PGHSQPG02171
Recommended Door Width: Max. 1 000 mm
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 10 to 12 mm
Type of Mounting: Glass-to-Wall / 90°, Glass-to-Post / 90°
Unit 1: case - 20
Weight capacity for 2 hinges: Max. 40 kg
Width: 45 mm
