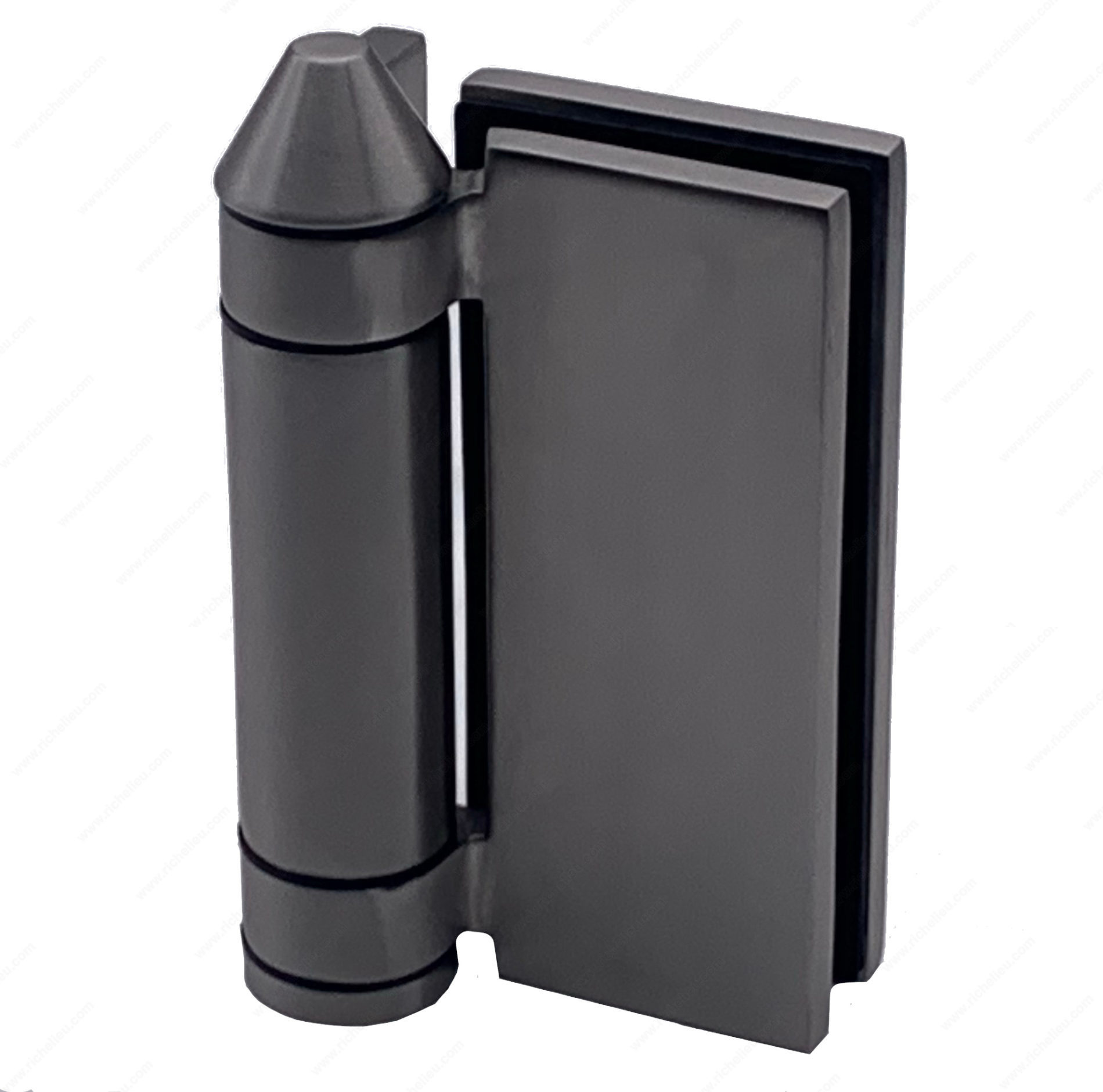

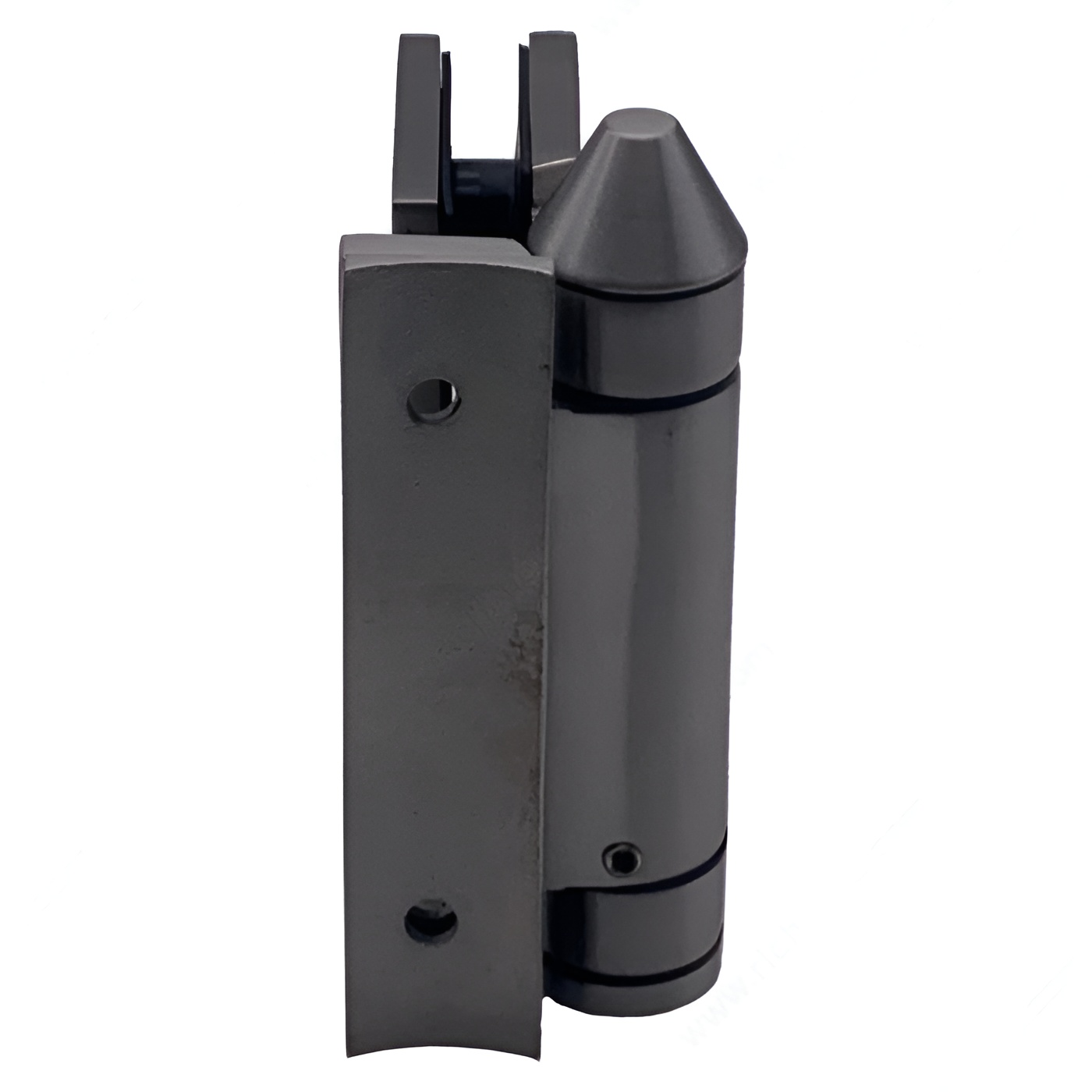

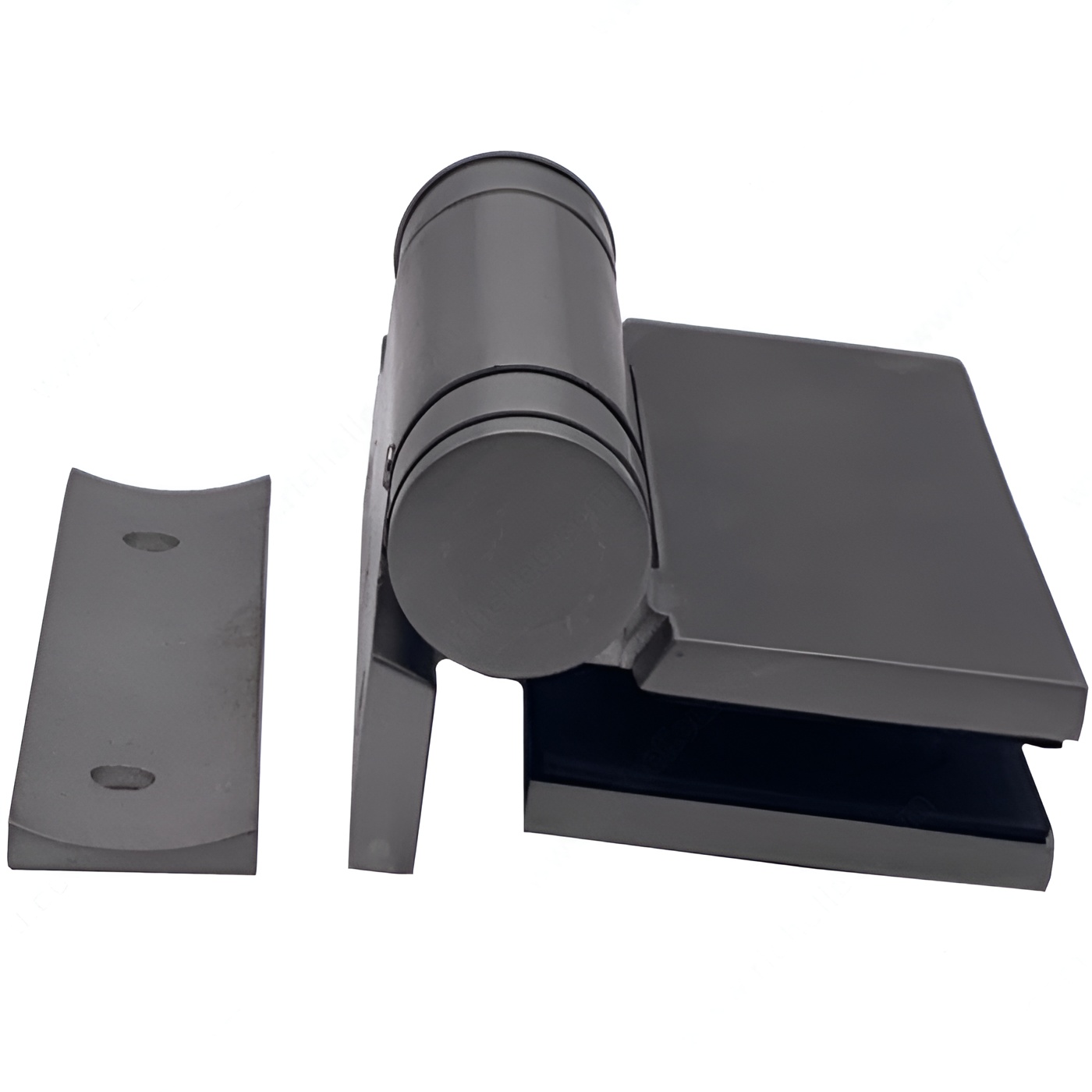

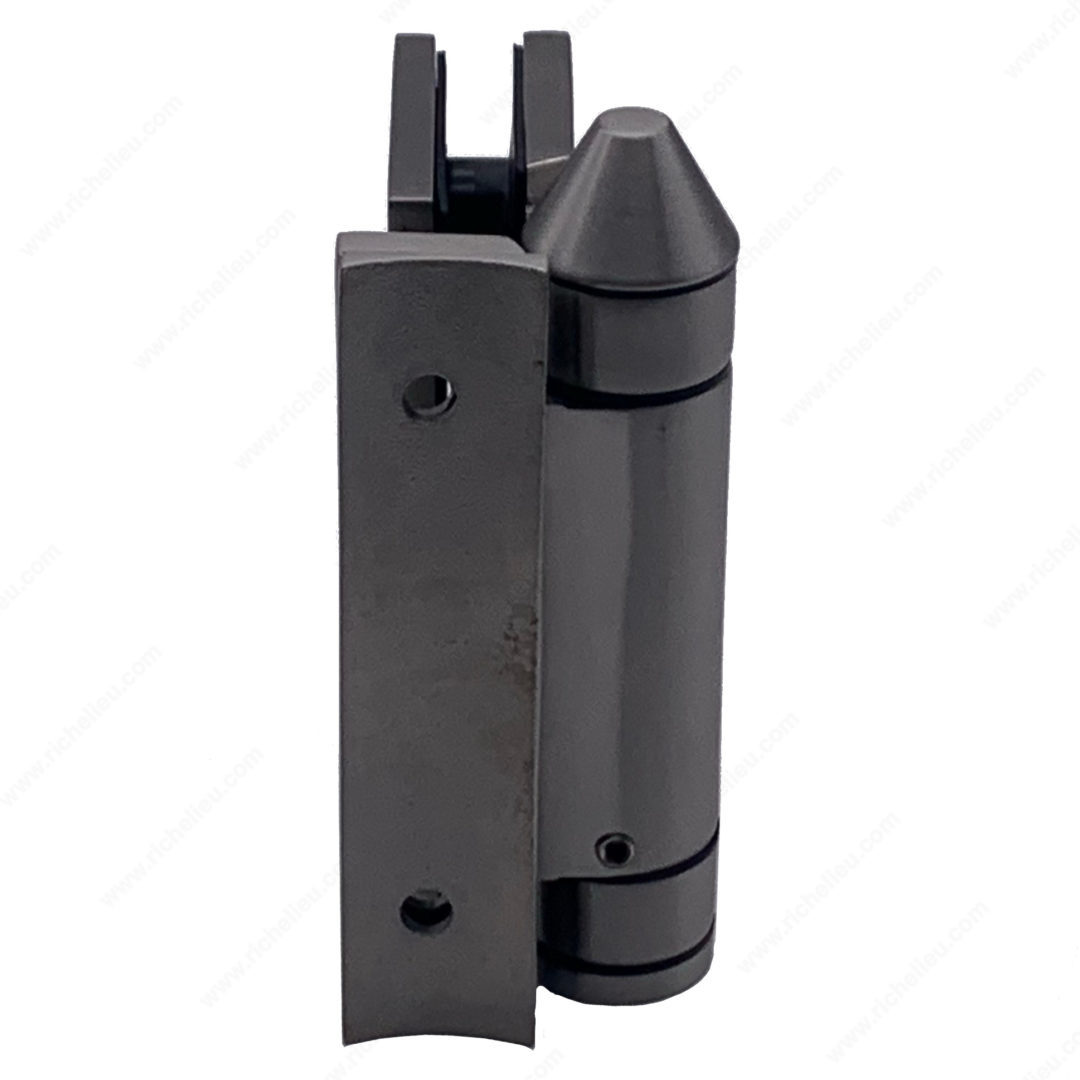

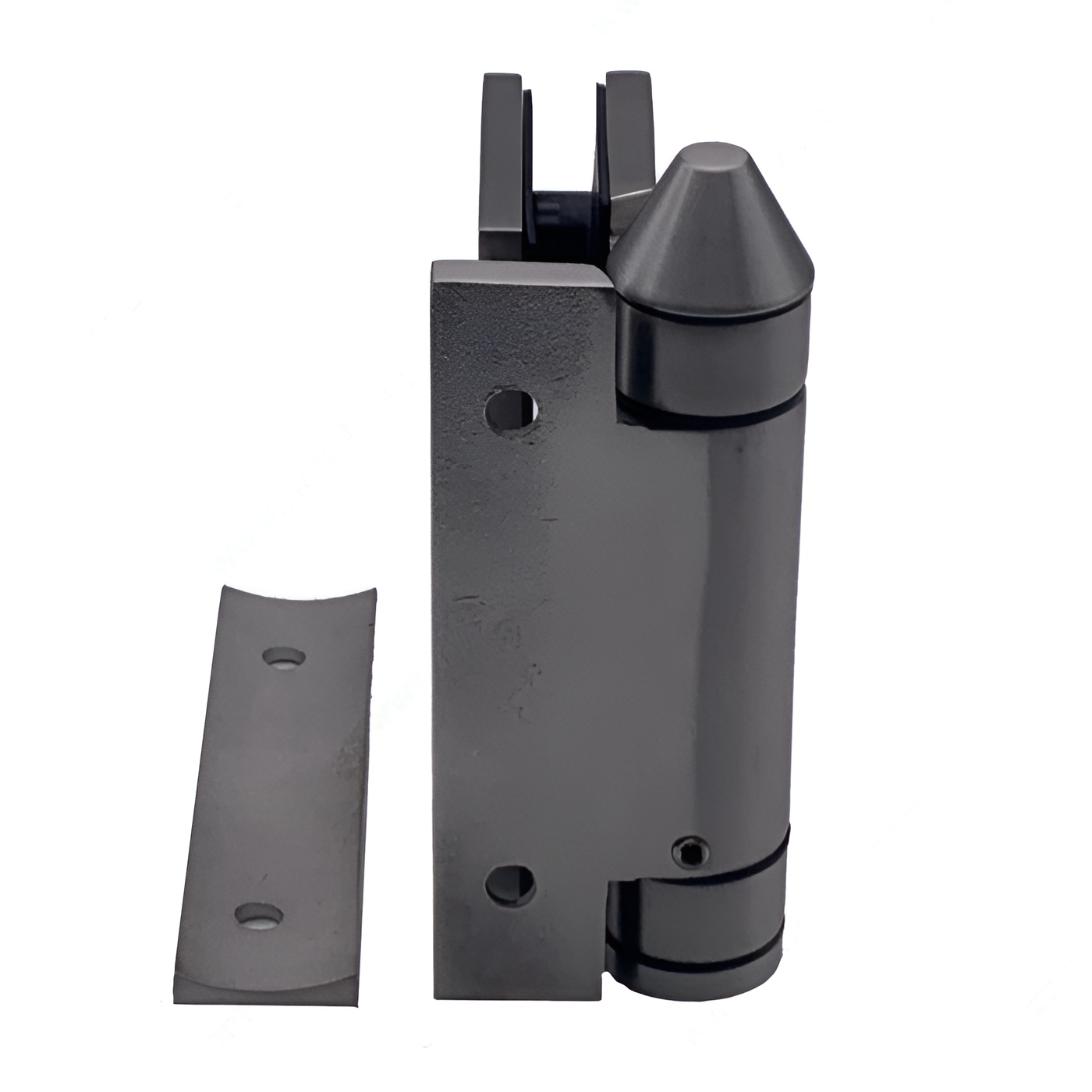

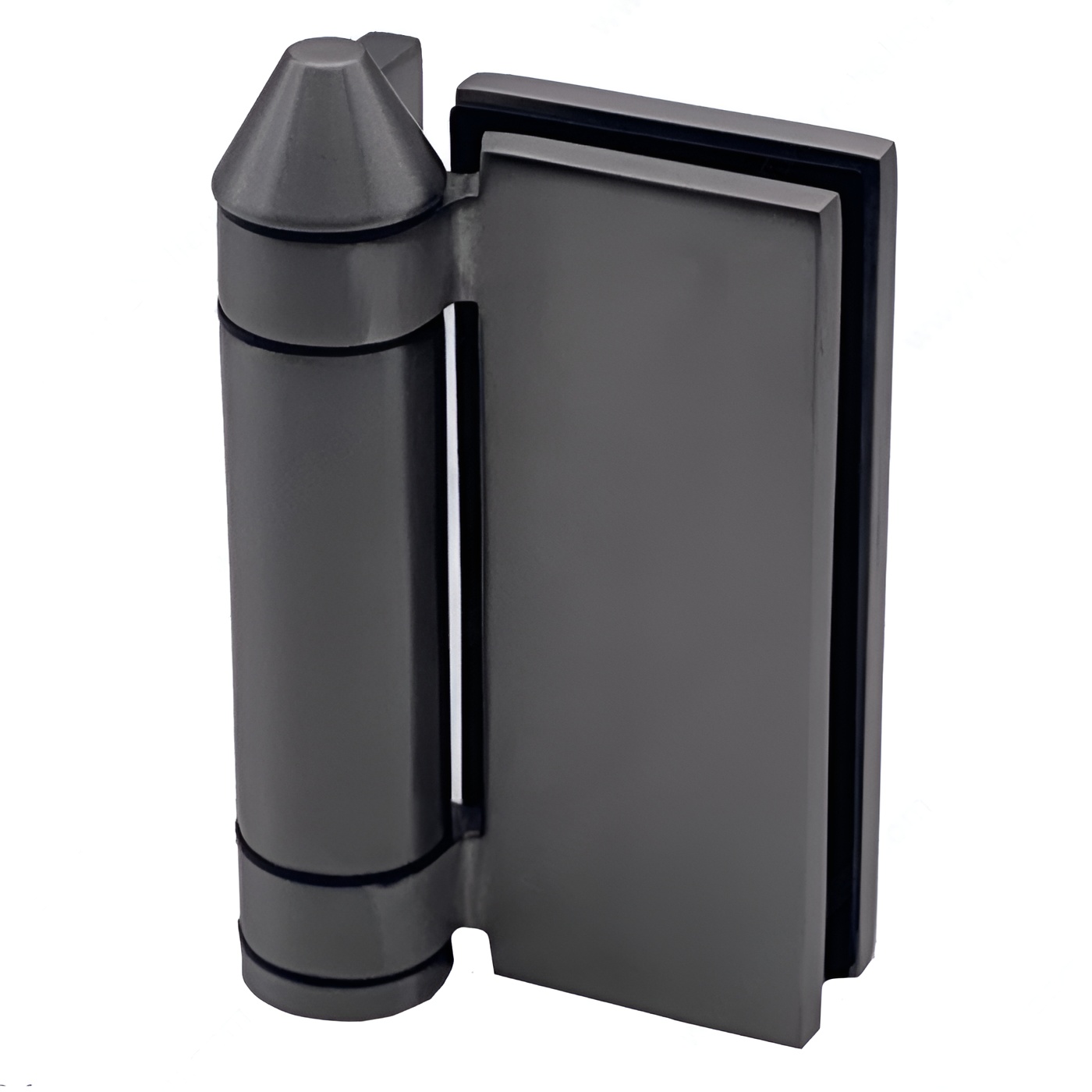

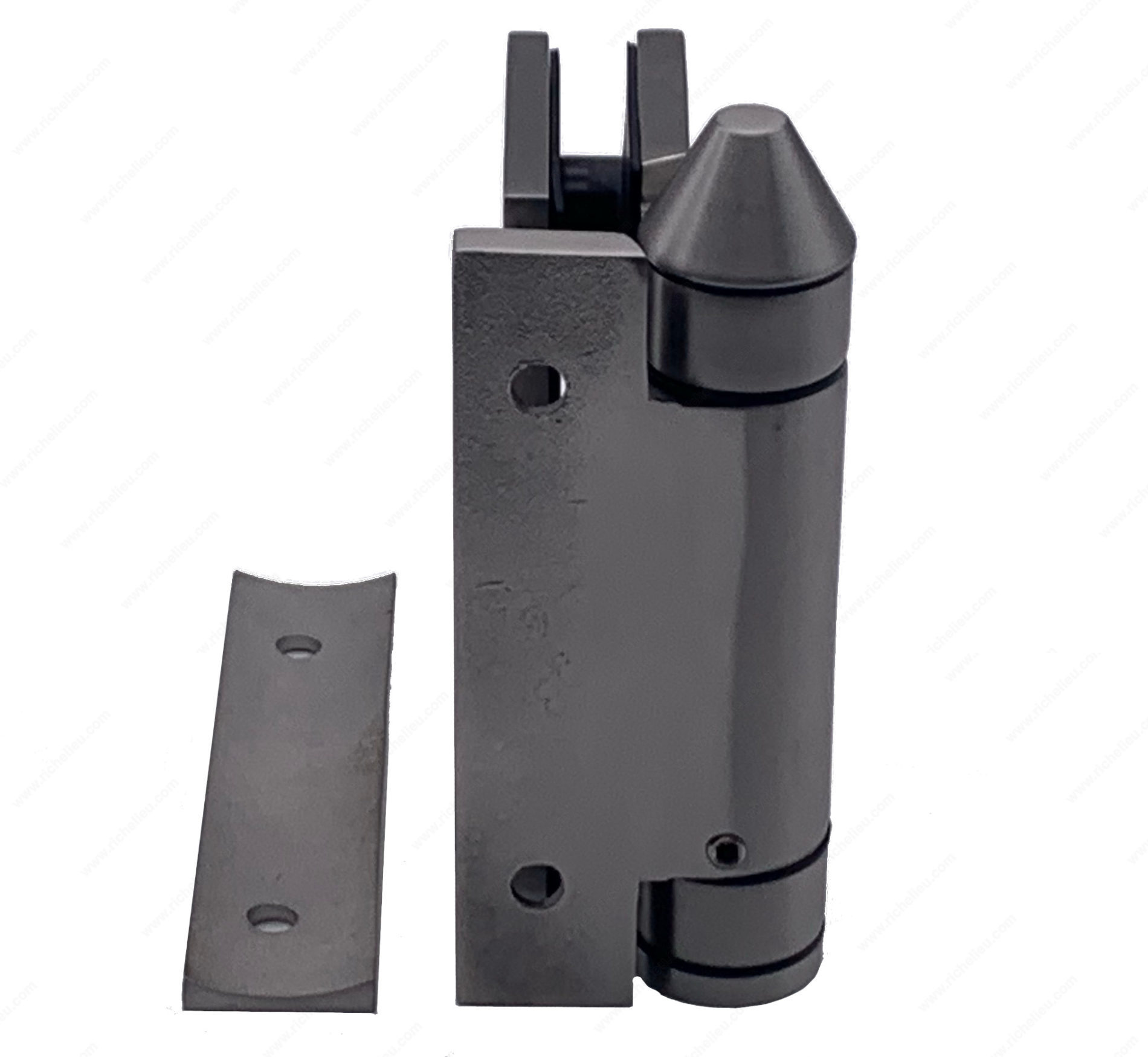

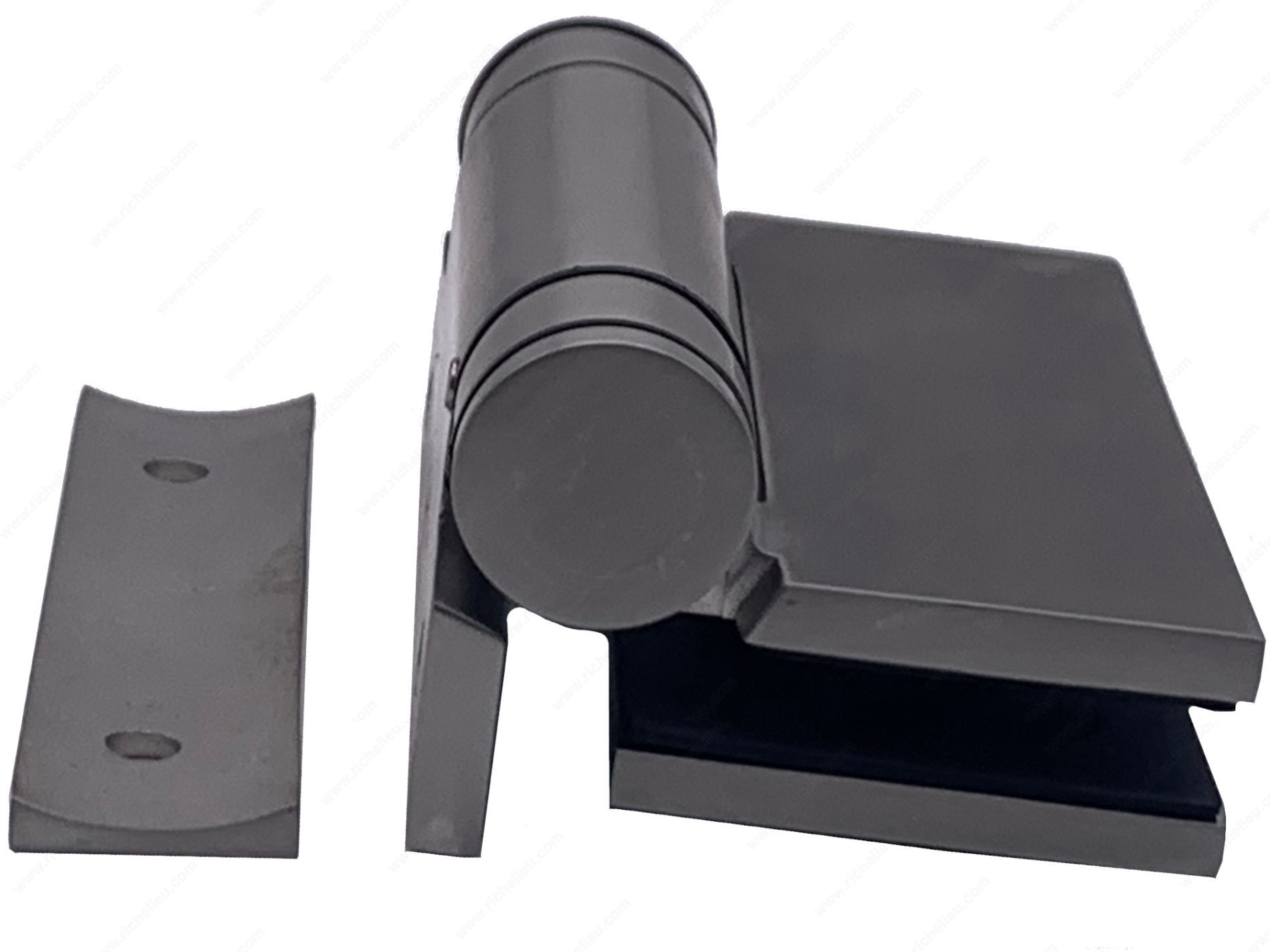

Richelieu PGHSQPG03170 Spring-loaded Adjustable 90 Wall/Post-to-Glass Pool Hinge combines functionality and durability for your glass balustrade projects. This hinge is designed to open outward and can be seamlessly installed on either round or square posts, as well as walls, providing versatility for various applications. Constructed from high-quality Stainless Steel 316, this hinge not only offers a sleek finish but also ensures corrosion resistance, making it suitable for both interior and exterior environments. The adjustable tension feature allows for easy customization; simply remove the coned cap to achieve the desired resistance. This hinge is ideal for glass panels requiring drilling, with a recommended safety glass thickness of 13/32 to 15/32 inches. With a maximum width capacity of 39 3/8 inches for doors and a weight capacity of up to 88.2 lbs for two hinges, this product is robust enough to handle substantial loads. Measuring 4 17/32 inches in height and 2 3/4 inches in length, the hinge boasts a milling diameter of 5/8 inches and a center-to-center distance of 2 19/32 inches, ensuring precise alignment and installation. Elevate your design with the Richelieu PGHSQPG03170 hinge, a reliable choice for any balustrade project.
Spring-loaded Adjustable 90 Wall/Post-to-Glass Pool Hinge
Application
Baluster Post Type: Round Tube, Square Tube
Balustrade Post Type: Round Tube, Square Tube
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Required
Height: 115 mm
Length: 70 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling C/C: 66 mm
Milling Diameter: 16 mm
Mounting Side: Left Side
Product #: PGHSQPG03170
Product number: PGHSQPG03170
Product №: PGHSQPG03170
Recommended Door Width: Max. 1 000 mm
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 10 to 12 mm
Type of Mounting: Glass-to-Wall / 90°, Glass-to-Post / 90°
Unit 1: case - 20
Weight capacity for 2 hinges: Max. 40 kg
Width: 45 mm
