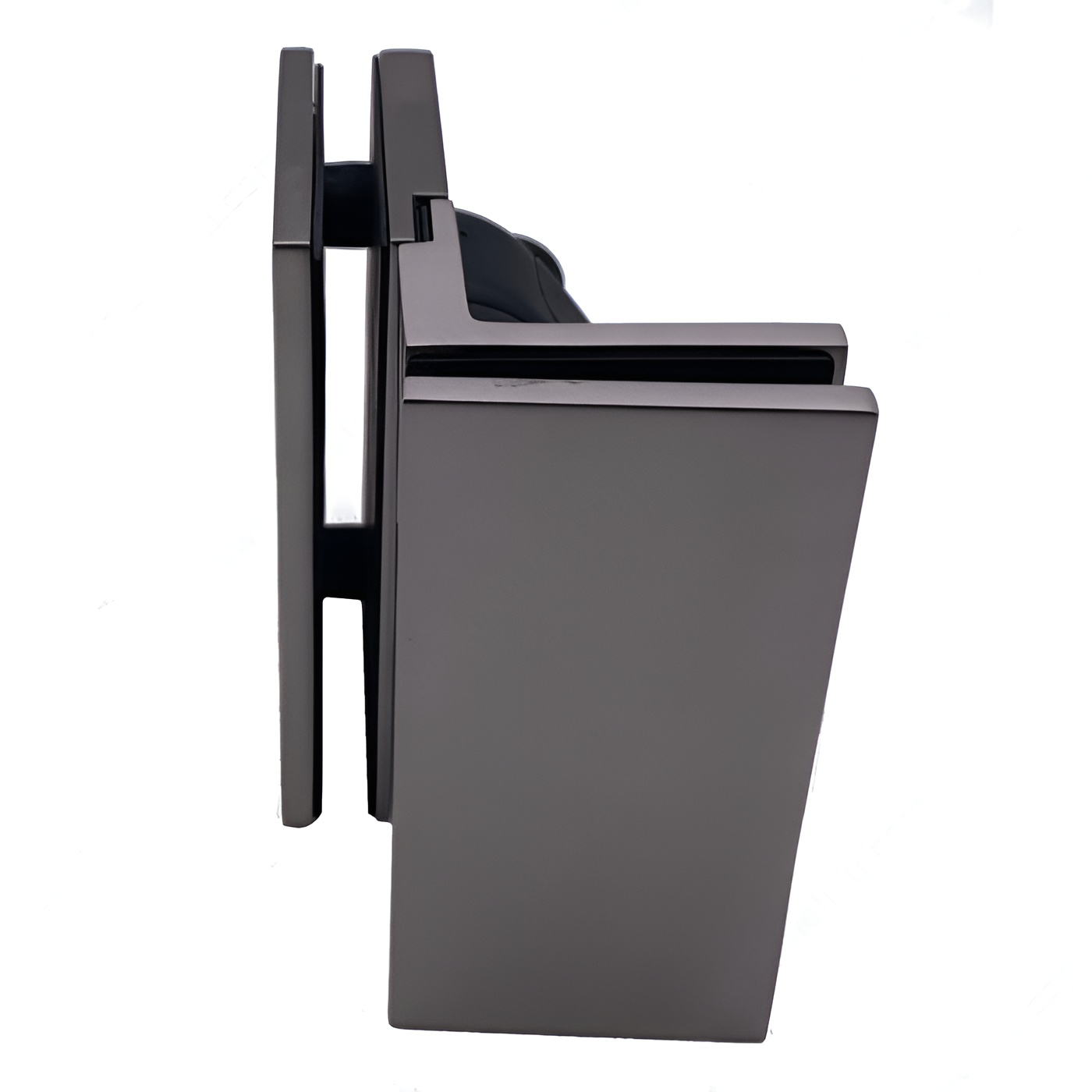

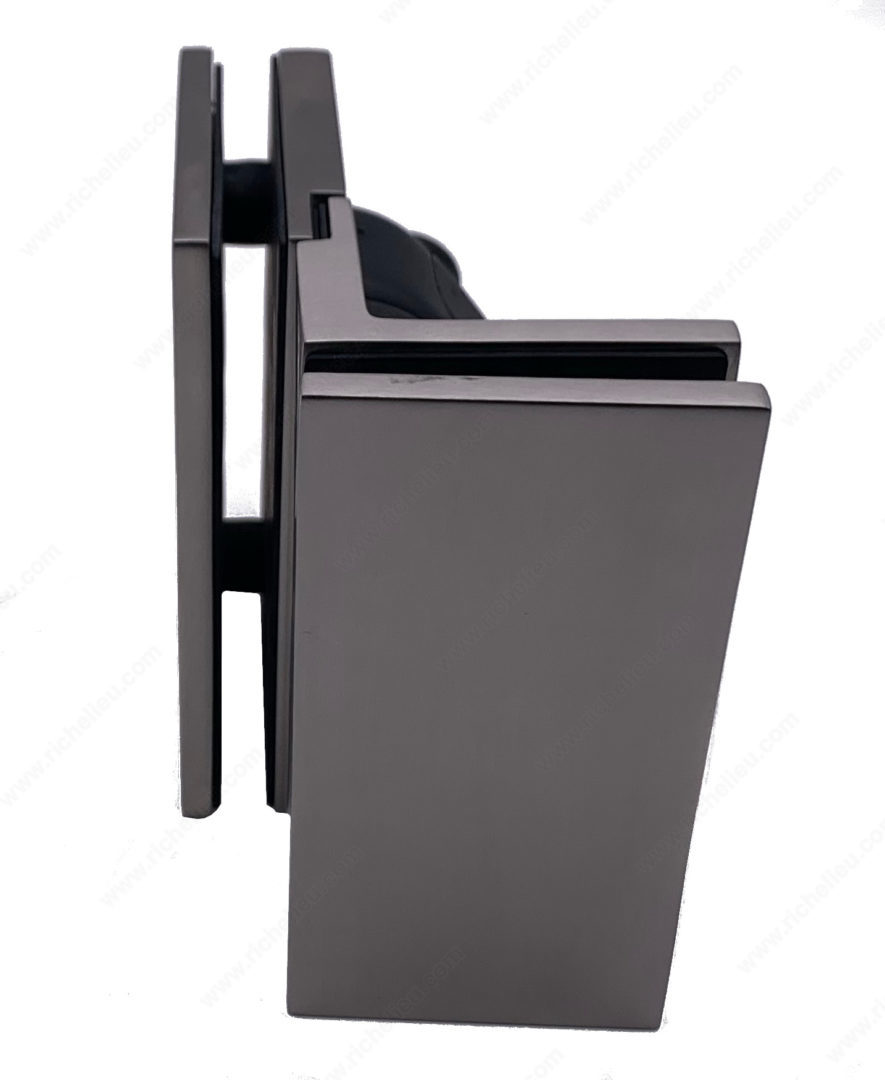

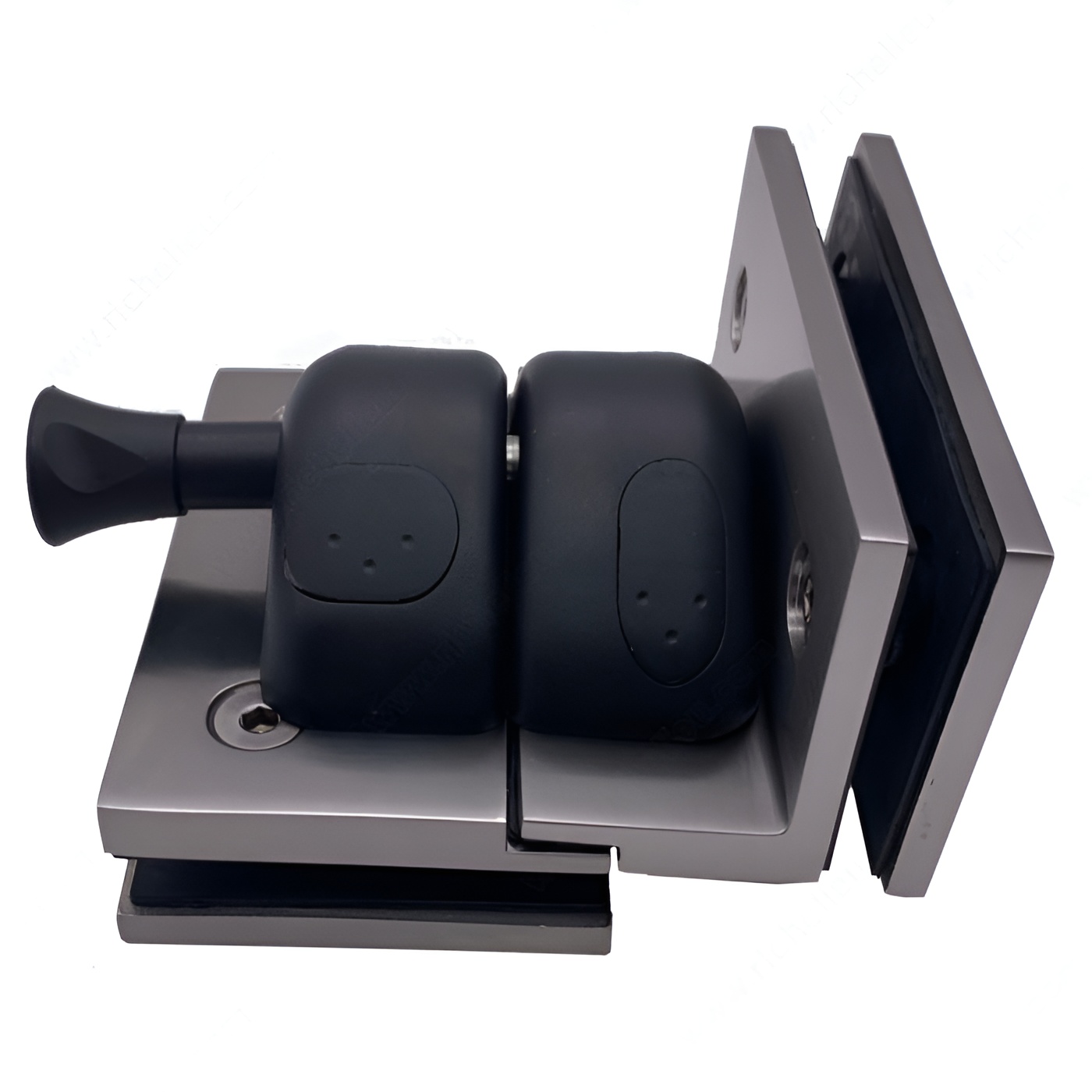

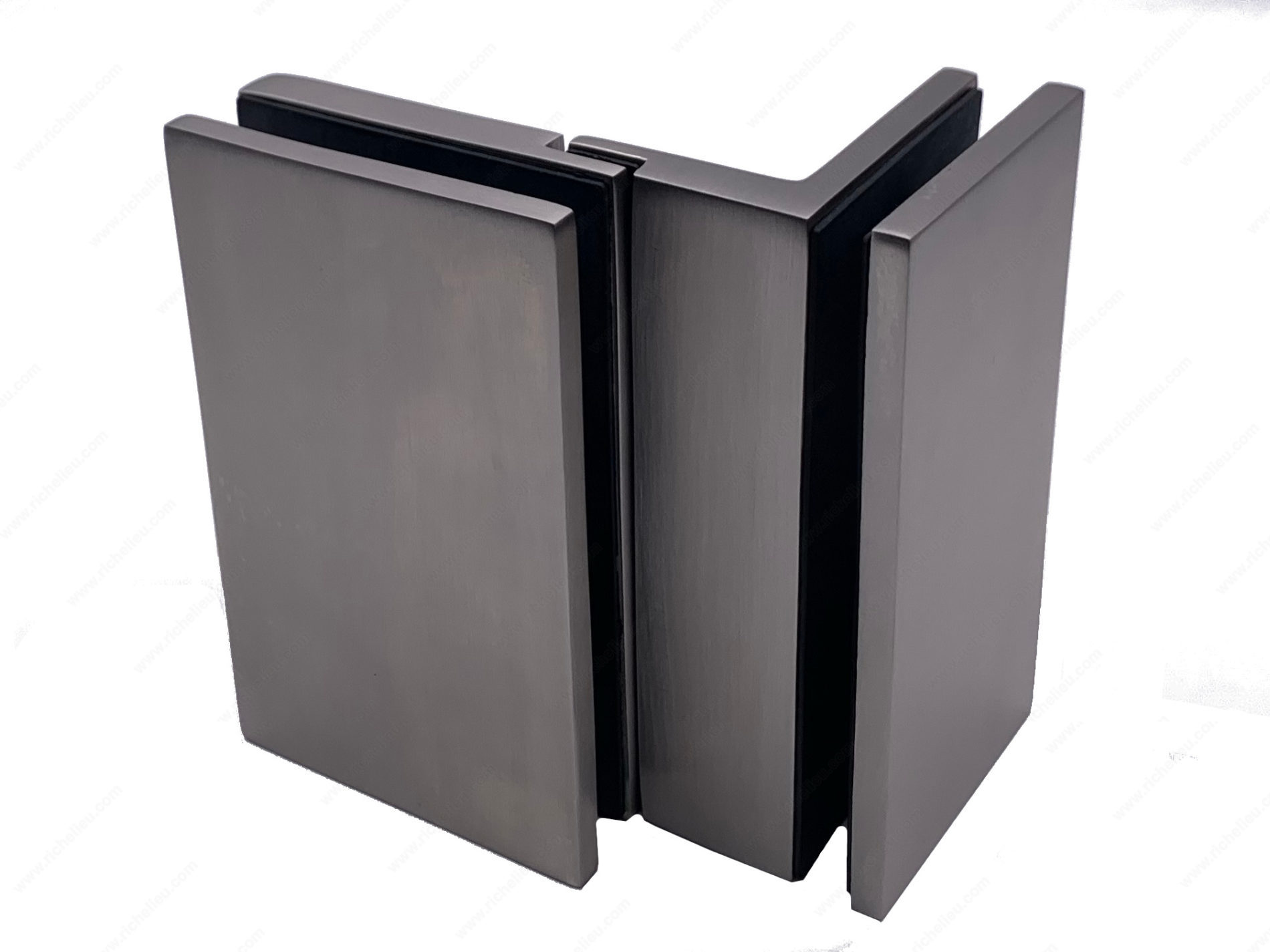

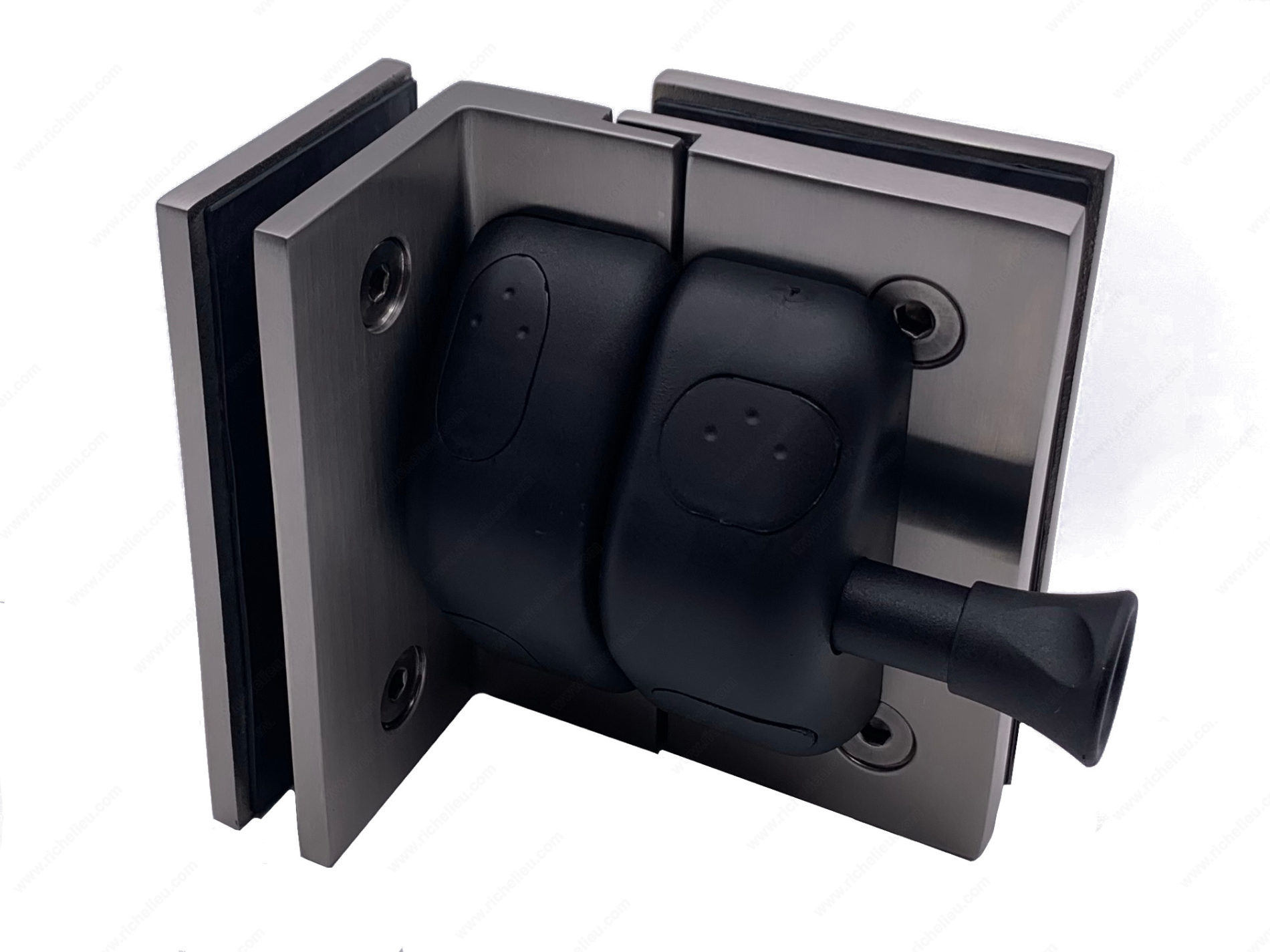

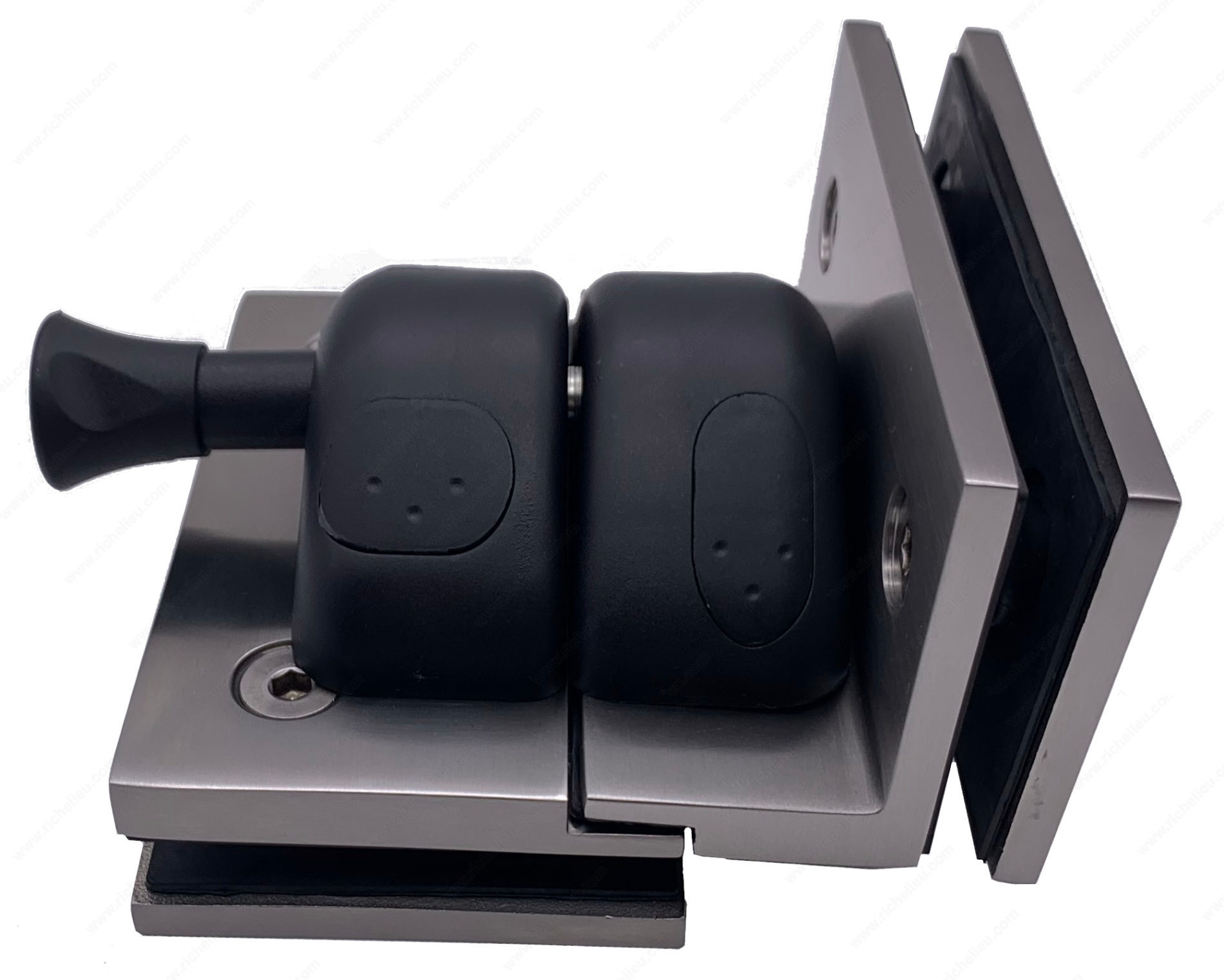

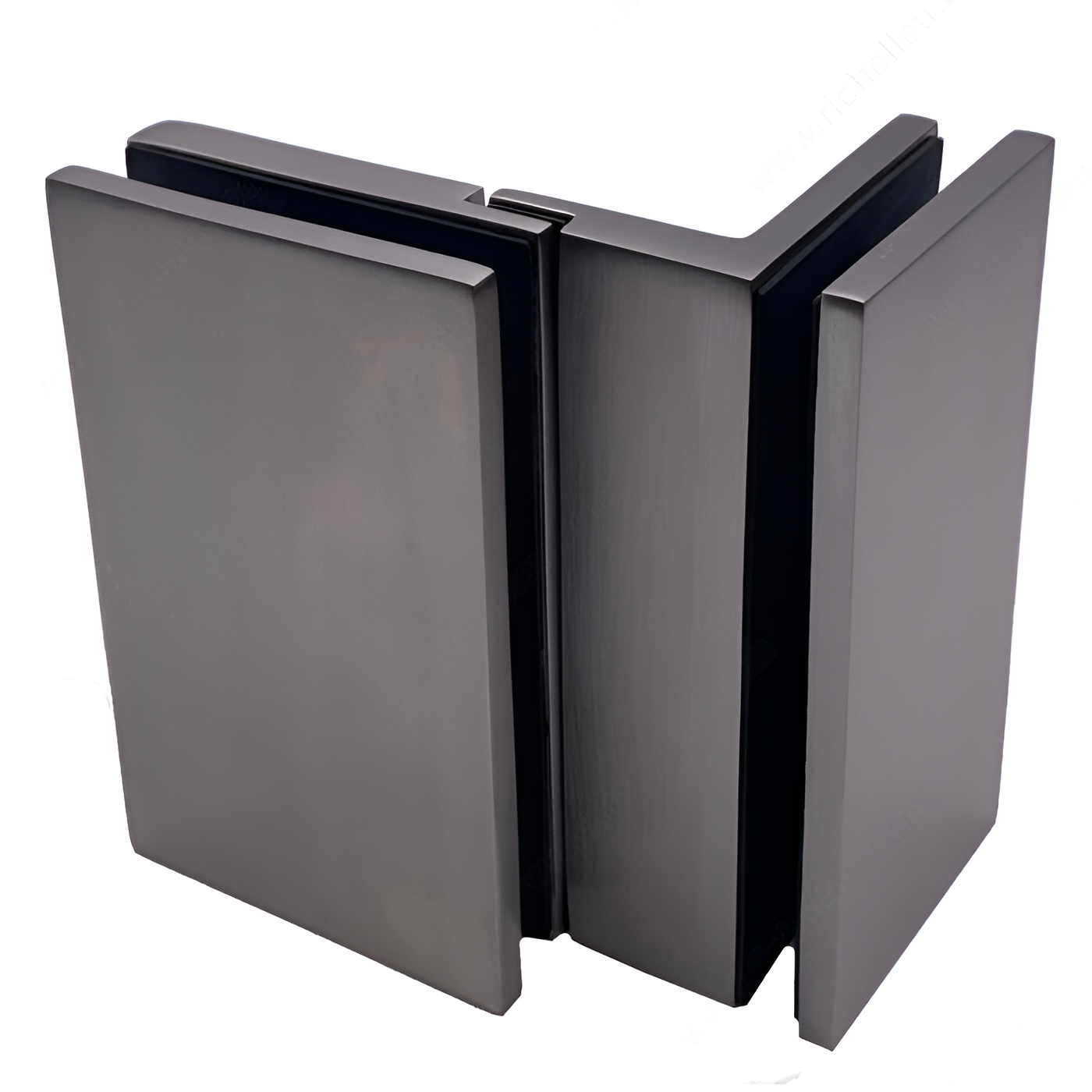

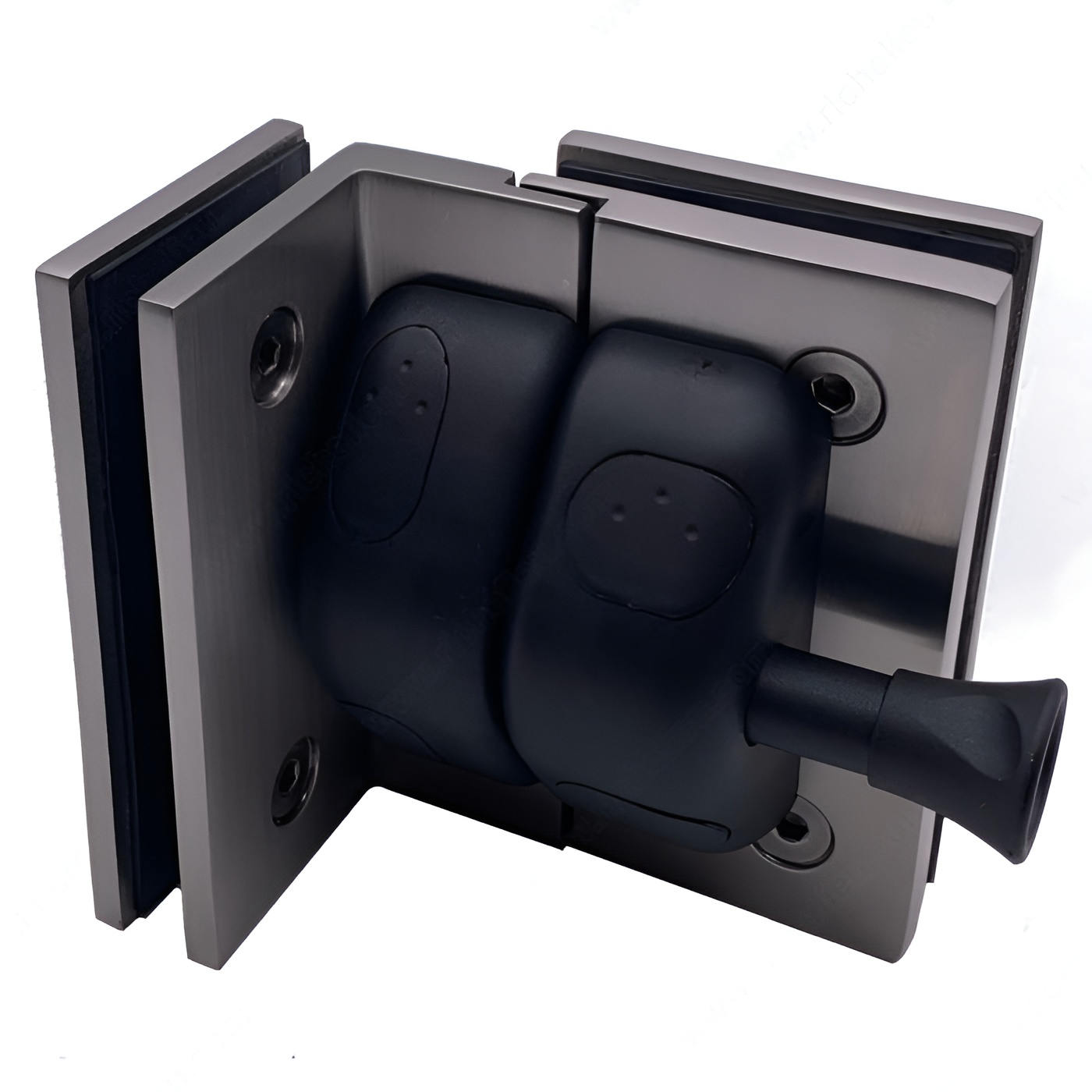

Richelieu PGLGG090170 90 Glass-to-Glass Pool Gate Latch offers a seamless solution for securing glass doors in pool areas. Engineered specifically for glass railing projects, this latch is designed to connect two glass panels perpendicularly, providing a sleek, modern aesthetic while ensuring safety. The magnetic latch feature enhances security, keeping the glass door securely closed. Constructed from durable Stainless Steel 316, the latch combines strength with corrosion resistance, making it ideal for both interior and exterior applications. The dimensions of the latch are thoughtfully designed, measuring 3 15/16 inches in height and 4 11/32 inches in length, accommodating doors with a maximum width of 39 3/8 inches. For optimal performance, the latch is suitable for safety glass thicknesses ranging from 13/32 to 15/32 inches. Installation requires drilling into the glass panels, and the latch features reversible mounting for added flexibility. The milling specifications include a center-to-center distance of 2 19/32 inches and a milling diameter of 5/8 inches, ensuring a precise fit. With the Richelieu PGLGG090170, you can enhance the functionality and safety of your glass installations while maintaining a sophisticated appearance.
90 Glass-to-Glass Pool Gate Latch
Application
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Required
Height: 100 mm
Length: 110 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling C/C: 66 mm
Milling Diameter: 16 mm
Mounting Side: Reversible
Product #: PGLGG090170
Product Type: Bolt
Product number: PGLGG090170
Product №: PGLGG090170
Recommended Door Width: Max. 1 000 mm
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 10 to 12 mm
Type of Mounting: Glass Panel Mount, Glass-to-Glass / 90°
Unit: Box
Unit 1: case - 20
Unit 2: case - 20
Width: 70 mm
