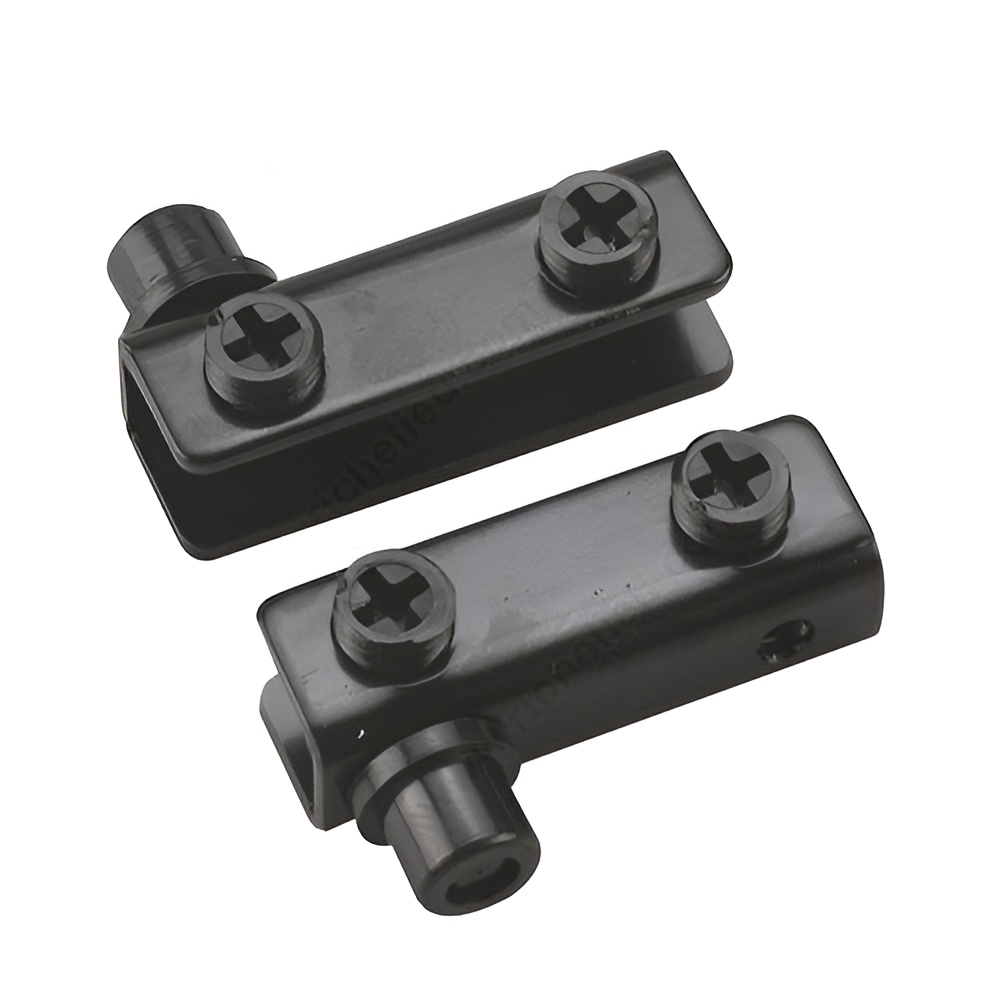

Richelieu 576FBR Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet is designed to offer a sleek, professional solution for mounting glass doors in various furniture configurations. This pivot hinge is crafted from durable steel, ensuring robust performance while maintaining a stylish appearance with its elegant black finish. Measuring 1/2 inch in height, the 576FBR is suitable for glass door thicknesses ranging from 5/32 to 3/16 inches. It supports a maximum load capacity of 5.51 pounds, making it ideal for lightweight glass doors. The hinge dimensions require specific adjustments, with 3/8 inch to be subtracted from the height and 3/32 inch from the width for precise installation. The maximum door height is 31 1/2 inches, while the width should not exceed 19 5/8 inches. This product comes packaged in a convenient blister containing two units, complete with screws for easy installation. Its thoughtful design allows for smooth operation and a clean look, making it an excellent addition to any cabinetry or furniture project. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 576FBR Pivot Hinge is a reliable choice to elevate your interior design.
Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet
Important information
Brand: Onward
Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Black

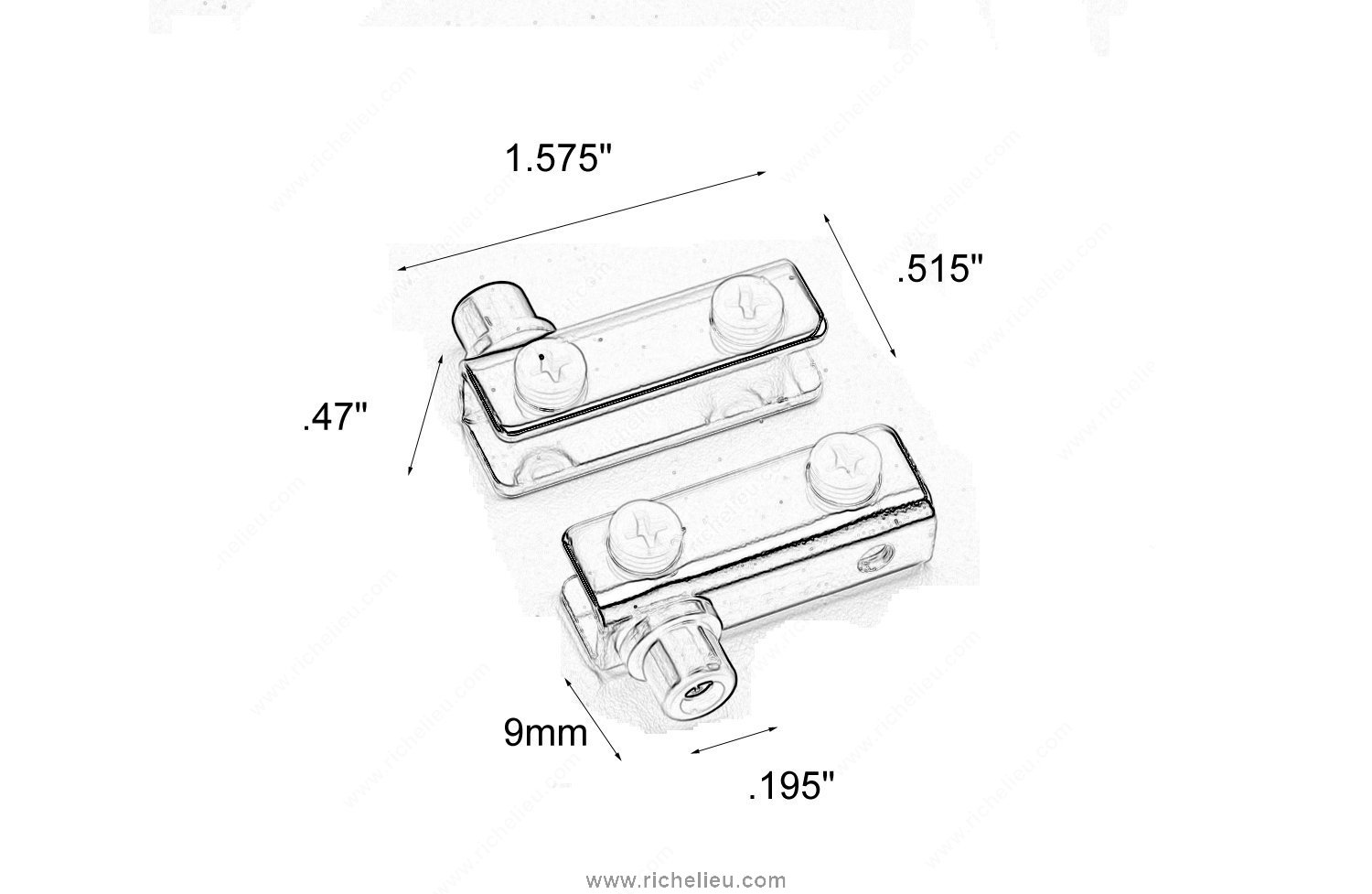

Height: 13 mm
Height of Door to Respect: Max. 800 mm
Length: 40 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Packaging format: Blister of 2 units
Product #: 576FBR
Product number: 576FBR
Product №: 576FBR
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Plastic
Unit: Blister of 2 units
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 100
Width: 12 mm
Width of Door to Respect: Max. 500 mm
