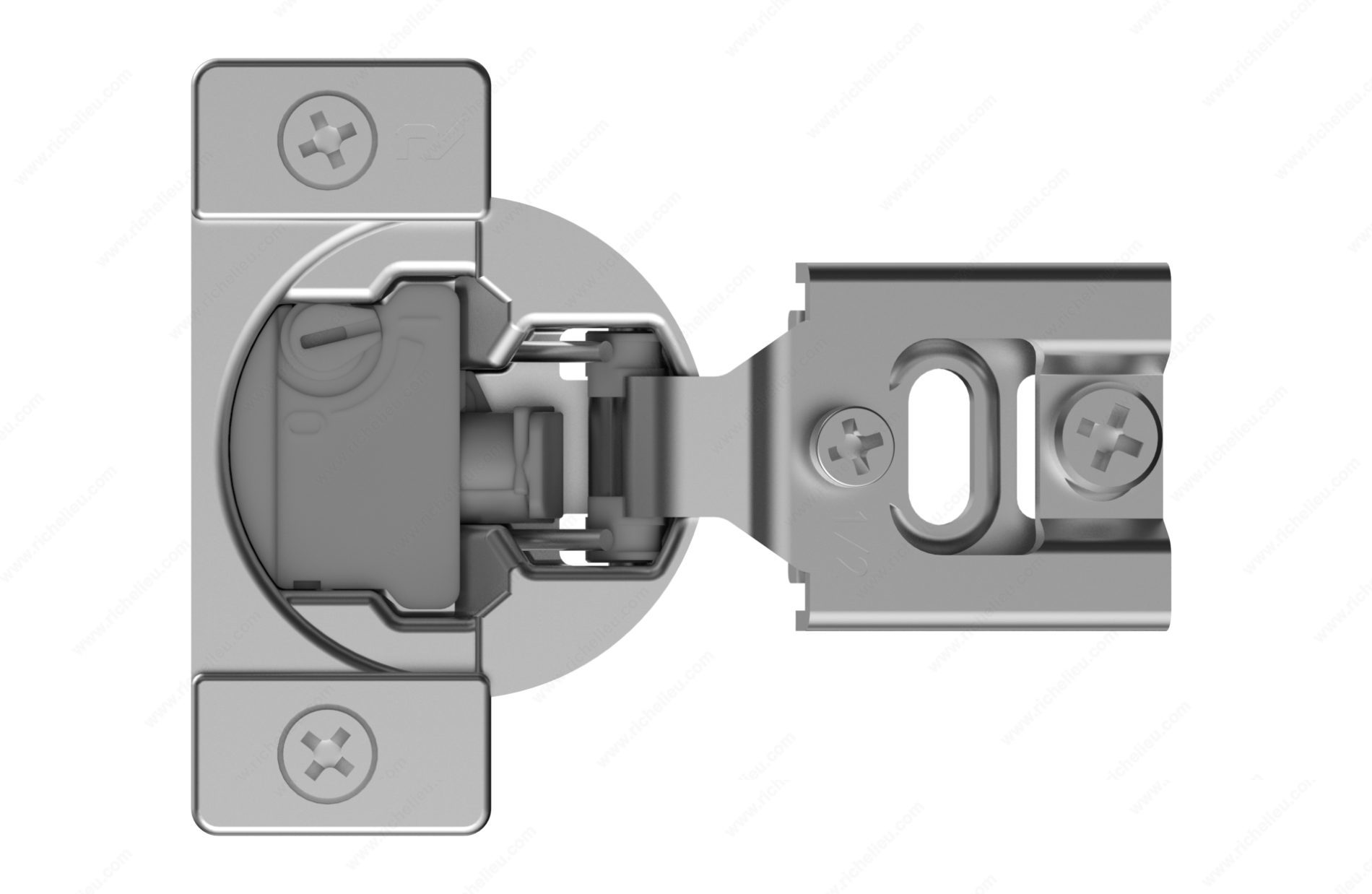

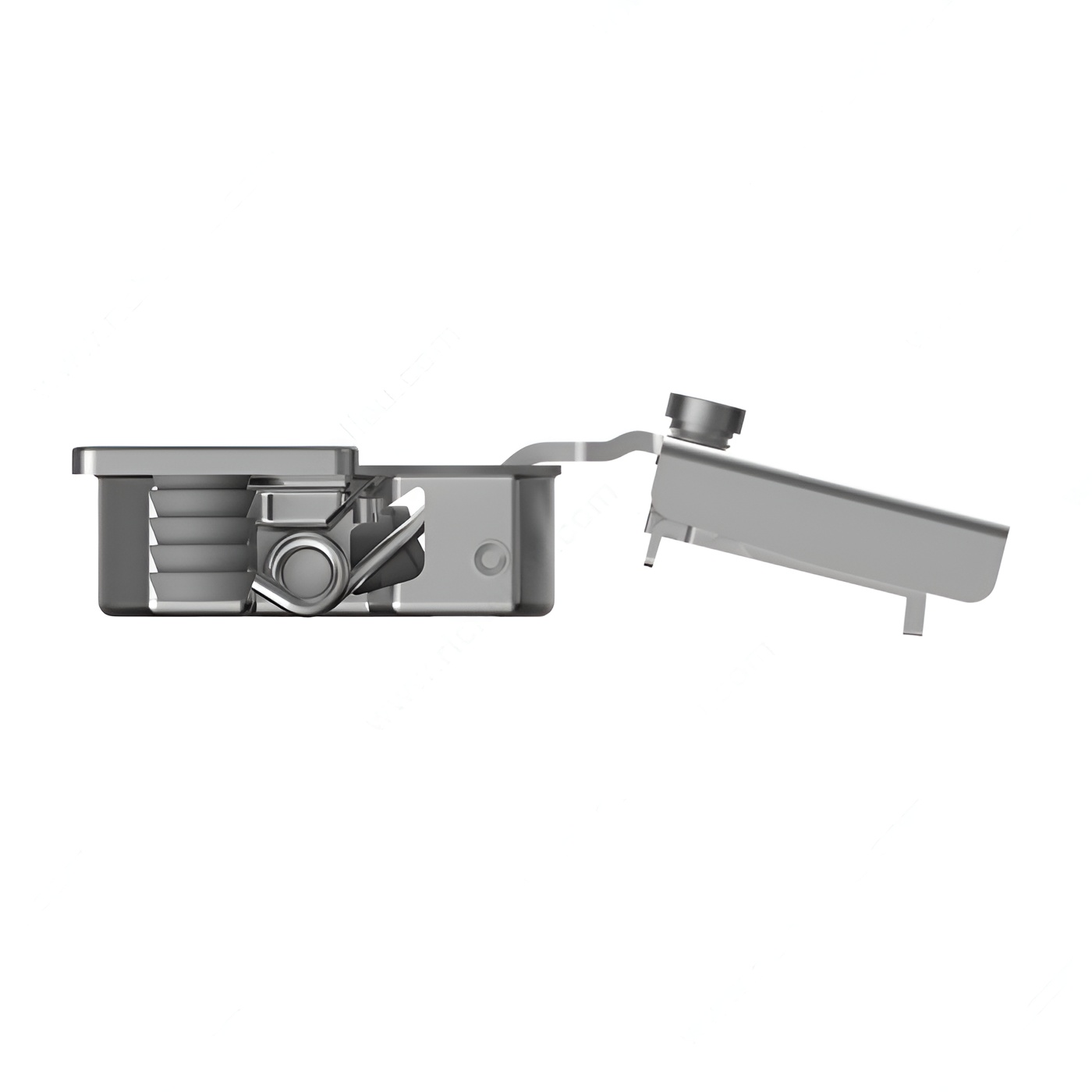

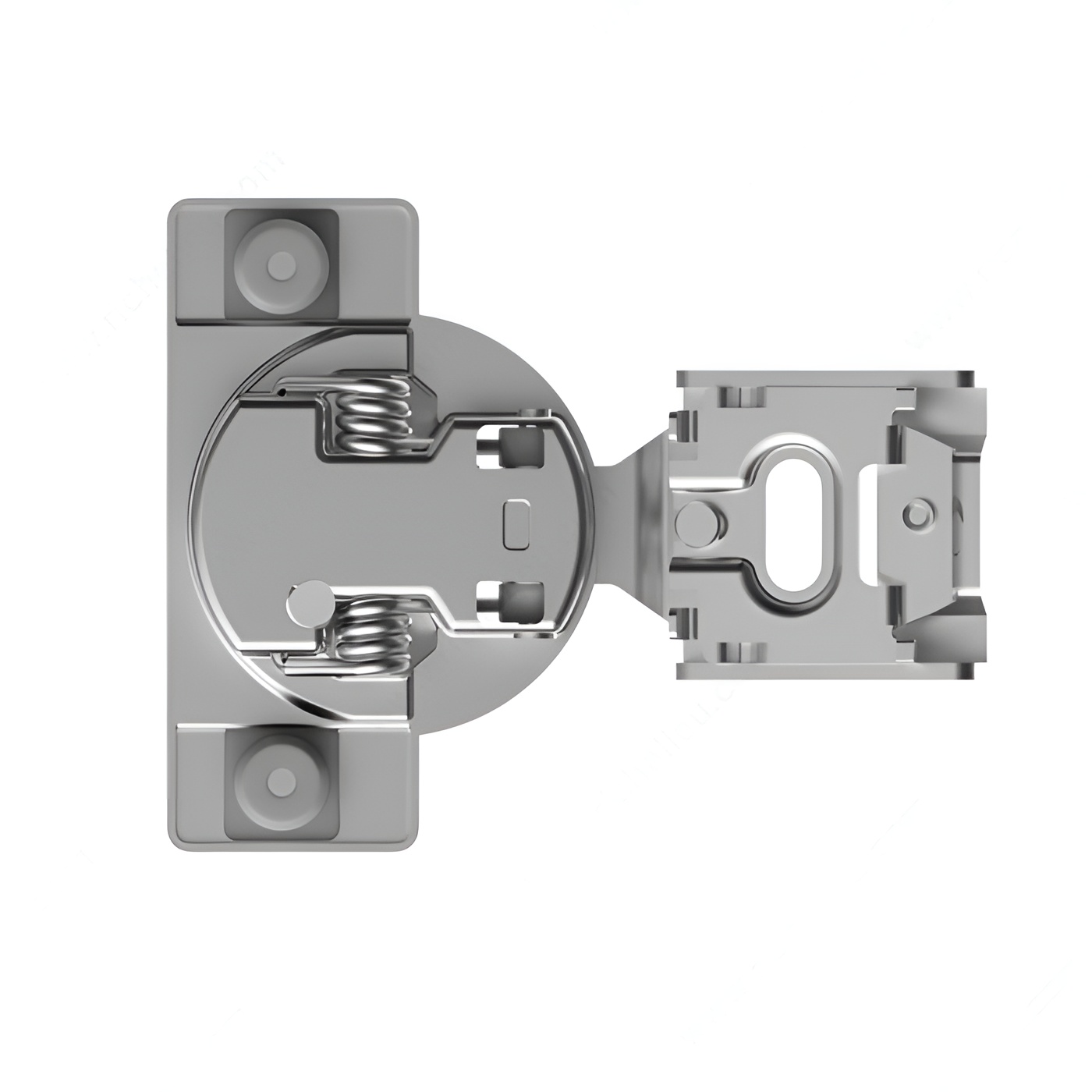

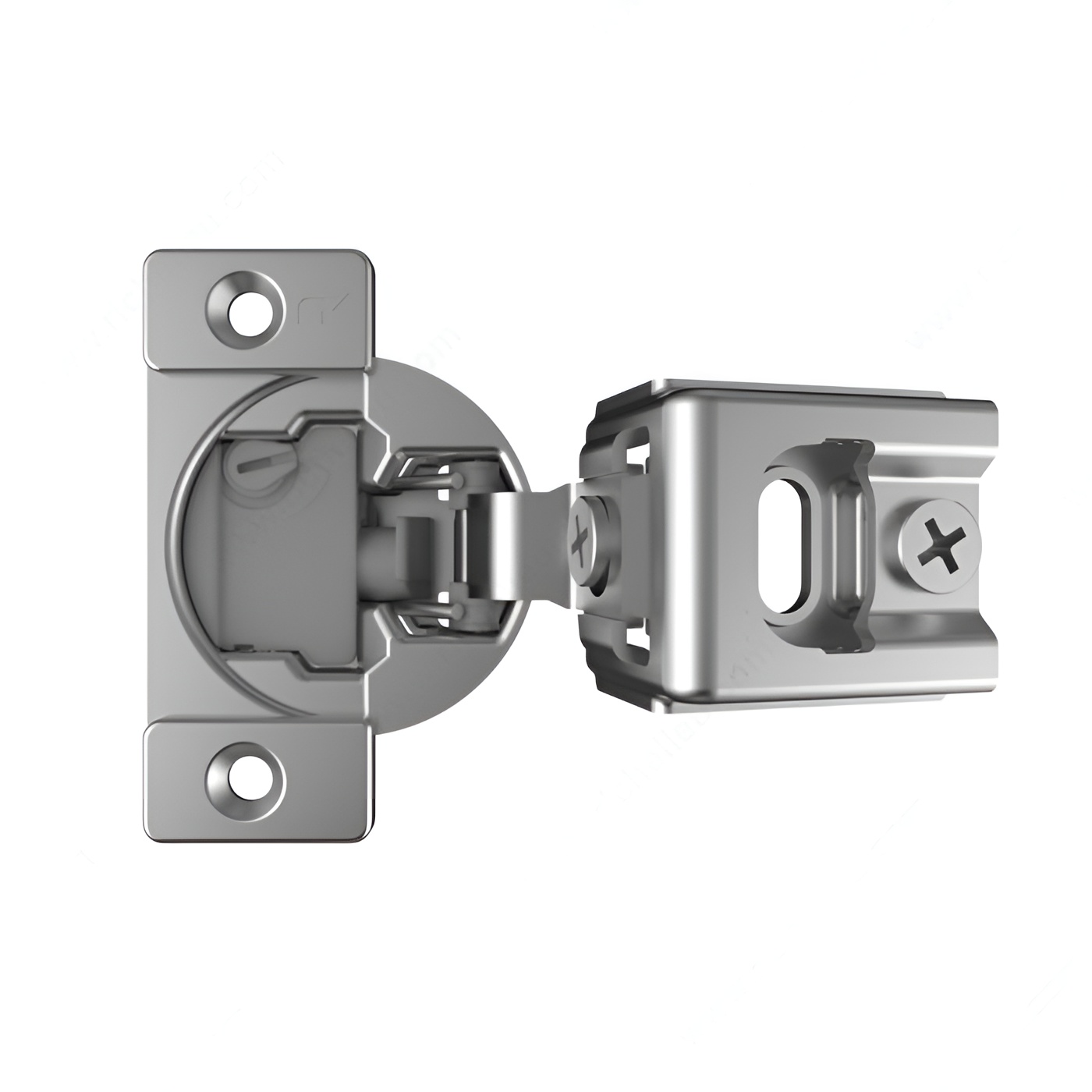

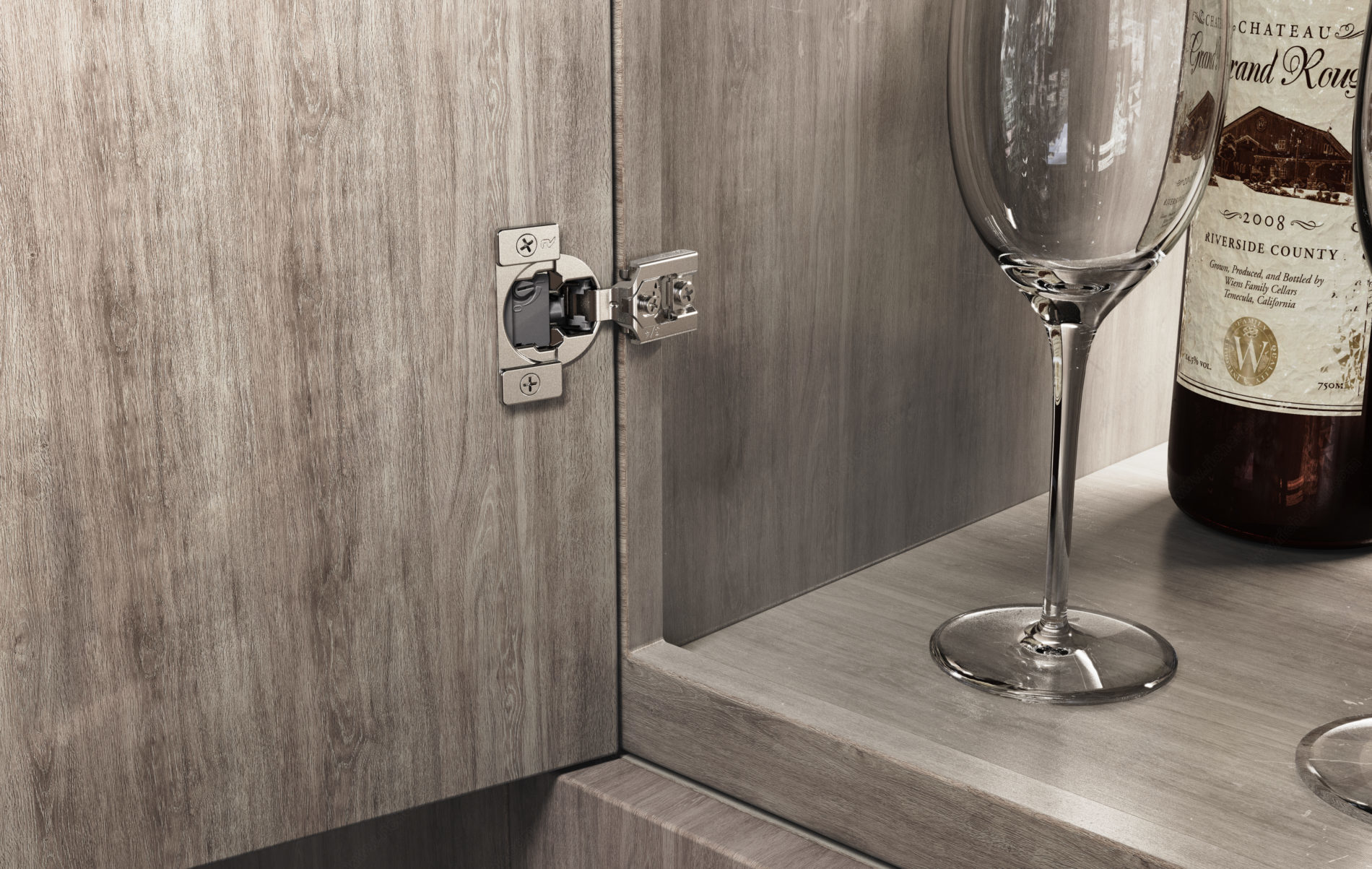

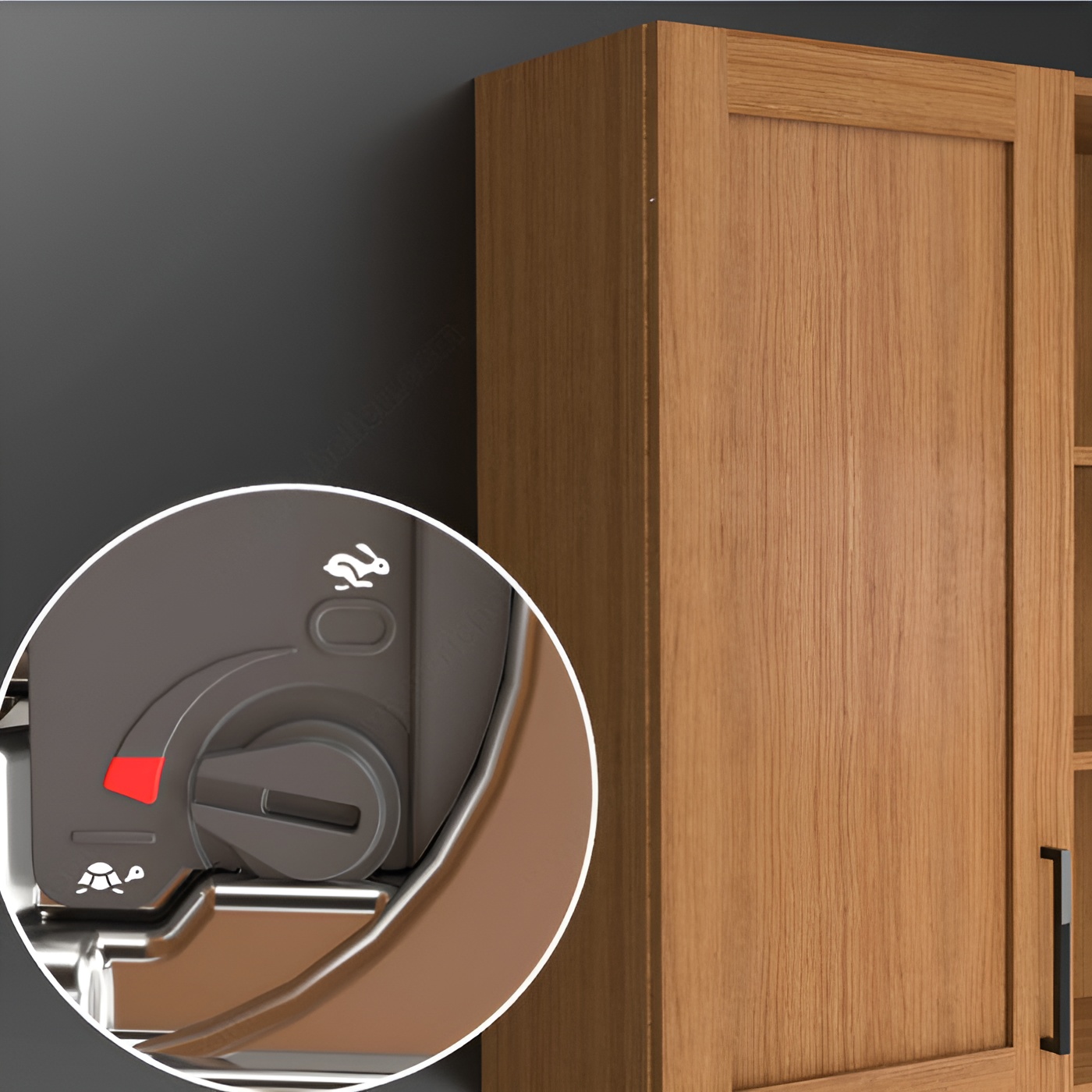

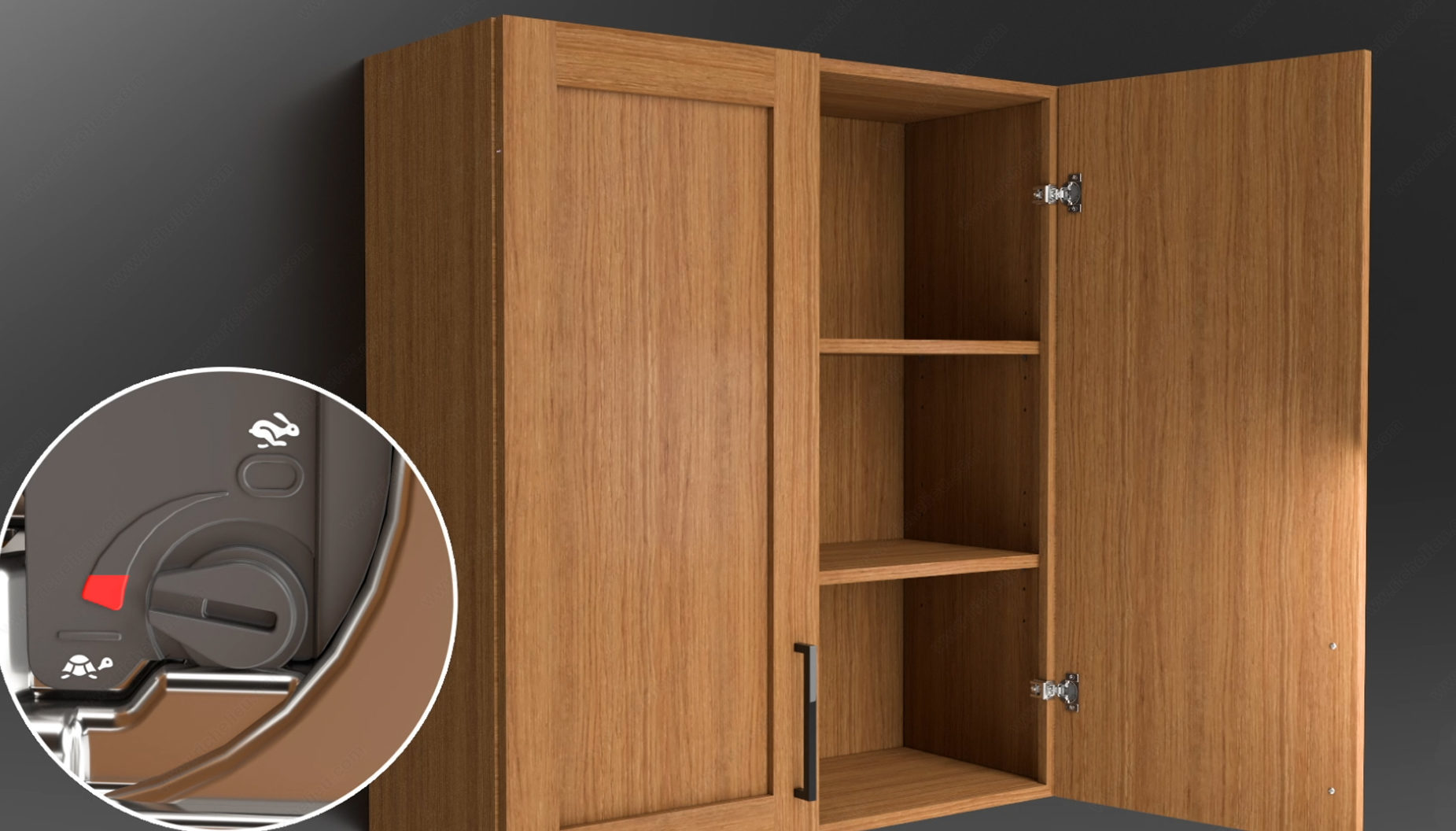

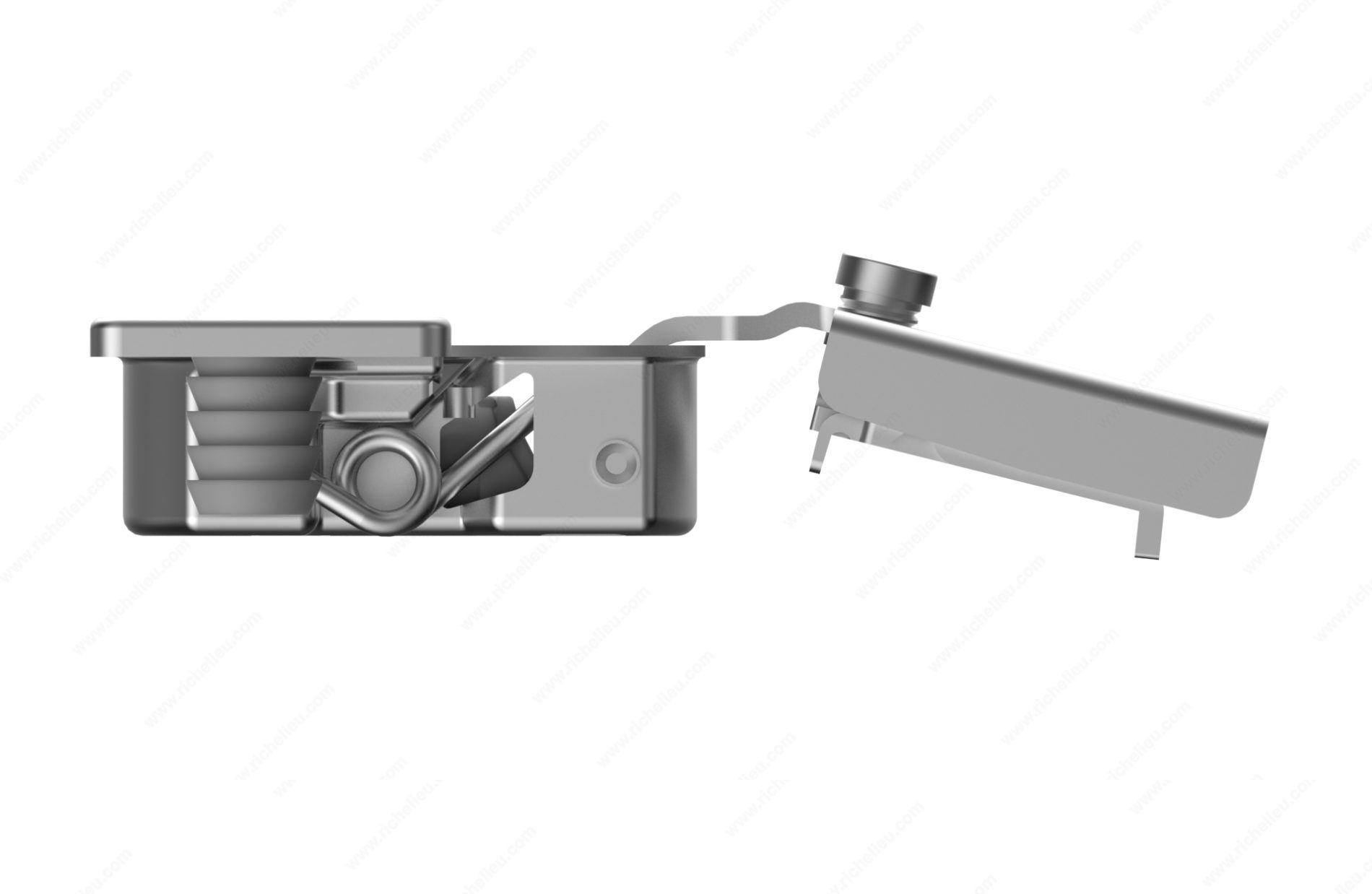

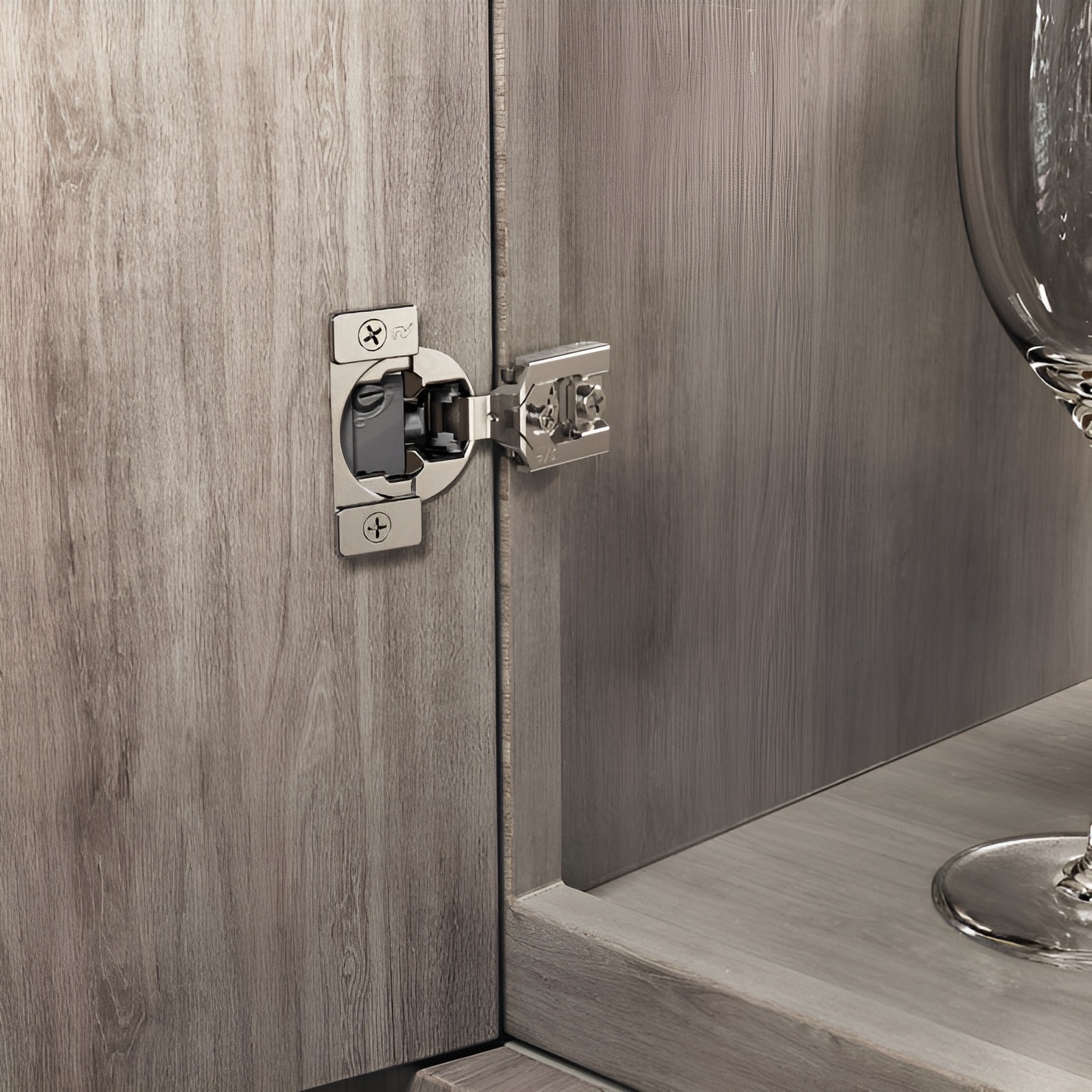

Richelieu RFF30120048 RFF Series Face Frame Hinge with Soft-Close offers a sophisticated solution for face frame cabinetry, combining functionality and elegance. This hinge is designed with a progressive soft-closing mechanism, ensuring that cabinet doors close smoothly and quietly, regardless of their size or weight. Ideal for both small and large overlays, it enhances user experience while maintaining a sleek appearance. Constructed for easy installation, the RFF30120048 features a wrap-around mount and dowel fixing type, making assembly a breeze for cabinetmakers and DIY enthusiasts. The hinge accommodates a cabinet thickness of 3/4 inch and can support door thicknesses ranging from 5/8 to 15/16 inch. With an impressive hinge opening angle of +105°, it allows for easy access to cabinet contents. For optimal performance, the hinge includes a milling depth of 7/16 inch and a milling diameter of 1 3/8 inch, ensuring a precise fit. With an overlay of 1/2 inch, this hinge seamlessly integrates into your cabinetry. Richelieu's commitment to quality and innovation makes this soft-close hinge an essential component for any face frame cabinet project, enhancing both functionality and aesthetics.

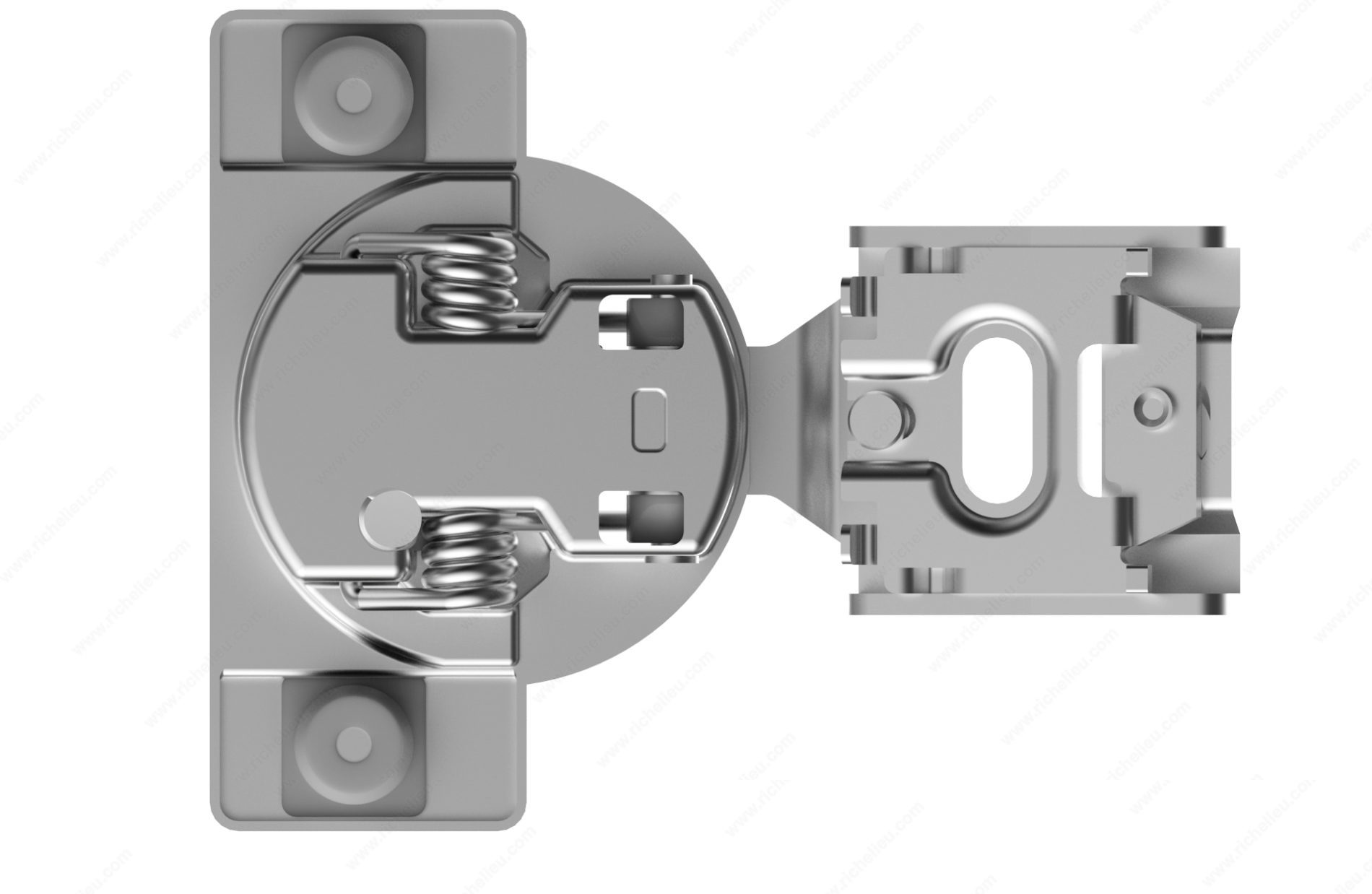

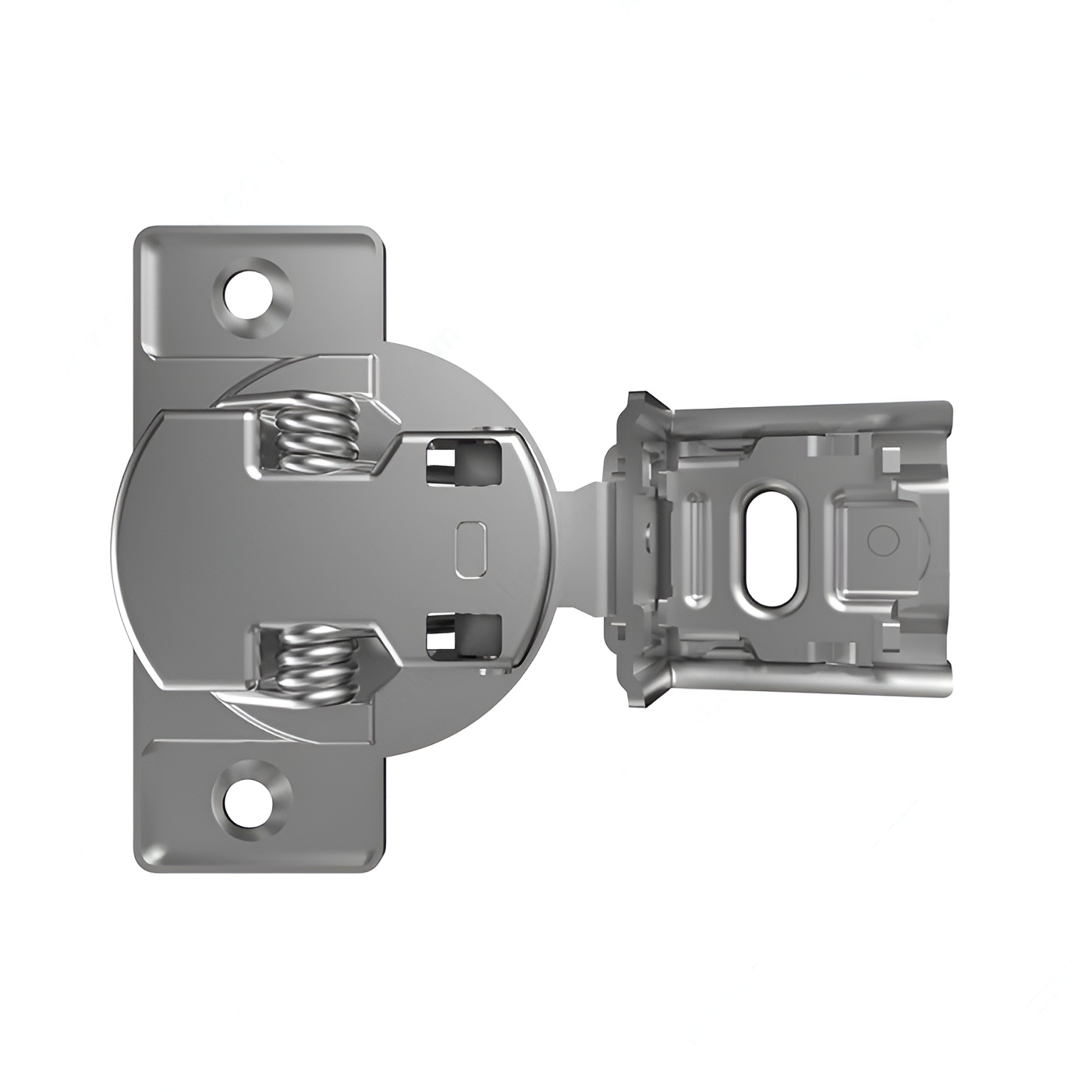

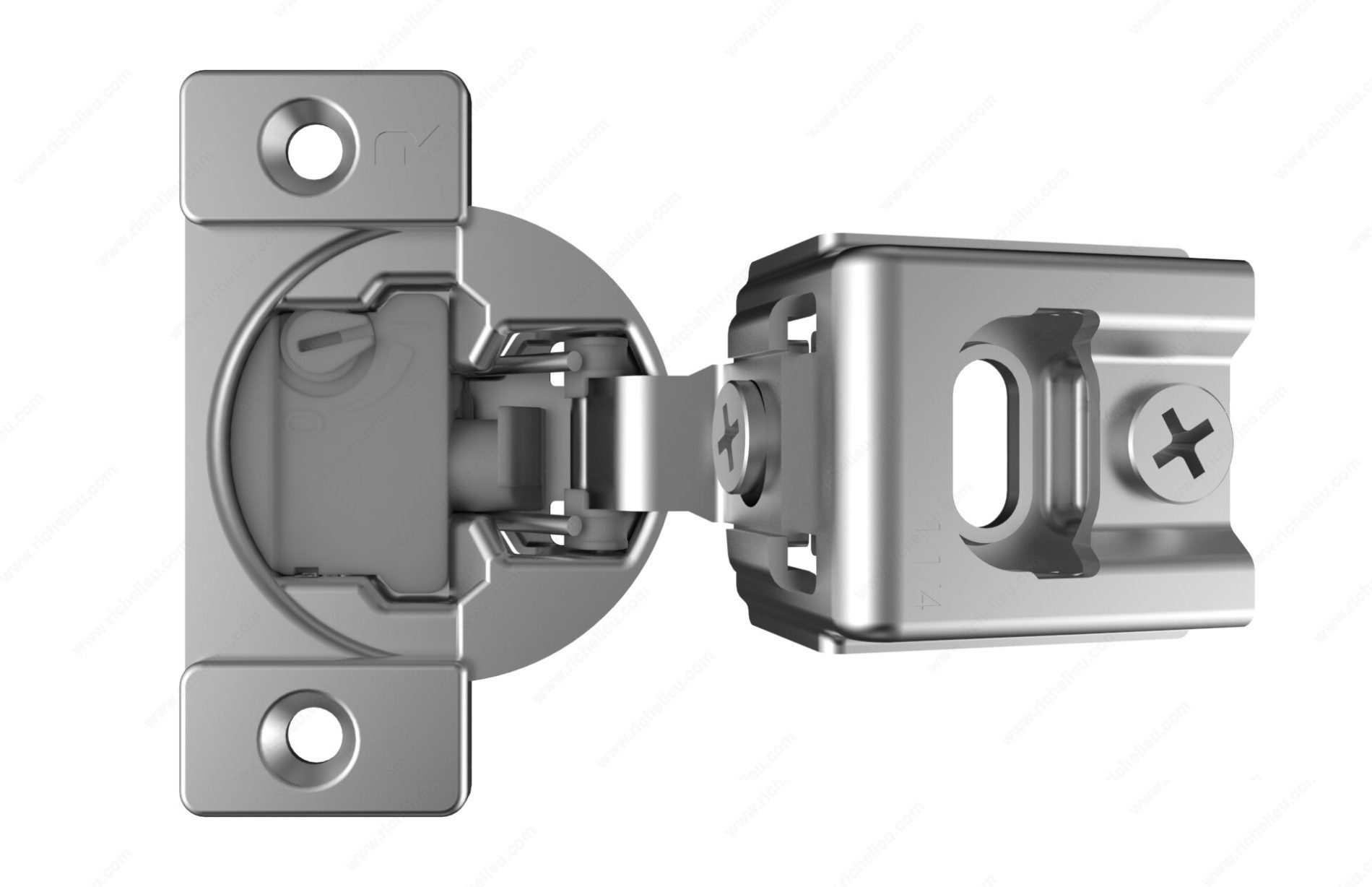

RFF Series Face Frame Hinge with Soft-Close
Brand: Richelieu
Cabinet Thickness: 19 mm
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing
Door Thickness: 16 to 24 mm
Fixing Type: Dowel
Hinge Opening Angle: +105°
Mechanism: Soft-Closing
Milling Depth: 11 mm
Milling Diameter: 35 mm
Mounting Type: Wrap-around Mount
Overlay: 1/2 in
Product #: RFF30120048
Product number: RFF30120048
Product №: RFF30120048
Unit 1: case - 300
Unit 2: case - 300
