Richelieu RFF30340050 RFF hinge for frame cabinet is expertly crafted to provide a seamless solution for both small and large overlays in face frame cabinetry. This innovative hinge series combines concealed design with user-friendly features, making it an ideal choice for cabinetmakers and discerning homeowners alike. Designed for a cabinet thickness of 3/4 inch, the RFF30340050 accommodates door thicknesses ranging from 5/8 to 15/16 inches. Its screw-on fixing type ensures a secure installation, while the wrap-around mount provides additional stability. With a hinge opening angle of +105°, access to the interior of your cabinets is both efficient and unobstructed. The spring-closing mechanism enhances functionality, ensuring doors close smoothly and securely. For precise installation, the hinge requires a milling depth of 7/16 inches and a diameter of 1 3/8 inches, making setup straightforward. The overlay is set at 3/4 inch, offering a clean and modern aesthetic that complements various cabinetry styles. Richelieu’s commitment to quality and ease of use is evident in the RFF hinge series, which also features fast assembly and full adjustment capabilities. Elevate your cabinetry with the reliable performance of the RFF30340050 hinge and enjoy the perfect blend of functionality and design.

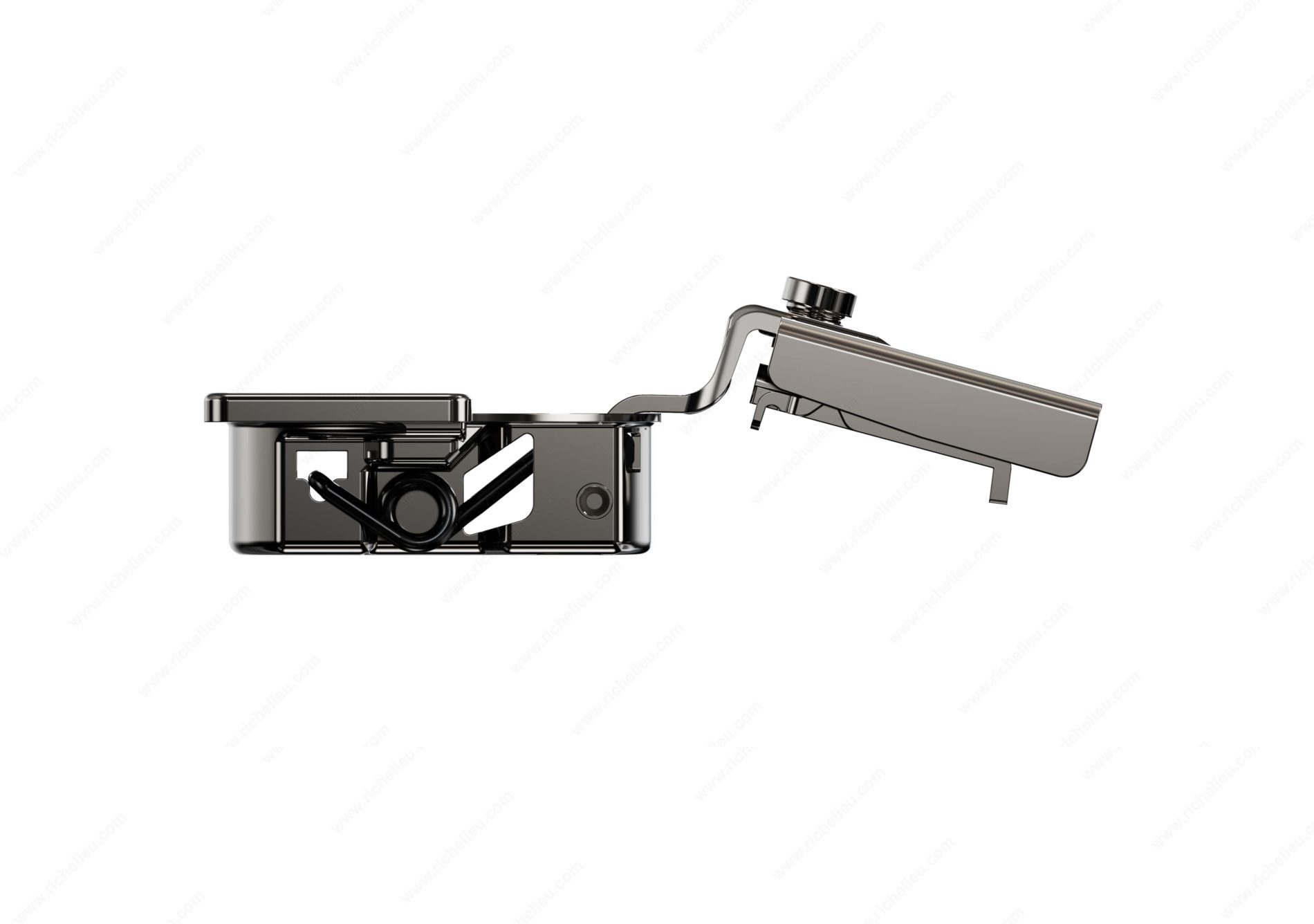

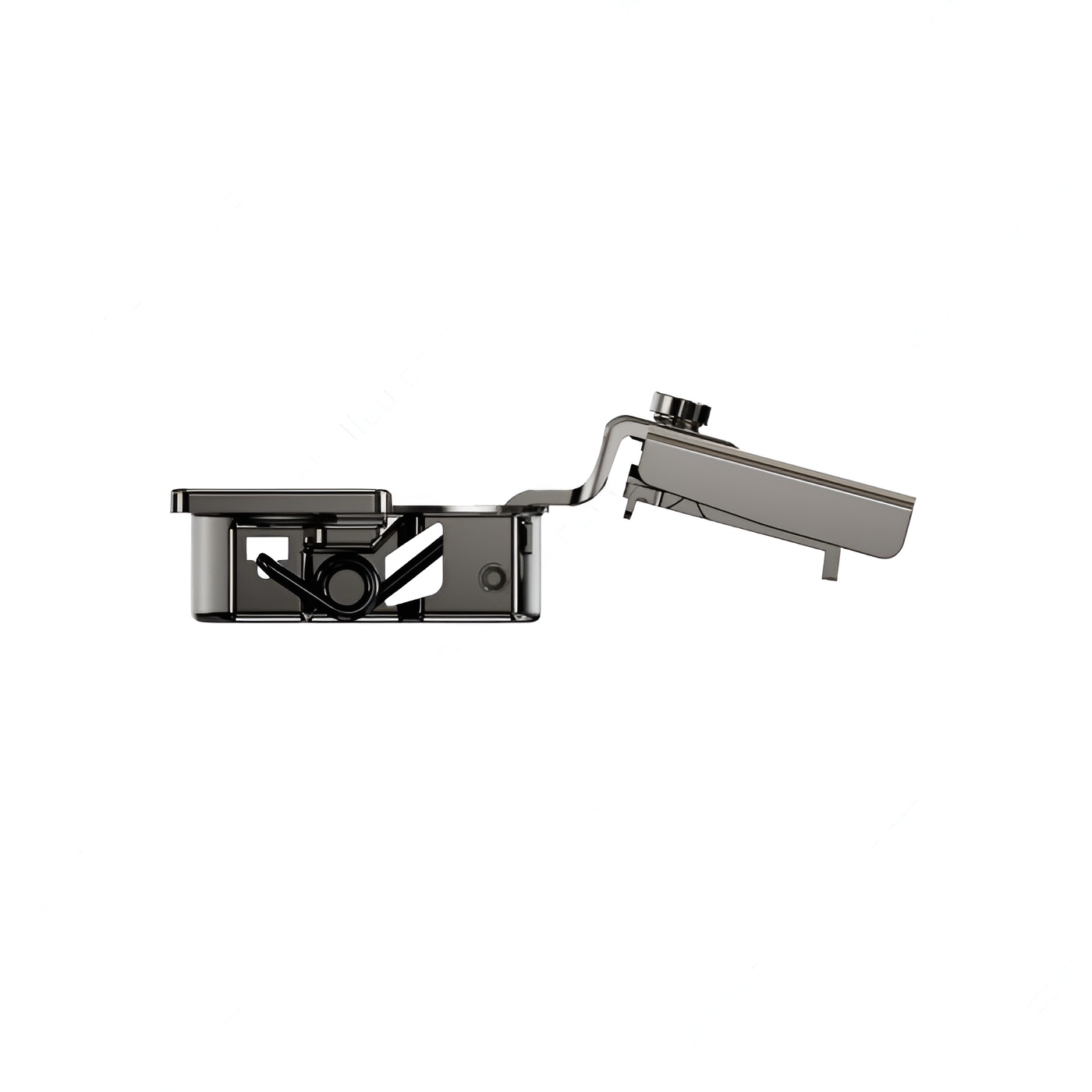

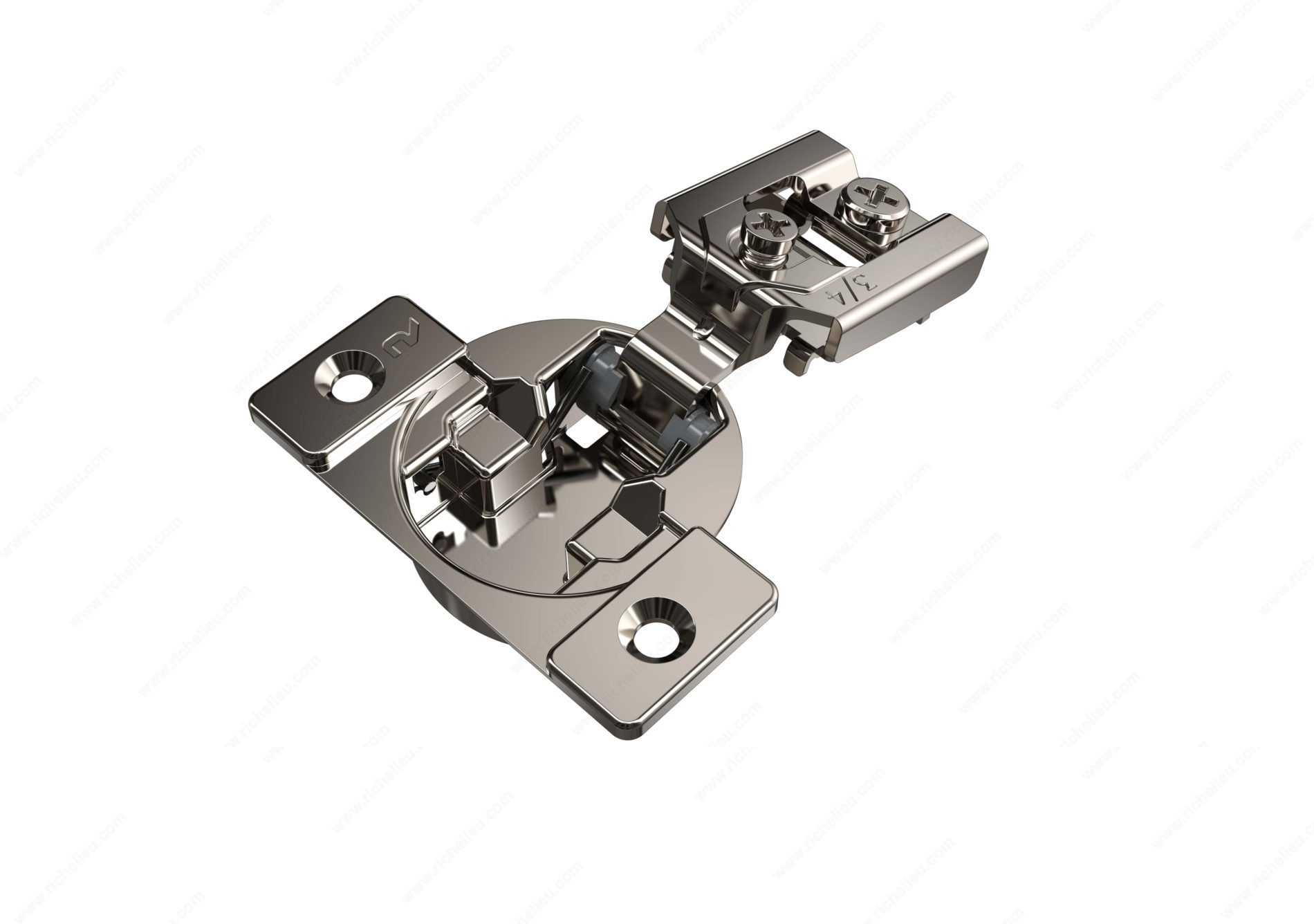

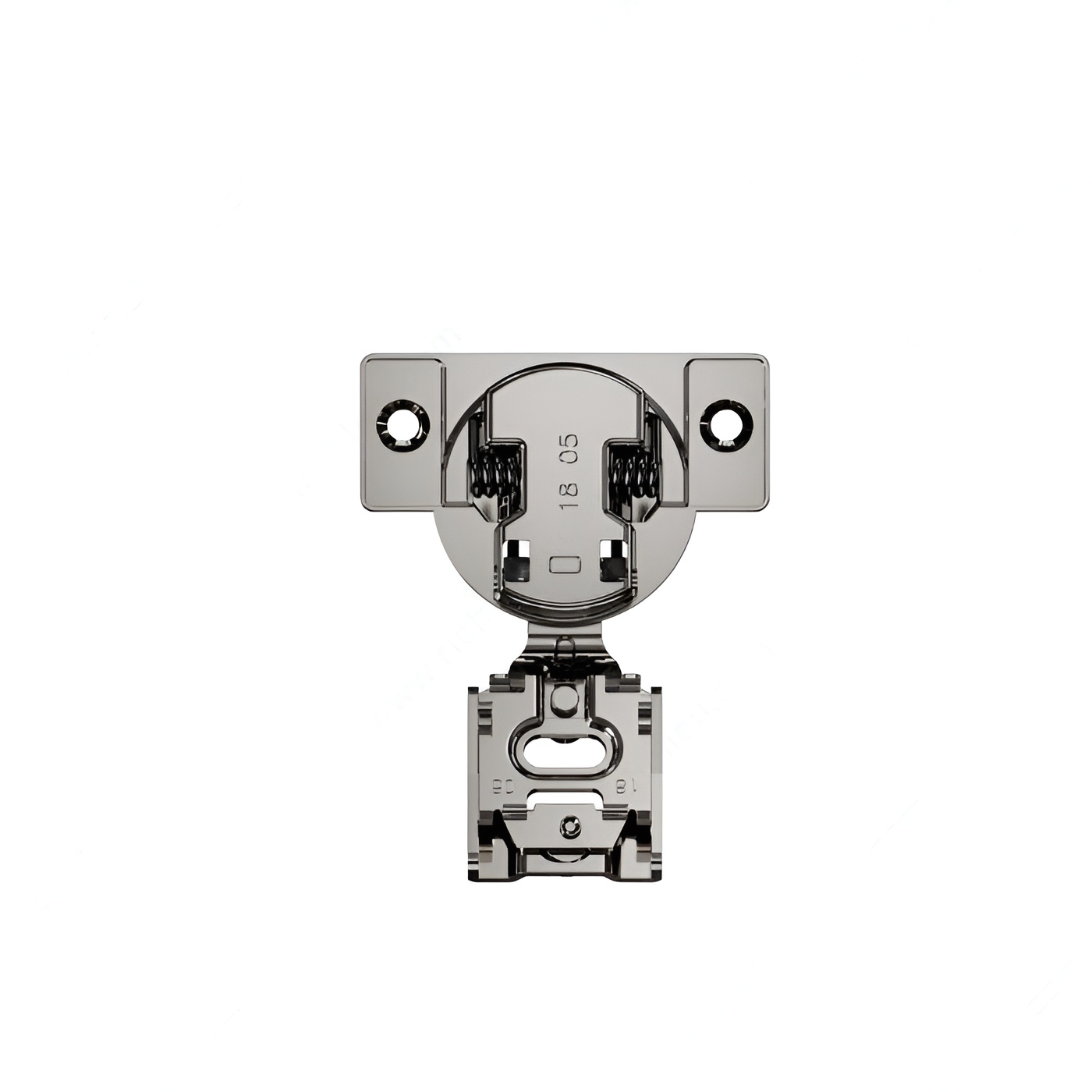

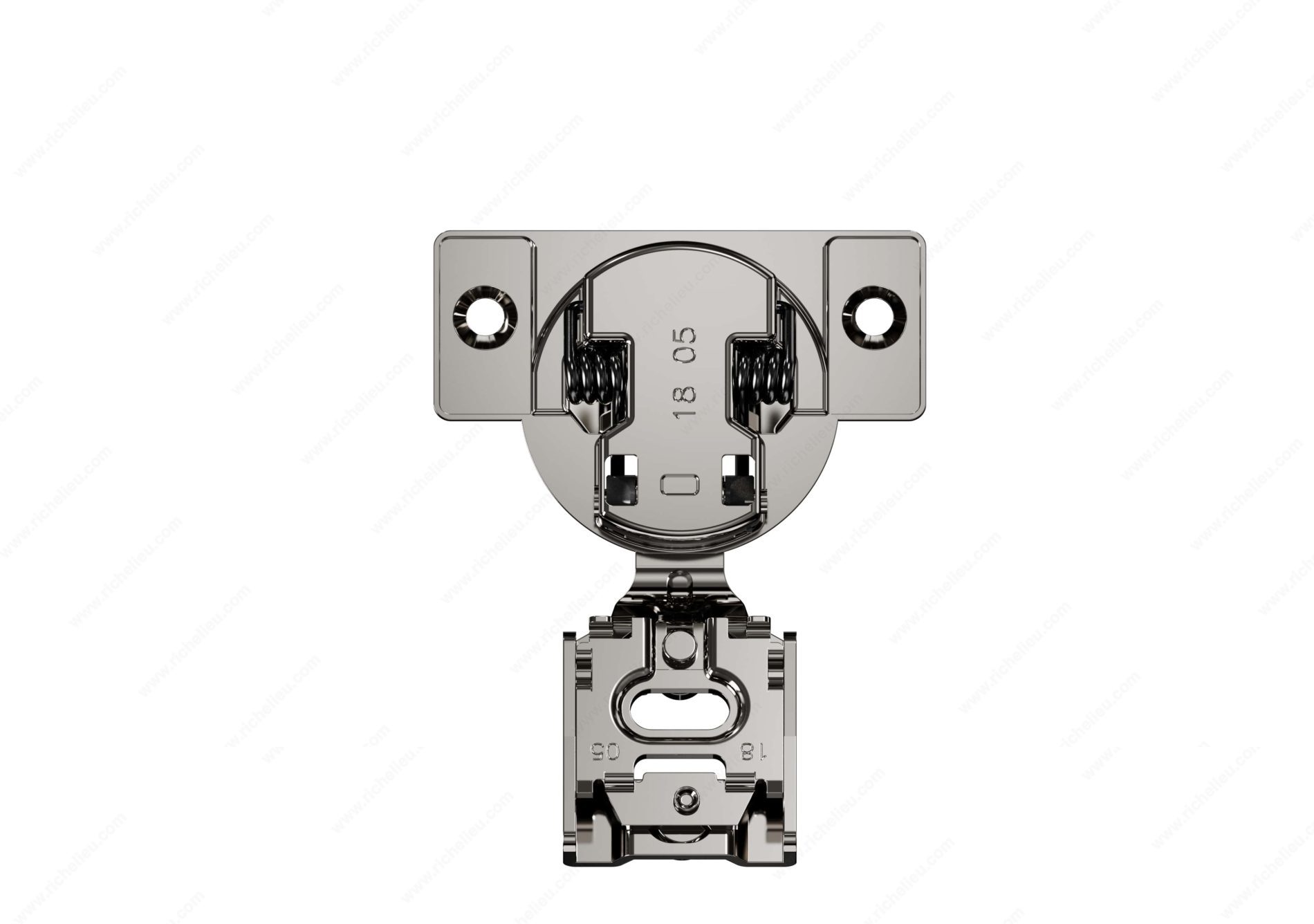

RFF hinge for frame cabinet
Brand: Richelieu
Cabinet Thickness: 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Thickness: 5/8 to 15/16 in*
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 3/4 in
Product #: RFF30340050
Product №: RFF30340050
Unit 1: carton - 50
Unit 2: case - 300
