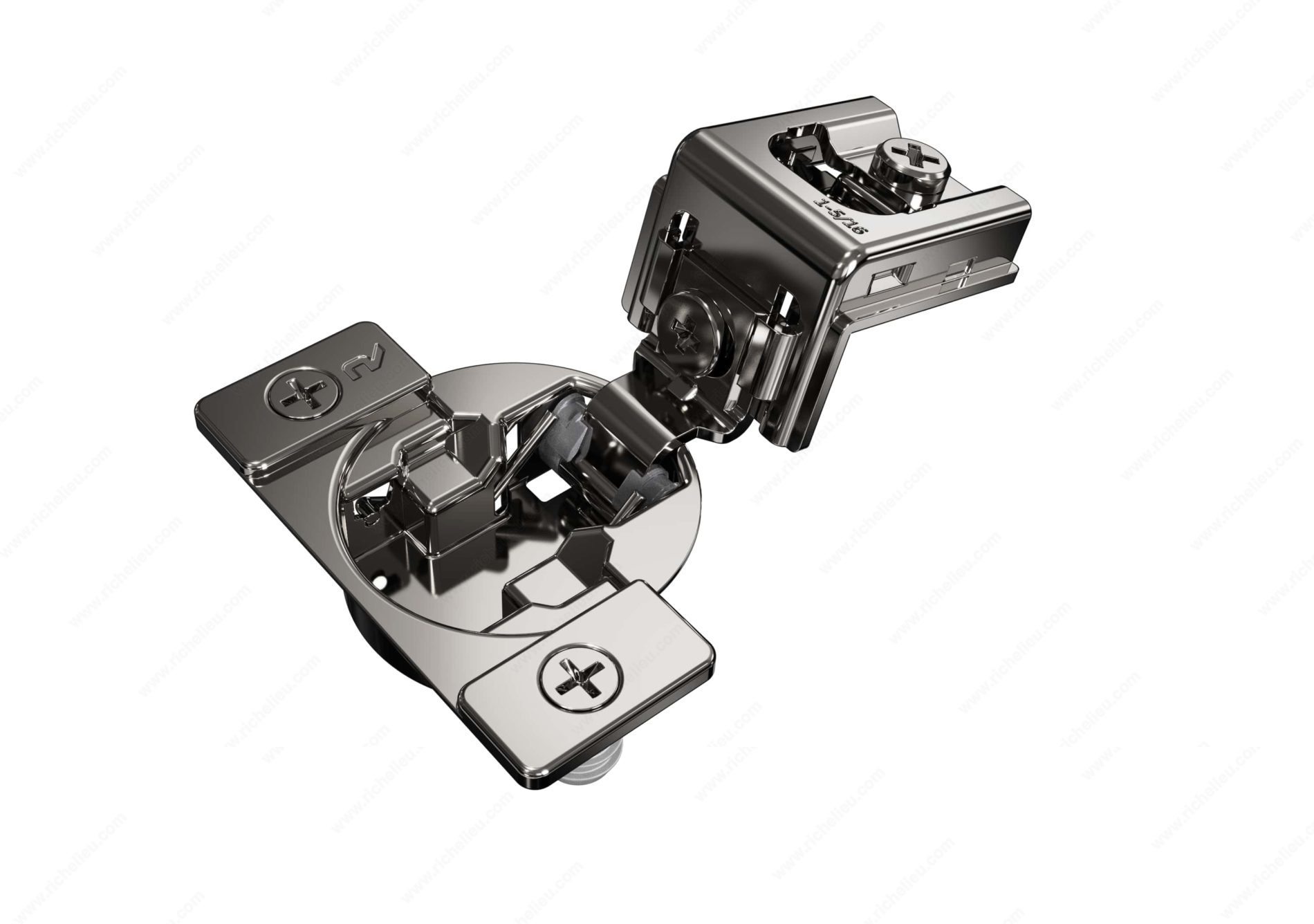

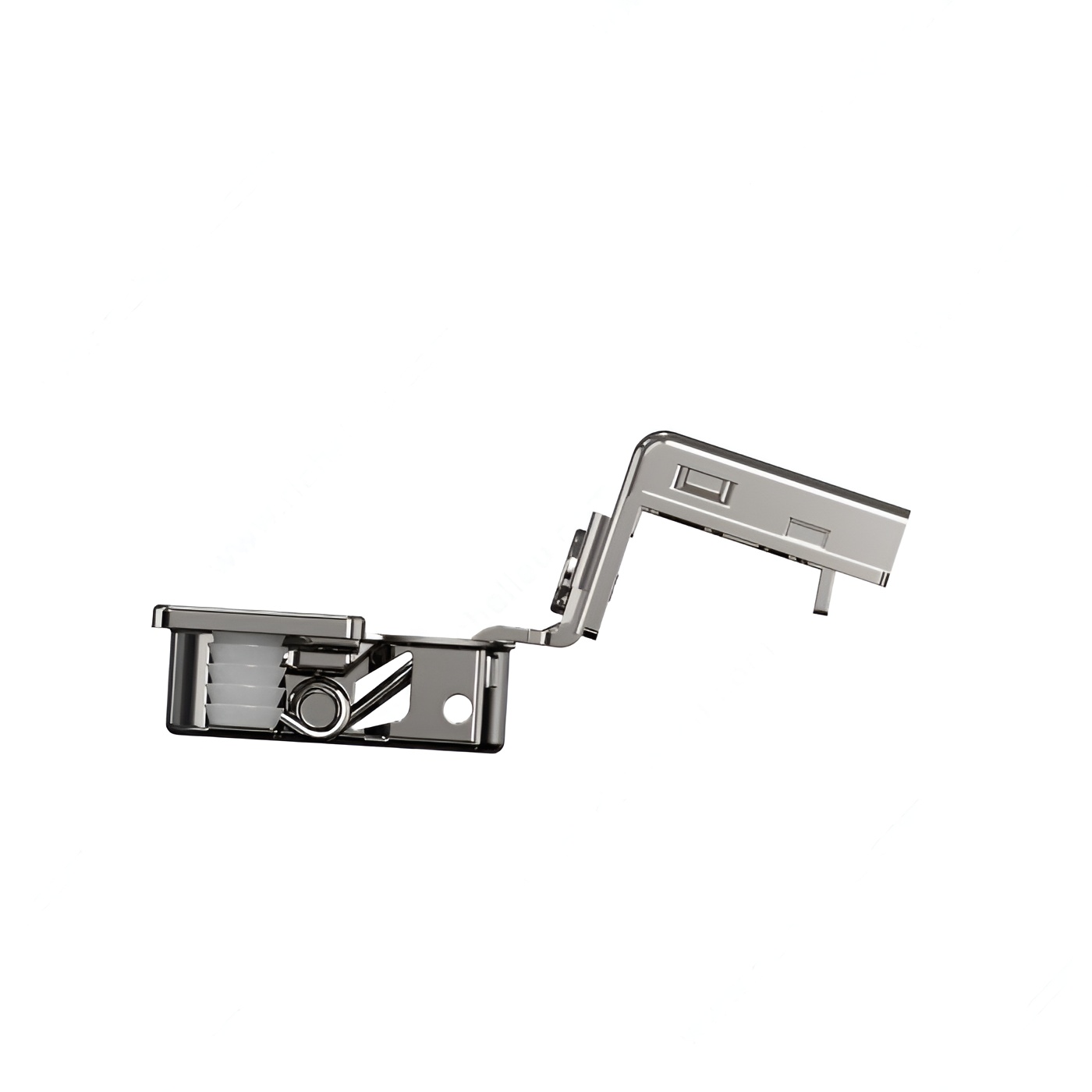

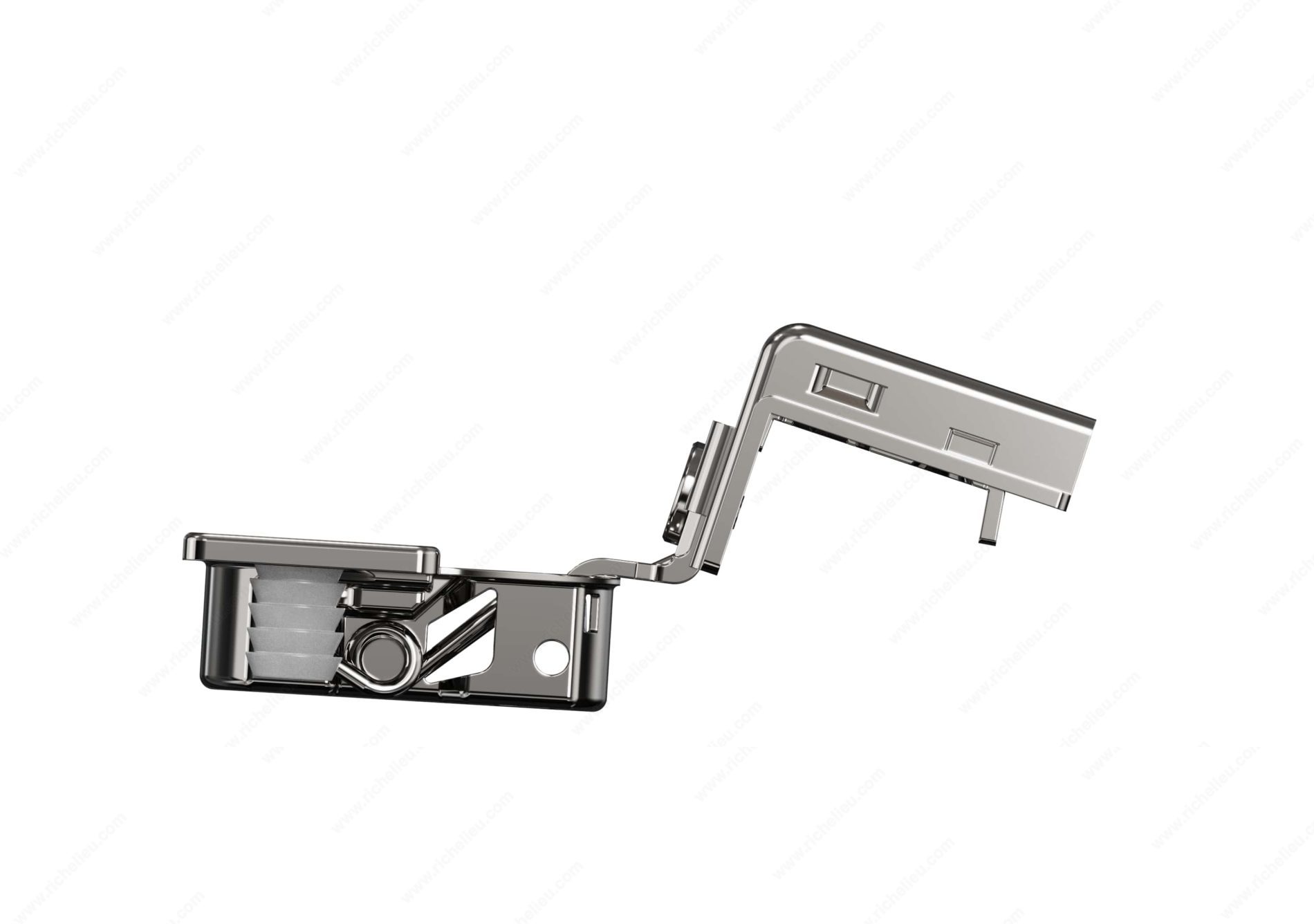

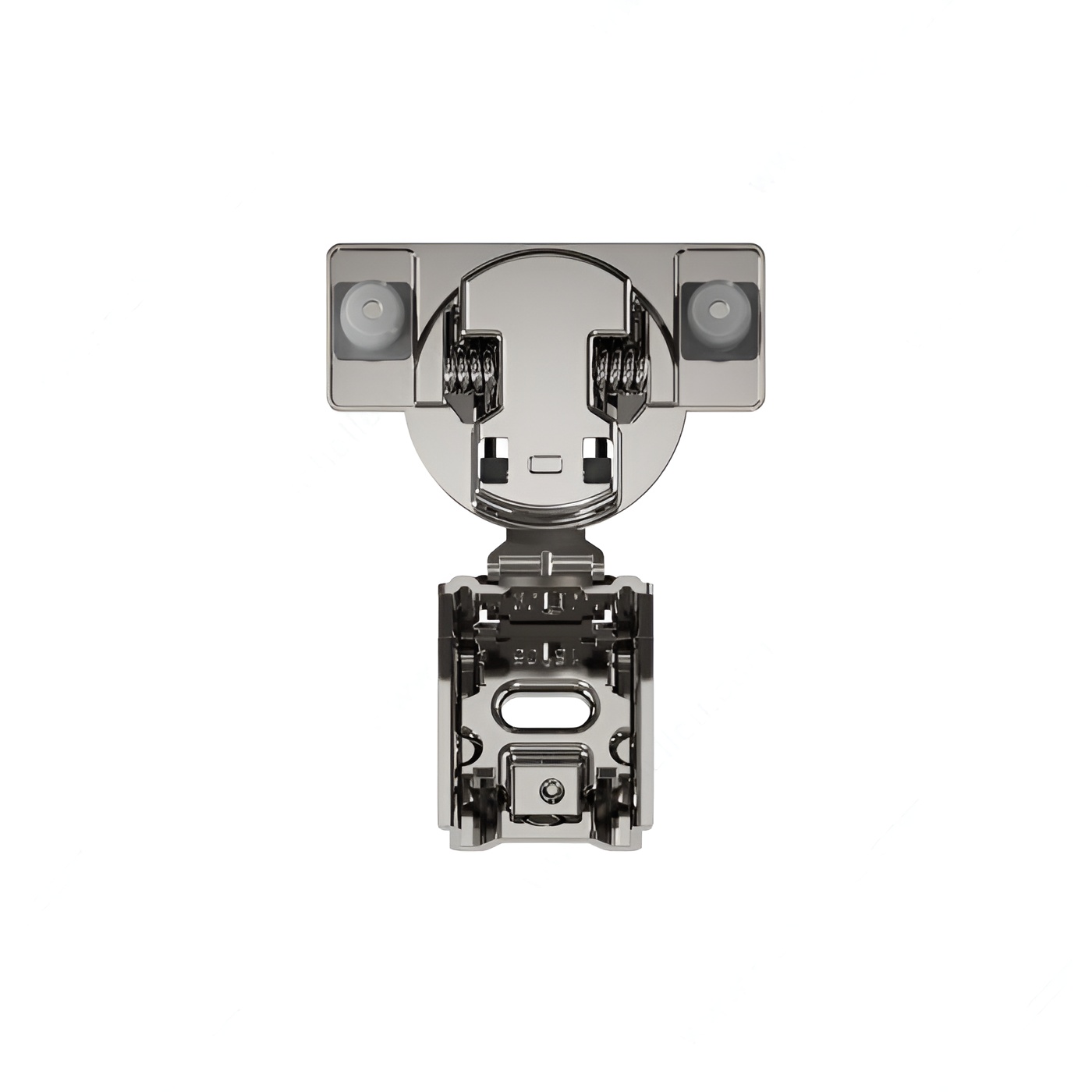

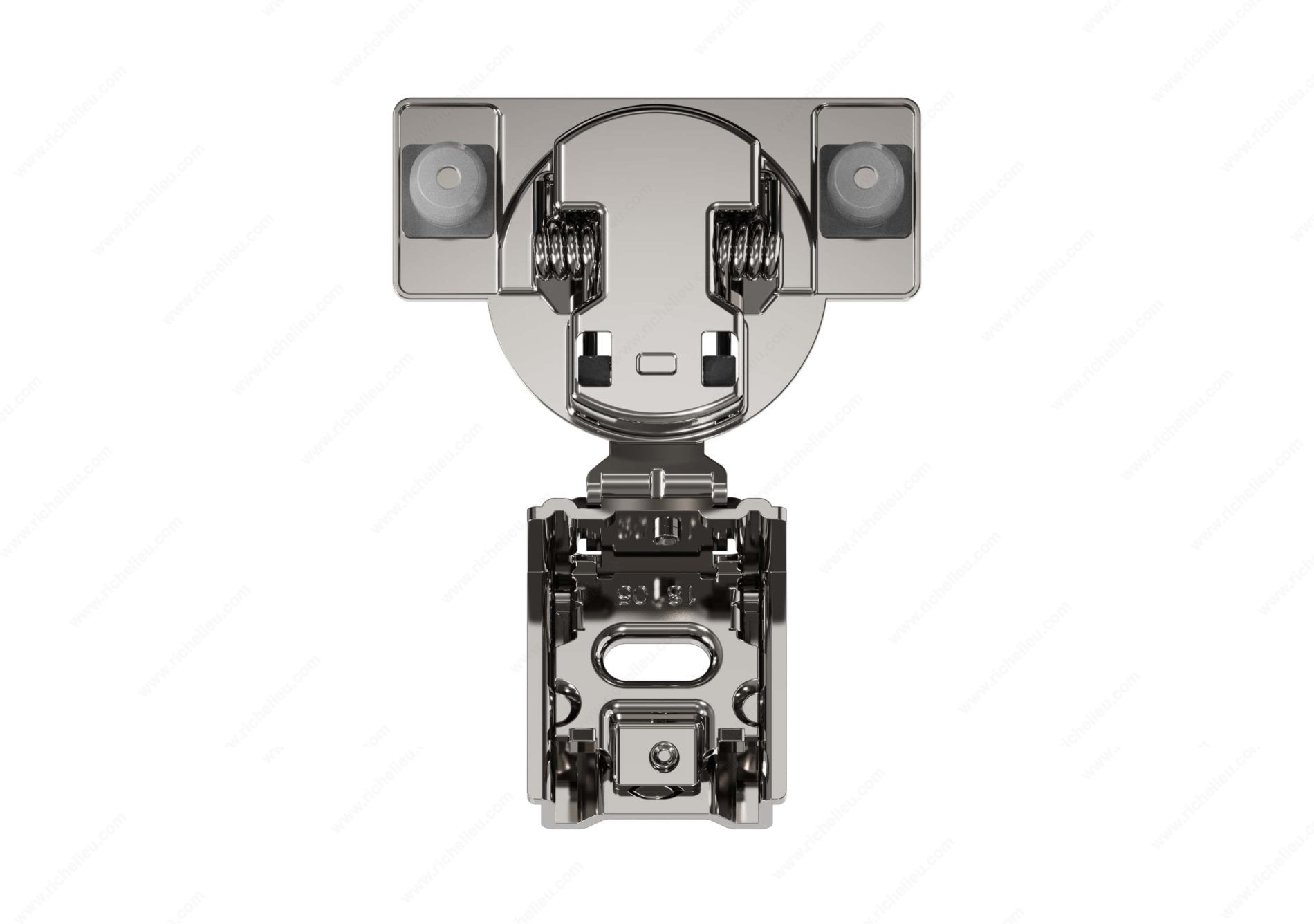

Richelieu RFF315160058 RFF hinge for frame cabinet is engineered to enhance the functionality and aesthetics of face frame cabinetry. This hinge series seamlessly combines the advantages of concealed hinges with the flexibility required for both small and large overlays. Designed with ease of use in mind, it offers fast assembly and full adjustment capabilities, making installation straightforward for cabinetmakers and experienced DIY enthusiasts alike. Constructed to accommodate cabinet thicknesses of 3/4 inches and door thicknesses ranging from 5/8 to 15/16 inches, the RFF hinge ensures a perfect fit for a variety of applications. Its spring-closing mechanism provides a reliable and smooth operation, while the hinge opening angle of +105° allows for generous access to cabinet interiors. The wrap-around mounting type and dowel fixing method contribute to the hinge's robust performance, while a milling depth of 7/16 inches and a milling diameter of 1 3/8 inches facilitate an efficient installation process. With an overlay of 1 5/16 inches, this hinge is ideal for achieving a polished and professional finish. For quality and reliability in cabinetry, the Richelieu RFF315160058 hinge is a top choice for professionals and discerning homeowners.
RFF hinge for frame cabinet
Brand: Richelieu
Cabinet Thickness: 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Thickness: 5/8 to 15/16 in*
Fixing Type: Dowel
Hinge Opening Angle: +105°
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1 5/16 in
Product #: RFF315160058
Product №: RFF315160058
Unit 1: carton - 50
Unit 2: case - 300
