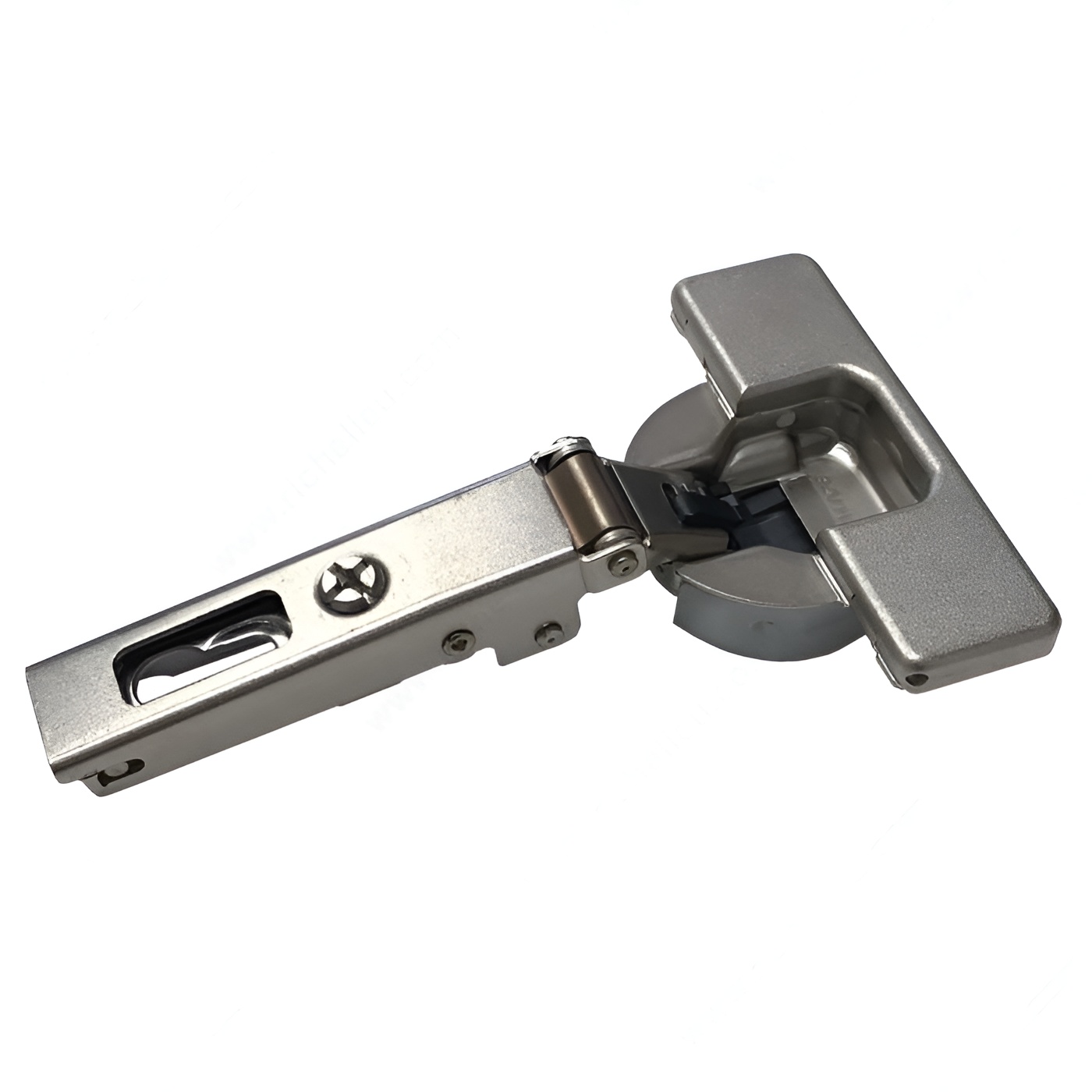

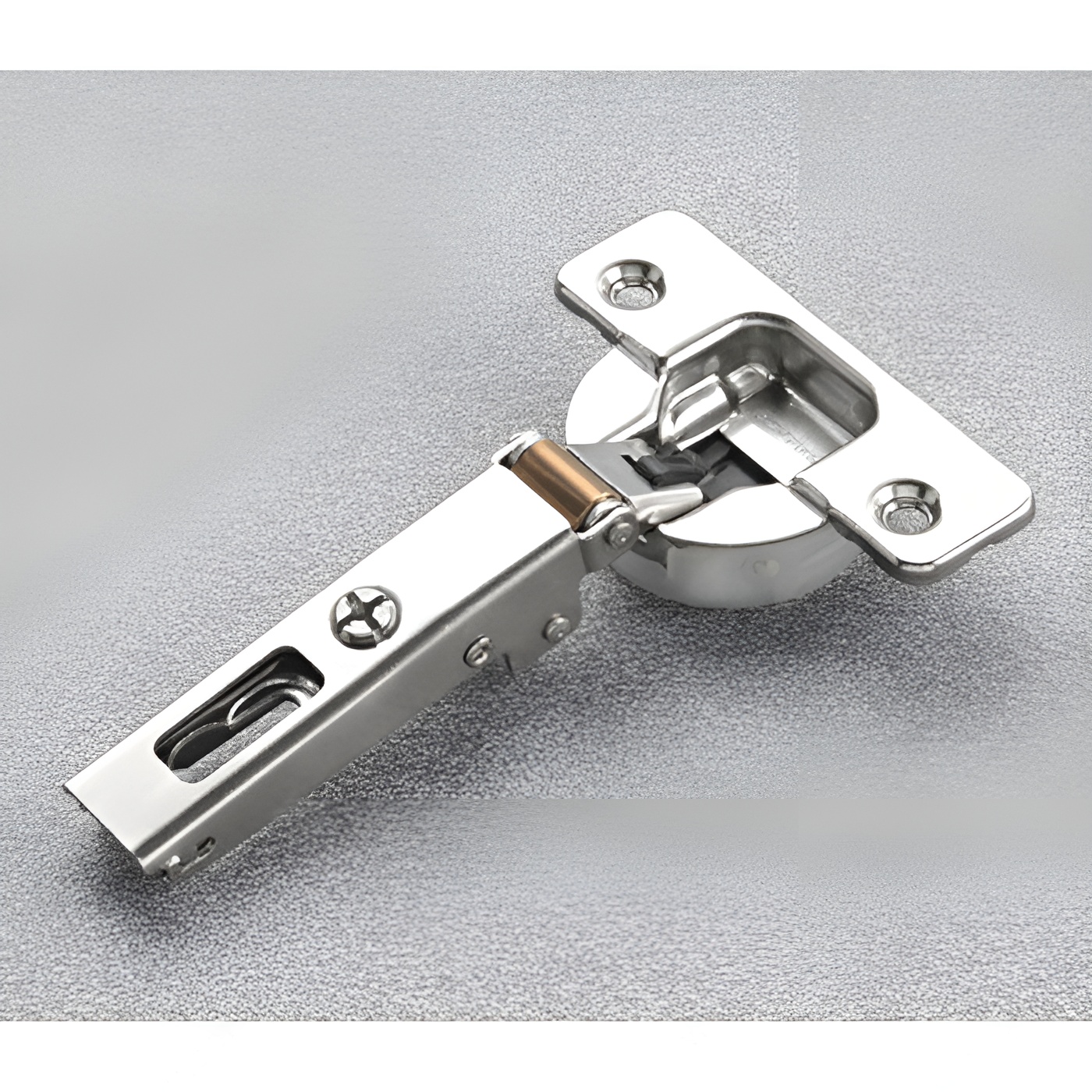

Richelieu H105C1J6AE9 Series 100 Concealed Hinges 105 are expertly designed to enhance the functionality and aesthetics of frameless cabinets. With a full overlay door position, these hinges provide a seamless look while ensuring easy access to your cabinet interiors. The soft-closing mechanism adds a touch of sophistication, allowing doors to close gently and quietly, perfect for modern living spaces. Crafted with precision, these hinges have a nickel finish that not only enhances durability but also complements a variety of kitchen styles. The toolless fixing type simplifies installation, making it easy for professionals and DIY enthusiasts alike to achieve a flawless fit. With a hinge opening angle of +105°, you can maximize your cabinet's usability without sacrificing design. The Richelieu H105C1J6AE9 hinges are engineered for a load capacity of 10 lbs, making them suitable for standard doors. They require a drilling distance of 1/8 to 1/4 inch, ensuring compatibility with most cabinet configurations. The milling depth of 15/32 inch and diameter of 1 3/8 inch allow for precise installation, resulting in a secure and reliable hinge solution. Elevate your cabinetry with the quality and craftsmanship of Richelieu’s concealed hinges for a polished finish that stands the test of time.

100 Series - Silentia+ Concealed Hinges 105

Resources

• Instructions
• Line art
• Silentia+
