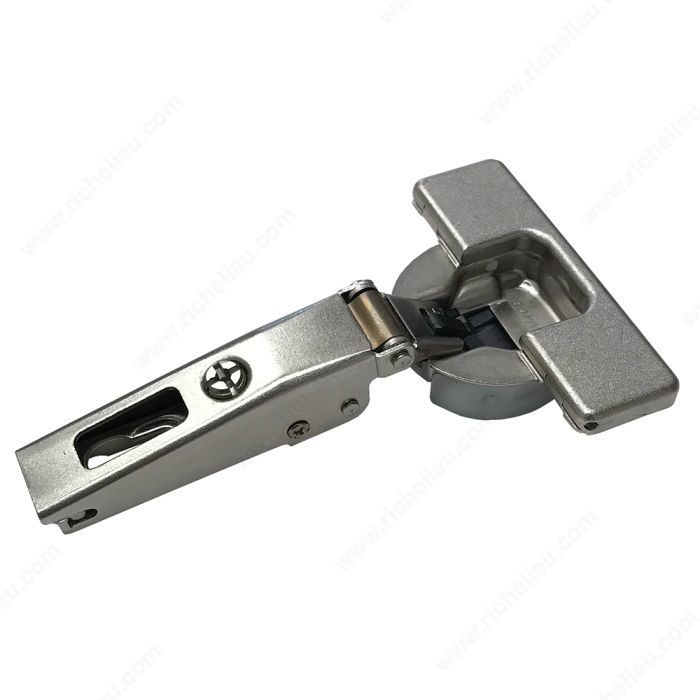

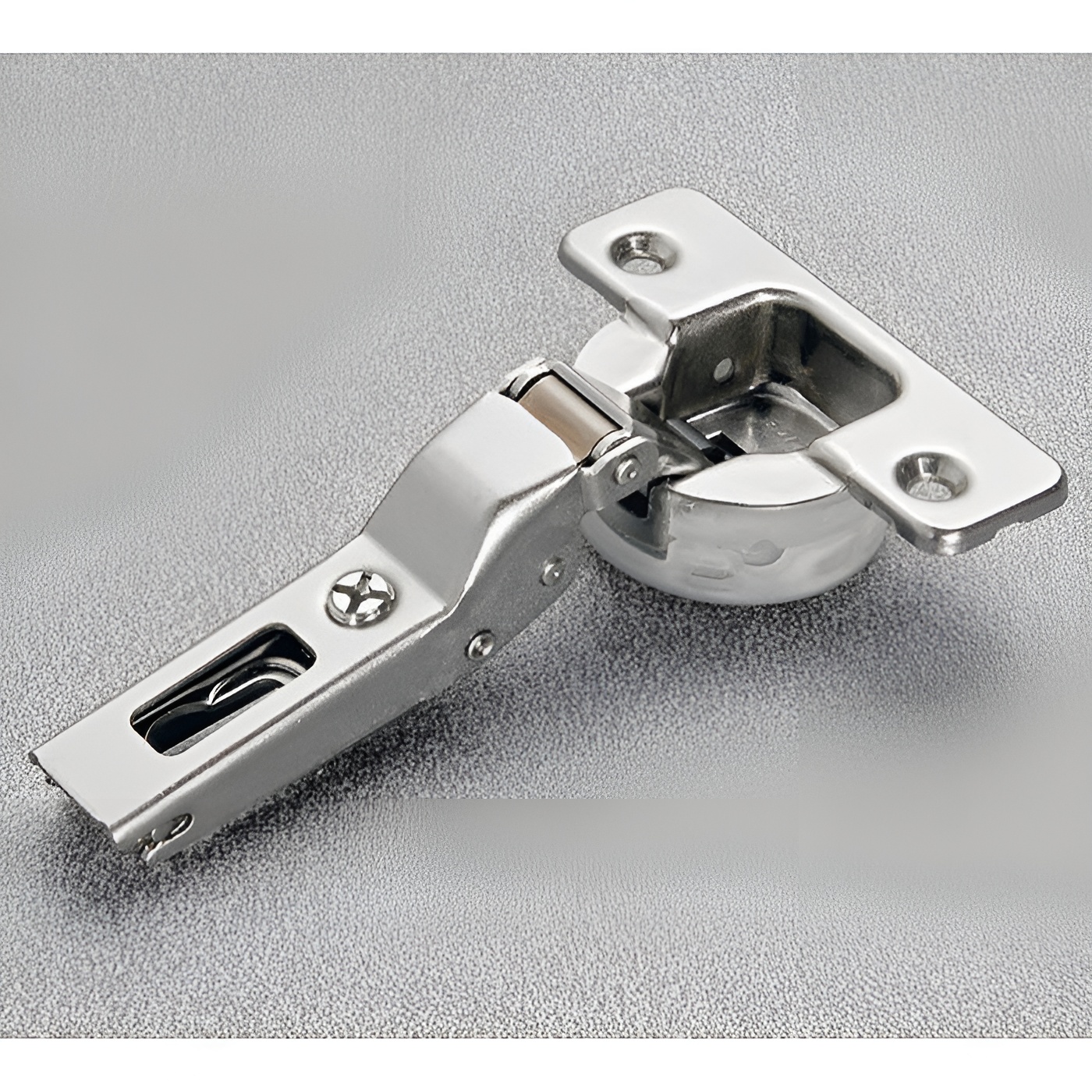

Richelieu H105C1J6DE9 Series 100 Concealed Hinges 105 offer a seamless solution for frameless cabinets, designed to enhance both functionality and aesthetics. With a stylish nickel finish, these hinges ensure a sophisticated look while providing superior performance. They are engineered for a 1/2 inch (12.7 mm) overlay, making them an ideal choice for standard doors that require a reliable and discreet hinge solution. The H105C1J6DE9 features a soft-closing mechanism, allowing doors to close gently and quietly, which is perfect for high-traffic areas and family environments. With a hinge opening angle of +105°, you can maximize accessibility and ease of use. Additionally, these hinges support a load capacity of 10 lbs, making them suitable for a range of cabinet applications. Installation is a breeze thanks to the tool-less fixing type, and the specified drilling distance of 1/8 to 1/4 inches, along with a milling depth of 15/32 inches and a diameter of 1 3/8 inches, ensures precise fitting. Designed for stock production, the H105C1J6DE9 hinges can ship via UPS, making them readily available for your next project. Experience the perfect blend of innovation and design with Richelieu's concealed hinges.
100 Series - Silentia+ Concealed Hinges 105
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 19/32 to 25/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +105°
Load Capacity: 10 lb
Mechanism: Soft-Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Overlay: 0.375 in
Product #: H105C1J6DE9
Product number: H105C1J6DE9
Product №: H105C1J6DE9
Production Time: Stock
Silentia+ Series: 100 Series
Unit 1: case - 300
Use Type: Standard Door
