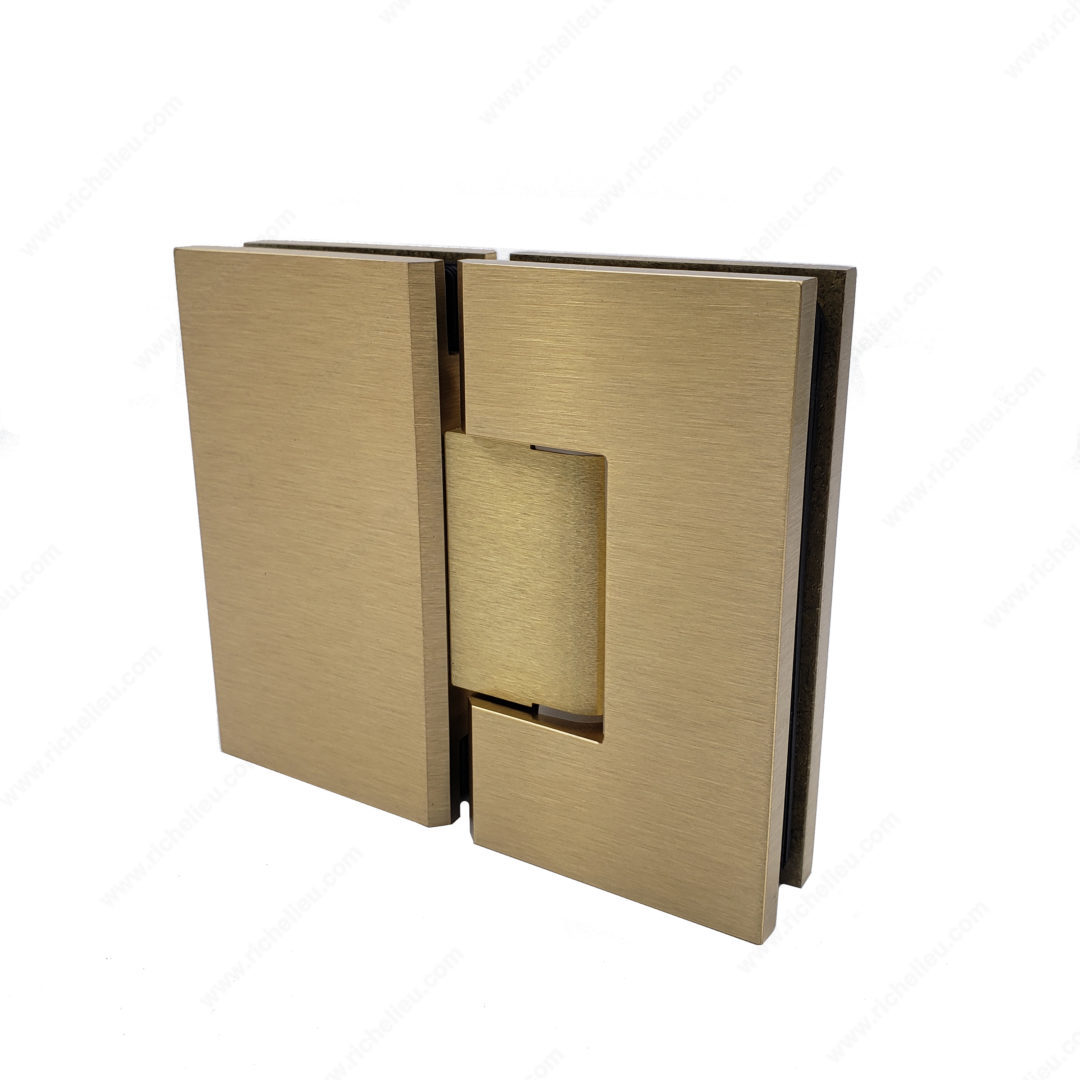

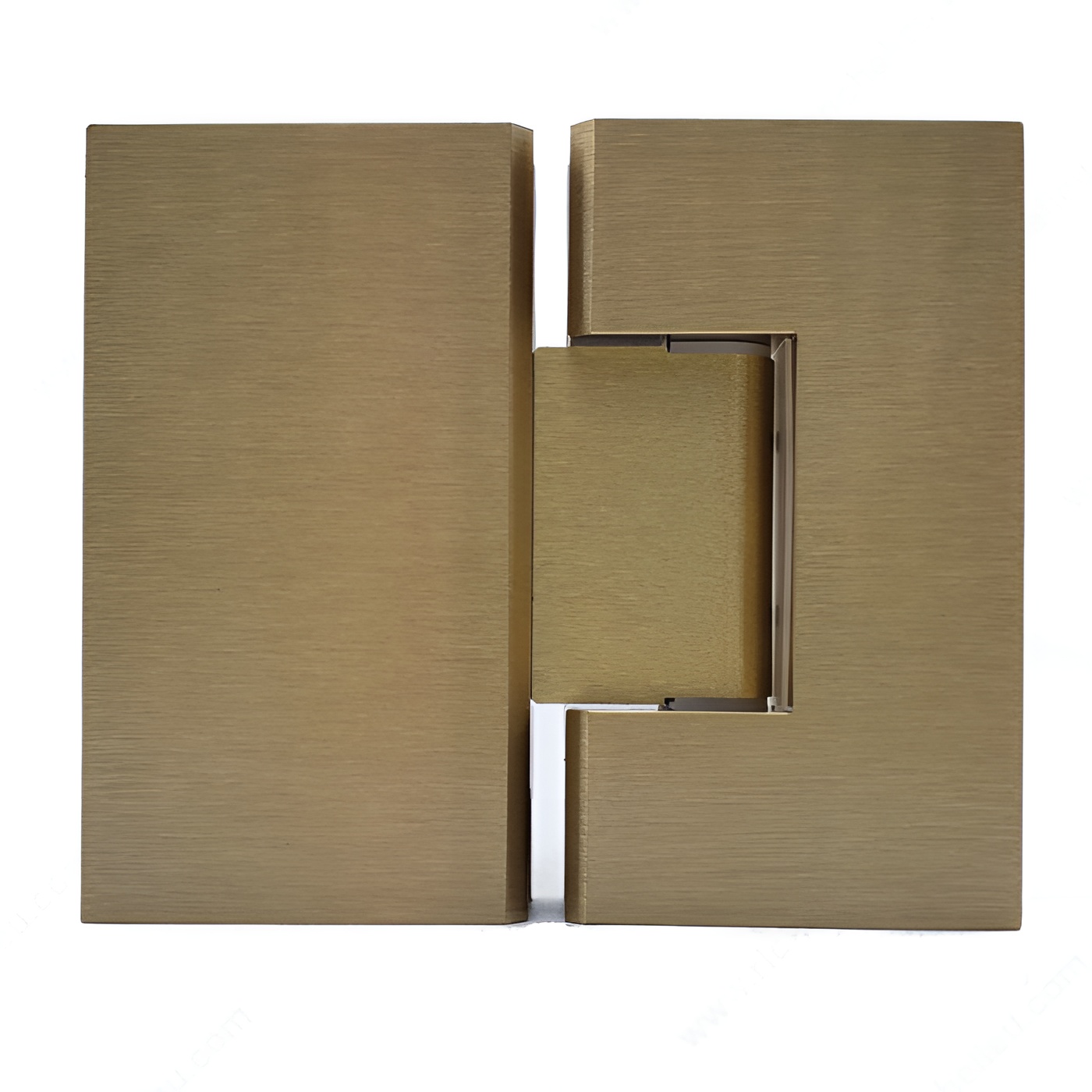

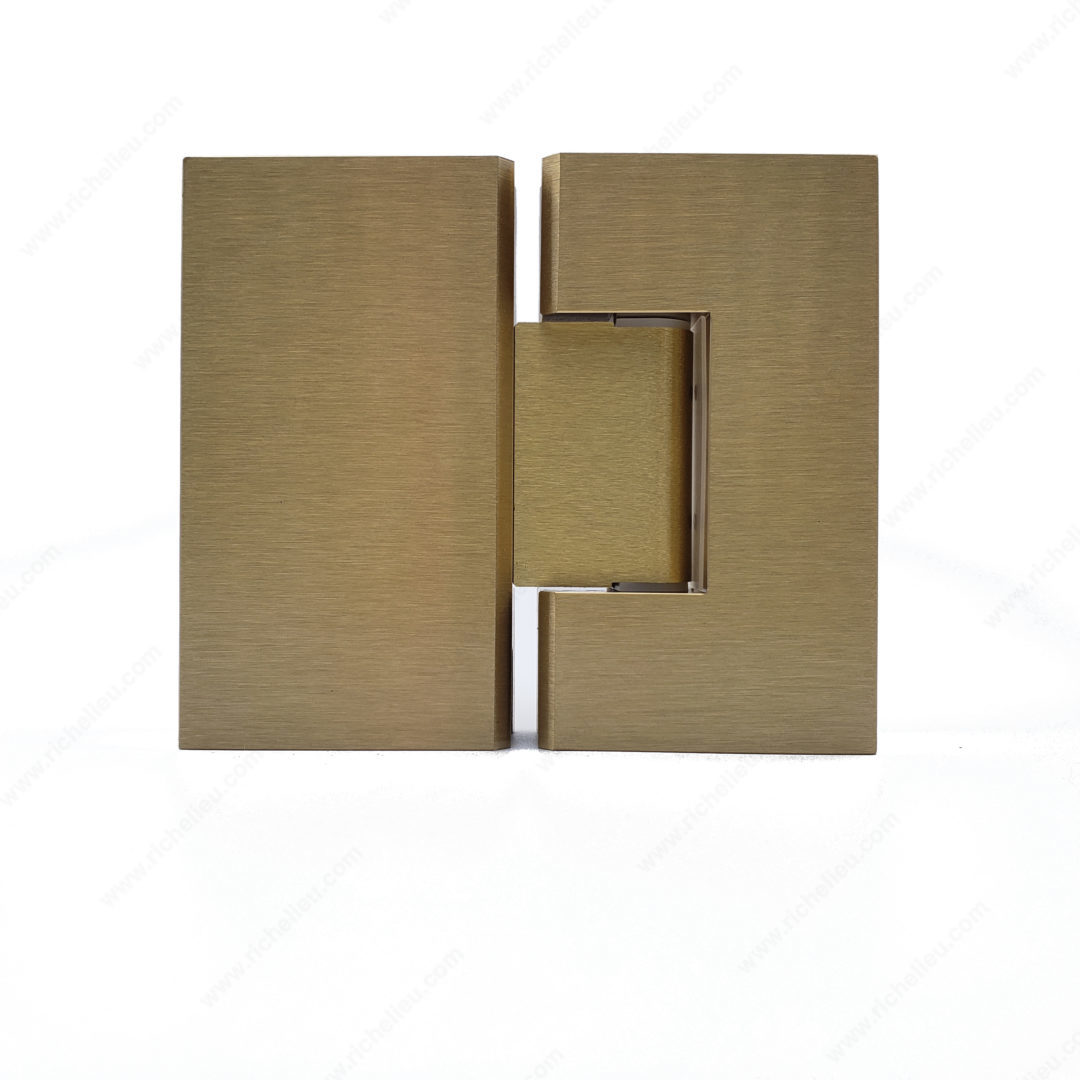

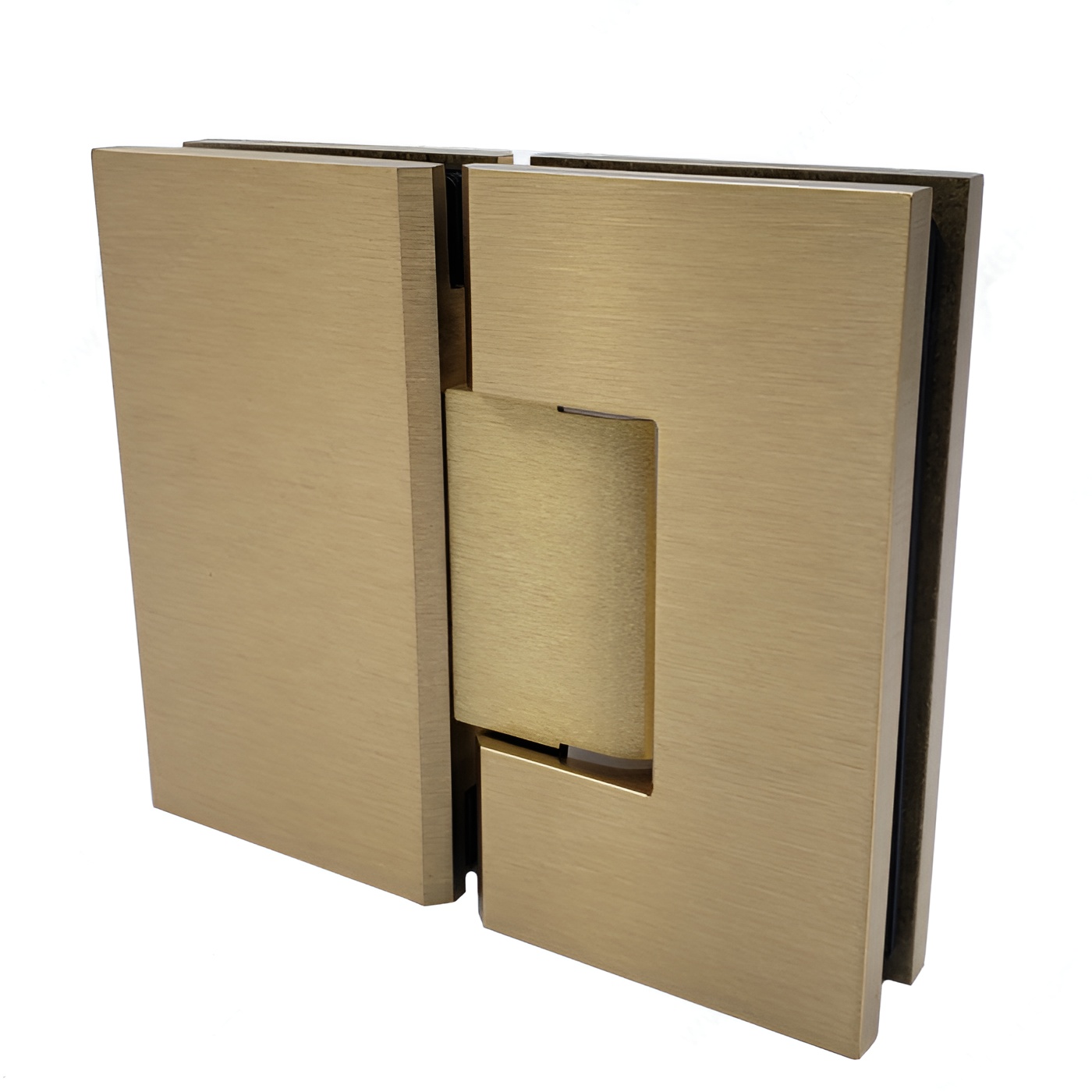

Richelieu SH1HSQ180G160 Riveo Pro Square Heavy-Duty GTG Hinge 180 offers a robust solution for installing glass doors to adjacent glass panels. This self-closing hinge operates at a full 180° angle, making it an ideal choice for corner shower enclosures or glass doors and panels. Crafted from solid brass with a stainless steel pin and spring, it ensures durability and reliability in high-traffic areas. The Riveo Pro collection is known for its extensive range of styles and finishes, and this hinge is available in a sophisticated satin brass finish, seamlessly integrating with modern and traditional designs alike. It's engineered to accommodate various thicknesses of tempered glass, specifically between 13/32 to 15/32 inches, making it versatile for different applications. For enhanced performance, the hinge supports a maximum glass weight of 99.2 lbs with two hinges and up to 150 lbs with three hinges. Additionally, it allows for a maximum glass width of 30 inches with two hinges and 36 inches with three. Designed for glass mounting, the SH1HSQ180G160 is a heavy-duty choice that brings both functionality and aesthetic appeal to your project, ensuring that your glass installations are secure and stylish.
Riveo Pro Square Heavy-Duty GTG Hinge 180
Application
Angle: 180°
Application: Corner Shower, Door and Panel
Brand: Riveo
Collection: Riveo Pro
Finish: Satin Brass
Glass Thickness: 13/32 to 15/32 in*
Hinge Type: Standard
Material: Solid Brass/Stainless Steel Pin & Spring
Max. Glass Weight for 2 Hinges: Max. 99.2 lb*
Max. Glass Weight for 3 Hinges: Max. 150 lb*
Max. Glass Width for 2 Hinges: Max. 30 in
Max. Glass Width for 3 Hinges: Max. 36 in
Mounting Method: Glass Mount
Product #: SH1HSQ180G160
Product №: SH1HSQ180G160
Style: Square
Unit 1: case - 12
Usage: Heavy-Duty
