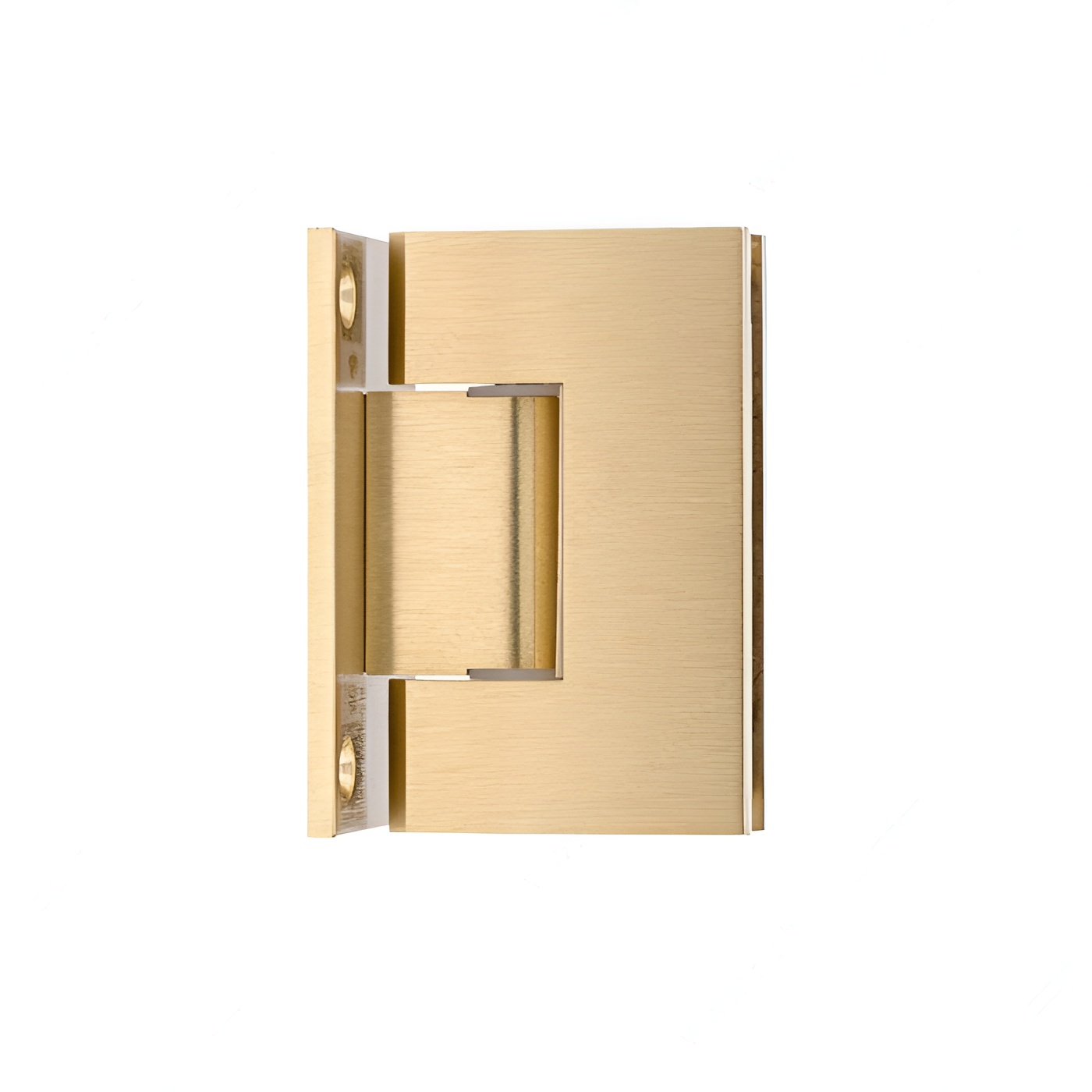

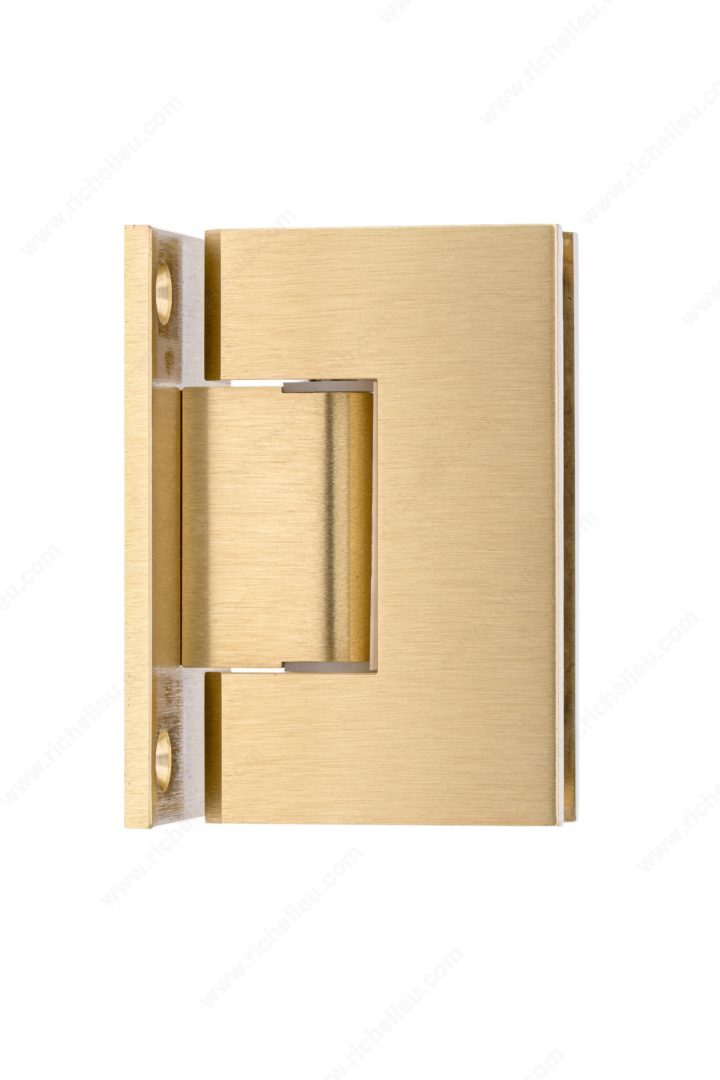

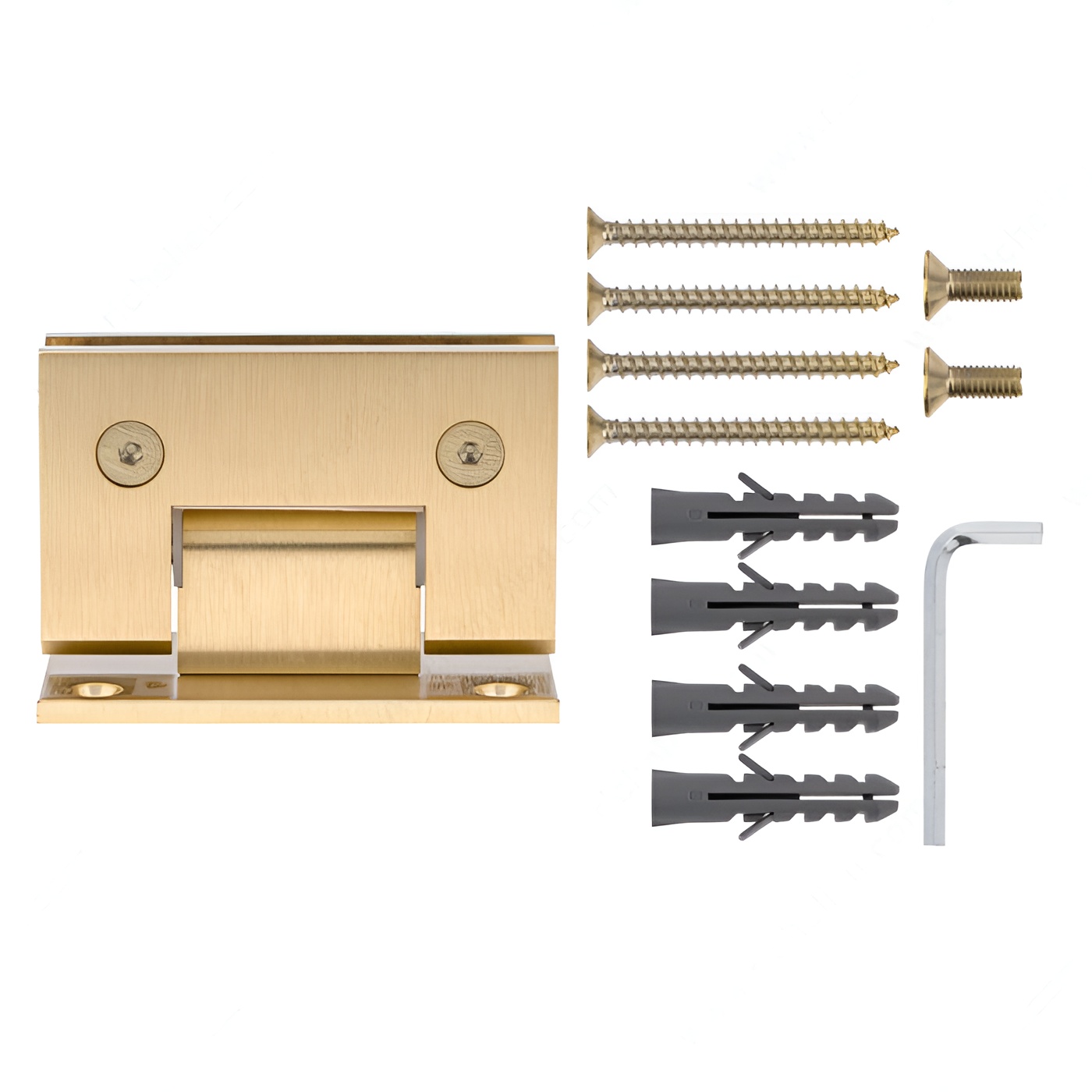

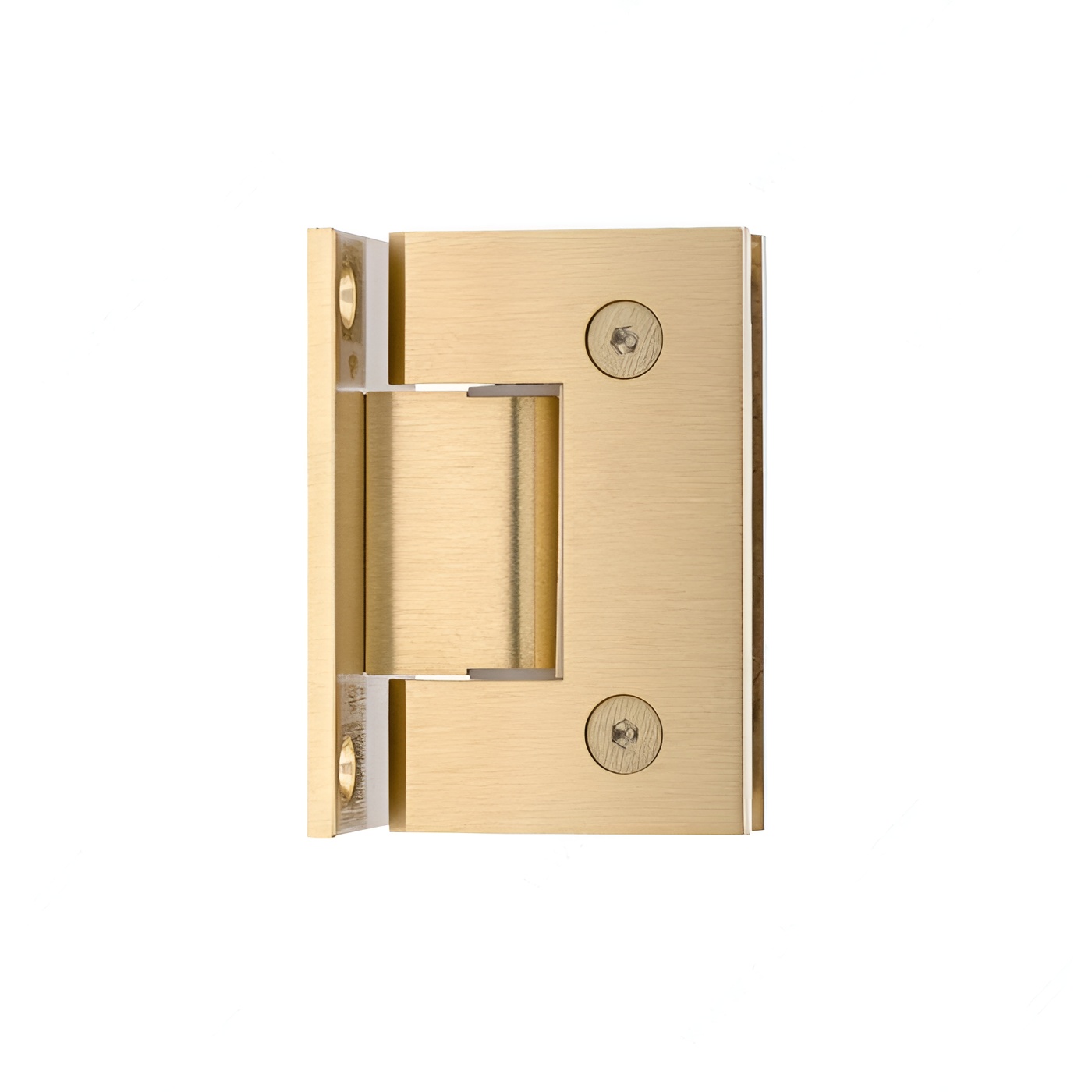

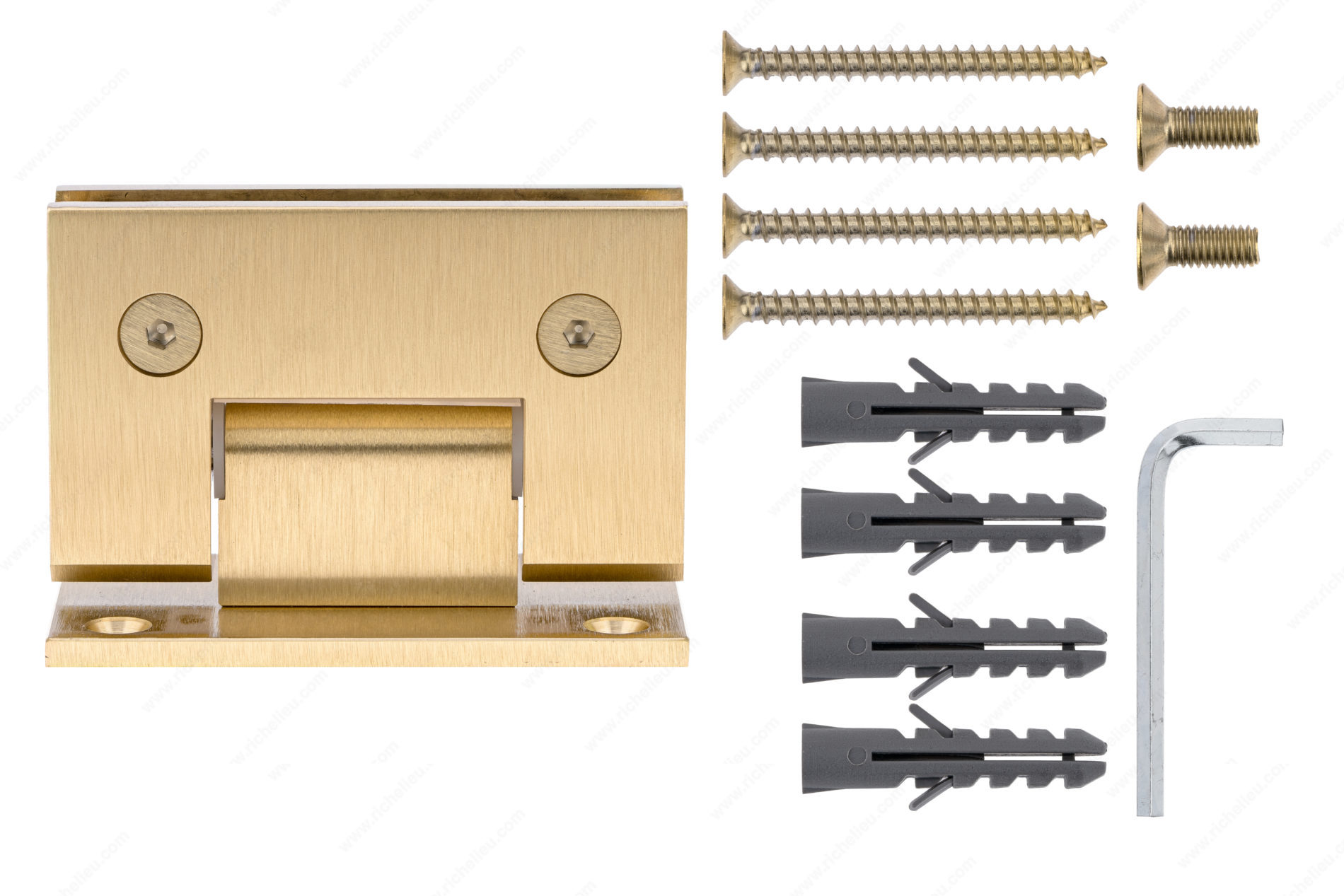

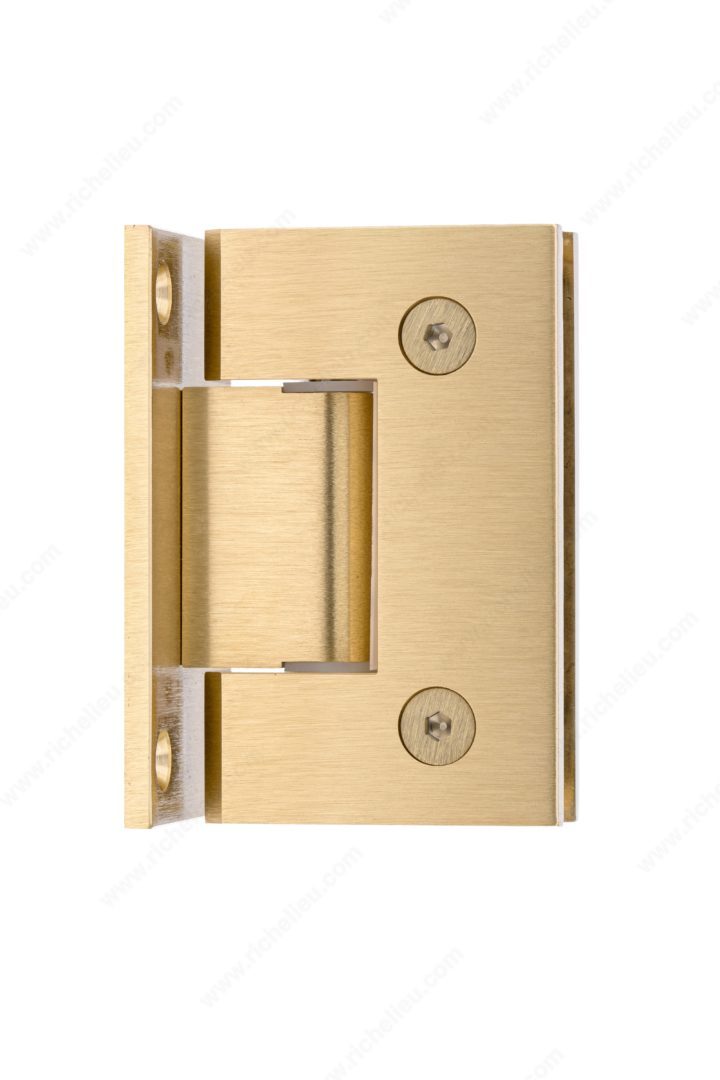

Richelieu SH1SQ90W160 Riveo Pro Square GTW Hinge w/ Full Backplate is an exceptional self-closing hinge designed to securely install a glass door to an adjacent wall. This innovative product from the Riveo Pro collection is available in a sophisticated Satin Brass finish, ensuring it complements a wide array of design styles and projects. Designed for versatility, this hinge accommodates several thicknesses of tempered glass, making it ideal for applications such as corner showers or glass doors and panels. The hinge is engineered to support a maximum glass weight of 79.4 lb when using two hinges and up to 121 lb with three hinges, while also allowing for glass widths of up to 30 in and 36 in, respectively. The Riveo Pro hinge features a robust construction of solid brass with a stainless steel pin and spring, ensuring durability and longevity. Installation requires specific glass milling: regular-duty and light-duty models need "mouse-ear" type milling, while heavy-duty models necessitate square type milling. This wall-mounted hinge is a reliable choice for both building professionals and discerning homeowners seeking quality and style in their glass installations.
Riveo Pro Square GTW Hinge w/ Full Backplate
Application
Angle: 90°
Application: Corner Shower, Door, Door and Panel
Brand: Riveo
Collection: Riveo Pro
Finish: Satin Brass
Glass Thickness: 5/16 to 13/32 in*
Hinge Type: Standard
Material: Solid Brass/Stainless Steel Pin & Spring
Max. Glass Weight for 2 Hinges: Max. 79.4 lb*
Max. Glass Weight for 3 Hinges: Max. 121 lb*
Max. Glass Width for 2 Hinges: Max. 30 in
Max. Glass Width for 3 Hinges: Max. 36 in
Mounting Method: Wall Mount
Product #: SH1SQ90W160
Style: Square
Usage: Regular
