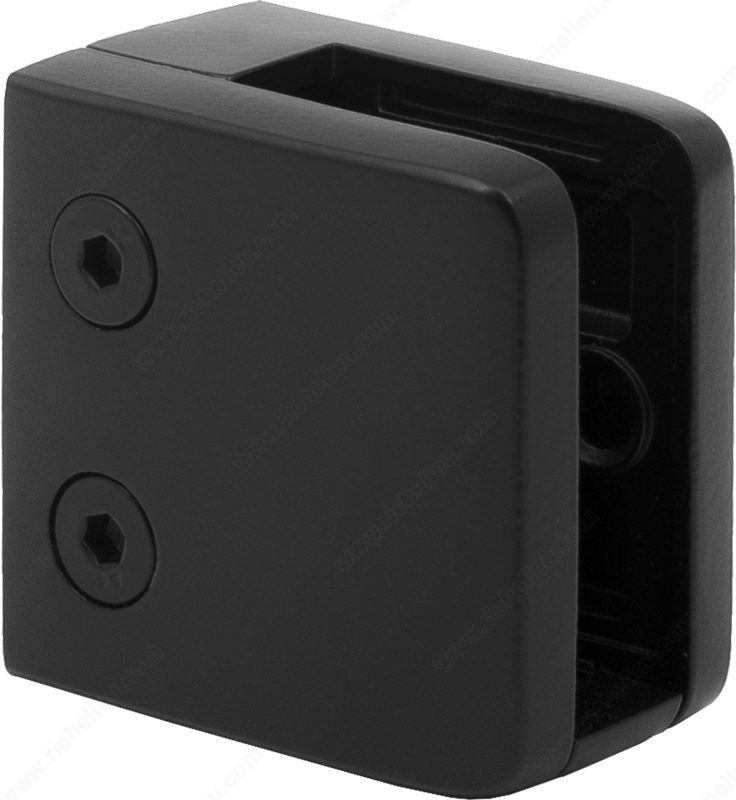

Richelieu SSGC411XXZMB Large Square Glass Clamp for Flat Surface Mounting is engineered to provide a secure and stylish solution for mounting glass panels on flat surfaces. This clamp is particularly ideal for applications such as glass railings and ramp guardrails, combining safety and aesthetics seamlessly. Crafted from durable Zamak, the clamp features a sleek matte black finish that complements a variety of design styles. Measuring 2 5/32 inches in both height and length, and with a width of 1 3/8 inches, it is designed to accommodate baluster post sizes of 40 mm x 40 mm (1 9/16" x 1 9/16"), specifically for square tube posts. The fixed position adjustment ensures stability, while the optional glass drilling feature allows for flexibility in installation. A safety plate is essential to prevent glass from slipping, and a protective gasket kit is required for optimal installation (sold separately). Suitable for interior use, the clamp supports safety glass thicknesses ranging from 1/4 to 15/32 inches. This wall and post mount clamp is an excellent choice for professionals seeking reliable, high-quality glazing solutions.
Large Square Glass Clamp for Flat Surface Mounting, with Bottom Plate
Application
Adjustment: Fixed Position
Baluster Post Size: 40 mm x 40 mm (1 9/16" x 1 9/16")
Baluster Post Type: Square Tube
Finish: Matte Black
Glass Drilling: Optional
Height: 2 5/32 in*
Length: 2 5/32 in*
Material: Zamak
Product #: SSGC411XXZMB
Recommended Location Usage: Interior
Safety Glass Thickness: 1/4 to 15/32 in*
Type of Mounting: Wall Mount, Post Mount
Width: 1 3/8 in*
