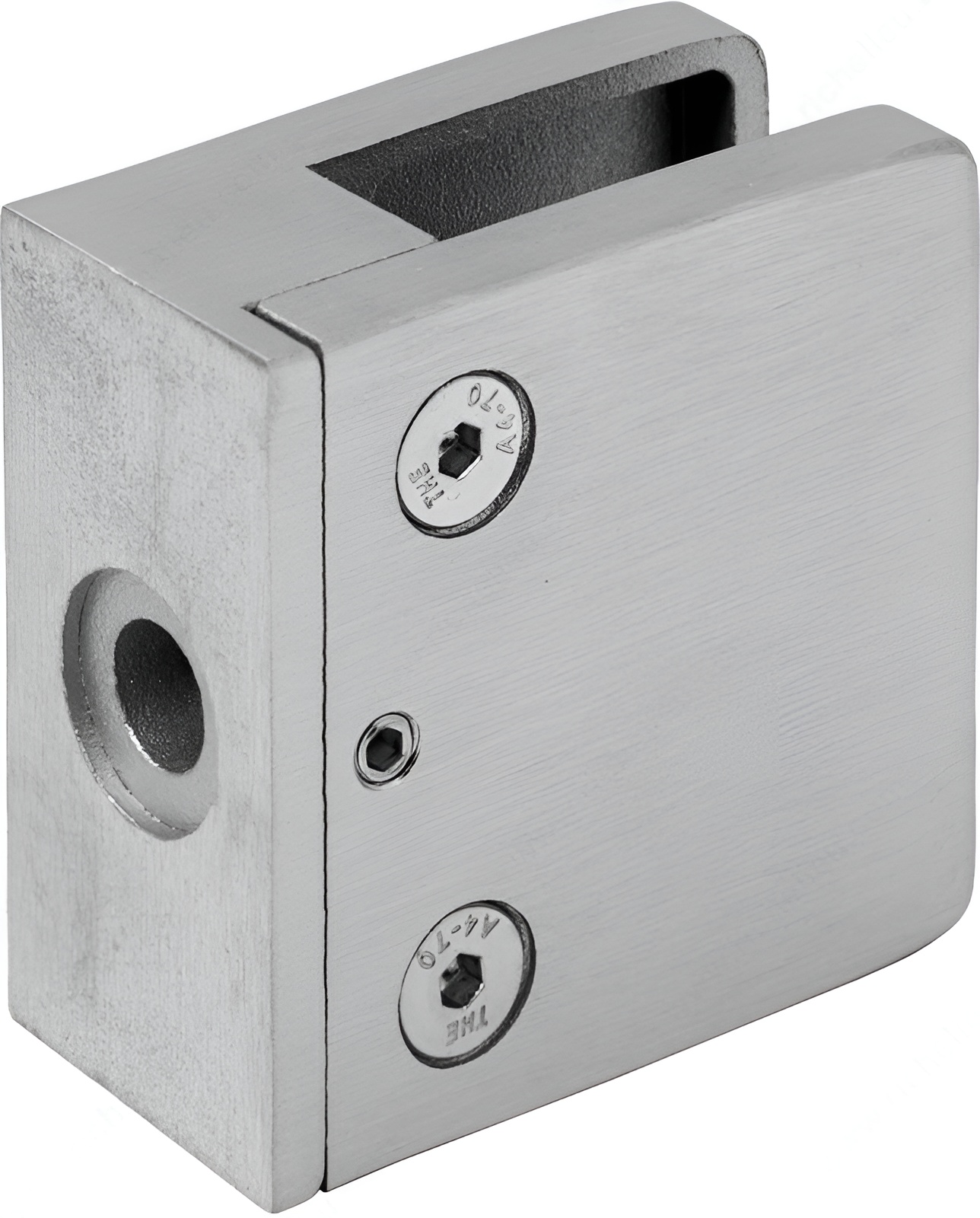

Richelieu SSGC431XXSET Large Square Glass Clamp for Flat Surface Mounting, with Set Screw is designed to securely mount glass panels onto flat surfaces, making it an ideal choice for glass railings and ramp guardrails. This clamp features a safety pin, essential for preventing glass from slipping, and a pressure screw that enhances stability by firmly adhering the clamp to the glass. The SSGC431XXSET accommodates glass thicknesses ranging from 13/32 to 15/32 inches, requiring gaskets specifically designed for 10 to 12 mm thick glass during installation. Constructed from durable Stainless Steel 316 with a sleek satin finish, this clamp is suitable for both interior and exterior applications. With a fixed position adjustment, it fits seamlessly onto square tube baluster posts measuring 40 mm x 40 mm (1 9/16" x 1 9/16"). The clamp measures 2 5/32 inches in height and length, while its width is 1 3/32 inches. Glass drilling is required for installation, ensuring a secure fit. The Richelieu SSGC431XXSET is a reliable choice for professionals and knowledgeable homeowners seeking robust and elegant solutions for glass mounting needs.
Large Square Glass Clamp for Flat Surface Mounting, with Set Screw
Application
Adjustment: Fixed Position
Baluster Post Size: 40 mm x 40 mm (1 9/16" x 1 9/16")
Baluster Post Type: Square Tube
Category: Clamps
Finish: Satin Stainless Steel
Glass Drilling: Required
Height: 2 5/32 in*
Length: 2 5/32 in*
Material: Stainless Steel 316
Product #: SSGC431XXSET
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 13/32 to 15/32 in*
Type of Mounting: Wall Mount, Post Mount
Width: 1 3/32 in*
