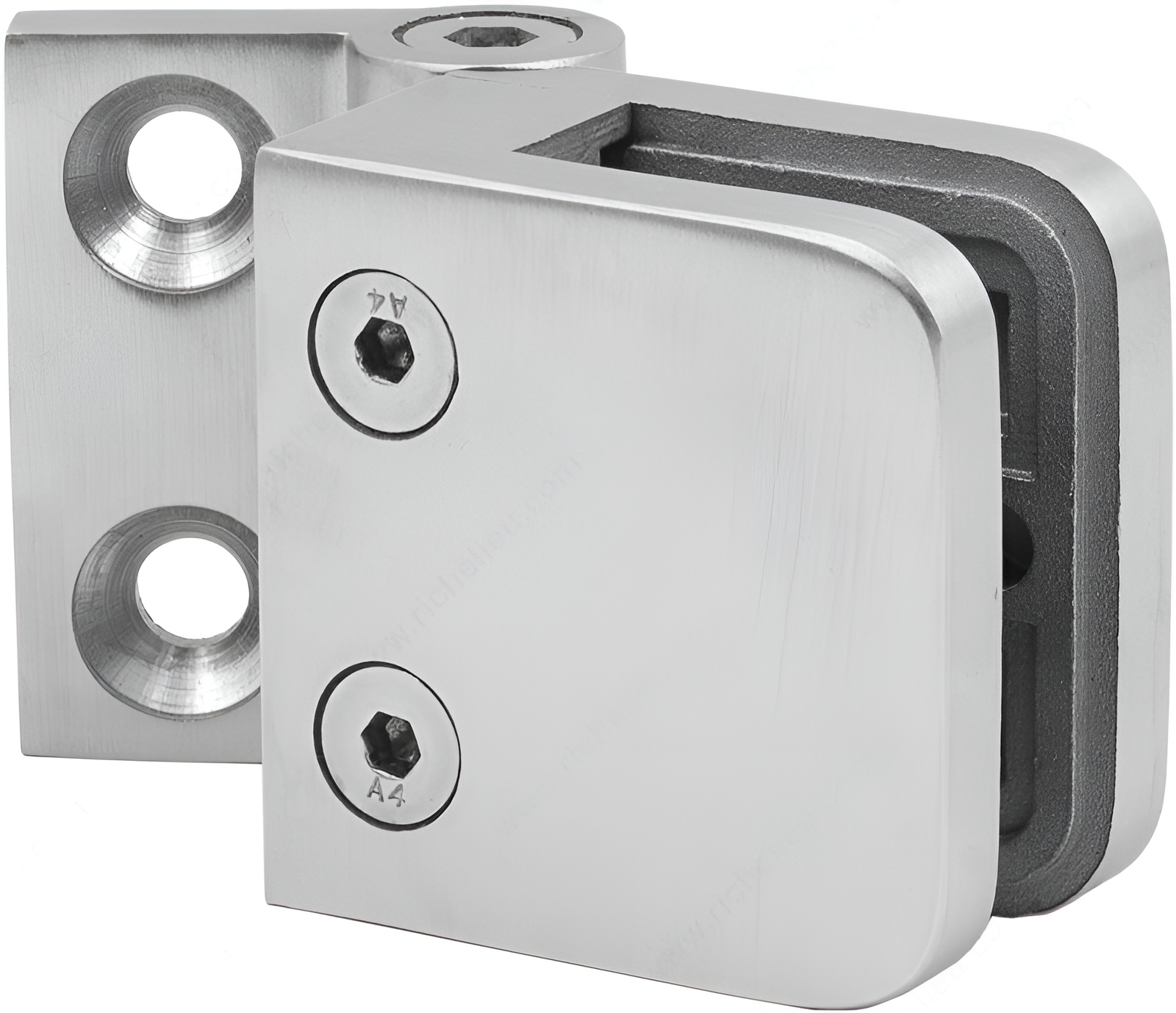

Richelieu SSGCH40116S Large Square Glass Clamp for Flat Surface Mounting, with Hinge is expertly engineered for securely mounting glass panels to flat surfaces such as pillars or walls. Constructed from durable Stainless Steel 316, this clamp is designed to withstand both interior and exterior applications, ensuring longevity and performance in various environments. This clamp features a sleek satin stainless steel finish that enhances aesthetic appeal while providing robust support. It accommodates glass thicknesses ranging from 13/32 to 15/32 inches and includes gaskets suitable for glass panels of 10 to 12 mm, making installation straightforward and effective. A critical safety pin is required to prevent any risk of glass slippage, ensuring a secure installation. With dimensions of 2 5/32 inches in height and 2 9/16 inches in length, this clamp is compatible with square tube baluster posts measuring 40 mm x 40 mm (1 9/16" x 1 9/16"). Glass drilling is necessary for installation, and the fixed position adjustment guarantees stability. Ideal for applications such as glass railings and ramp guardrails, the Richelieu SSGCH40116S provides both security and style in your architectural projects.
Large Square Glass Clamp for Flat Surface Mounting, with Hinge
Adjustment: Fixed Position
Baluster Post Size: 40 mm x 40 mm (1 9/16" x 1 9/16")
Baluster Post Type: Square Tube
Category: Clamps
Finish: Satin Stainless Steel
Glass Drilling: Required
Height: 2 5/32 in*
Length: 2 9/16 in*
Material: Stainless Steel 316
Product #: SSGCH40116S
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 13/32 to 15/32 in*
Type of Mounting: Wall Mount, Post Mount
Width: 1 1/4 in*
