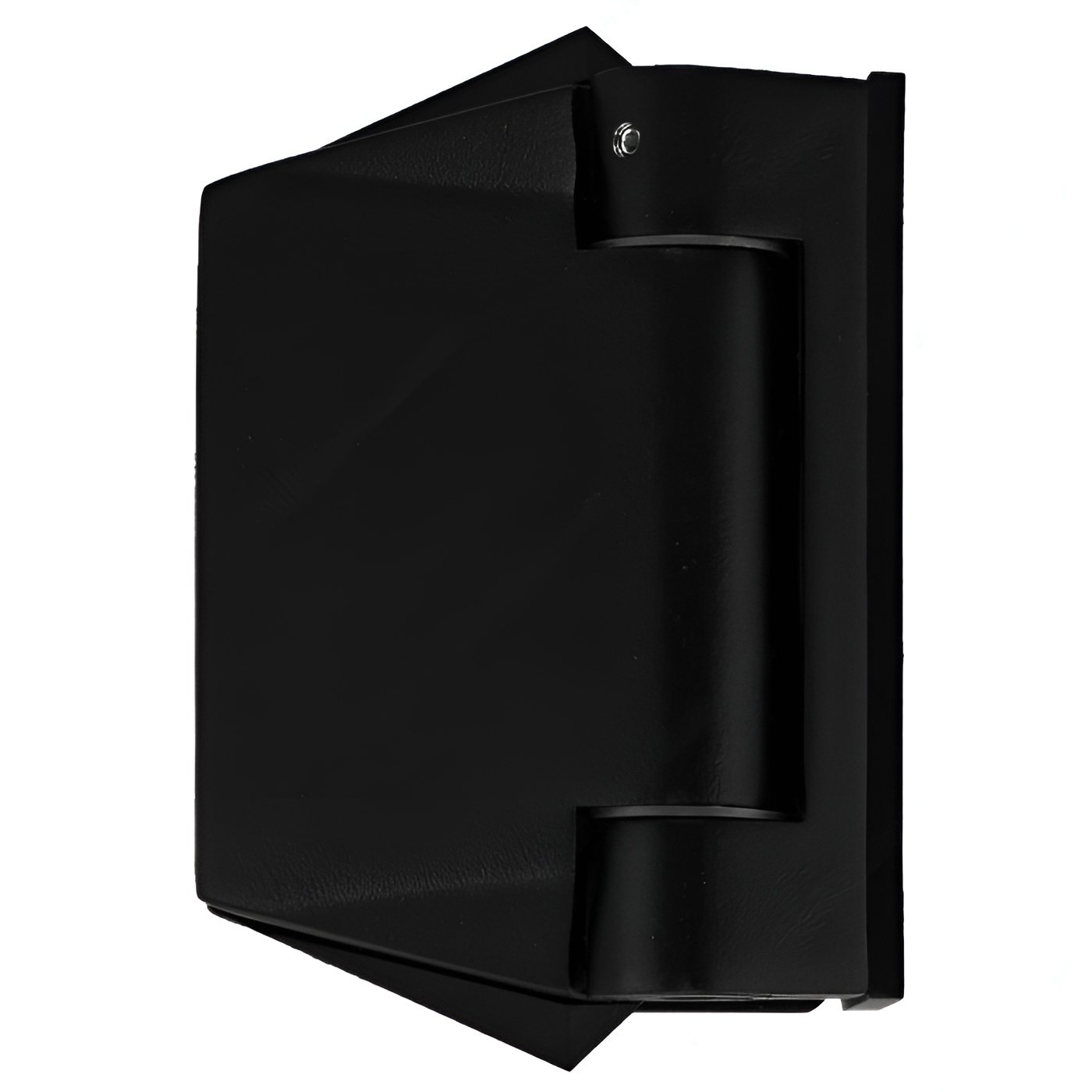

Richelieu SSPFH125WB Polaris Glass-to-Wall Self-Closing Hinge sets a new standard in design, style, and safety for glass installations. This innovative soft-close hinge features a single-action mechanism that ensures smooth operation without the hold-open feature, complemented by an anti-foothold gasket that enhances safety. Designed for versatility, it accommodates glass thicknesses from 10 mm to 12 mm and supports a maximum gate weight of 99 lb (45 kg), making it suitable for a variety of applications. With adjustable speed control, the hinge opens from 0° to 90° outward, providing flexibility in movement. The satin black finish adds a modern touch, seamlessly integrating into any decor. Measuring 3 15/16 inches in height and 2 15/16 inches in length, it is made from durable Duplex 2205 stainless steel, ensuring longevity and resistance to wear. For optimal performance, glass drilling is required, and the hinge is reversible for easy mounting on walls. It accommodates panel heights up to 59 inches and widths up to 35 3/8 inches. With a weight capacity of 99.2 lb for two hinges, the Richelieu Polaris hinge is the perfect choice for professionals seeking reliability and elegance in their glass installations.
Polaris Glass-to-Wall Self-Closing Hinge
Finish: Satin Black
Glass Drilling: Required
Height: 3 15/16 in*
Length: 2 15/16 in*
Material: Stainless Steel: Duplex 2205
Mounting Side: Reversible
Panel Height: Max. 59 in*
Panel Width: Max. 35 3/8 in*
Product #: SSPFH125WB
Safety Glass Thickness: 13/32 to 15/32 in*
Thickness: 1 21/32 in*
Type of Mounting: Wall Mount
Weight capacity for 2 hinges: 99.2 lb*
Width: 4 7/32 in*
