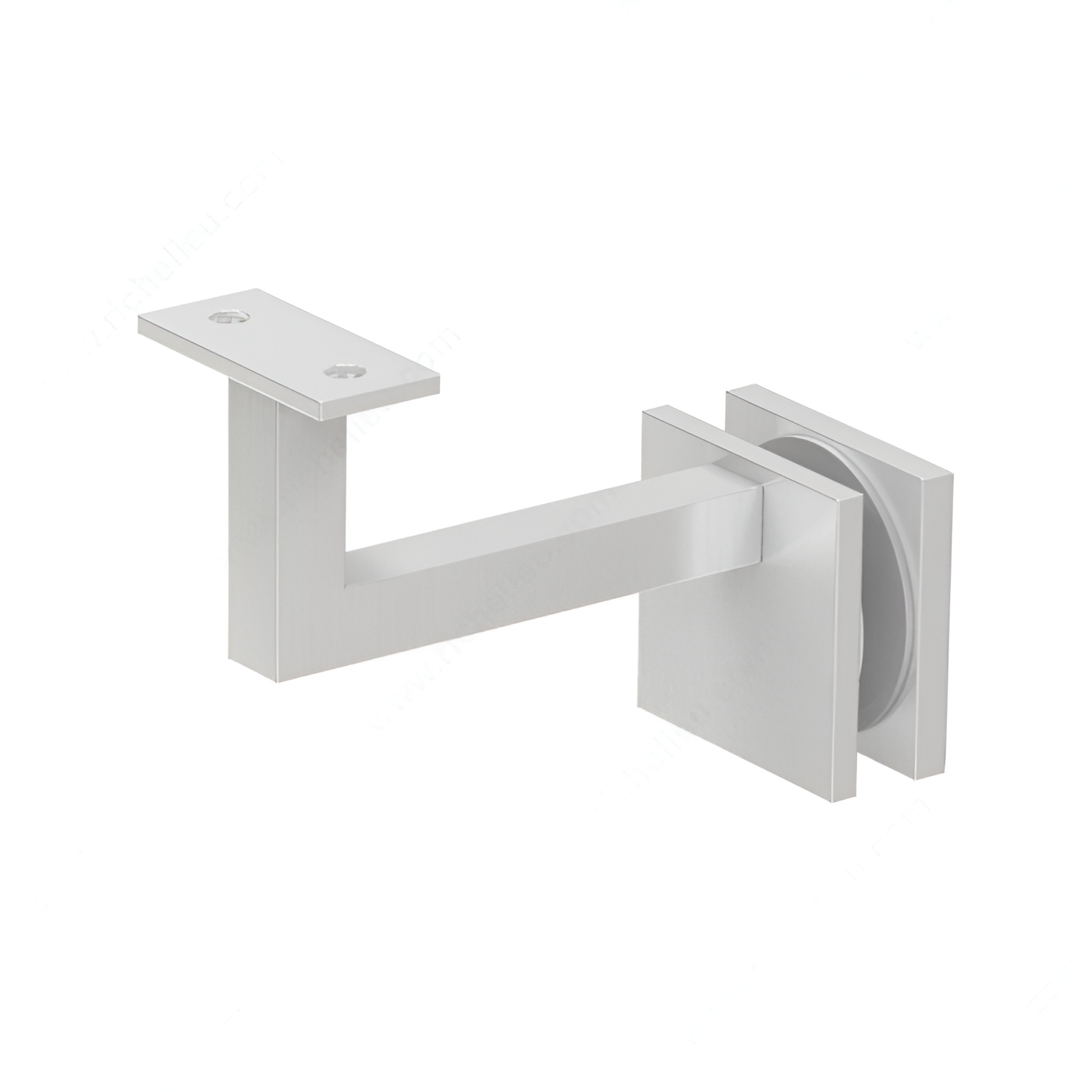

Richelieu SSZH1071116S Square Glass Mount Fixed Bracket is expertly crafted from durable Stainless Steel 316, ensuring longevity and resistance to corrosion, making it ideal for both interior and exterior applications. This sleek bracket is designed to securely support a flat surface handrail from a glass panel, providing a clean and modern aesthetic to your space. With a satin finish, the SSZH1071116S not only offers practicality but also enhances the visual appeal of your railing system. It features a fixed position adjustment and a projection of 3 1/2 inches, accommodating various design preferences. The required glass drilling and specific safety glass thickness of 13/32 to 17/32 inches ensure that the bracket is versatile for different glass installations. Installation is straightforward, but it must be carried out by qualified personnel to guarantee safety and structural integrity. The mounting plate measures 1 31/32 inches, and the milling diameter is 3/4 inches, allowing for secure attachment. For maintenance, simply clean with a soft cloth and non-abrasive soap or ammonia. Richelieu’s commitment to quality ensures that this bracket will not only meet but exceed your expectations, making it a reliable choice for your glazing projects.
SQ2 Series - Standard Concealed - Glass Mount
Important information
Adjustment: Fixed Position
Arm Size: 1/2 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Required
Handrail Type: Flat Tubing
Material: Stainless Steel 316
Milling Diameter: 3/4 in
Mounting Plate: 1 31/32 in
Mounting Plate Diameter: 1 31/32 in
Product #: SSZH1071116S
Projection: 3 1/2 in
Recommended Location Usage: Interior, Exterior
Rod Diameter: 1/2 in
Saddle: Included
Safety Glass Thickness: 13/32 to 17/32 in*
Thread Type: M8
Type of Mounting: Glass Mount
