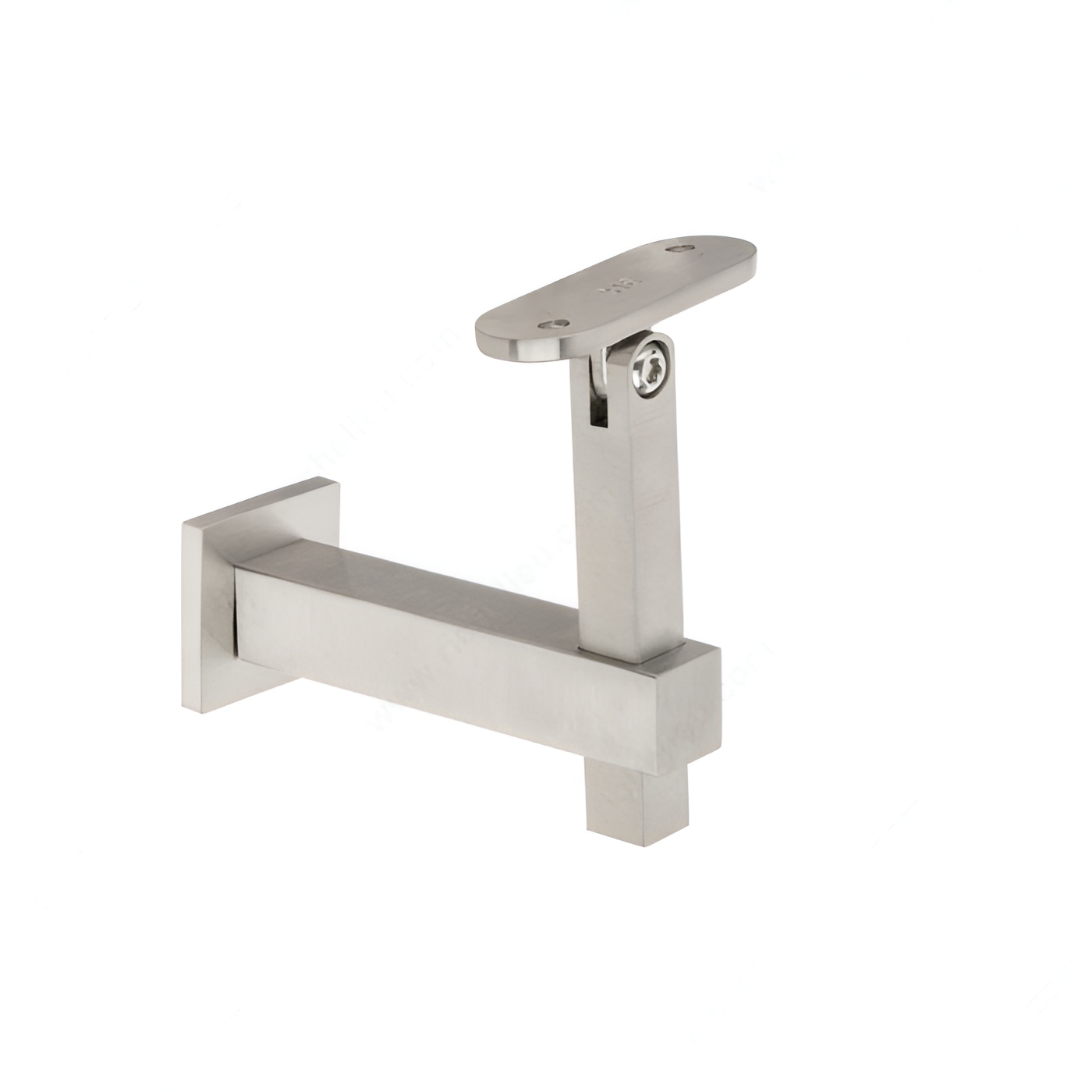

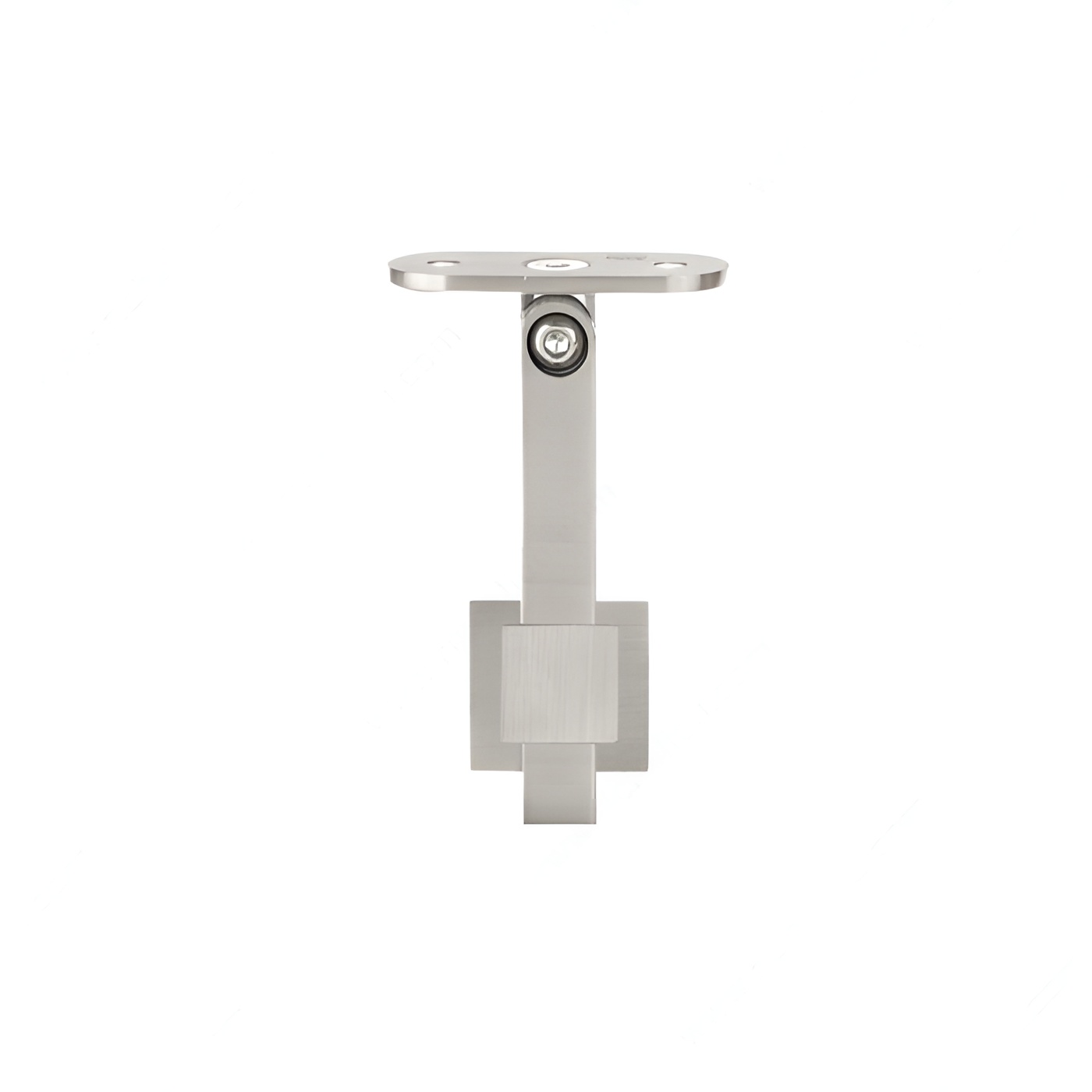

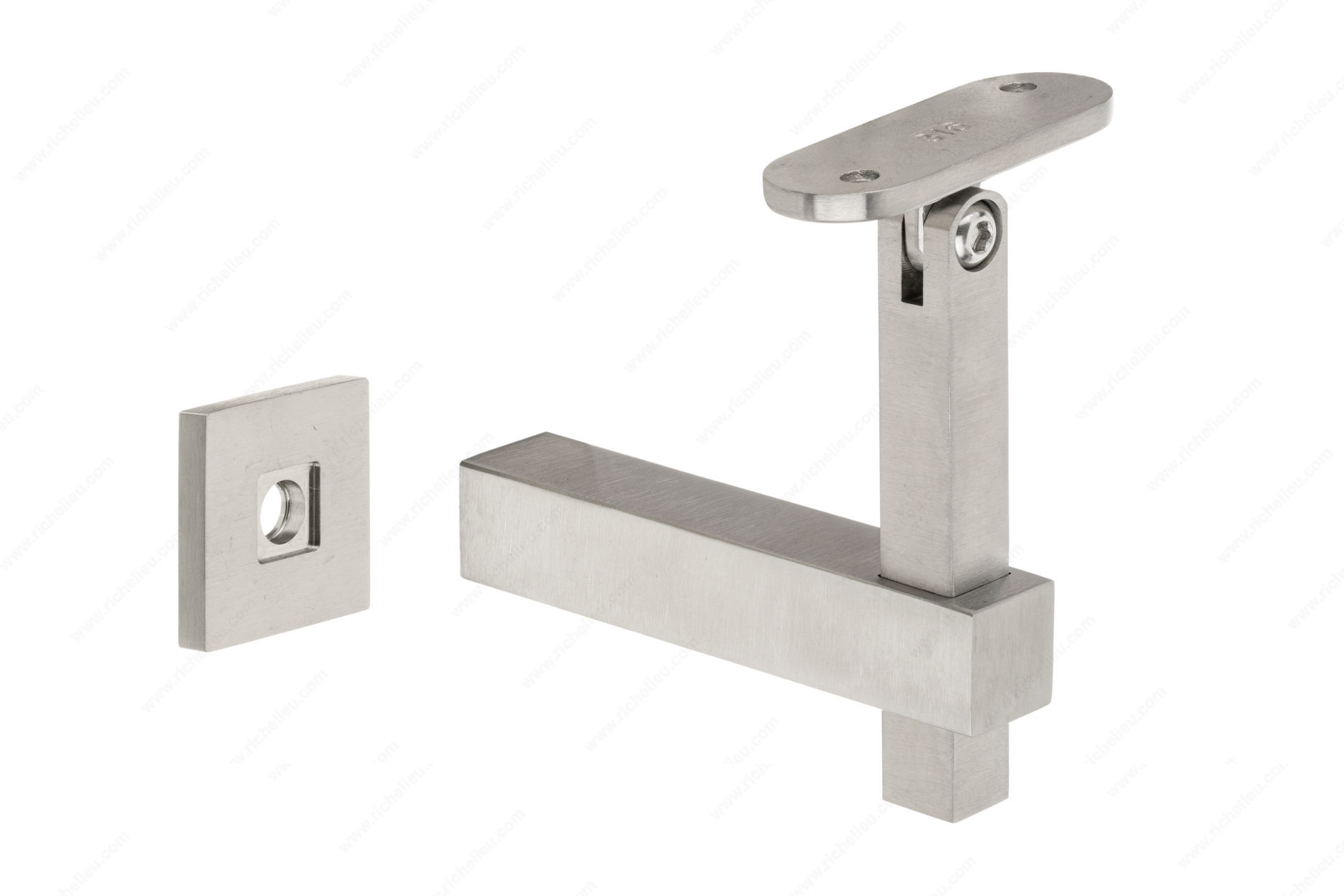

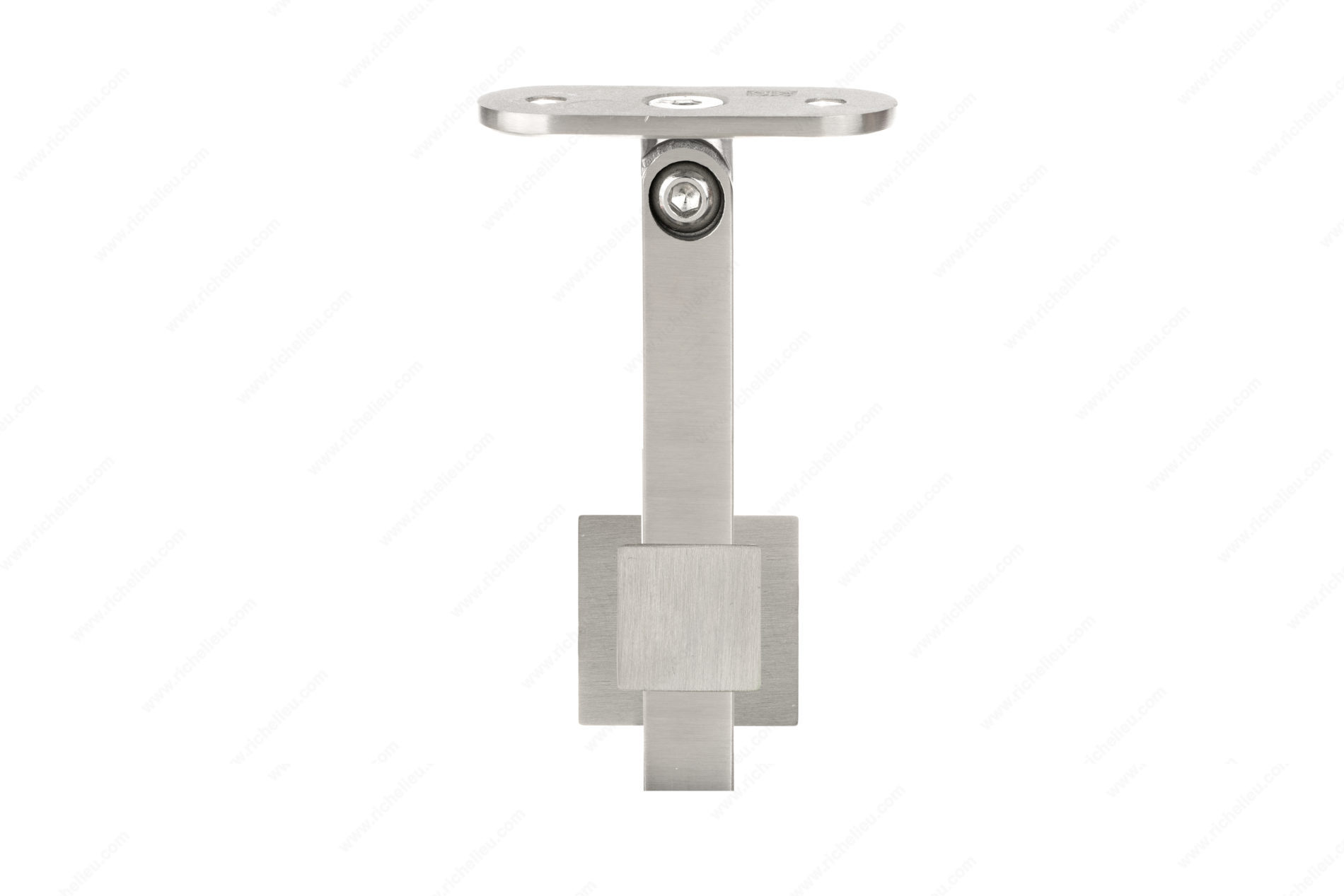

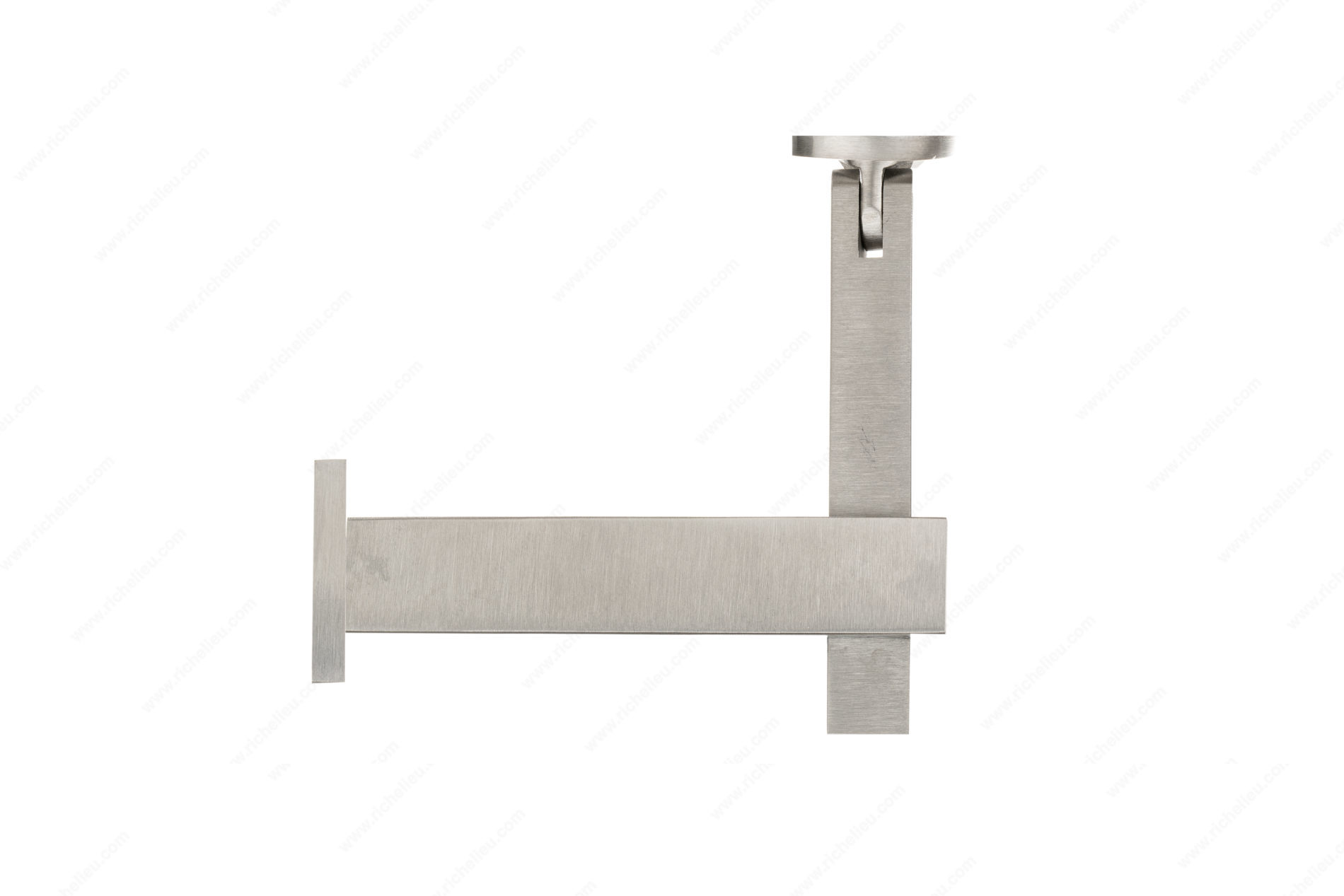

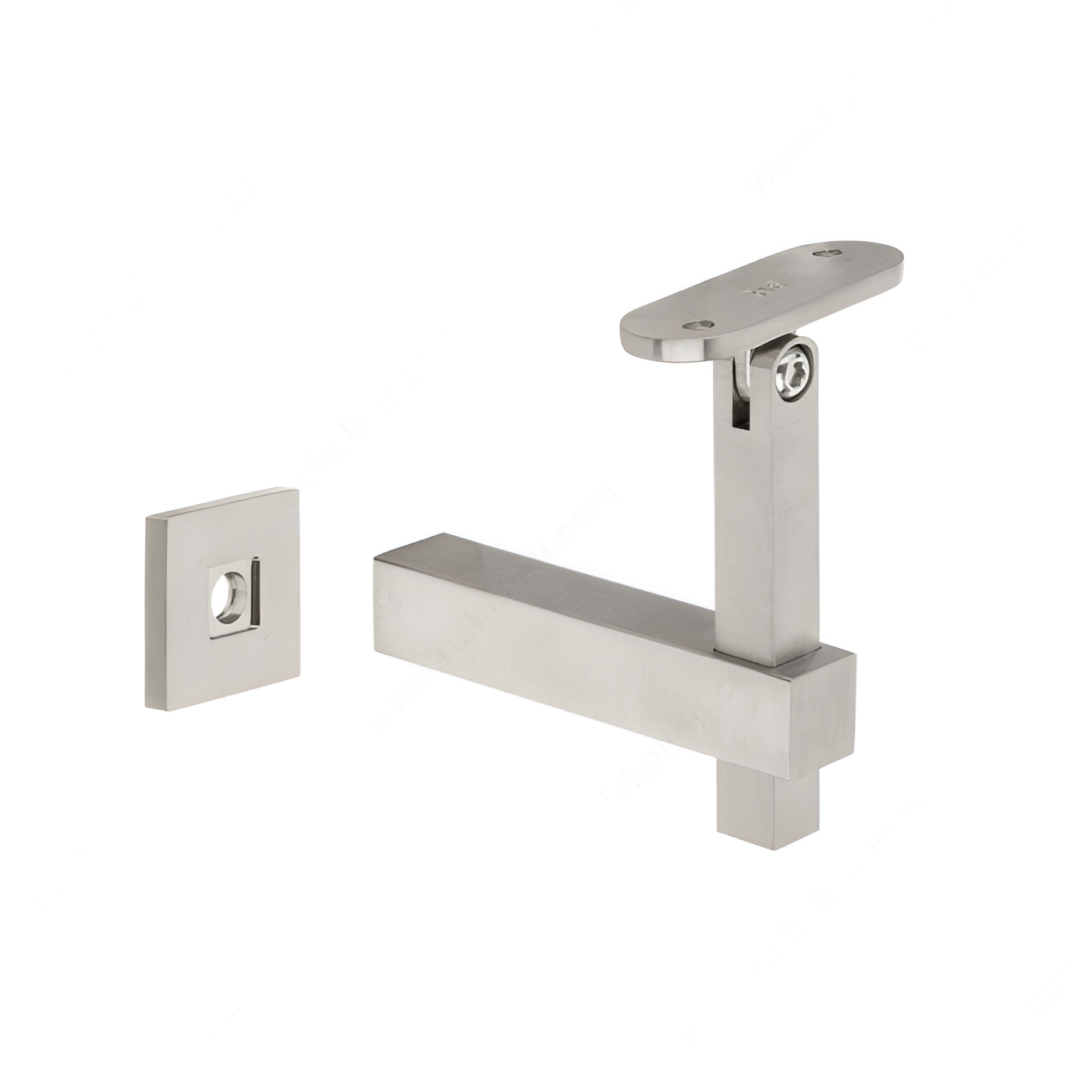

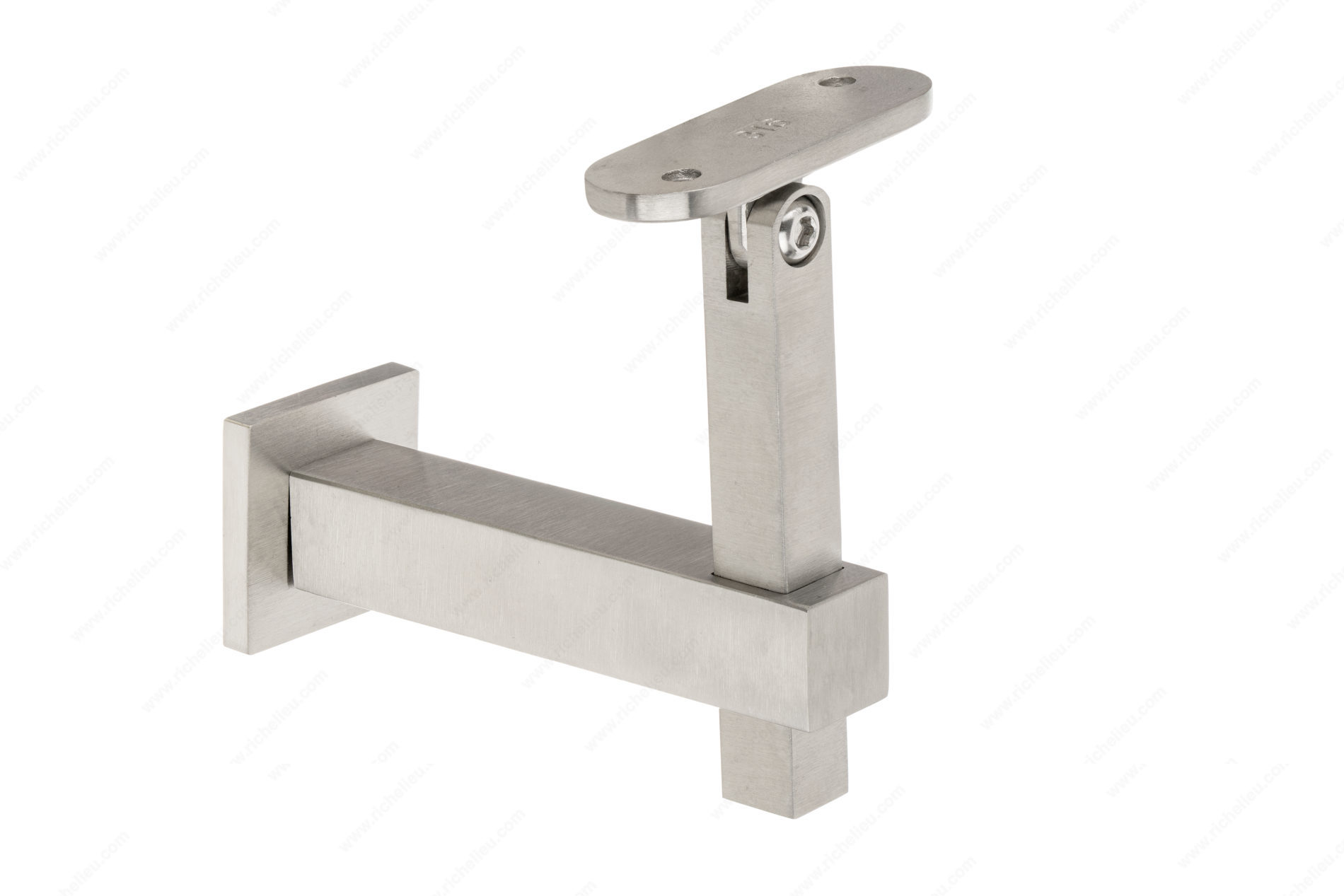

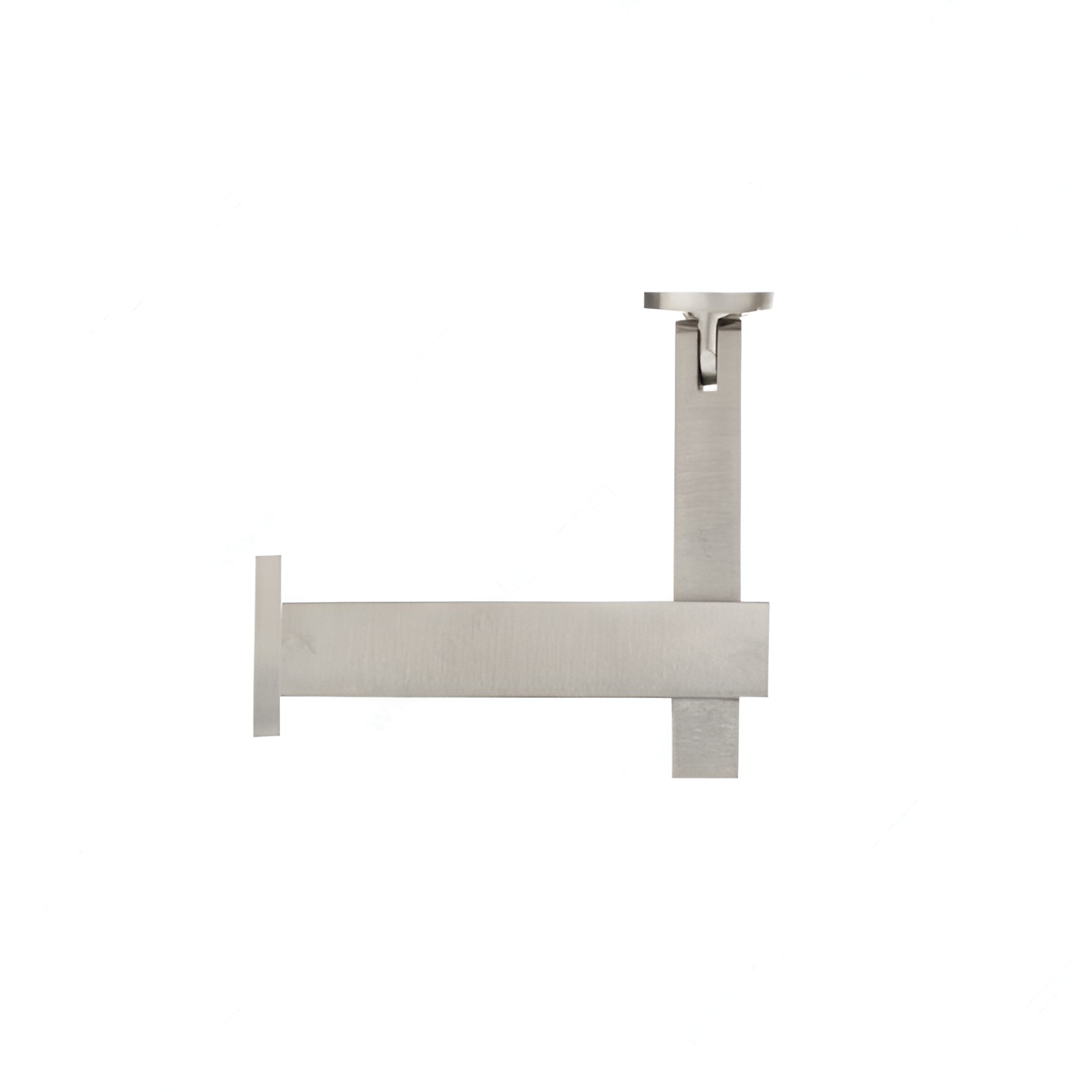

Richelieu SSZH40116S Adjustable Square Wall Mount Bracket for Height and AngleRichelieu SSZH40116S Square Wall Mount Height and Angle Adjustable Bracket is crafted from durable stainless steel 316, ensuring both longevity and resilience in various environments. This bracket is designed specifically for installing flat surface handrails on walls, making it an ideal choice for both interior and exterior applications. Its adjustable height feature allows for precise customization to achieve the perfect handrail height, while the articulated design facilitates easy angle adjustments, especially useful in staircase installations. With a mounting plate measuring 1 1/2 inches and a projection of 3 19/32 inches, the bracket offers robust support without compromising on aesthetics. The arm height stands at 4 3/32 inches, and the arm size is 25/32 inches, making it versatile for various handrail designs. This product comes with a saddle included for added convenience, although screws are not provided, allowing for tailored installation with suitable fixtures. Richelieu prioritizes safety and compliance, and this bracket meets industry standards and safety codes. For optimal installation, it's recommended to consult with qualified personnel and licensed engineers to ensure adherence to local building codes. Elevate your handrail installations with the Richelieu SSZH40116S-where functionality meets style.
SQ4 Series - Height Angle Adjustable - Wall Mount
Stainless steel bracket designed for installing a handrail on a wall. Bracket is adjustable to achieve desired height of handrail.
Articulated bracket makes it easy to adjust the angle of the handrail as well when used in a staircase application.
For use with flat surface handrails,
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer.
The design of this product meets industry standards and safety code requirements. Always consult a licensed engineer prior to assembly to ensure that the installation meets the requirements of local building codes. Never use a spray lubricant on this product.
Attributes
Adjustment: Adjustable Angle, Adjustable Height
Arm Height: 4 3/32 in
Arm Size: 25/32 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Not Required
Handrail Type: Flat Tubing
Material: Stainless Steel 316
Mounting Plate: 1 1/2 in
Mounting Plate Diameter: 1 1/2 in
Mounting Side: Reversible
Product #: SSZH40116S
Projection: 3 19/32 in
Recommended Location Usage: Interior, Exterior
Rod Diameter: 25/32 in
Saddle: Included
Screw: Not Included
Thread Type: M8
Type of Mounting: Wall Mount
