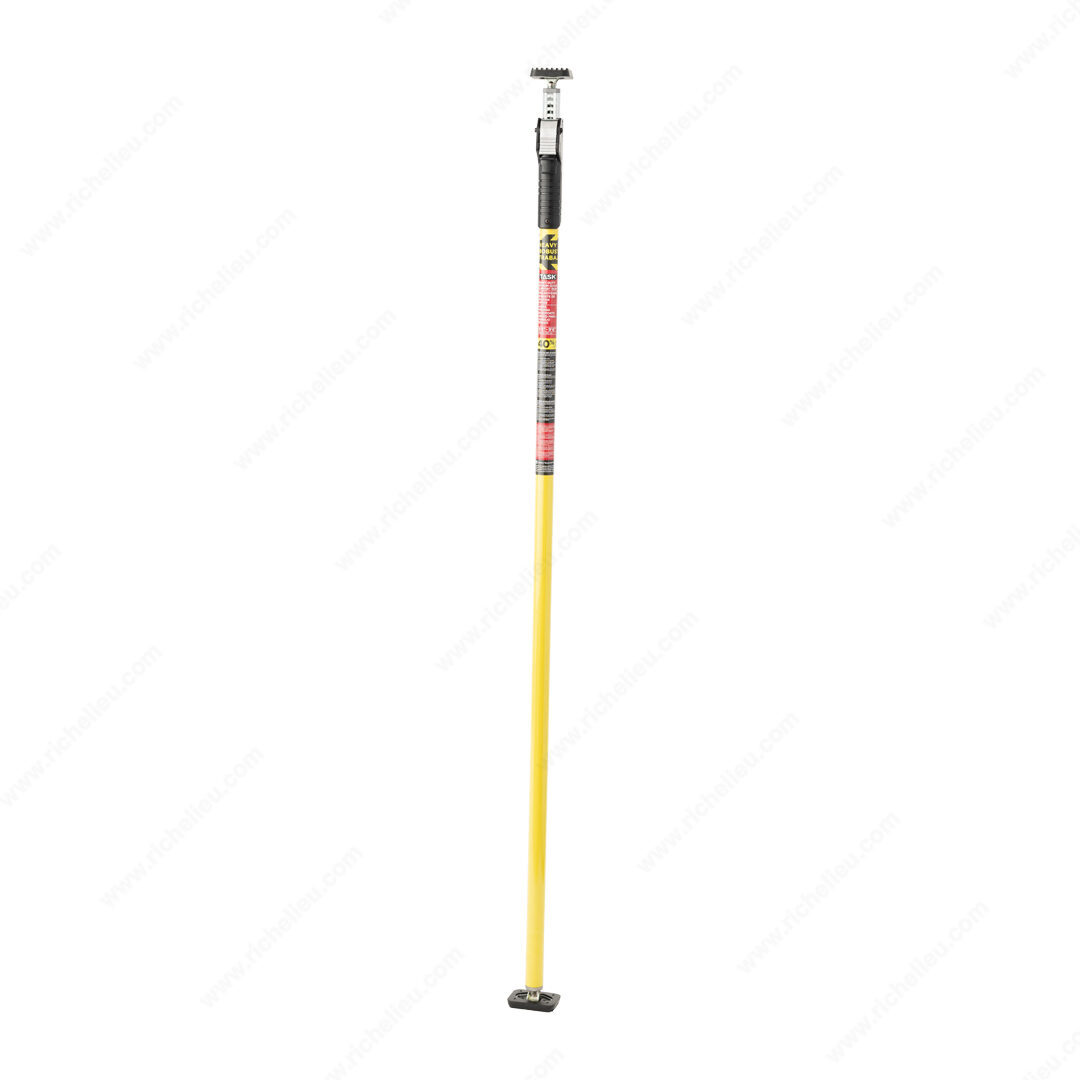

Richelieu T74501 Heavy-Duty Quick Support RodRichelieu T74501 Heavy-Duty Quick Support Rod offers a reliable solution for a range of support needs, combining strength with user-friendly features. Designed to hold up to 185 lbs, this manual support rod extends from 5 ft 3 in to 10 ft, making it versatile for various applications. The rotating cushion grip allows for effortless incremental adjustments, ensuring that you can position it exactly where you need it. The adjustable rubber face enhances stability while incorporating a built-in safety lock to prevent accidental disengagement during use. Fast ratchet action streamlines the adjustment process, allowing you to efficiently raise or lower the rod as needed. The thoughtful design ensures that once set, the rod remains secure, giving you peace of mind while working. For optimal performance, follow the straightforward setup instructions, which guide you through the locking and adjustment process. The rod is designed for easy disassembly, making it just as simple to take down when your project is complete. Whether you are a professional contractor or a knowledgeable homeowner, the Richelieu T74501 Heavy-Duty Quick Support Rod is an essential tool for any job requiring reliable support and stability.
Heavy-Duty Quick Support Rod

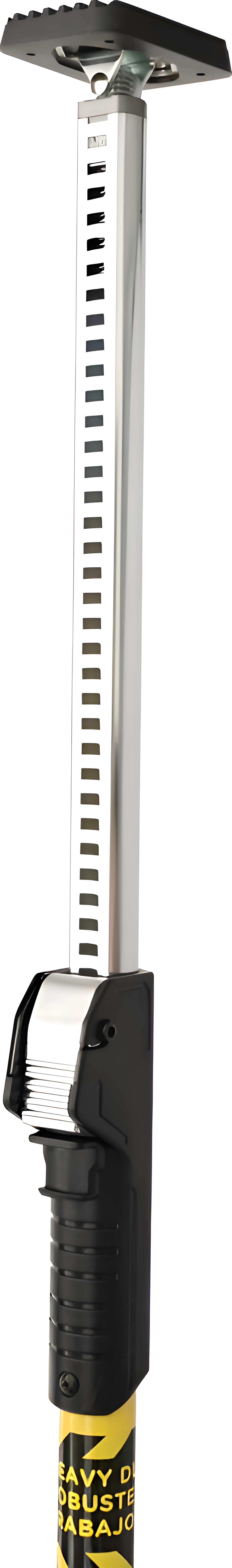

- Long Heavy Duty QSR with rotating cushion grip for easy incremental adjustments
- The adjustable rubber face provides stability and includes a built-in safety lock.
- Adjustable Rubber Face
- Fast Ratchet Action
- Cushion Grip
Important information
How to use the quick support rod:
1. Ensure the locking pin is in the open position extending from the left side of the rod
2. Bottom pad flat and secure
3. Press and hold the locking latch open while pulling out the rod extension
4. Pull to the desired height
5. Once stable, ensure the locking latch is secured in a slot
6. Slide the locking pin to the right to prevent accidental pressing of the latch
7. Fine-tune the tension by turning the rod clockwise to tighten
8. The latch is locked
9. To take the rod down, loosen the tension by twisting the rod counter-clockwise
10. Shift the locking pin to open the position
11. Depress the locking latch and lower the rod extension back into the rod body
Attributes
Brand: Task
Capacity: 185 lb
Extension: 5 ft 3 in to 10 ft
Product #: T74501
Type of Tool: Manual
