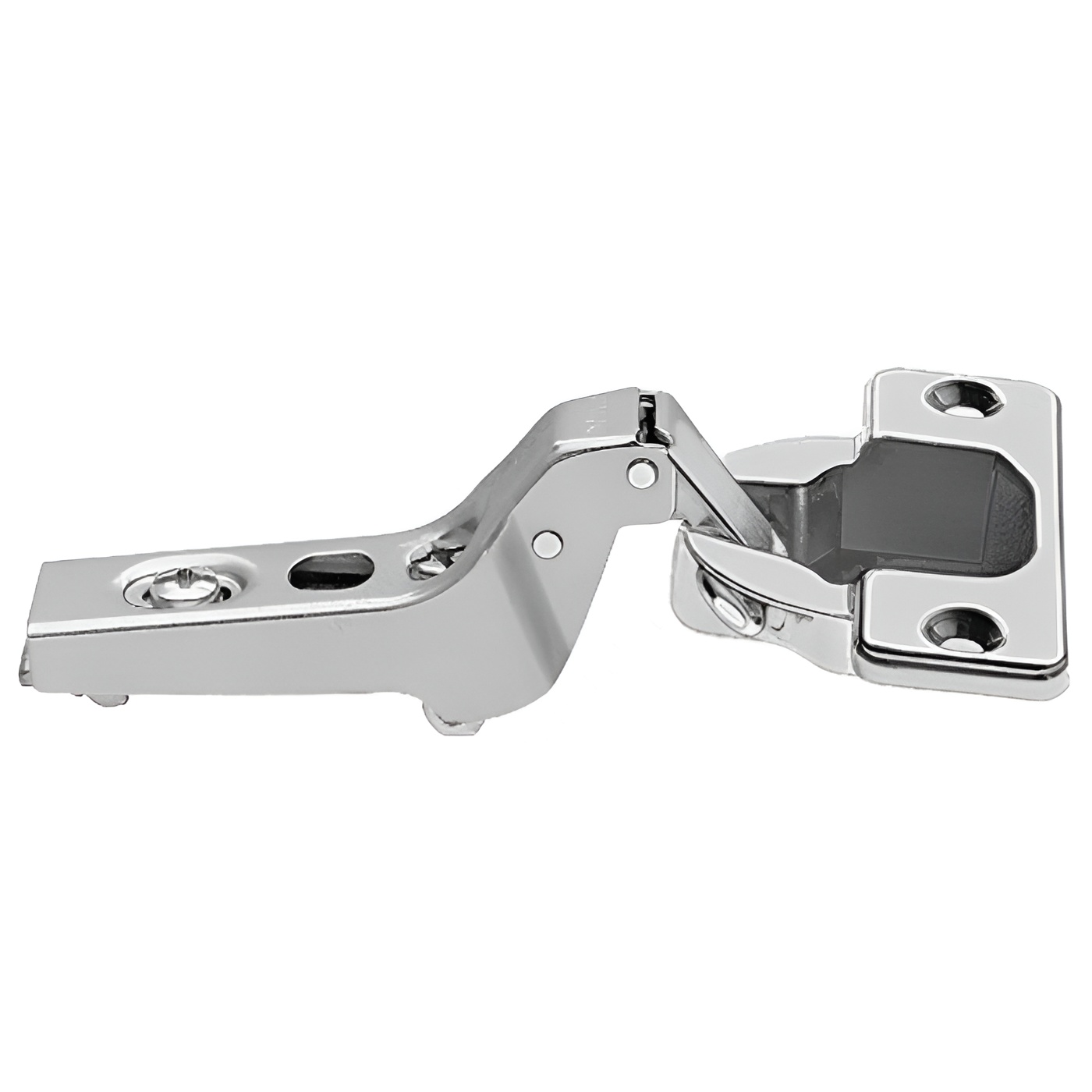

Richelieu UC71M275180 CLIP Hinge - 100 offers a seamless solution for frameless cabinet doors, designed with both functionality and ease of use in mind. This hinge features an ergonomic design that ensures simple handling, making installation a breeze. The innovative fixing mechanism permits rapid and secure connections to the mounting plate, enhancing efficiency during assembly. With a hinge opening angle of +100°, this clip hinge provides ample access to cabinet interiors, allowing users to maximize space utilization. It supports doors with a minimum thickness of 5/8 inch, making it versatile for various standard door applications. The screw-on fixing type ensures a sturdy attachment, while the spring closing mechanism offers smooth and reliable operation. Designed to accommodate a cabinet thickness of 5/8 inch, the UC71M275180 is ideal for inset door positions. Its milling depth of 13/32 inch and diameter of 1 3/8 inch allow for precise installation, ensuring a secure fit. Packaged per unit and conveniently shippable via UPS, this hinge is a reliable choice for building professionals and knowledgeable homeowners alike, looking to enhance their cabinetry with quality hardware.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Inset
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

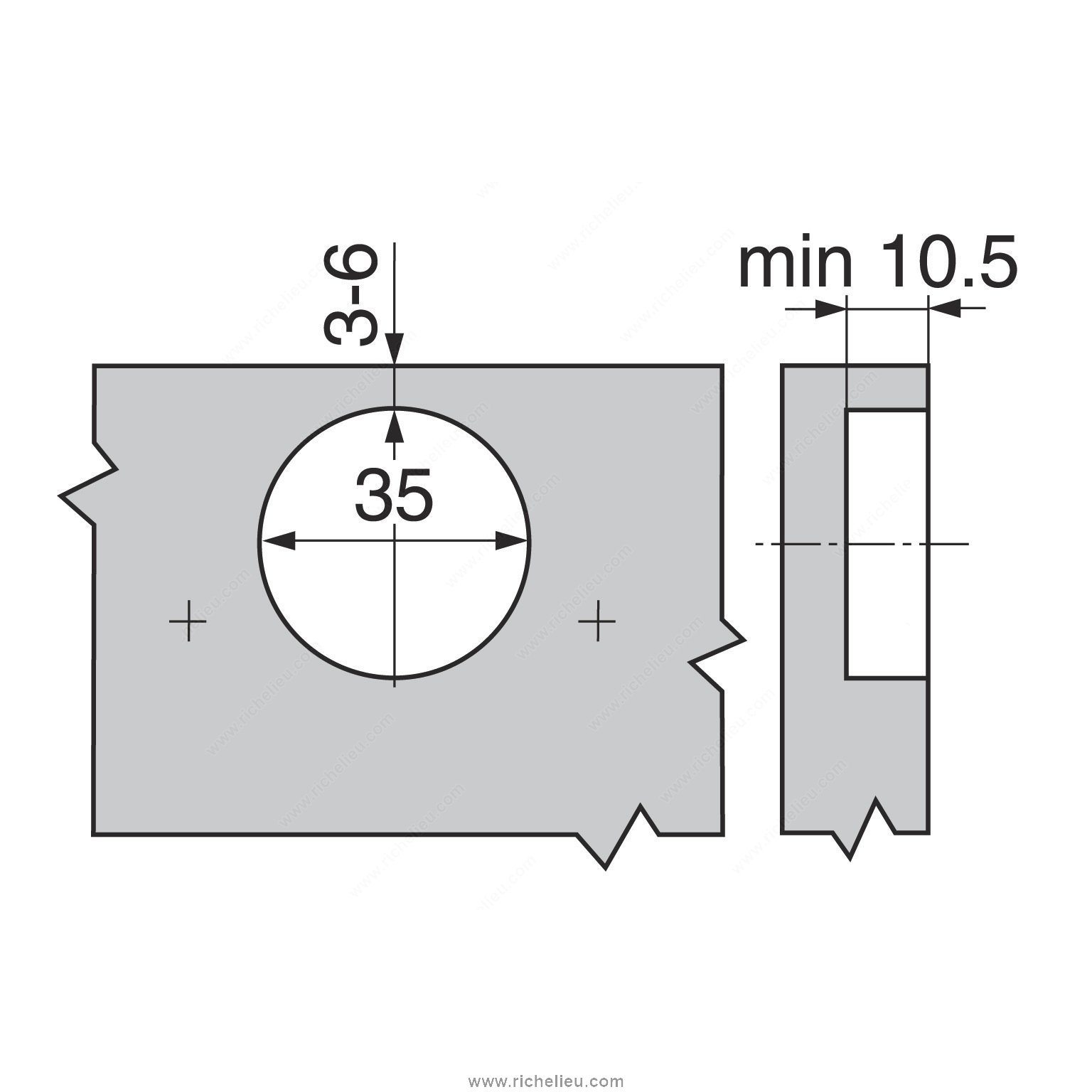

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Per unit
Product #: UC71M275180
Product number: UC71M275180
Screw/ Nail: Wood
Unit 1: package - 25
Unit 2: case - 250
Use Type: Standard Door
