Richelieu WEBKIT1011509 TANDEM plus 563H Full Extension Concealed Undermount Slide for Wood Drawer offers exceptional engineering and versatility for your cabinetry needs. Designed to accommodate wood and melamine drawers with a maximum thickness of 5/8 inch (16 mm), this undermount slide ensures a seamless integration into your furniture design. This product features an impressive four-dimensional adjustment system that enhances installation efficiency and fine-tuning. The side-to-side adjustment allows for a 1.5 mm shift both front and rear, while height adjustments can be made up to 3 mm. Additionally, tilt adjustments of 5 mm and depth modifications using an optional locking device of 3/32 inch (2.5 mm) provide unparalleled flexibility. The elongated holes also allow for a depth adjustment of plus or minus 11/16 inch (4.5 mm). Engineered with Blumotion technology, the slide offers a soft-close mechanism, ensuring smooth and quiet operation, with a robust load capacity of 100 lb. The zinc finish not only adds durability but also complements various design aesthetics. Ideal for professionals and skilled homeowners alike, the Richelieu TANDEM plus series elevates the functionality and appeal of your cabinetry solutions.

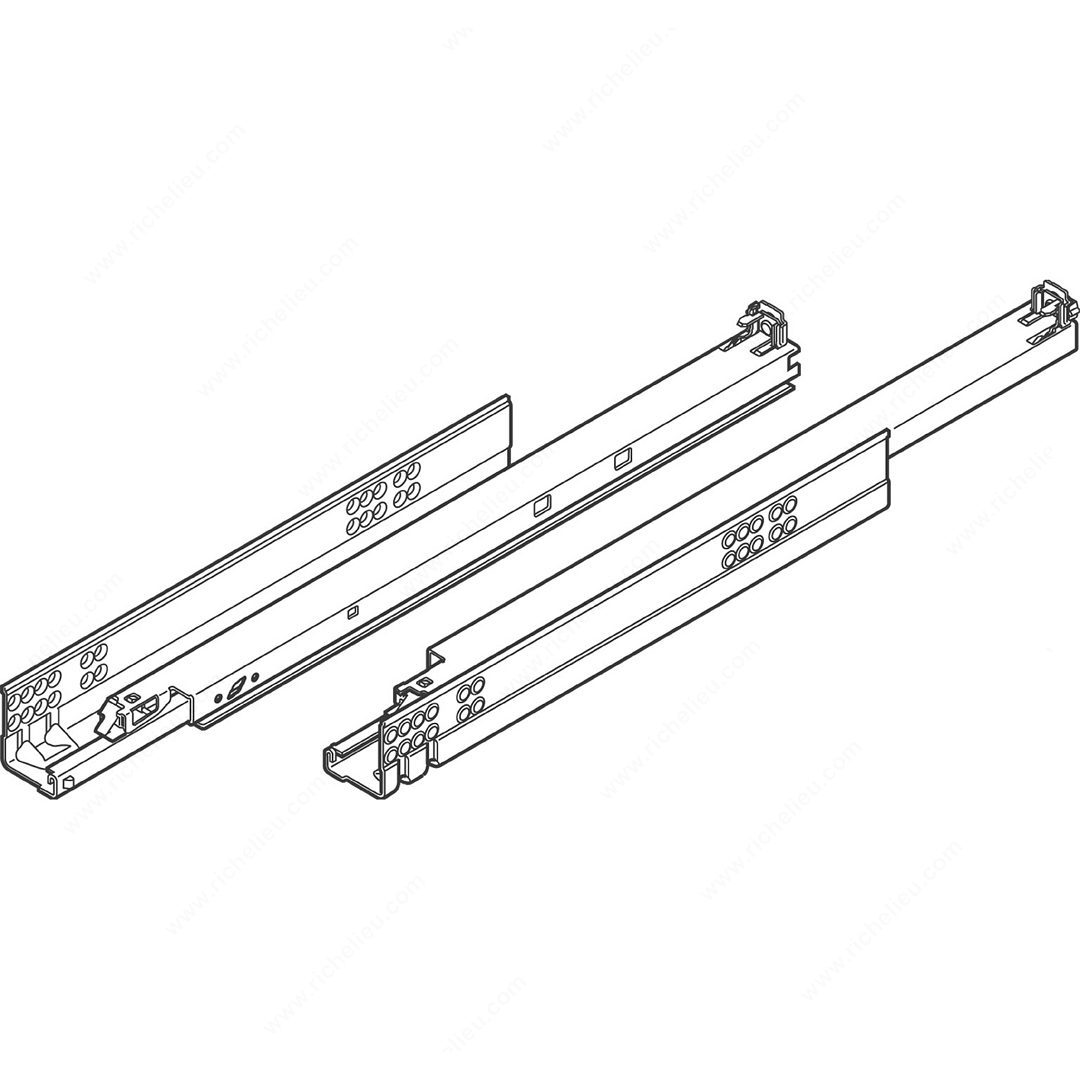

TANDEM plus 563H Full Extension Concealed Undermount Slide for Wood Drawer
Adjustment: Height and Side Adjustments - Standard
BLUM Technology: Blumotion
Brand: Blum
Drawer Type: Wood and Melamine
Finish: Zinc
Length: 305 mm
Load Capacity: 100 lb
Motion Technology: Soft-Close
Product #: WEBKIT1011509
Product Line: TANDEM Plus
Product number: WEBKIT1011509
Pull- Out Type: 563H (US) Face Frame - 5/8" Thick Sides
Side: Both
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
