Richelieu WEBKIT1214149 CINETTO PS40.2 Coplanar Sliding SystemRichelieu WEBKIT1214149 Cinetto PS40.2 Coplanar Sliding System offers a sophisticated solution for managing large cabinet doors, accommodating weights up to 132 lb (60 kg) each. This versatile system supports one, two, or three wood doors, making it ideal for various applications including closets, pantries, and wardrobes in both residential and commercial settings. Designed for ease of installation, the surface mount hardware is fully adjustable, ensuring a customized fit. The inclusion of a soft-close mechanism enhances user experience, providing a gentle and quiet closure every time. Notably, no special cabinet fabrication is required, simplifying the installation process. The system is available in two attractive track finishes: silver and stainless steel effect anodized aluminum, which seamlessly integrates into diverse decors. For optimal performance, it is recommended to use a door straightener or stiffener to enhance door rigidity. With a height clearance of 5 5/32 in* and a door width range of 51 1/8 to 70 7/8 in*, the Cinetto PS40.2 is designed for full overlay or inset/inlay door positions. The upper ball bearing roller type ensures smooth operation, making this sliding system a reliable choice for any modern cabinetry project.
CINETTO PS40.2 Coplanar Sliding System
Cinetto PS40.2 Coplanar Sliding System for large cabinet doors weighing up to 132 lb (60 kg) each.
Features:
- Flexible system for one, two, or three wood doors
- Surface mount hardware, adjustable
- Soft-close mechanism included
- No special cabinet fabrication is required
- Two types of track finishes: silver and stainless steel effect anodized aluminum
This is an ideal solution for closets, pantries, large storage millwork, and wardrobes/armoires in residential and commercial applications.
IMPORTANT: We recommend that you use a door straightener/stiffener to make the door more rigid.
Attributes
Ship via: No UPS - Common Carrier Only
" Optional" Door Width: 1 300 to 1 800 mm
Adjustable: Yes
Application: Wardrobe, Pantry, Cabinet, Storage
Brand: CINETTO
Brand Model: Cinetto PS40

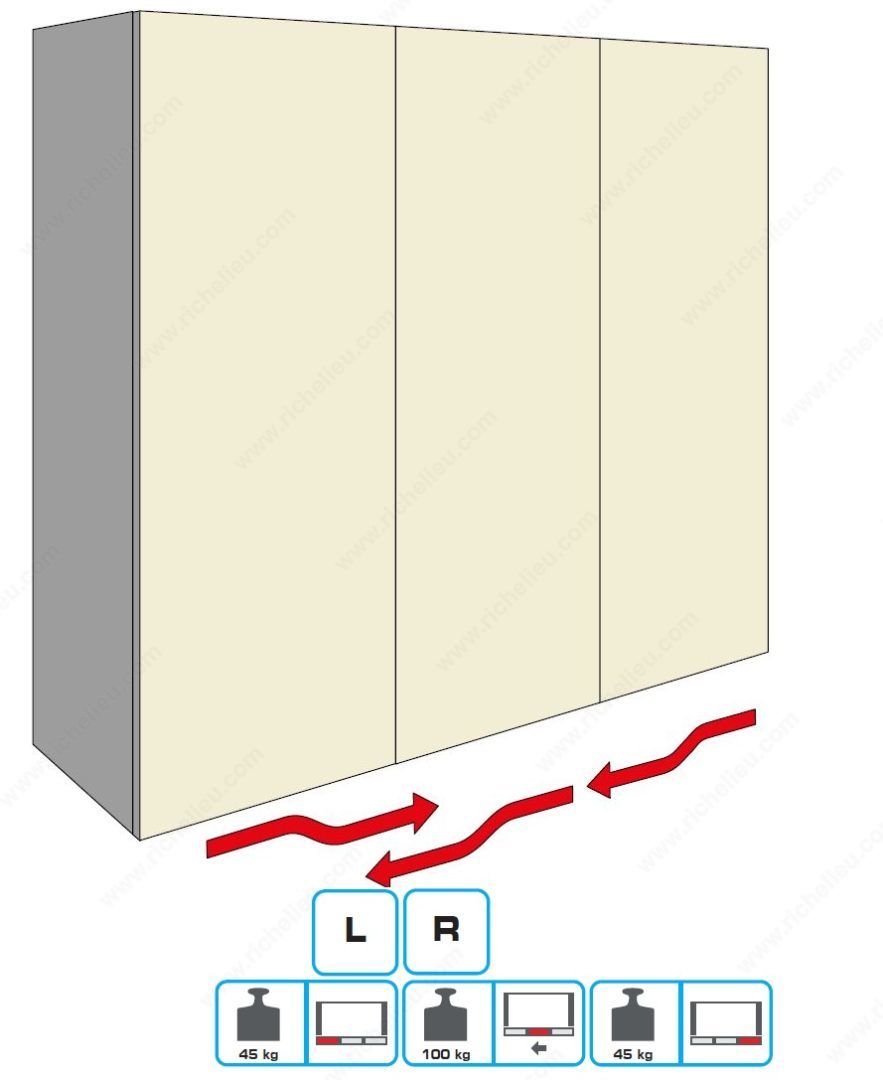

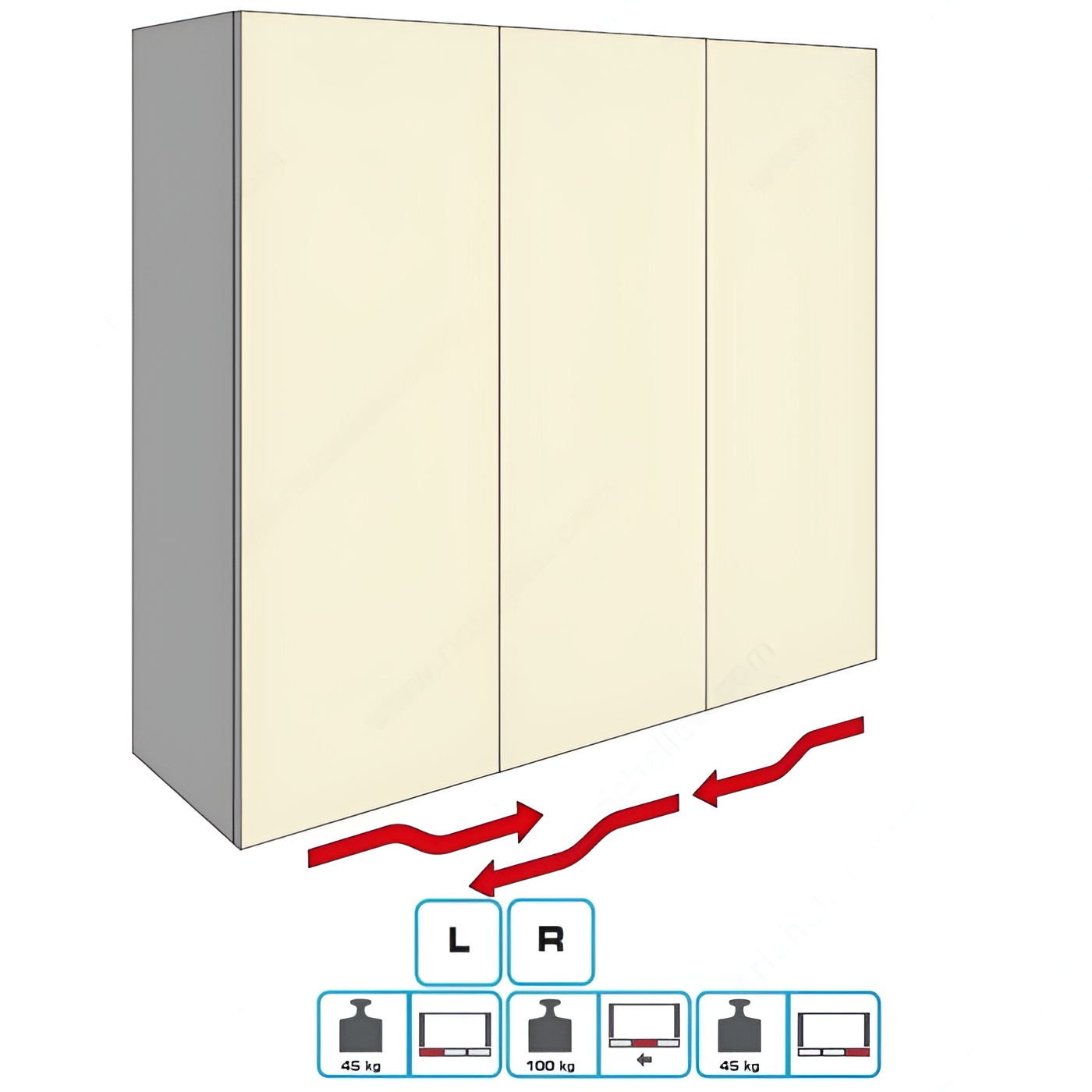

Detailed Door Movement: Bypassing
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Coplanar
Door Position: Full Overlay, Inset/Inlay
Door Thickness: Min. 19 mm
Door Thickness Including the Handle: 16 to 55 mm
Door Width: 1 298 to 1 800 mm
Finish: Satin Aluminum
Height Clearance: 131 mm
Length - Overall Dimensions: 17 ft 8 in*
Load Capacity: 99.2 to 220 lb*
Manufacturing Material: Aluminum
Number of Doors: 3
Opening: Towards the left, left, right
Overall Length: 5 400 mm
PS40 Opening: Towards the left, left, right
Product #: WEBKIT1214149
Product number: WEBKIT1214149
Product №: WEBKIT1214149
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Finish: Satin Aluminum
Track Material: Anodized Aluminum
Weight Capacity per Door: 60 kg
