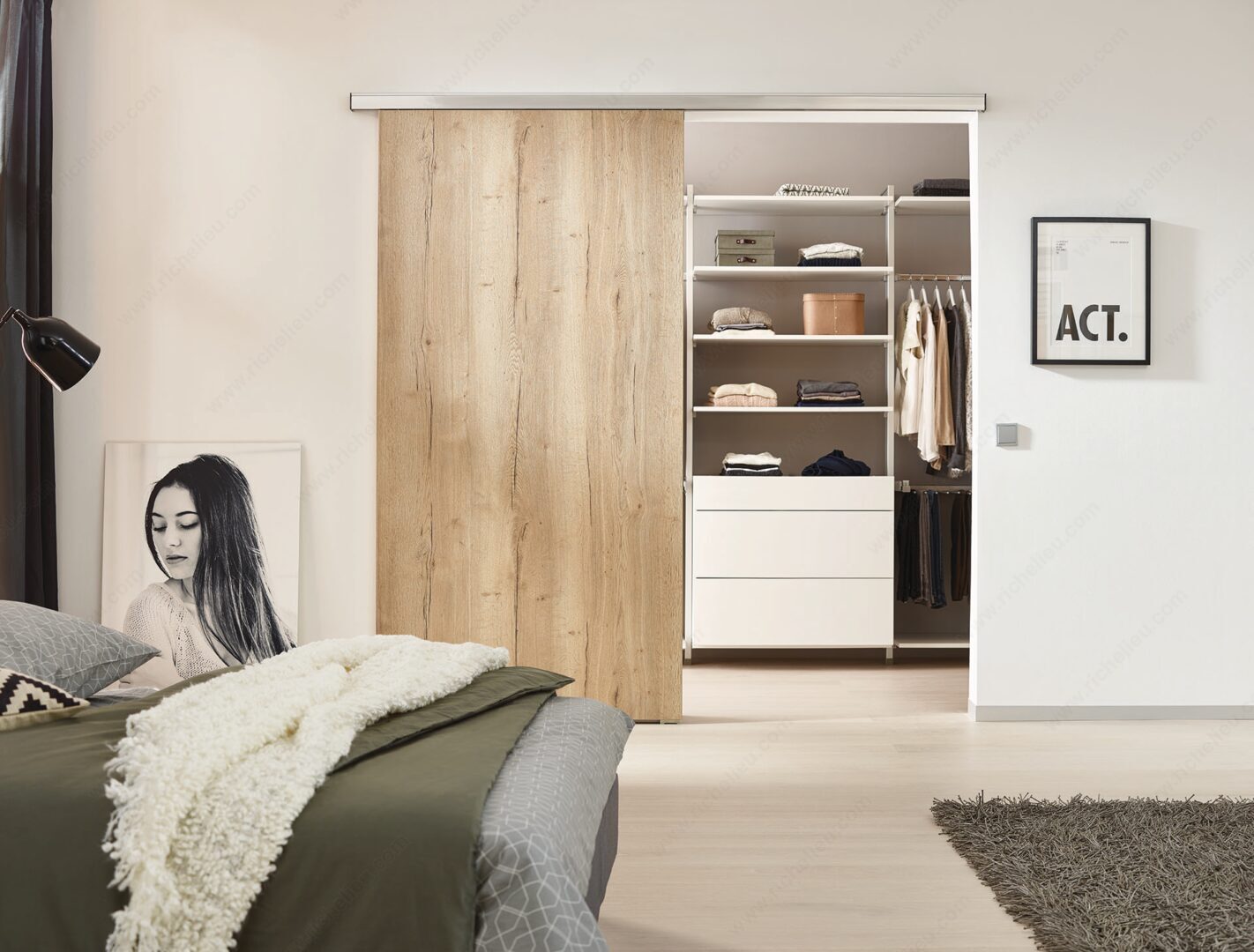

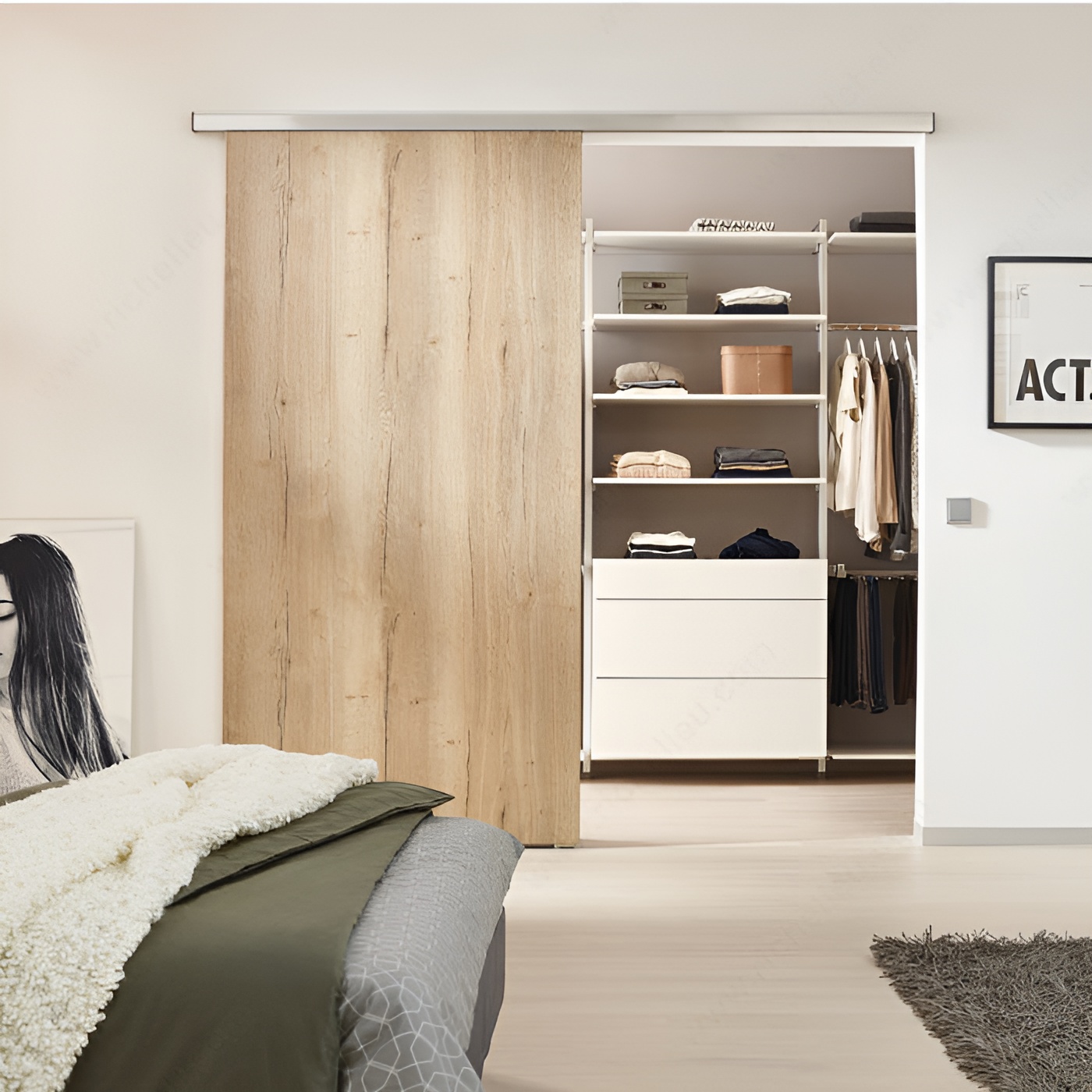

Richelieu WEBKIT1219960 Grant TopLine Straight Sliding Door SystemRichelieu WEBKIT1219960 Grant TopLine Straight Sliding Door System is engineered to accommodate wood doors weighing up to 500 lb (227 kg), making it an exceptional choice for both commercial and residential applications. This system features precision ball bearing wheel trolleys that glide effortlessly along robust aluminum box tracks, ensuring a smooth and reliable operation. The versatile design supports single, biparting, and bypassing door configurations, with maximum door heights reaching an impressive 9 ft 10 in*. It works effectively for door widths between 30 to 94 1/2 in*, and requires a minimum door thickness of 31/32 in*. While the system does not include a soft-close mechanism, an optional Silent System feature for soft-close and soft-open is available separately, specifically designed for doors up to 325 lb (147 kg). The Grant TopLine system comes in two packaging formats: as a complete kit with hardware and track, or as bulk options where components can be selected individually. Ideal for closets, walk-in closets, cabinets, and storage spaces, this system not only enhances functionality but also elevates the aesthetic of any interior. With easy ceiling mounting and a maximum overall length of 96 in*, the Grant TopLine is your go-to solution for stylish and efficient sliding door installations.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine XHD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 500 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Packaging format: Per unit
Product #: WEBKIT1219960
Product number: WEBKIT1219960
Product №: WEBKIT1219960
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 227 kg
