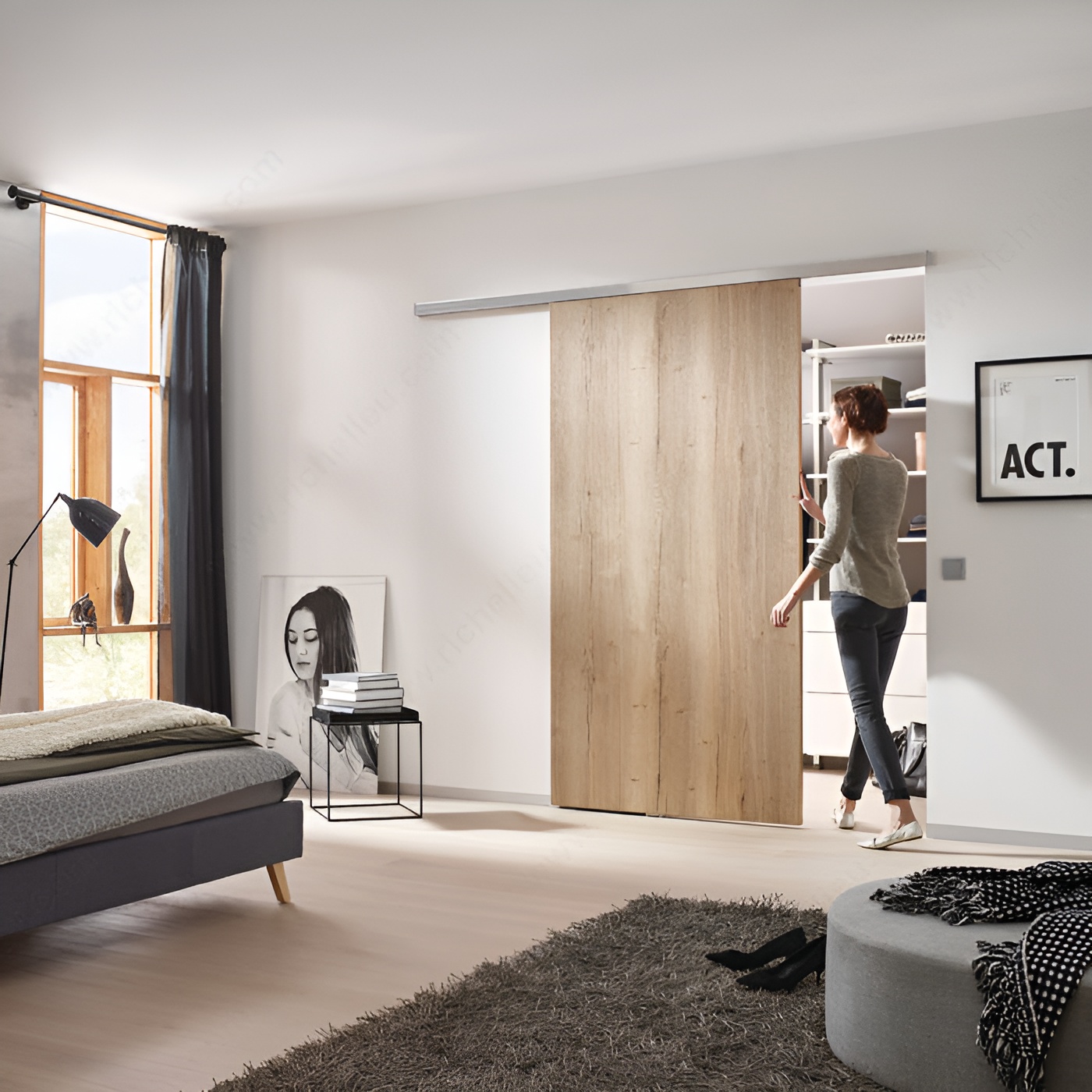

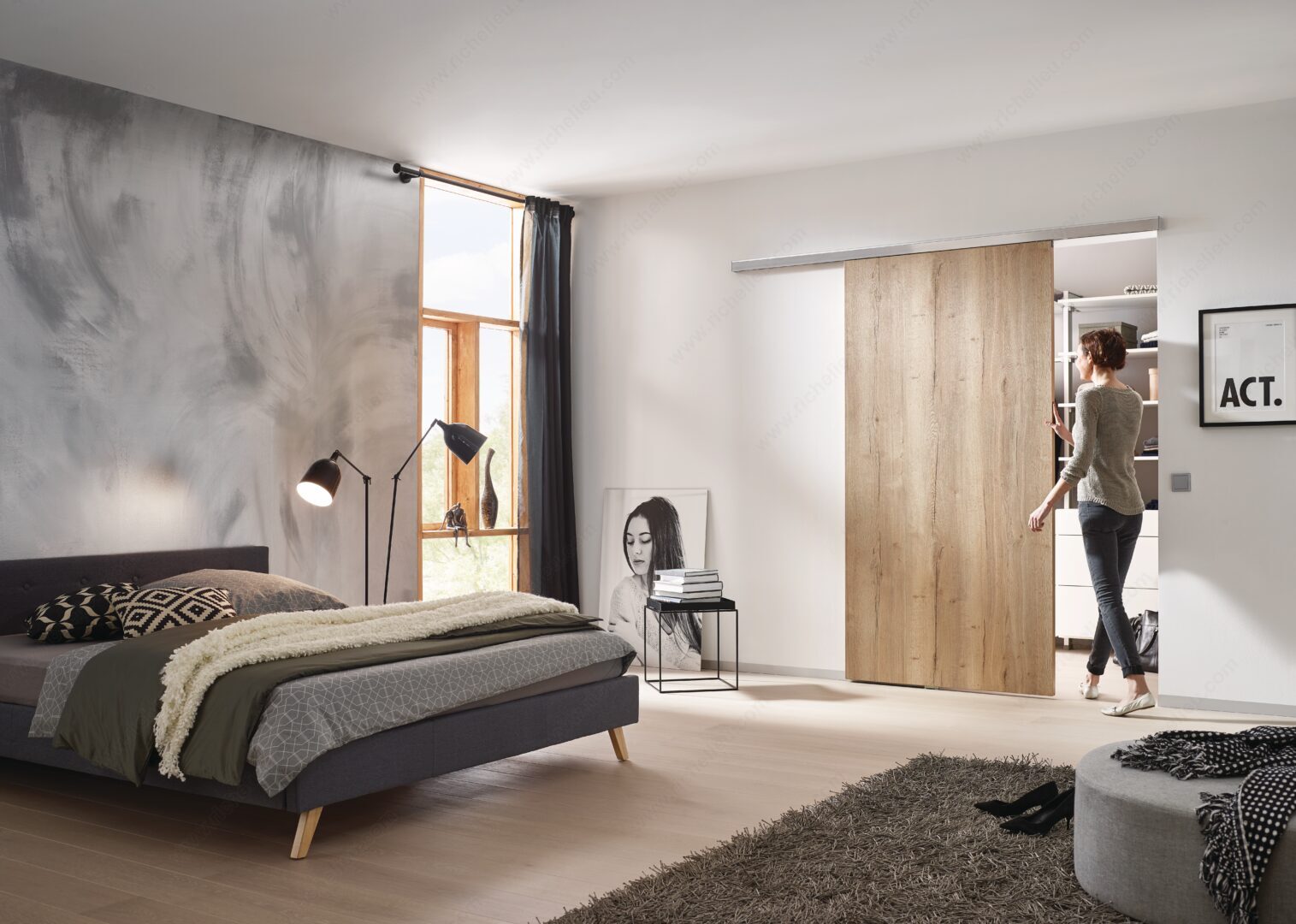

Richelieu WEBKIT1220005 Grant TopLine Straight Sliding Door SystemRichelieu WEBKIT1220005 Grant TopLine Straight Sliding Door System is expertly engineered for both commercial and residential applications, accommodating wood doors weighing up to 500 lb (227 kg). This versatile system includes the Grant TopLine SD, Grant TopLine HD, and Grant TopLine XHD models, ensuring a seamless installation experience for various door configurations, including single, biparting, and bypassing setups. The precision ball bearing wheel trolleys glide effortlessly along aluminum box tracks, promoting smooth and silent operation. For enhanced functionality, a Silent System soft-close and soft-open mechanism is available separately, suitable for doors up to 325 lb (147 kg). The system supports door heights of up to 9 ft 10 in* and widths ranging from 30 to 94 ½ in*, making it adaptable to numerous design needs. With a minimal door thickness of 31/32 in*, the Grant TopLine system features a ceiling mount track and offers a maximum load capacity of 324 lb*, ensuring durability and reliability. Customers can choose from two packaging formats-kit or bulk-allowing for tailored hardware and track selections. Elevate your space with the refined functionality and elegance of the Richelieu Grant TopLine Straight Sliding Door System.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Packaging format: Per unit
Product #: WEBKIT1220005
Product number: WEBKIT1220005
Product №: WEBKIT1220005
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 147 kg
