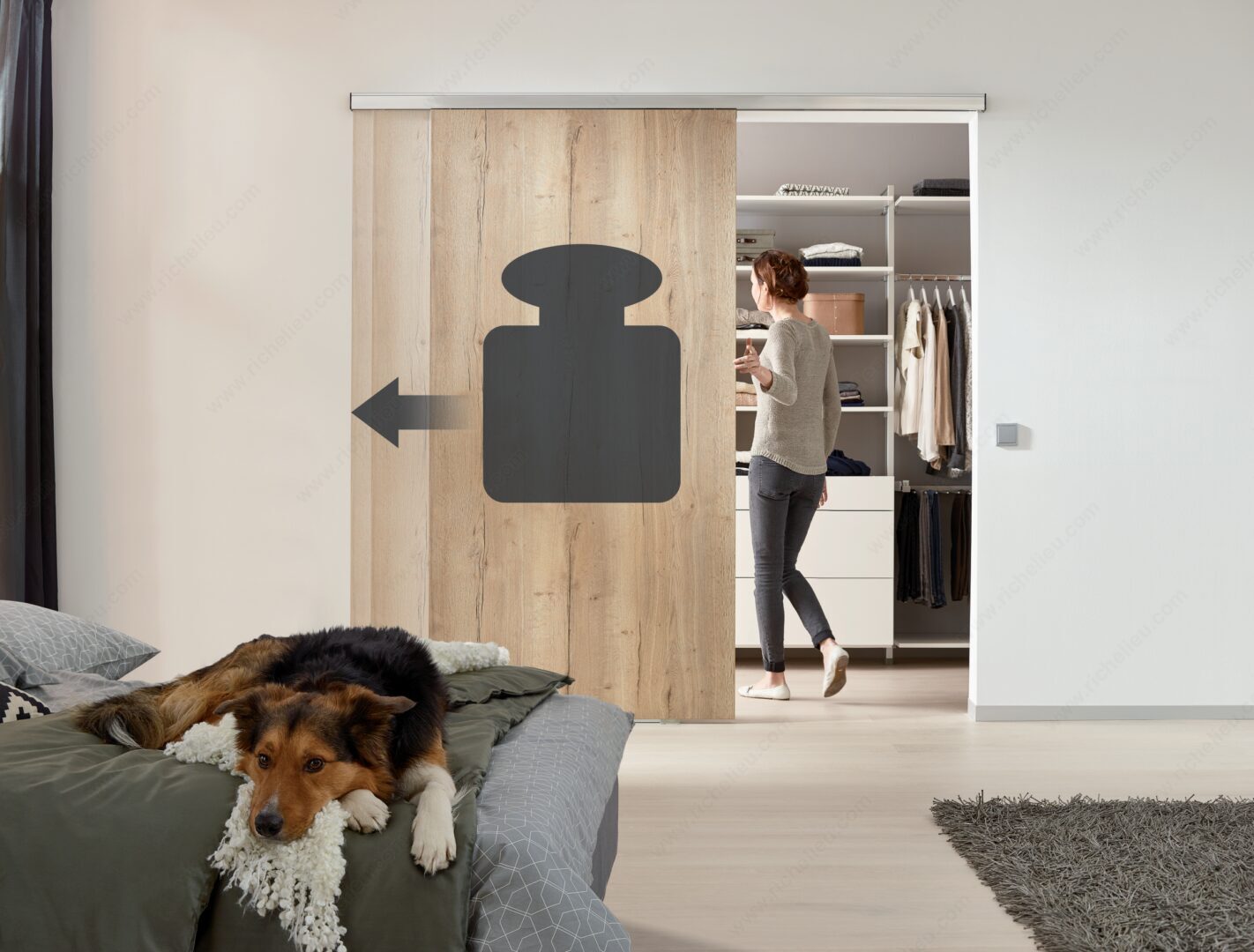

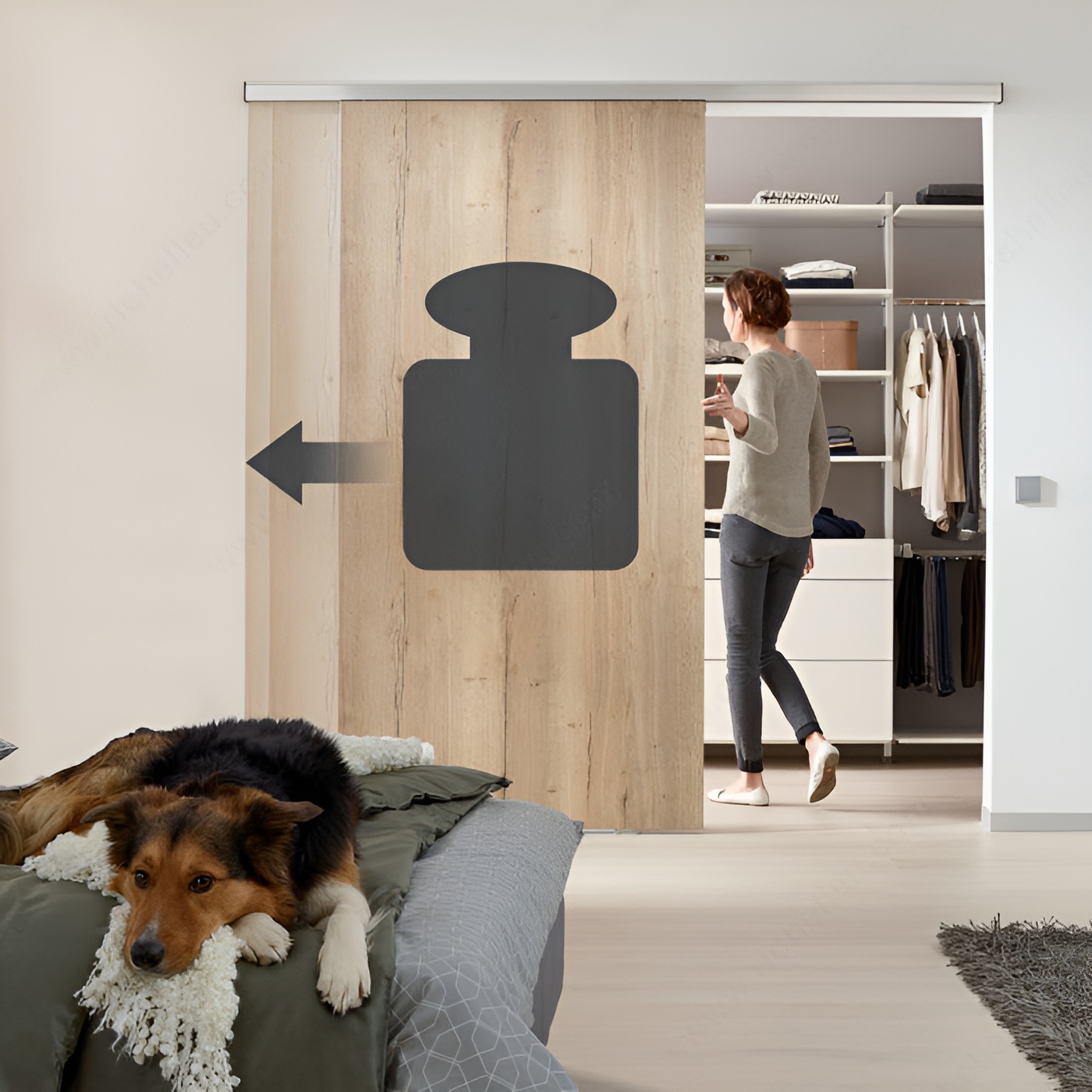

Richelieu WEBKIT1220023 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220023 Grant TopLine Low Profile Straight Sliding Door System is designed to elevate both functionality and aesthetics in any space. This system accommodates low-profile wood doors weighing up to 500 lb (227 kg) each, with a minimum thickness of 1 3/8 in (35 mm), making it perfect for commercial and residential applications. Its sleek and elegant design seamlessly integrates into any environment, while precision ball bearing wheel trolleys glide effortlessly along durable aluminum box tracks. For added convenience, the optional Silent System soft-close and soft-open mechanism enhances user experience for doors weighing up to 325 lb (147 kg). The system is versatile, supporting single, biparting, and bypassing door configurations, making it ideal for restricted headroom settings. Installation is straightforward, but it is essential to ensure a properly framed opening and level header. This system is intended for framed installations only, and pre-drilling screws is recommended for stability. With a maximum door height of 9 ft 10 in and width ranging from 30 to 94 1/2 in, the Grant TopLine system provides ample flexibility for various door sizes. Please ensure all required hardware is ordered before installation, and always follow the manufacturer's instructions for optimal performance and safety.
Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Product #: WEBKIT1220023
Product number: WEBKIT1220023
Product №: WEBKIT1220023
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 68 kg
