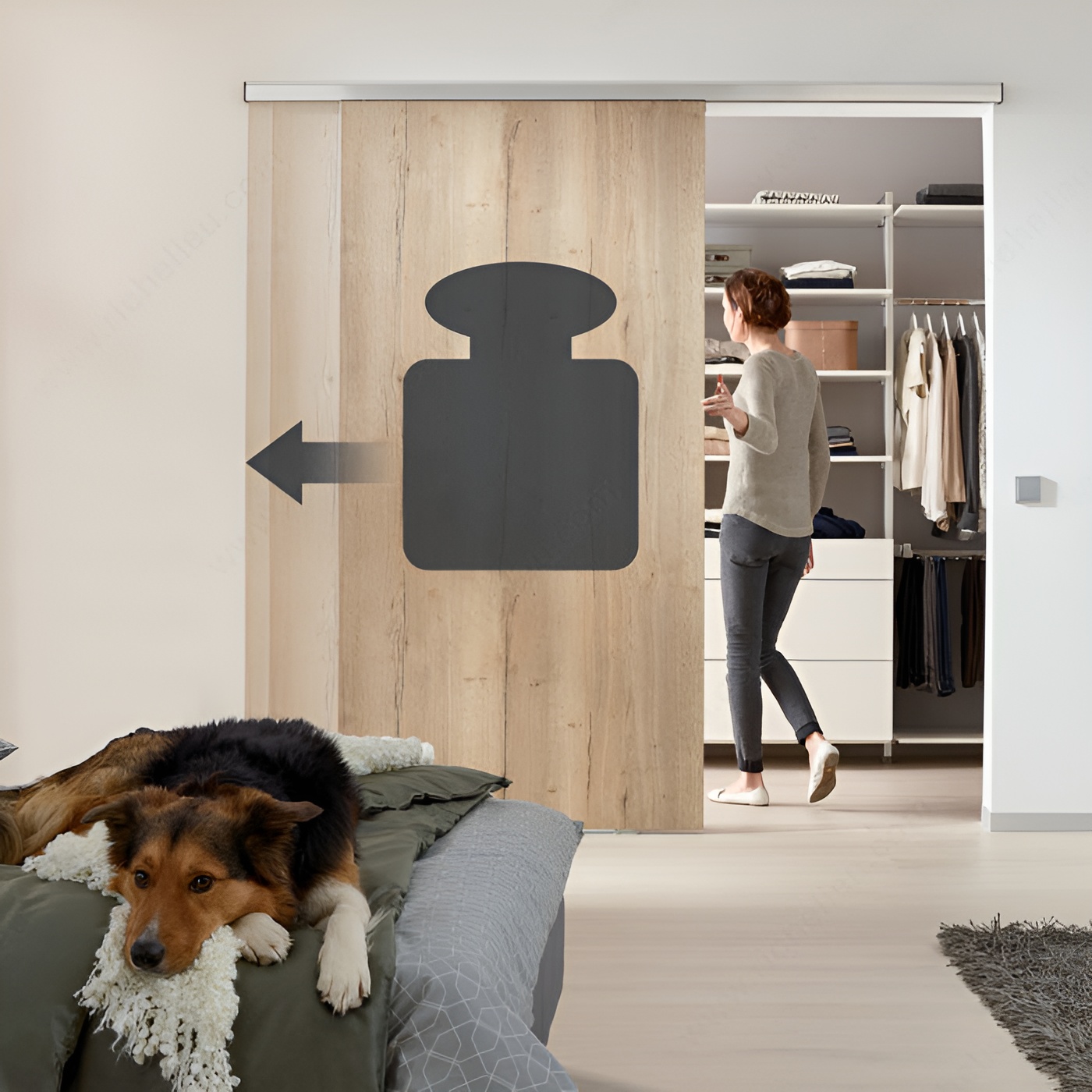

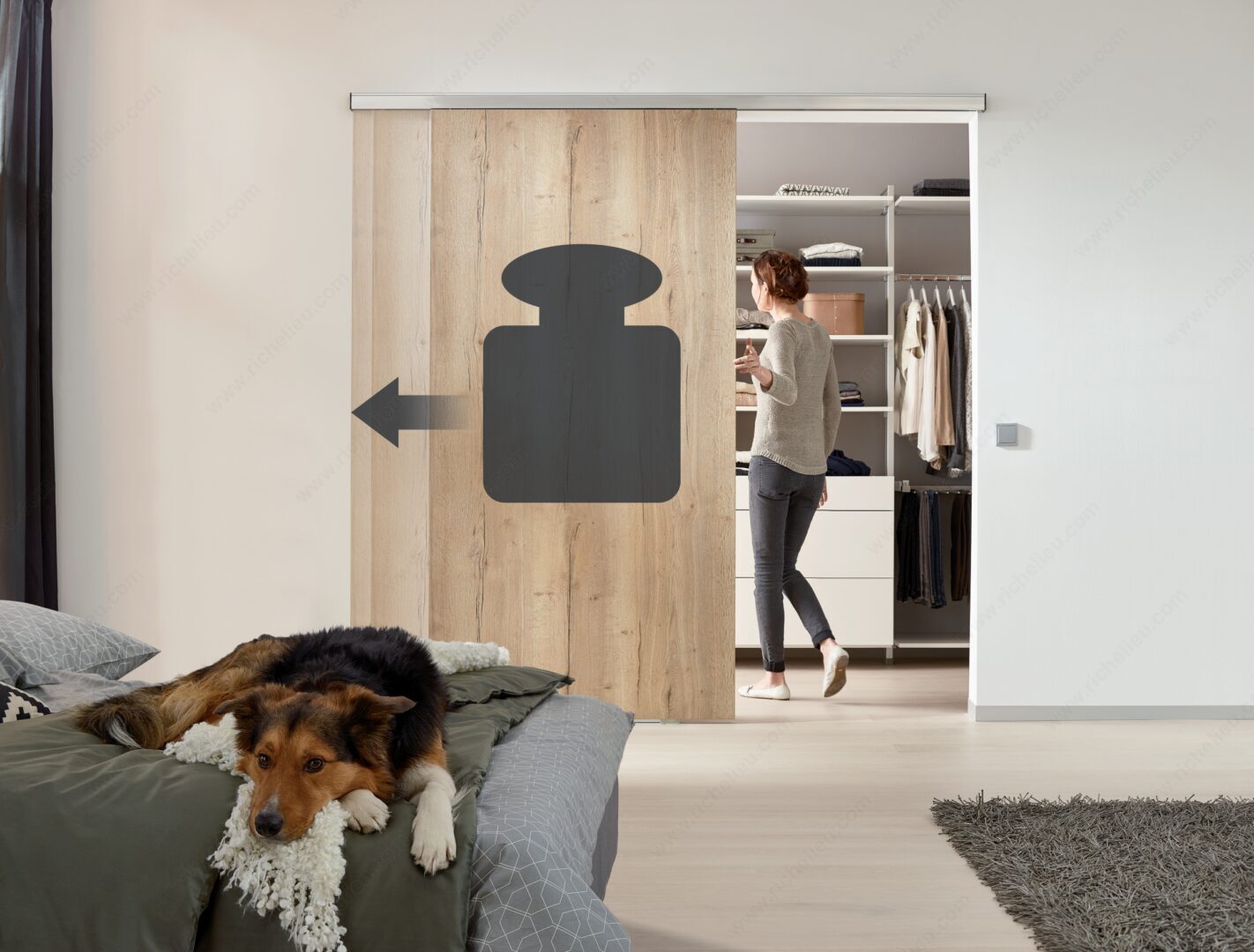

Richelieu WEBKIT1220030 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220030 Grant TopLine Low Profile Straight Sliding Door System is expertly designed for seamless integration into both commercial and residential spaces. This system can accommodate low profile wood doors, each weighing up to 500 lb (227 kg) and measuring at least 1 3/8 in (35 mm) thick, making it an excellent choice for robust applications. The sleek and elegant design enhances any interior while providing functional versatility. Precision ball bearing wheel trolleys glide smoothly along sturdy aluminum box tracks, ensuring the door operates quietly and effortlessly. For those seeking even greater convenience, a Silent System soft-close and soft-open mechanism is available separately for doors weighing up to 325 lb (147 kg), enhancing user experience. Ideal for restricted headroom applications, the Grant TopLine system supports single, biparting, and bypassing door configurations. Important installation guidelines include using the system only in framed installations and ensuring proper leveling of the header. Additionally, careful pre-drilling of screws is recommended. With a maximum door height of 9 ft 10 in and widths ranging from 30 to 94 1/2 in, this system offers flexibility in design. Trust in Richelieu’s commitment to quality, ensuring your sliding door system is both reliable and sophisticated.
Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 12 ft*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 3 658 mm
Product #: WEBKIT1220030
Product number: WEBKIT1220030
Product №: WEBKIT1220030
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 3 658 mm
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 68 kg
