Richelieu WEBKIT1220032 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220032 Grant TopLine Low Profile Straight Sliding Door System offers a sophisticated solution for both commercial and residential spaces, accommodating low profile wood doors weighing up to 500 lb (227 kg) and at least 1 3/8 in (35 mm) thick. Its sleek design integrates seamlessly into any interior, making it an ideal choice for restricted headroom applications. Equipped with precision ball bearing wheel trolleys that glide effortlessly on aluminum box tracks, this system ensures smooth and silent operation. For added convenience, a Silent System soft-close and soft-open mechanism can be purchased separately for doors up to 325 lb (147 kg). The Grant TopLine system supports a variety of configurations, including single, biparting, and bypassing door applications. It is essential to note that this system is intended for framed installations only; proper mounting techniques and pre-drilling of screws are advised for optimal performance. With a maximum door height of 9 ft 10 in* and width ranging from 30 to 94 1/2 in*, this versatile system is suitable for closets, walk-in closets, cabinets, and storage solutions. Ensure that all necessary hardware is acquired prior to installation to achieve the best results.
Grant TopLine Low Profile Straight Sliding Door System

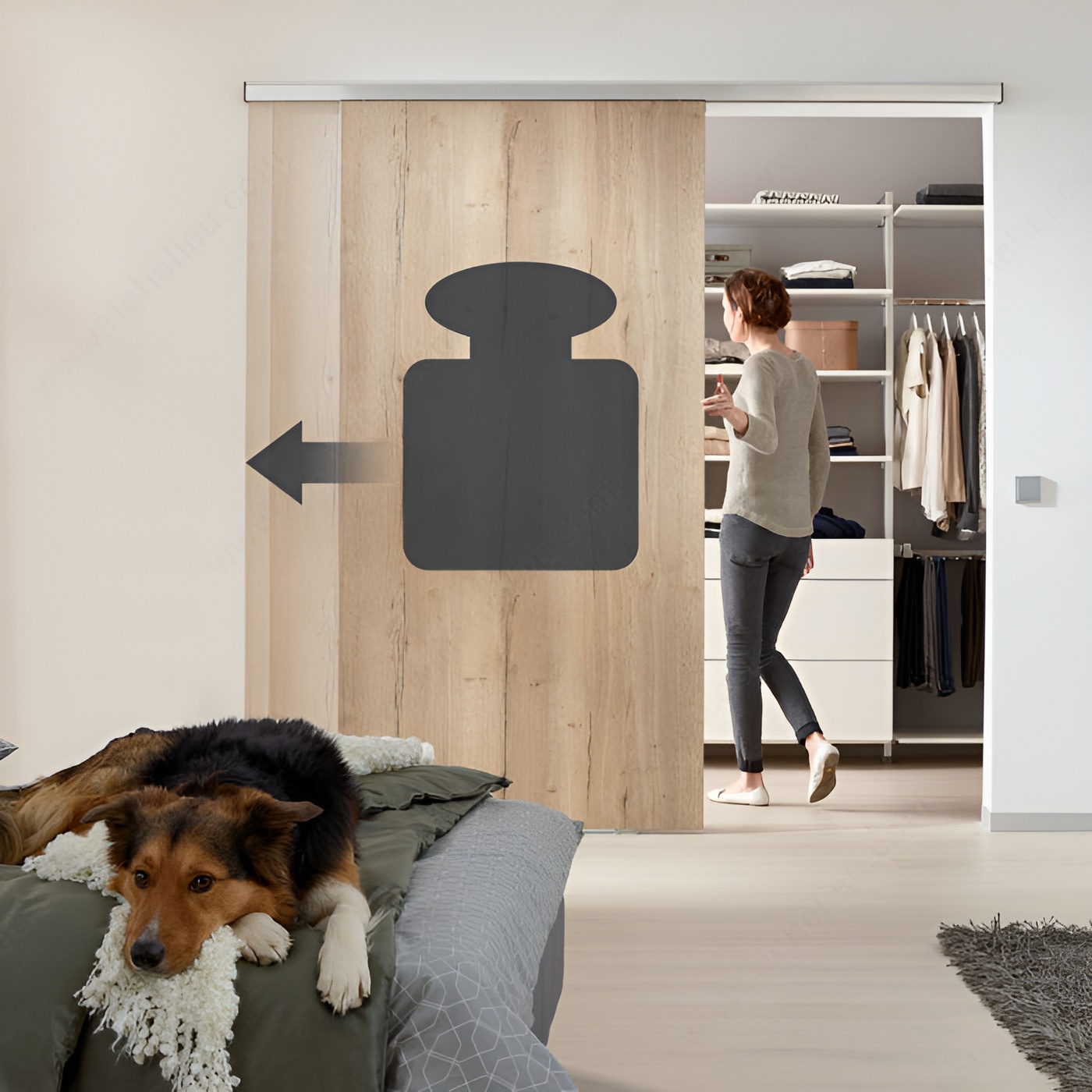

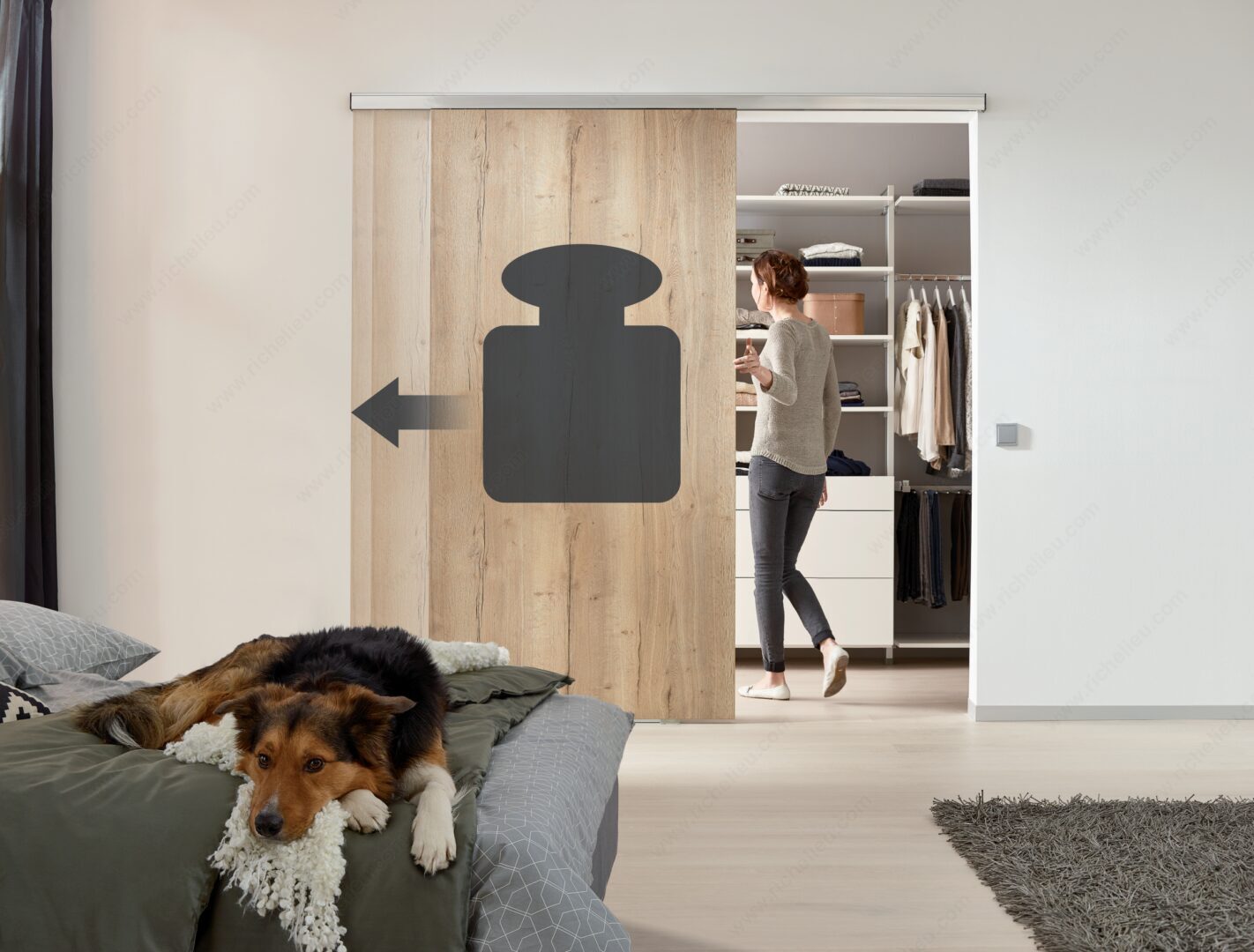

The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 1 829 mm
Product #: WEBKIT1220032
Product number: WEBKIT1220032
Product №: WEBKIT1220032
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 1 829 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 68 kg
