Richelieu WEBKIT1220035 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220035 Grant TopLine Low Profile Straight Sliding Door System is designed to elevate both commercial and residential spaces with its sleek and elegant profile. This system supports low-profile wood doors weighing up to 500 lb (227 kg) and a minimum thickness of 1 3/8 in (35 mm), making it versatile for various applications, including closets and storage. Equipped with precision ball bearing wheel trolleys that glide smoothly on aluminum box tracks, this system ensures seamless door movement. An optional Silent System soft-close and soft-open mechanism is available for doors weighing up to 325 lb (147 kg), providing added convenience and functionality. The Grant TopLine models accommodate single, biparting, and bypassing door configurations, making them ideal for areas with restricted headroom. Installation is straightforward, but must be executed by qualified individuals, ensuring that each component is securely fitted and leveled properly. Important considerations include the requirement for a framed opening and the necessity of pre-drilling all screws. For optimal performance, it’s crucial to keep tracks and guide channels free from debris during installation. With a maximum door height of 9 ft 10 in and a width range of 30 to 94 1/2 in, this system offers flexibility for various design needs.
Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.

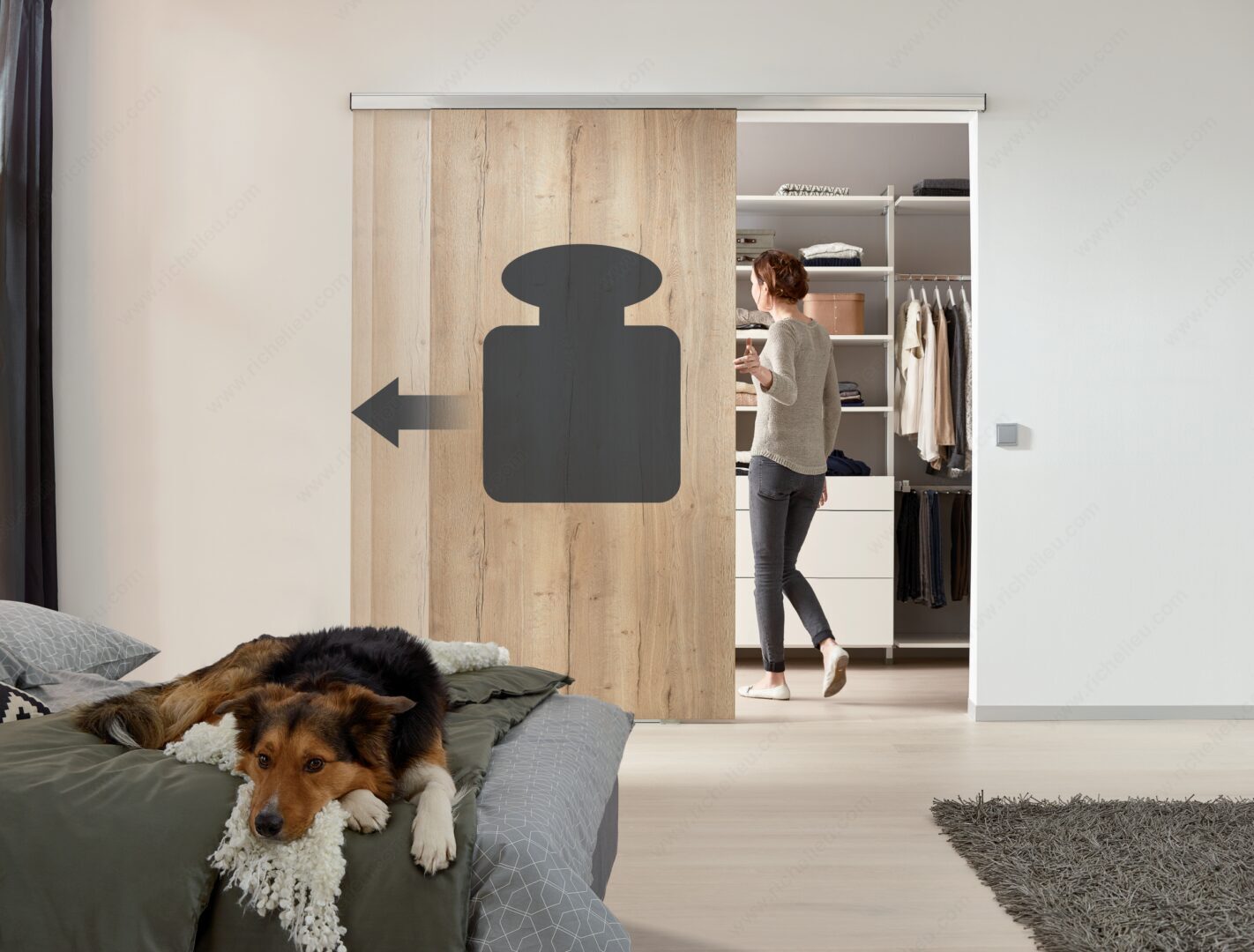

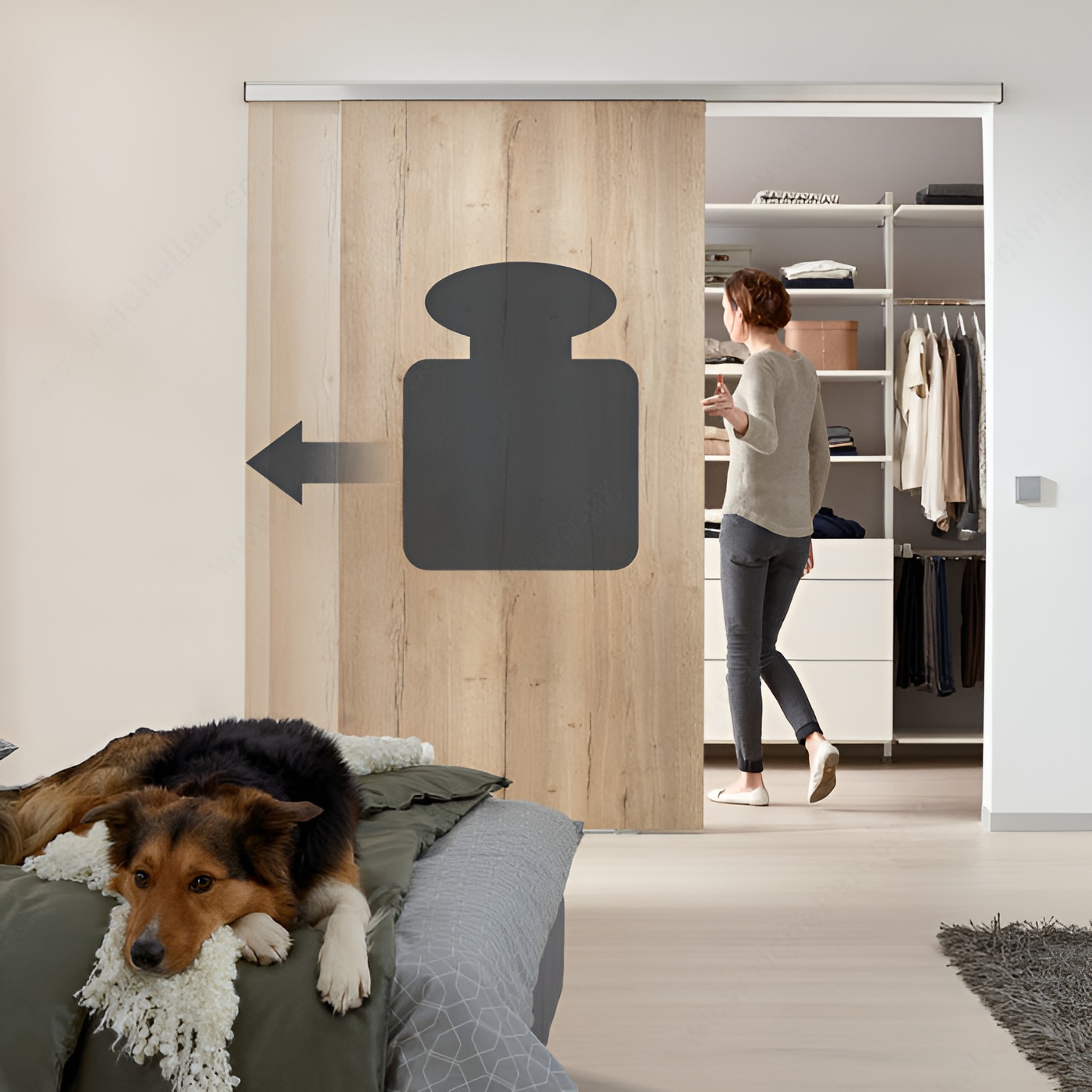

These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 12 ft*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 3 658 mm
Product #: WEBKIT1220035
Product number: WEBKIT1220035
Product №: WEBKIT1220035
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 3 658 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 68 kg
