Richelieu WEBKIT1220234 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220234 Grant TopLine Low Profile Straight Sliding Door System offers a sleek and elegant solution for both commercial and residential applications. Designed to accommodate low-profile wood doors weighing up to 500 lb (227 kg) and with a minimum thickness of 1 3/8 in (35 mm), this system is ideal for rooms with restricted headroom. The precision ball bearing wheel trolleys glide smoothly on aluminum box tracks, ensuring effortless door movement. For added convenience, a Silent System soft-close and soft-open mechanism is available separately, suitable for doors weighing up to 325 lb (147 kg) each. The system supports various door configurations, including single, biparting, and bypassing applications, making it versatile for closets, walk-in closets, cabinets, and storage spaces. Installation is straightforward, provided the framing is properly leveled, and it is essential to pre-drill screws for optimal installation. This product is designed exclusively for framed installations and should not be used in open-ended applications. With a maximum door height of 9 ft 10 in and a width range of 30 to 94 1/2 in, the Grant TopLine system combines functionality with a refined aesthetic, making it a perfect choice for modern interiors.
Grant TopLine Low Profile Straight Sliding Door System

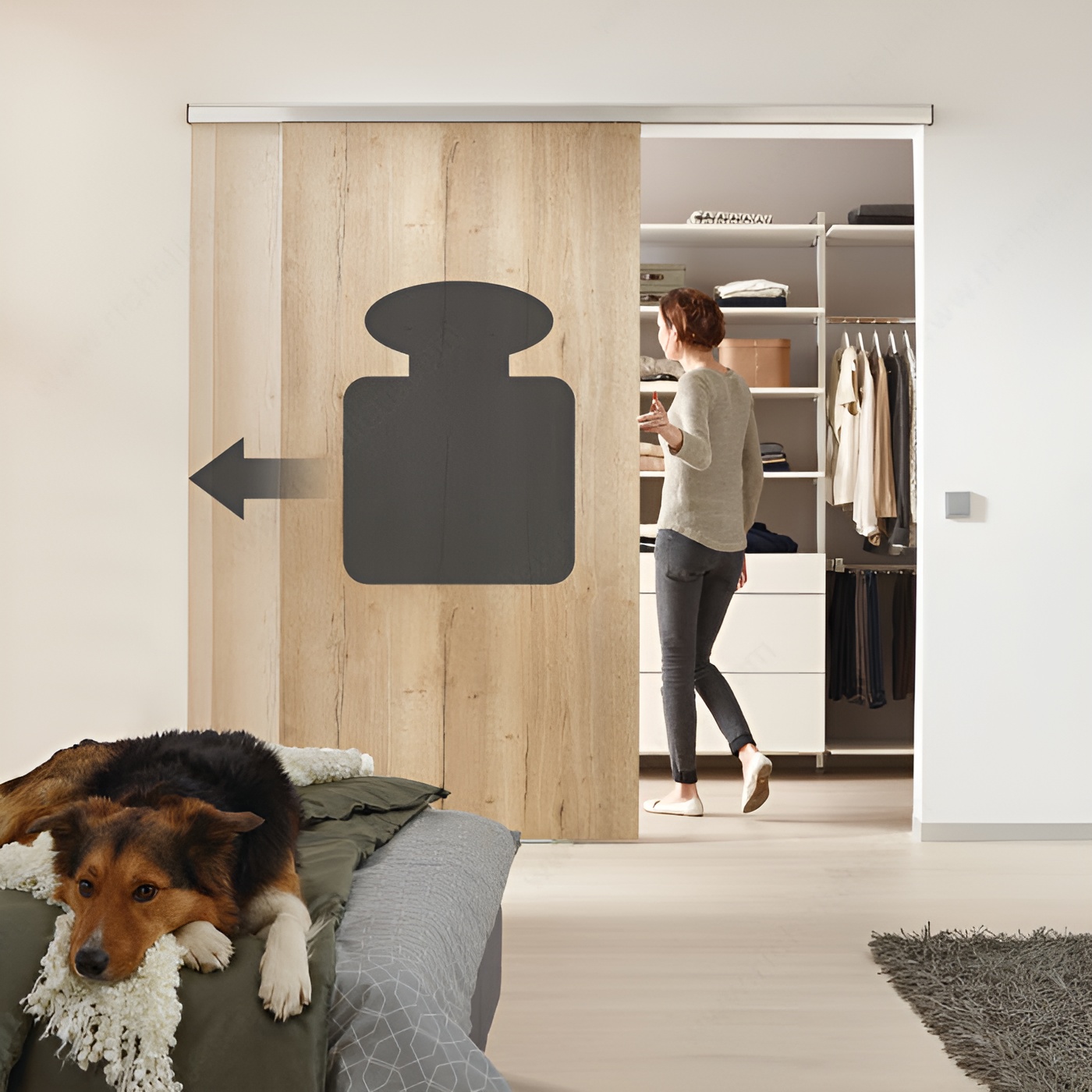

The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 10 ft*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 3 048 mm
Product #: WEBKIT1220234
Product number: WEBKIT1220234
Product №: WEBKIT1220234
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 3 048 mm
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 147 kg
