Richelieu WEBKIT1220238 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220238 Grant TopLine Low Profile Straight Sliding Door System offers a sleek and elegant solution for both commercial and residential spaces, accommodating low-profile wood doors weighing up to 500 lb (227 kg) and a minimum thickness of 1 3/8 in (35 mm). The precision ball bearing wheel trolleys glide effortlessly along sturdy aluminum box tracks, ensuring smooth operation. Designed for versatility, this system supports single, biparting, and bypassing door applications, making it ideal for restricted headroom installations. For added convenience, a Silent System soft-close and soft-open mechanism is available separately, suitable for doors weighing up to 325 lb (147 kg). Key specifications include a maximum door height of 9 ft 10 in and an overall length of 96 in, with door widths ranging from 30 to 94 1/2 in. This system requires a ceiling mount track installation and is intended for framed applications only. Essential installation considerations emphasize the importance of using pre-drilled screws and ensuring a carefully leveled header. Richelieu prioritizes quality and performance, making the Grant TopLine system a perfect choice for enhancing both aesthetics and functionality in your spaces. Always refer to the manufacturer’s instructions for installation and maintenance to ensure optimal results.
Grant TopLine Low Profile Straight Sliding Door System

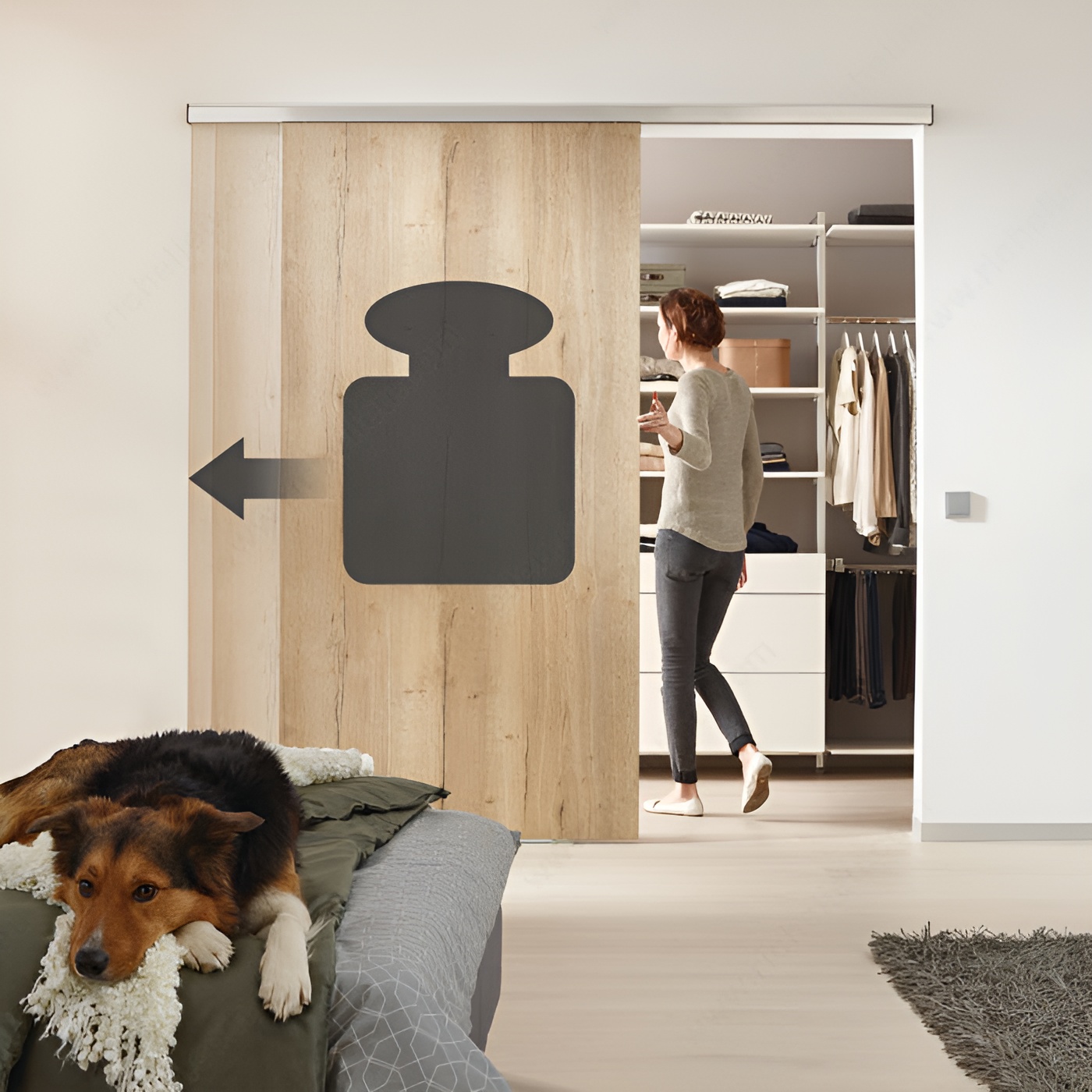

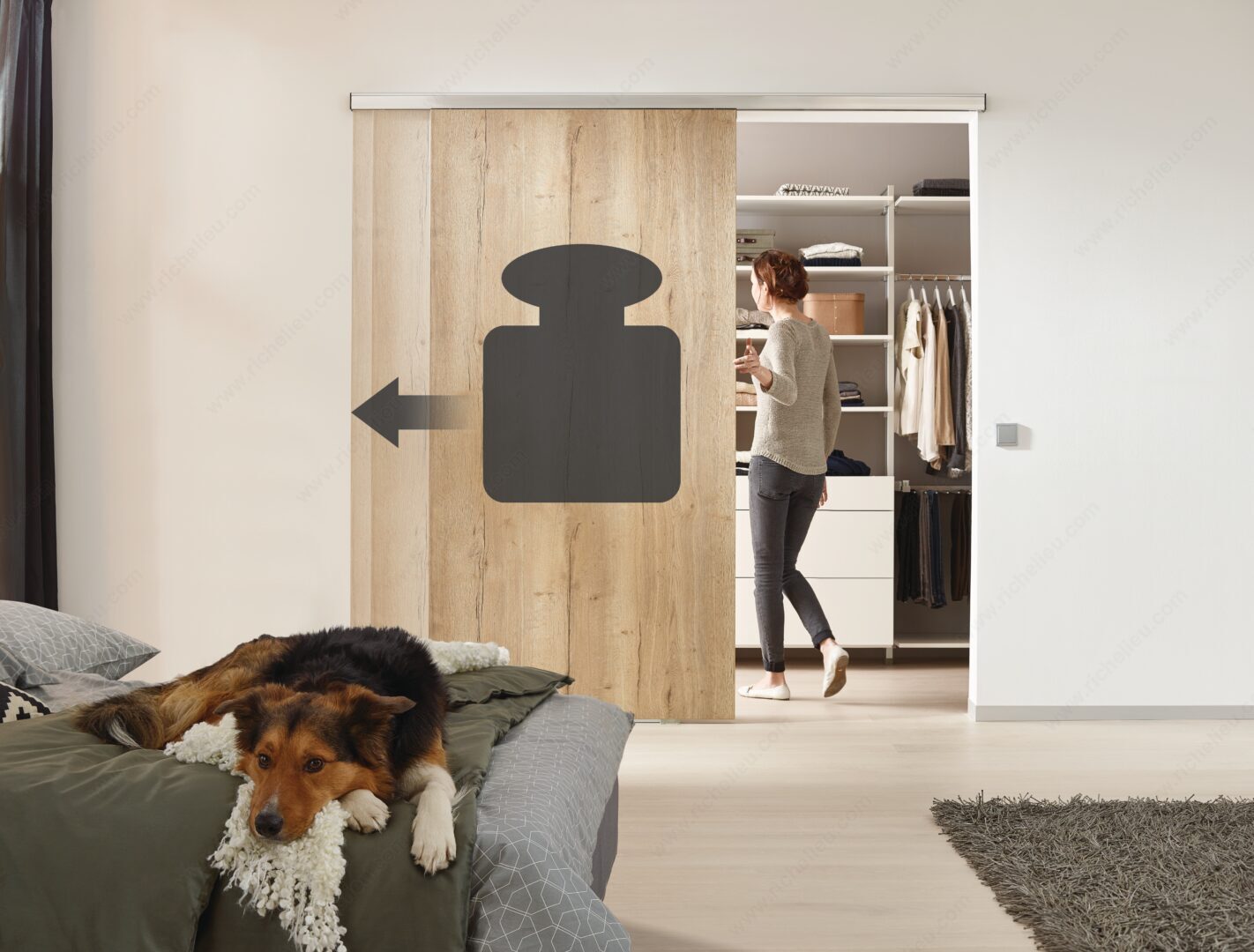

The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 96 in*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 2 438 mm
Product #: WEBKIT1220238
Product number: WEBKIT1220238
Product №: WEBKIT1220238
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 2 438 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 147 kg
