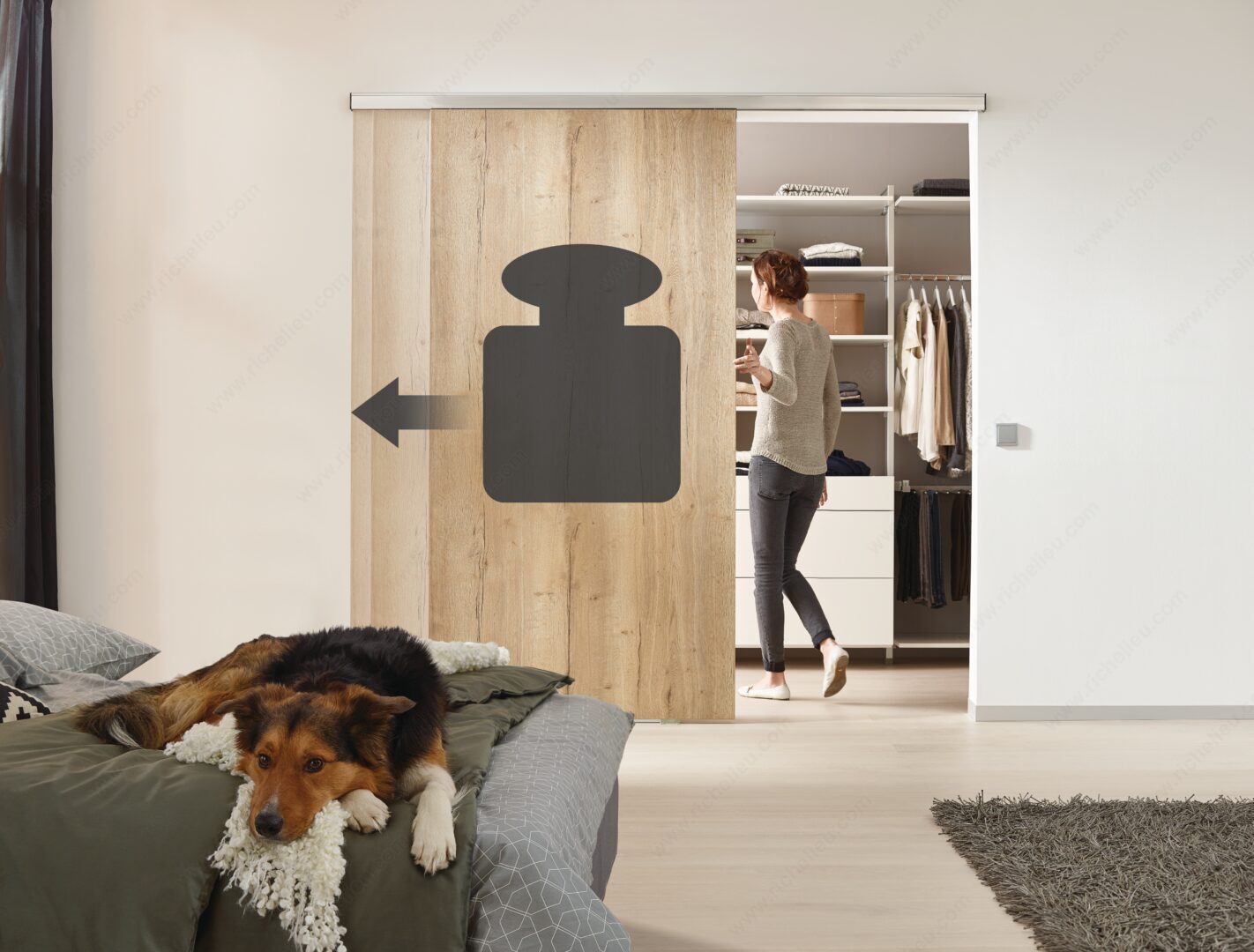

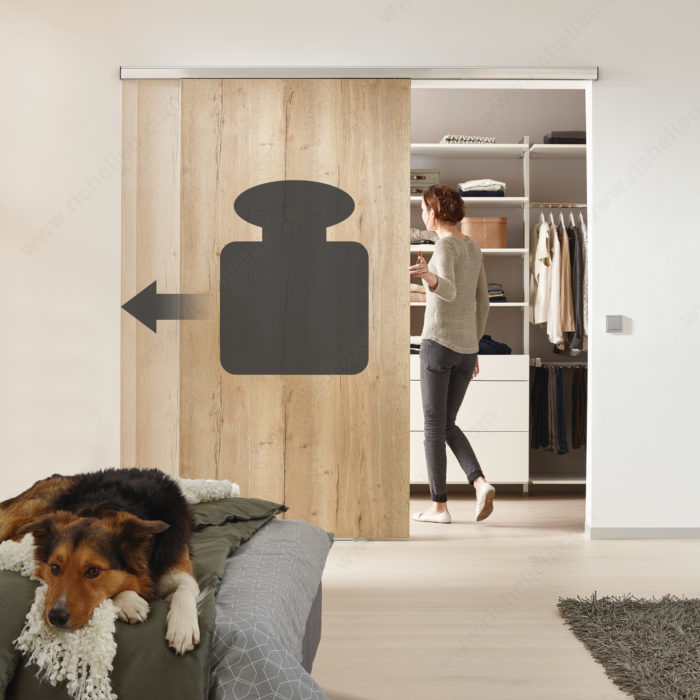

Richelieu WEBKIT1220242 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220242 Grant TopLine Low Profile Straight Sliding Door System offers an elegant solution for your residential or commercial spaces. This system accommodates low-profile wood doors, supporting weights up to 500 lb (227 kg) and a minimum thickness of 1 3/8 in (35 mm). The sleek design is complemented by precision ball bearing wheel trolleys that glide effortlessly along aluminum box tracks, ensuring a smooth operation. For enhanced functionality, the Silent System soft-close and soft-open mechanism is available separately, catering to doors weighing up to 325 lb (147 kg). Ideal for single, biparting, or bypassing door applications, this system is particularly well-suited for areas with restricted headroom. Installation is designed for framed applications only; therefore, it’s crucial to follow the provided instructions meticulously. The system supports door heights up to 9 ft 10 in and widths ranging from 30 to 94 1/2 in, maximizing versatility in design. The overall length of the track measures 72 in, ensuring a seamless fit for your project needs. Before installation, verify that all required hardware is obtained, as the manufacturer recommends using qualified professionals for secure installation. With Richelieu’s commitment to quality and reliability, the Grant TopLine system is an exceptional choice for modern sliding door solutions.
Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 1 829 mm
Product #: WEBKIT1220242
Product number: WEBKIT1220242
Product №: WEBKIT1220242
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 1 829 mm
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 147 kg
