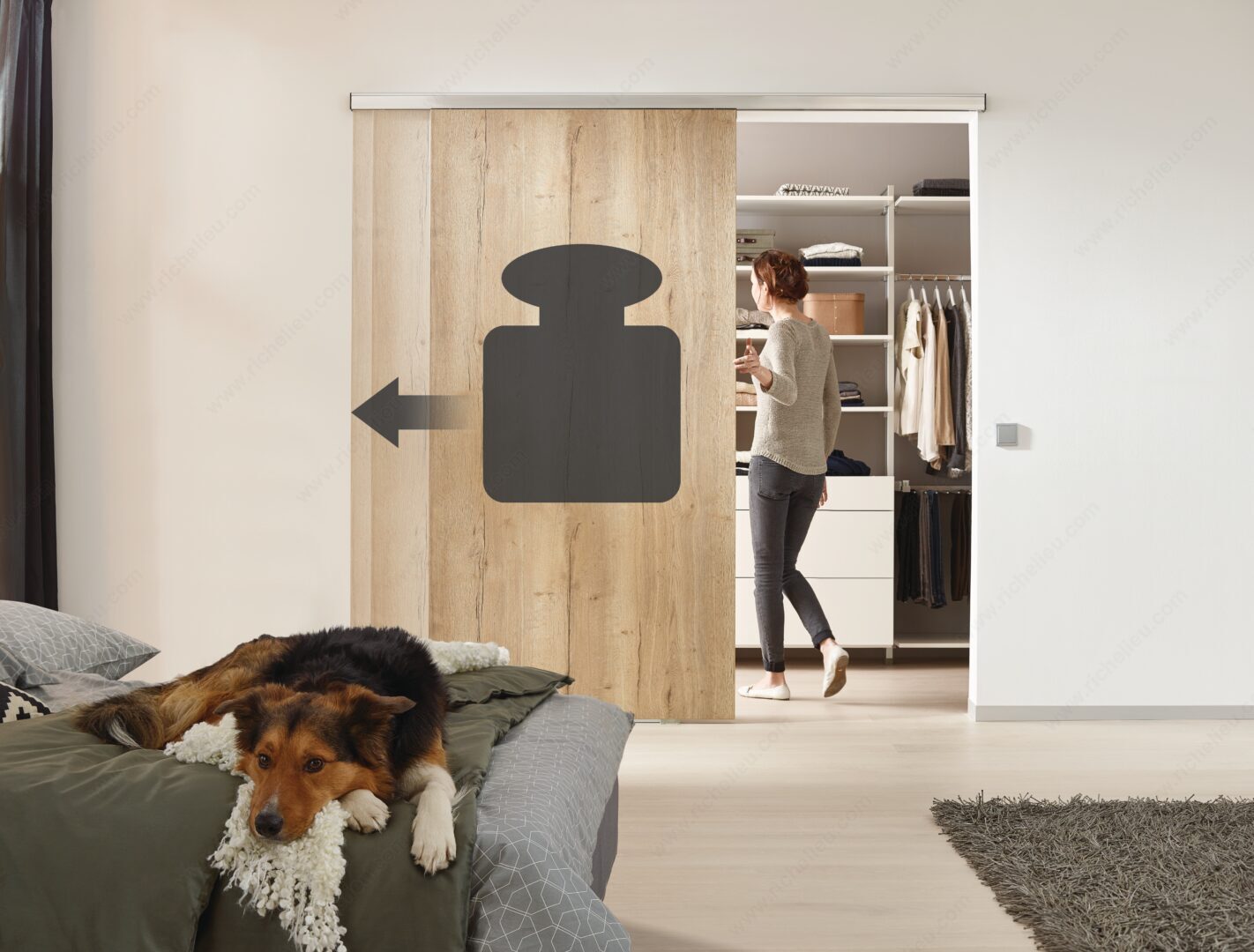

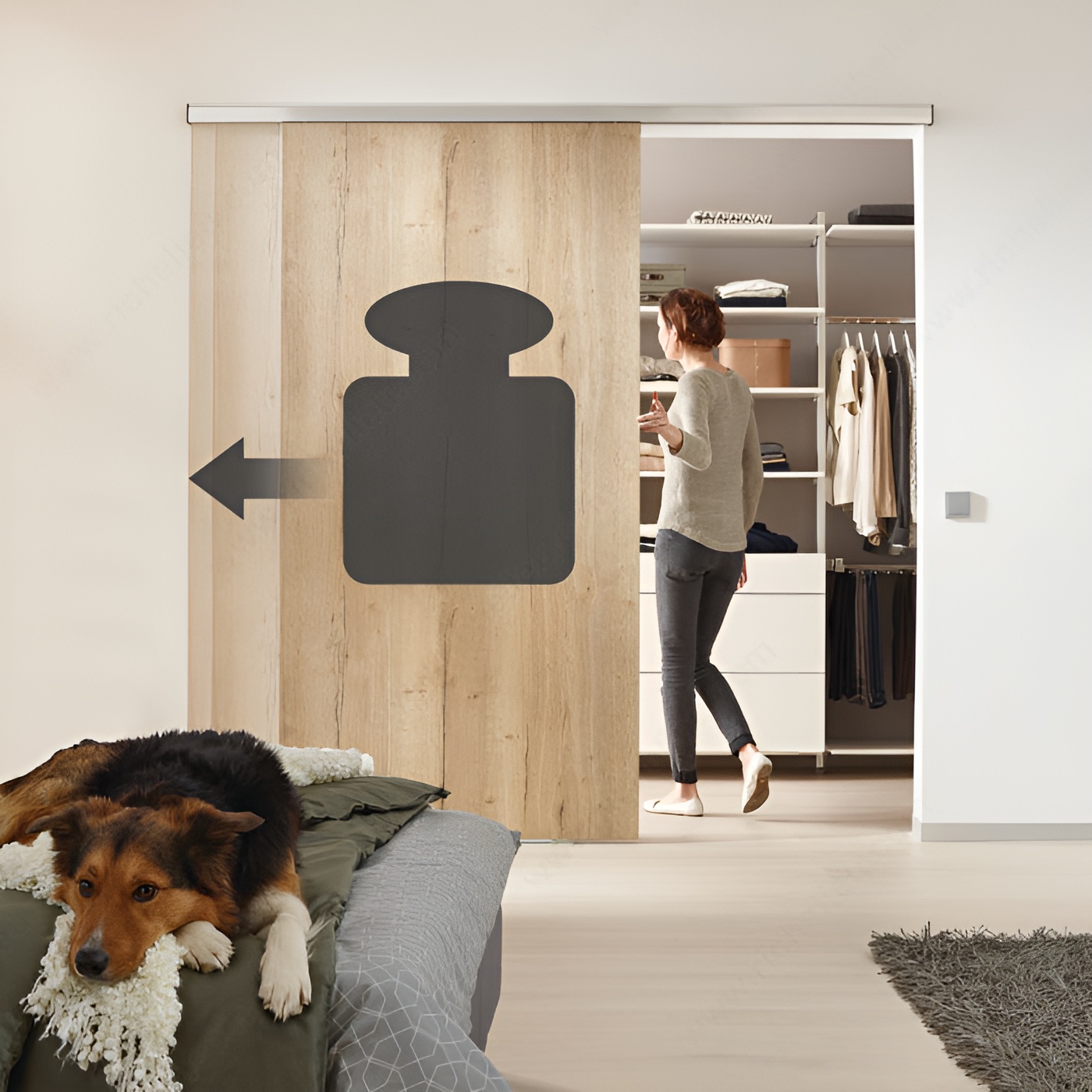

Richelieu WEBKIT1220244 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220244 Grant TopLine Low Profile Straight Sliding Door System offers a sophisticated solution for both commercial and residential environments. This system is designed to accommodate low-profile wood doors weighing up to 500 lb (227 kg) and a minimum thickness of 1 3/8 in (35 mm), making it a robust choice for various applications. Featuring precision ball-bearing wheel trolleys that glide effortlessly along aluminum box tracks, this sliding door system ensures smooth operation. The optional Silent System soft-close and soft-open mechanism enhances user experience for doors weighing up to 325 lb (147 kg). Ideal for single, biparting, and bypassing door applications, the Grant TopLine is particularly well-suited for spaces with restricted headroom. With a maximum door height of 9 ft 10 in and a width range of 30 to 94 1/2 in, this system adapts seamlessly to various designs. It is important to note that the system must only be used in framed installations and requires careful leveling during setup. For optimal performance, it is recommended to pre-drill all screws and keep tracks free from debris. Choose the Richelieu Grant TopLine for a reliable, elegant sliding door solution that combines functionality and style.
Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine HD
Length - Overall Dimensions: 10 ft*
Load Capacity: Max. 324 lb*
Number of Doors: 1
Overall Length: 3 048 mm
Product #: WEBKIT1220244
Product number: WEBKIT1220244
Product №: WEBKIT1220244
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 3 048 mm
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 147 kg
