Richelieu WEBKIT1220267 Grant TopLine Low Profile Sliding Door SystemRichelieu WEBKIT1220267 Grant TopLine Low Profile Straight Sliding Door System combines functionality with an elegant design, ideal for both commercial and residential applications. This system accommodates low profile wood doors, with a robust load capacity of up to 500 lb (227 kg) and a minimum thickness of 1 3/8 in (35 mm). The sleek appearance is complemented by precision ball bearing wheel trolleys that glide effortlessly along aluminum box tracks, ensuring smooth operation. The system is versatile, supporting single, biparting, and bypassing door configurations, making it an excellent choice for spaces with restricted headroom. For added convenience, a Silent System soft-close and soft-open mechanism is available separately for doors weighing up to 325 lb (147 kg). The maximum door height is 9 ft 10 in, with widths ranging from 30 to 94 1/2 in, allowing for custom solutions tailored to your needs. Important installation guidelines emphasize the necessity of framed installations and careful leveling for optimal performance. Always ensure to remove any debris from tracks and consult the manufacturer’s instructions for proper installation practices. The Grant TopLine system is designed for those who appreciate quality craftsmanship and efficient space management.

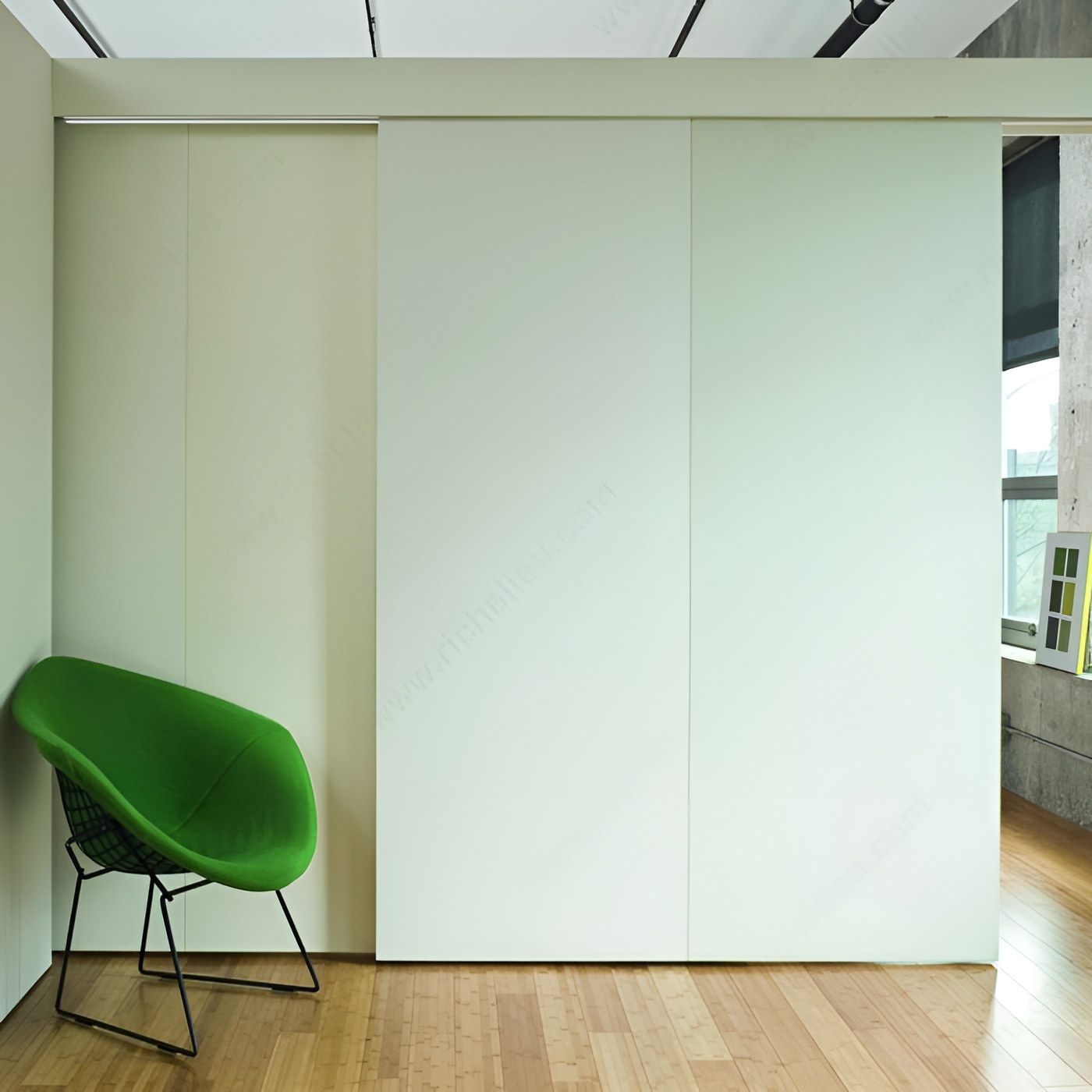

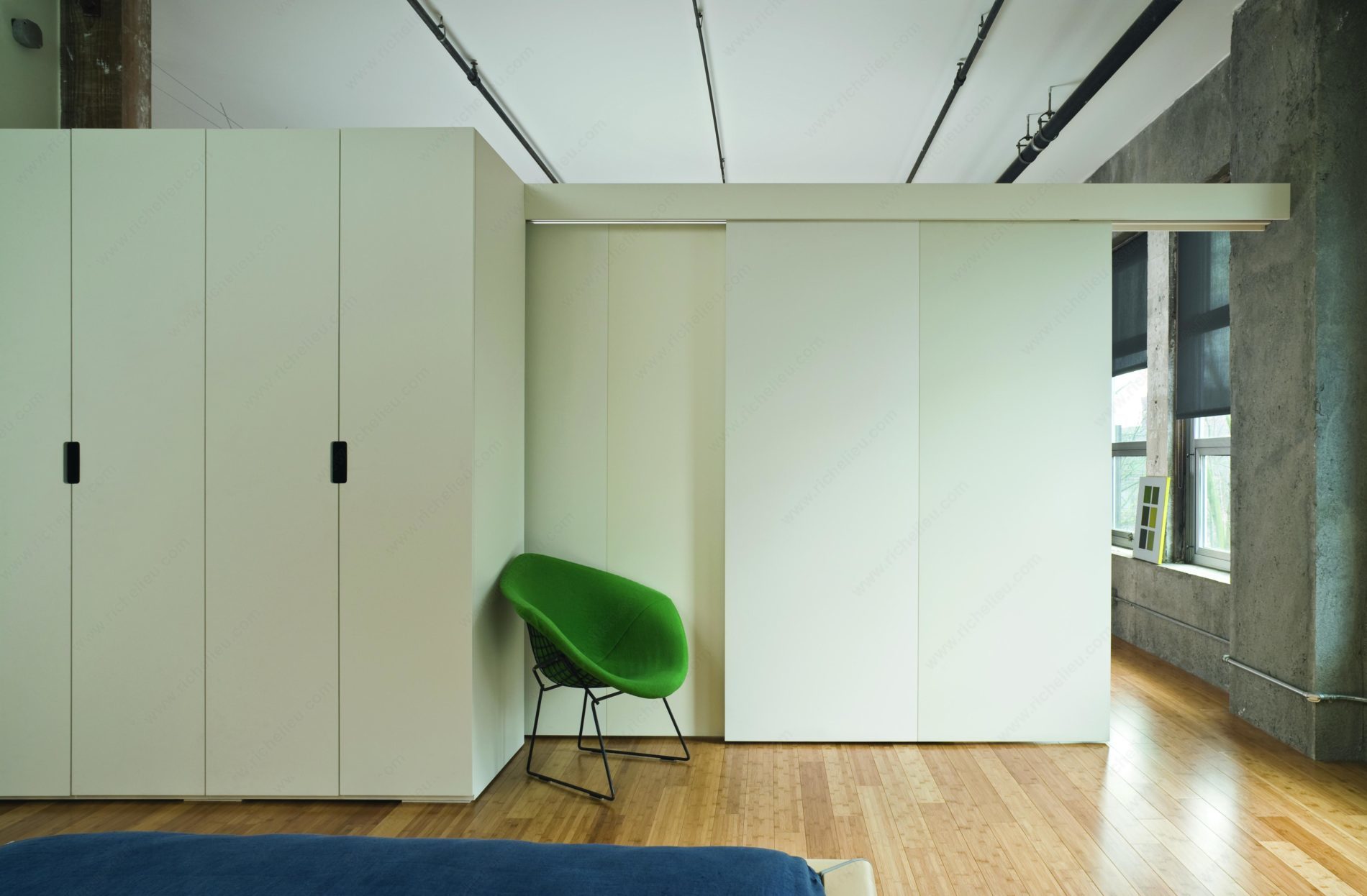

Grant TopLine Low Profile Straight Sliding Door System
The Grant TopLine Low Profile Straight Sliding Door System, featuring the Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is made for low profile wood doors weighing up to 500 lb (227 kg) each and at least 1 3/8 in (35 mm) thick.
- Sleek and elegant look
- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
These models are designed for commercial and residential use with single, biparting, and bypassing door applications and are ideal for restricted headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 35 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine XHD
Length - Overall Dimensions: 12 ft*
Load Capacity: Max. 500 lb*
Number of Doors: 1
Overall Length: 3 658 mm
Product #: WEBKIT1220267
Product number: WEBKIT1220267
Product №: WEBKIT1220267
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 3 658 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 227 kg
