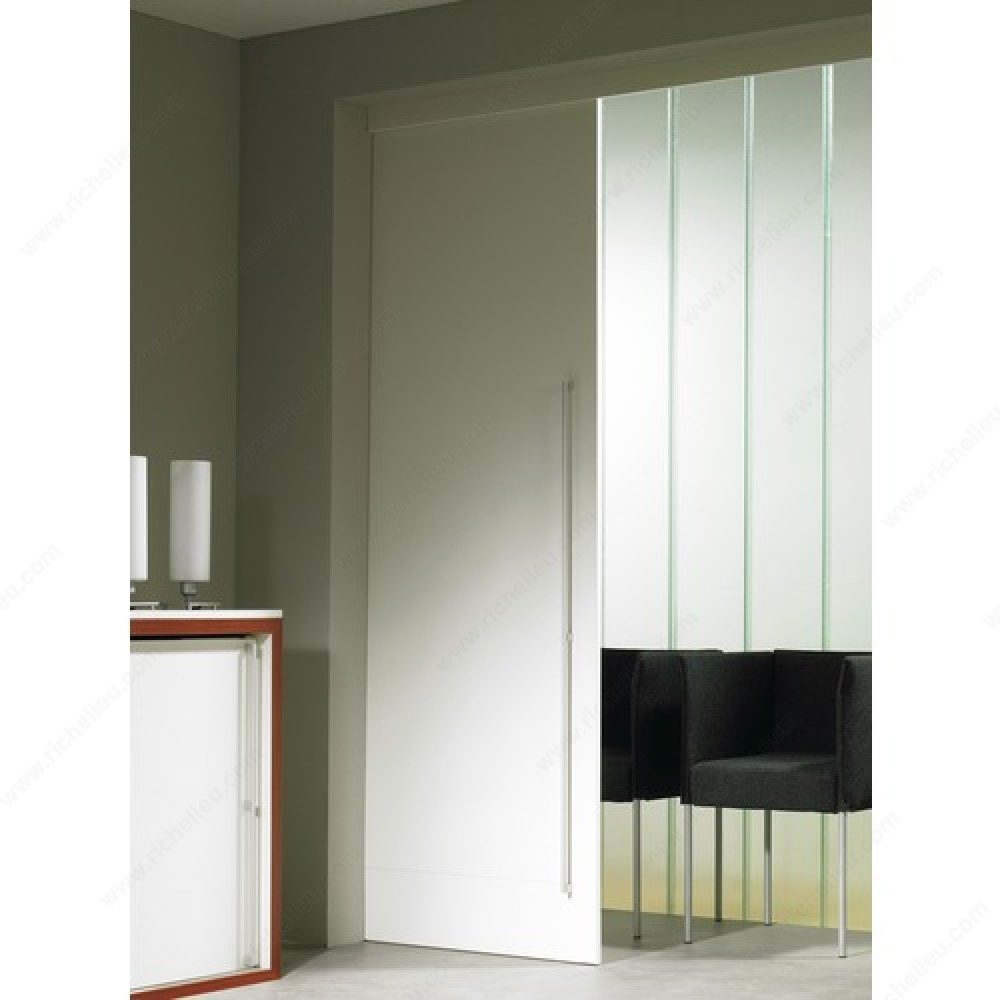

Richelieu WEBKIT1220469 Grant TopLine 1200 Sliding Door System InstructionsRichelieu WEBKIT1220469 Grant TopLine 1200 Series Sliding Door System is engineered for both commercial and residential applications, providing an elegant solution for large or heavy wood doors. Designed to accommodate doors with a minimum thickness of 1 inch (25.4 mm) and a maximum height of 9 feet, this system supports a door width range of 30 to 48 inches, making it a versatile choice for various spaces. The system features precision ball bearing wheel trolleys that ensure smooth and reliable operation, while the heavy-duty double aluminum I-beam track guarantees durability and strength. The surface top-mount suspension plate simplifies installation, whether you are looking to implement a single sliding door or a biparting configuration. With a load capacity of up to 324 pounds, this sliding door system is perfect for partition walls and room dividers. Notably, the Grant TopLine 1200 Series is ANSI/BHMA Grade 1 certified, ensuring it meets high-quality standards. Its ceiling mount design not only maximizes floor space but also adds a modern touch to any interior. Upgrade your space with the reliability and functionality of the Richelieu Grant TopLine 1200 Series Sliding Door System.
Grant TopLine 1200 Series Sliding Door System
The Grant TopLine 1200 Series Sliding Door System, featuring the Grant TopLine 1210 and Grant TopLine 1230, is designed for wood doors at least 1 in (25.4 mm) thick.
- Precision ball bearing wheel trolleys
- Heavy-duty double aluminum I-BEAM track
- Surface top-mount suspension plate
- Suitable for single and biparting door applications
These top-mount systems are designed for commercial and residential use. An ideal solution for partition walls, room dividers, and heavy or large doors.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25.4 mm
Door Width: 914 to 1 828 mm
Grant Top Line Model: Grant TopLine 1230
Length - Overall Dimensions: 94 1/2 in*
Load Capacity: Max. 324 lb*
Number of Doors: 2, 1
Overall Length: 2 400 mm
Product #: WEBKIT1220469
Product number: WEBKIT1220469
Product №: WEBKIT1220469
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Standards and Certifications: ANSI/BHMA Grade 1
Track Length: 2 400 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 147 kg
