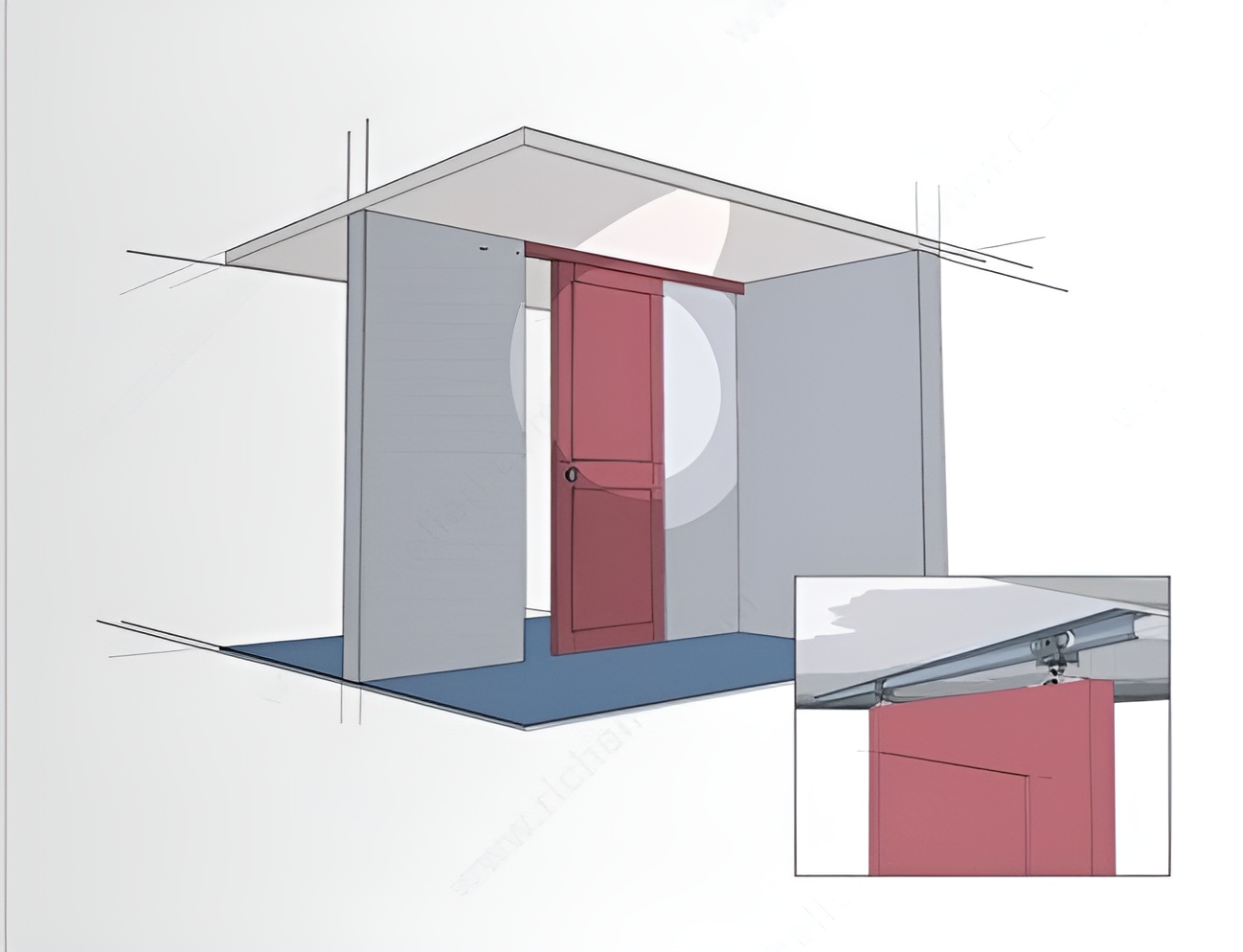

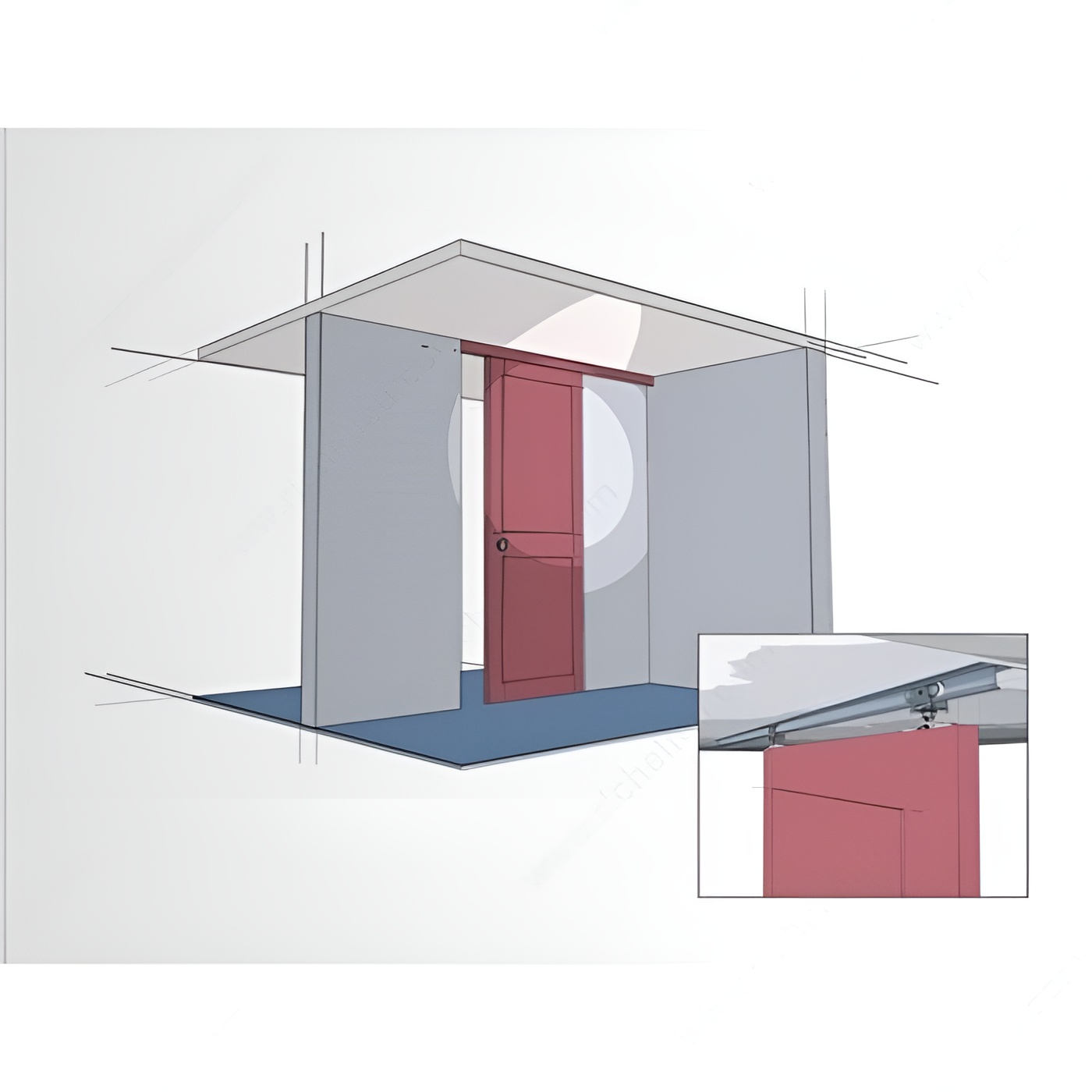

Richelieu WEBKIT1222454 Grant TopLine 71-000 Sliding Door System InstructionsRichelieu WEBKIT1222454 Grant TopLine 71-000 Series Sliding Door System is engineered for both commercial and residential applications, providing a robust solution for various spaces such as closets, storage walls, cabinets, and room dividers. This system is designed to accommodate top-mount wood doors, featuring a heavy-duty aluminum I-BEAM track that ensures durability and stability. Equipped with precision ball bearing trolleys, the Grant TopLine system allows for smooth and effortless door movement, while pivoting rocker arms and a reliable ball and socket suspension enhance its functionality. The system supports a maximum door height of 96 inches and accommodates door widths ranging from 18 to 48 inches, making it versatile for different installations. With a load capacity of 99.2 pounds, it can handle a variety of door styles. Installation is straightforward, as the track is designed for ceiling mounting, providing an unobtrusive look. Notably, this system supports single sliding door movement and requires wood doors with a minimum thickness of ¾ inch. The Grant TopLine 71-222 model is an outstanding choice for those seeking a high-quality sliding door solution that combines performance with aesthetic appeal.
Grant TopLine 71-000 Series Sliding Door System
The Grant TopLine 71-000 Series Sliding Door System, featuring the Grant TopLine 71-034, Grant TopLine 71-111, Grant TopLine 71-138, and Grant TopLine 71-222, is designed for top-mount wood doors.
- Heavy-duty aluminum I-BEAM track
- Precision ball bearing trolleys
- Pivoting rocker arms
- Ball and socket suspension
These systems are designed for commercial and residential use and are an ideal solution for closets, storage walls, cabinets, and room dividers.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 2 438 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 19 mm
Door Width: 457 to 1 219 mm
Grant Top Line Model: Grant TopLine 71-222
Length - Overall Dimensions: 70 7/8 in*
Load Capacity: Max. 99.2 lb*
Number of Doors: 2, 1
Overall Length: 1 800 mm
Product #: WEBKIT1222454
Product number: WEBKIT1222454
Product №: WEBKIT1222454
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 800 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 45 kg
