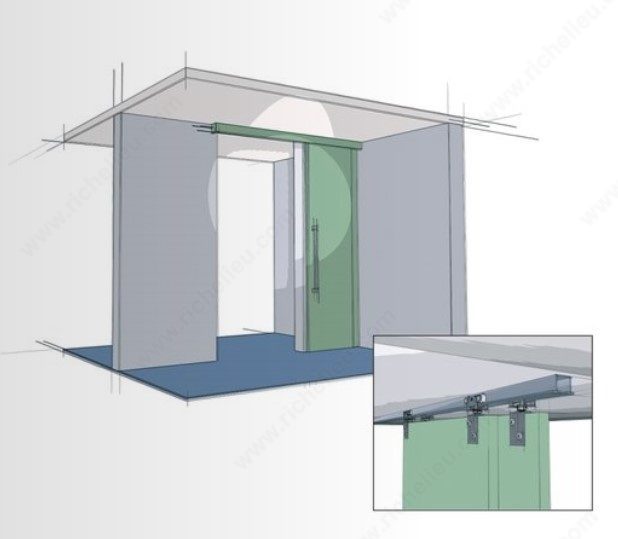

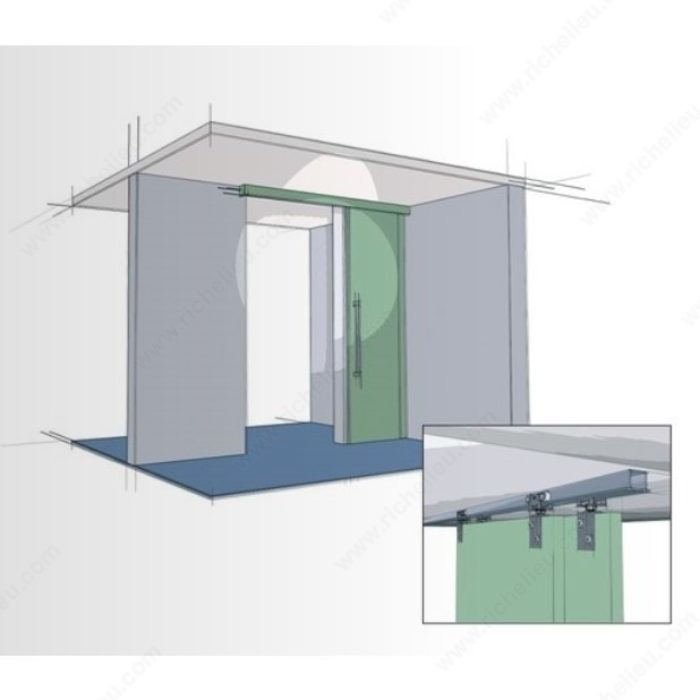

Richelieu WEBKIT1224382 Grant TopLine 72-000 Sliding Door System InstructionsRichelieu WEBKIT1224382 Grant TopLine 72-000 Series Sliding Door System offers a robust and reliable solution for bypassing wood doors, accommodating weights of up to 150 lb (68 kg). This system is designed with versatility in mind, making it ideal for both commercial and residential applications such as partition walls, closets, and cabinets. The system features an offset trolley hanger paired with a heavy-duty double aluminum I-beam track, ensuring smooth operation and durability. The pivoting rocker arms and ball and socket suspension provide excellent stability and easy door movement, while the lock nut enhances safety and reliability during use. Designed for two doors, this top-mount bypassing system supports door widths ranging from 18 to 48 inches and a maximum height of 96 inches. With a door thickness of 1 3/8 inches, it seamlessly integrates into various design aesthetics. The overall length of the system measures 94 1/2 inches, and it is designed for ceiling mount installation. For those looking for a high-quality sliding door solution, the Grant TopLine 72-000 Series provides an efficient and stylish option, making it a perfect addition to any space.
Grant TopLine 72-000 Series Sliding Door System
The Grant TopLine 72-000 Series Sliding Door System features Grant TopLine 72-034, Grant TopLine 72-134, Grant TopLine 72-118, Grant TopLine 72-138, Grant TopLine 72-222, and Grant TopLine 72-223, all designed for bypassing wood doors weighing up to 150 lb (68 kg).
- Offset trolley hanger
- Heavy-duty double aluminum I-beam track
- Pivoting rocker arms
- Ball and socket suspension
- Lock nut
These top-mount bypassing systems are designed for commercial and residential use. An ideal solution for partition walls, closets, and cabinets.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Detailed Door Movement: Bypassing
Door Height: Max. 2 438 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 mm
Door Width: 457 to 1 219 mm
Grant Top Line Model: Grant TopLine 72-138
Length - Overall Dimensions: 94 1/2 in*
Load Capacity: Max. 150 lb*
Number of Doors: 2
Overall Length: 2 400 mm
Product #: WEBKIT1224382
Product number: WEBKIT1224382
Product №: WEBKIT1224382
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 2 400 mm
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 68 kg
