Richelieu WEBKIT1242694 FLEXYLED SEH4 Wired Starter Guide for Interior CabinetsRichelieu WEBKIT1242694 FLEXYLED SEH4 Interior Cabinet - Starter Guide - Wired offers a seamless lighting solution for a variety of spaces, including kitchens, living rooms, bedrooms, and offices. With its flexible linear design and available lengths of 39 3/8" to 118 1/8", this LED lighting can be easily tailored to fit your specific needs. The silicone-coated LEDs provide a bright output of 180 LEDs per meter at a power consumption of just 9.6 watts per meter, ensuring efficient illumination. Designed for recessed installation, the FLEXYLED fits perfectly into a groove measuring 4 mm wide by 8 mm deep. The included 78" power cable is pre-wired at both ends, allowing for easy customization by cutting off any unused wire at designated marks. Compatible with the Micro 24 connection type, the lighting system features an IR-XD3 wired sensor that recesses into a 13/32" (10 mm) hole, aligning flush with the cabinet door. With a color rendering index (CRI) of 90 and a neutral white light color at 4200 K, this lighting not only enhances aesthetics but also ensures accurate color representation. Complying with UL and CE standards, the Richelieu FLEXYLED is the ideal choice for modern, functional lighting in any interior setting.

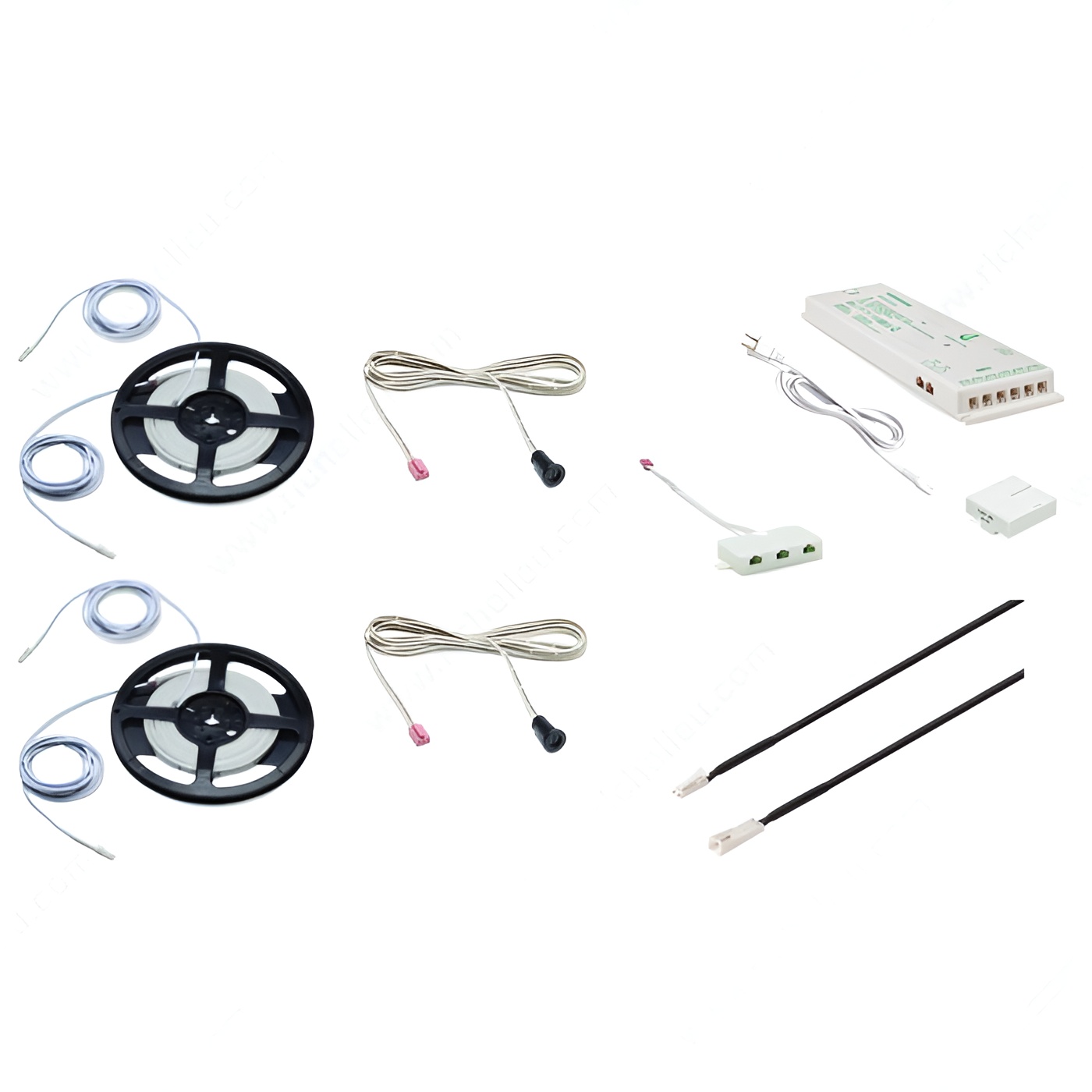

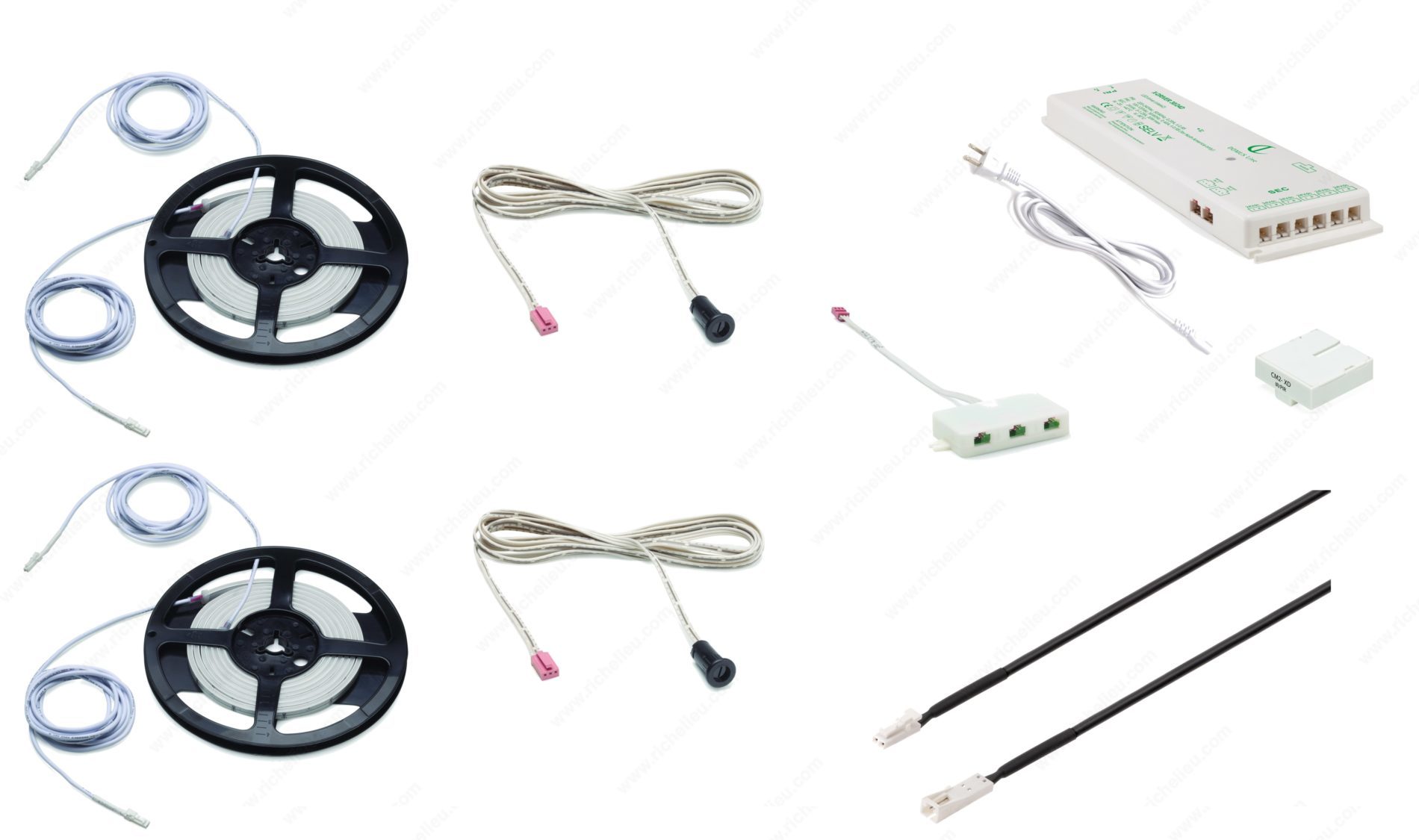

FLEXYLED SEH4 Interior Cabinet - Starter Guide - Wired
Control type:
- X-Driver IR-XD3 Wired Sensor
The benefits of this set are:
- Available in fixed lengths (trimmable): 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (2500 mm), 118 1/8" (3000 mm).
- Silicone coated LED with 180 LED/meter; 9.6 watts/meter.
- Recess into a groove measuring 4 mm wide x 8 mm deep.
- 78" power cable is pre-wired at each end of the roll. Cut off unused wire at designated marks.
- Extension cables are available in 20", 40" and 78".
- IR-XD3 is recessed in a 13/32" (10 mm) hole, flush to the door.
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Living Room, Bedroom, Bathroom, Office, Furniture, Closet
CRI ( Color Rendering Index): 90
Compatibility: Micro 24
Connection Type: Micro 24
Control System: IR
Features: Bluetooth, Wi-Fi
Group: LED Group A
IP: IP20
Kelvin Color Temperature ( K): 4200 K
Light Color: Neutral White
Lighting: Functional
Lighting Type: LED
Location: Inside Cabinet
Luminaire: Flexible Linear
Mounting: Recessed
Product #: WEBKIT1242694
Product №: WEBKIT1242694
Recessed Depth: 13/32 in*
Standards and Certifications: UL, CE
Style: Contemporary
Tension ( V): 24 V
Watts: 14.4 W
Width: 5/32 in*
