Richelieu WEBKIT1242892 ATOM Under Cabinet LED Puck Light - Installation GuideRichelieu WEBKIT1242892 ATOM puck LED for Under Cabinet Lighting is designed to elevate your space with efficient and stylish illumination. This versatile lighting solution is perfect for kitchens, living rooms, and commercial settings, offering a warm white glow at a color temperature of 3000 K. With a Color Rendering Index (CRI) of 90, it ensures that colors appear vibrant and true. Select from multiple control options, including Wi-Fi app control, touch dimmers, or the Decora Bluetooth wall dimmer, allowing you to customize your lighting experience. The ATOM puck light is suitable for installation on a 48" counter, and for longer spaces, simply add additional puck lights every 15" on center. Installation is made easy with a pre-wired 78" power cable, and optional extension cables are available in various lengths. The product can be recessed or surface mounted using a trim ring (sold separately). With an IP20 rating and a luminous efficiency of 60 lm/W, this fixture combines functionality with a contemporary aesthetic. Ensure compliance with local electrical codes during installation, and enjoy the benefits of smart, efficient lighting tailored to your needs.
ATOM puck LED for Under Cabinet Lighting - Started Guide

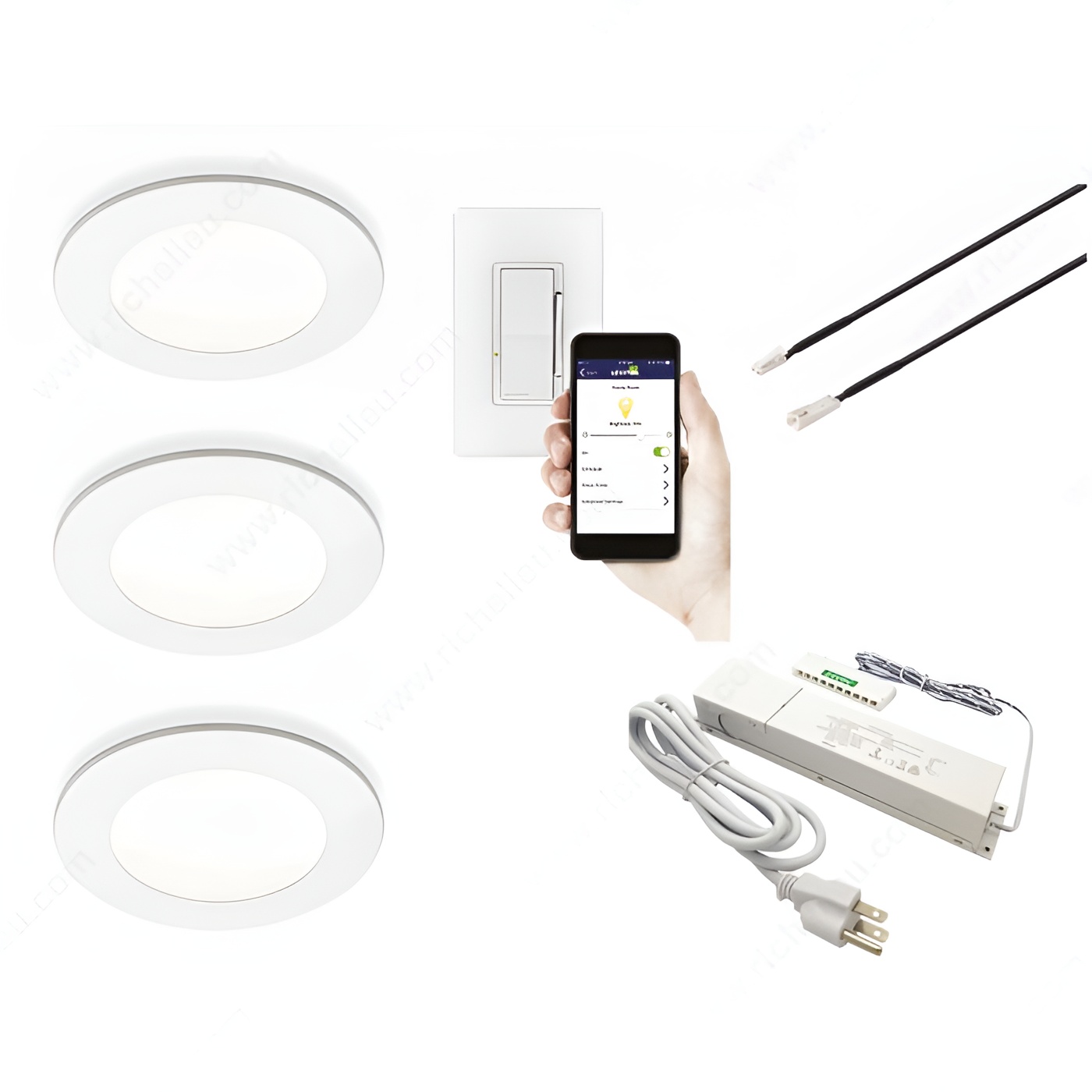

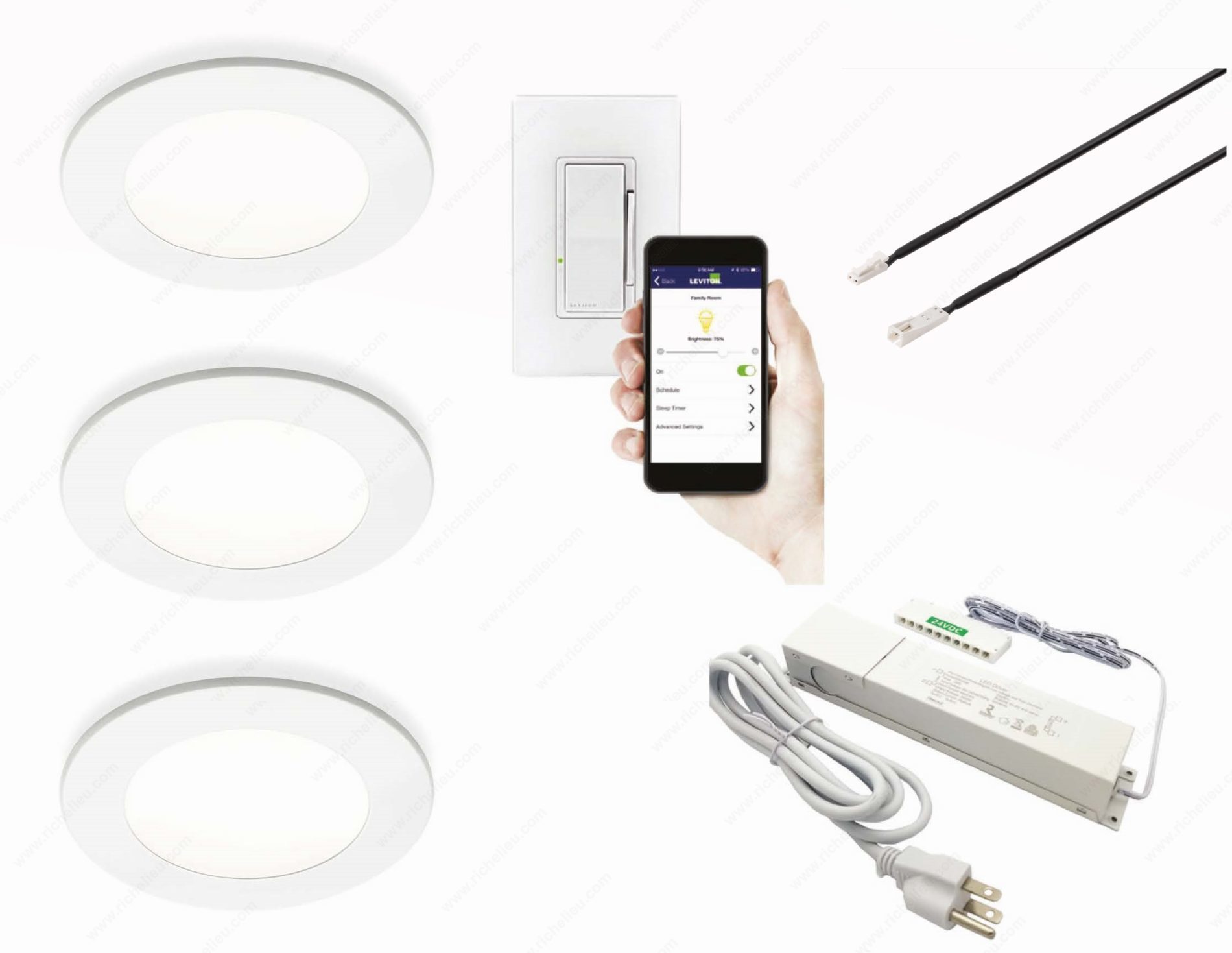

Select your control type:
- Wi-Fi App.
- Touch Me Dimmer
- Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
- Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:

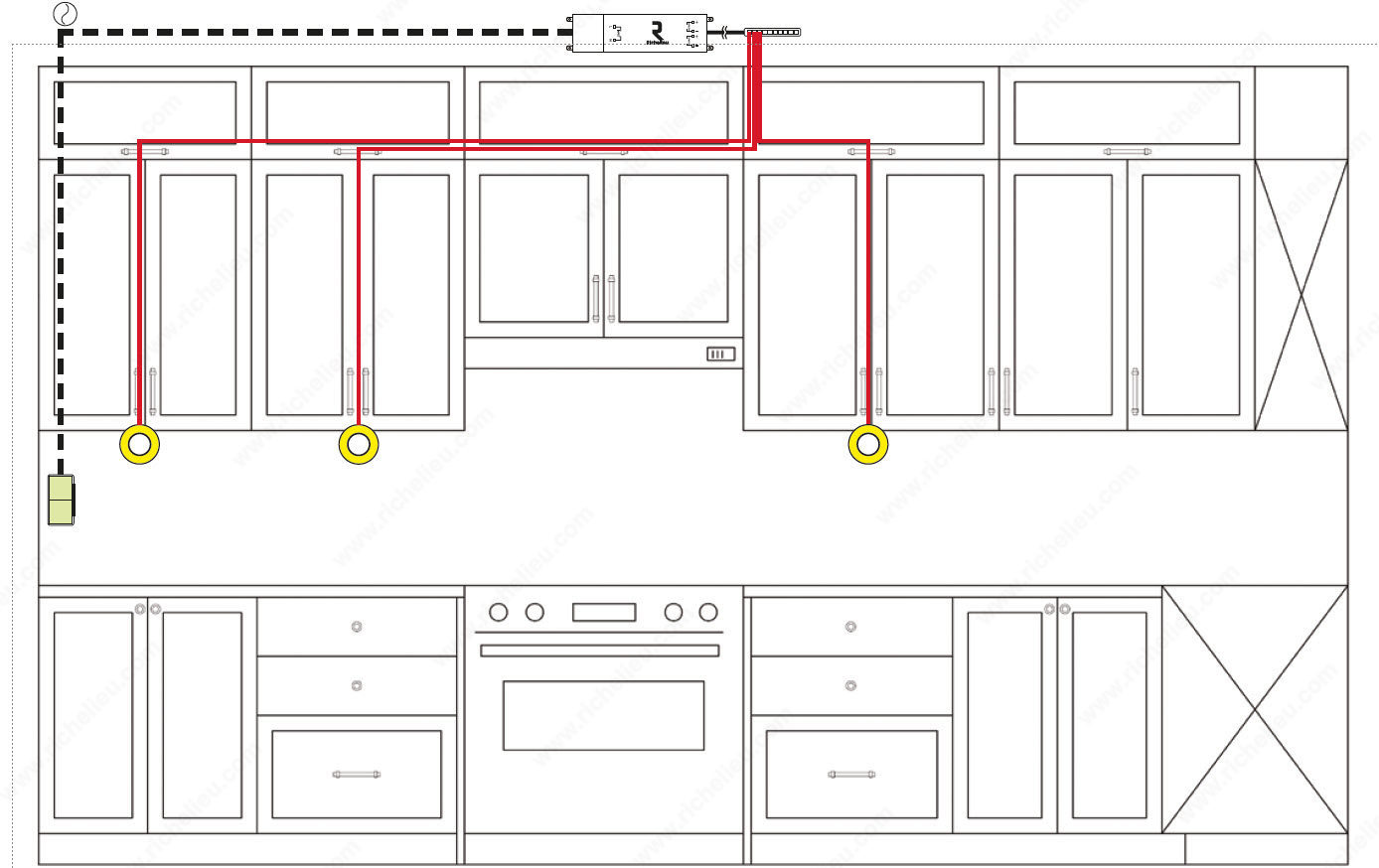

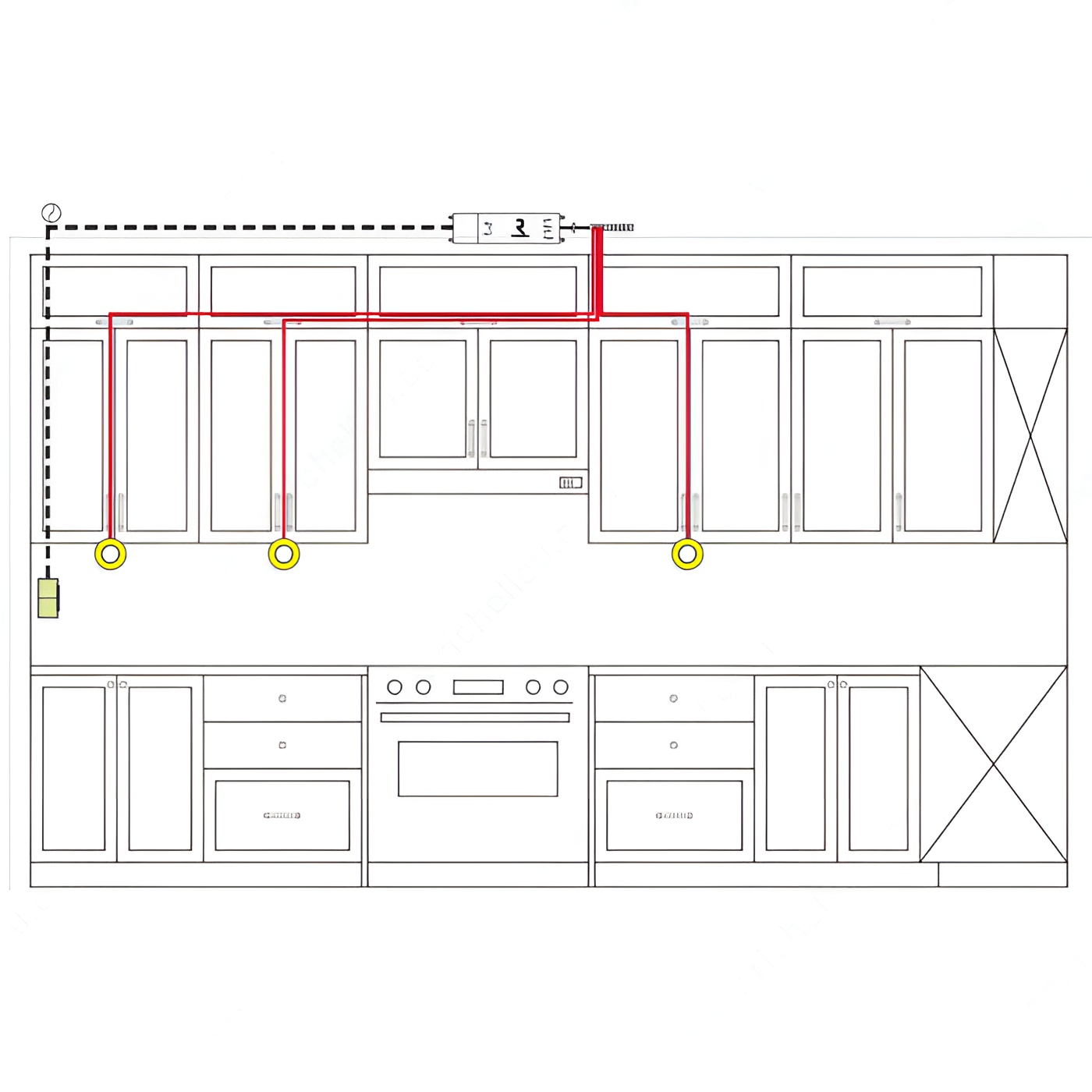

- Kits recommended for a 48" counter.
- For longer counters, add a puck light every 15" CTC.
- The Atom can be recessed or surface mounted using the trim ring (sold separately).
- 78" power cable is pre-wired to the Atom.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Living Room, Commercial, Furniture
Bore Hole: 2 1/4 in*
CRI ( Color Rendering Index): 90
Compatibility: Micro 24
Connection Type: Micro 24
Control System: Bluetooth / Dimmer
Diameter: 2 11/16 in*
Finish: White
Group: LED Group A, LED 24 V dc Exclusive
Height: 11/32 in*
IP: IP20
Kelvin Color Temperature ( K): 3000 K
Light Color: Warm White
Lighting: Accent, Task
Lighting Type: LED
Location: Under Cabinet
Luminaire: Fixed Spots
Luminous Efficiency: 60 lm/W
Luminous Flux: 180 Lumen
Mounting: Recessed
Operation: Smart Technology (Bluetooth) / Wall
Product #: WEBKIT1242892
Product №: WEBKIT1242892
Recessed Depth: 5/16 in*
Standards and Certifications: UL, ETL, ULC, CE, cULus
Style: Contemporary
Tension ( V): 24 V
Watts: 3 W
