Richelieu WEBKIT1242914 APEX Under Cabinet Recessed Profile Starter GuideRichelieu WEBKIT1242914 APEX RECESSED PROFILE Under Cabinet - Starter Guide offers a seamless lighting solution designed specifically for kitchens and furniture applications. This innovative under-cabinet profile is available in two lengths-78 3/4" (2 m) and 118 1/8" (3 m)-and can be easily customized to fit your space using a miter saw, ensuring a perfect fit for your setup. With a sleek dimension of 3/8" (9 mm) W x 7/16" (10.5 mm) H, the Apex profile is paired with the FlexyLED HE6 PW LED strip, which features a remarkable 280 LEDs per meter for superior illumination. The LED strip comes in various fixed lengths, including options from 19 11/16" (500 mm) to 98 7/16" (3000 mm), offering flexibility for your installation needs. This system supports multiple control options, including Bluetooth capabilities and traditional dimmer switches, allowing you to personalize your lighting experience. With a warm white light color temperature of 3100 K and a luminous efficiency of 82 lm/W, it creates a cozy and inviting atmosphere. Built to comply with UL, CSA, ETL, CE, and cULus standards, this recessed profile is both safe and reliable. Elevate your space with the Richelieu APEX RECESSED PROFILE, a perfect blend of functionality and modern design.
APEX RECESSED PROFILE Under Cabinet - Starter Guide
Select your control type:
- X-Driver Remote
- Touch Me Dimmer
- Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
- Switchex® LED Dimmer/Power Supply
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)

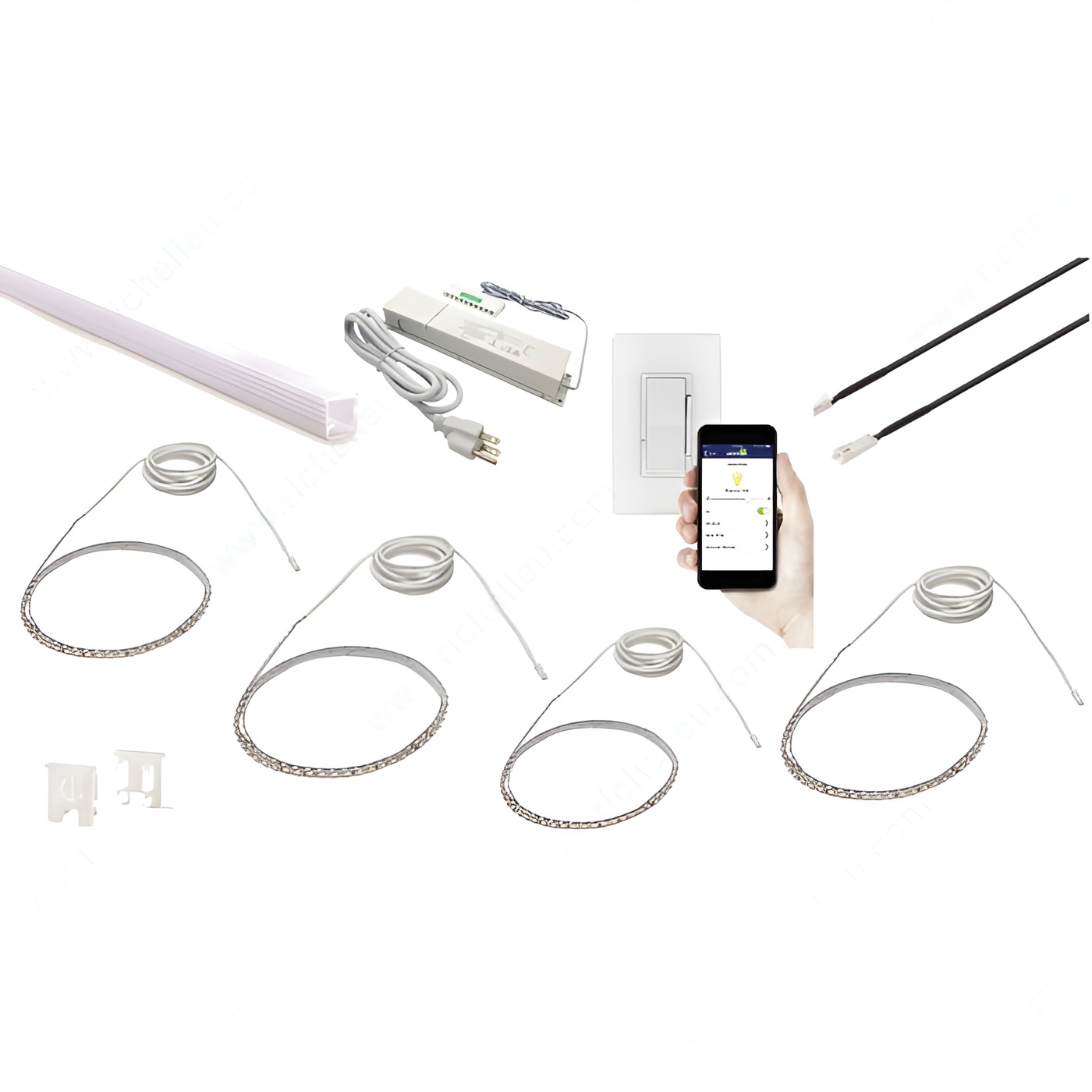

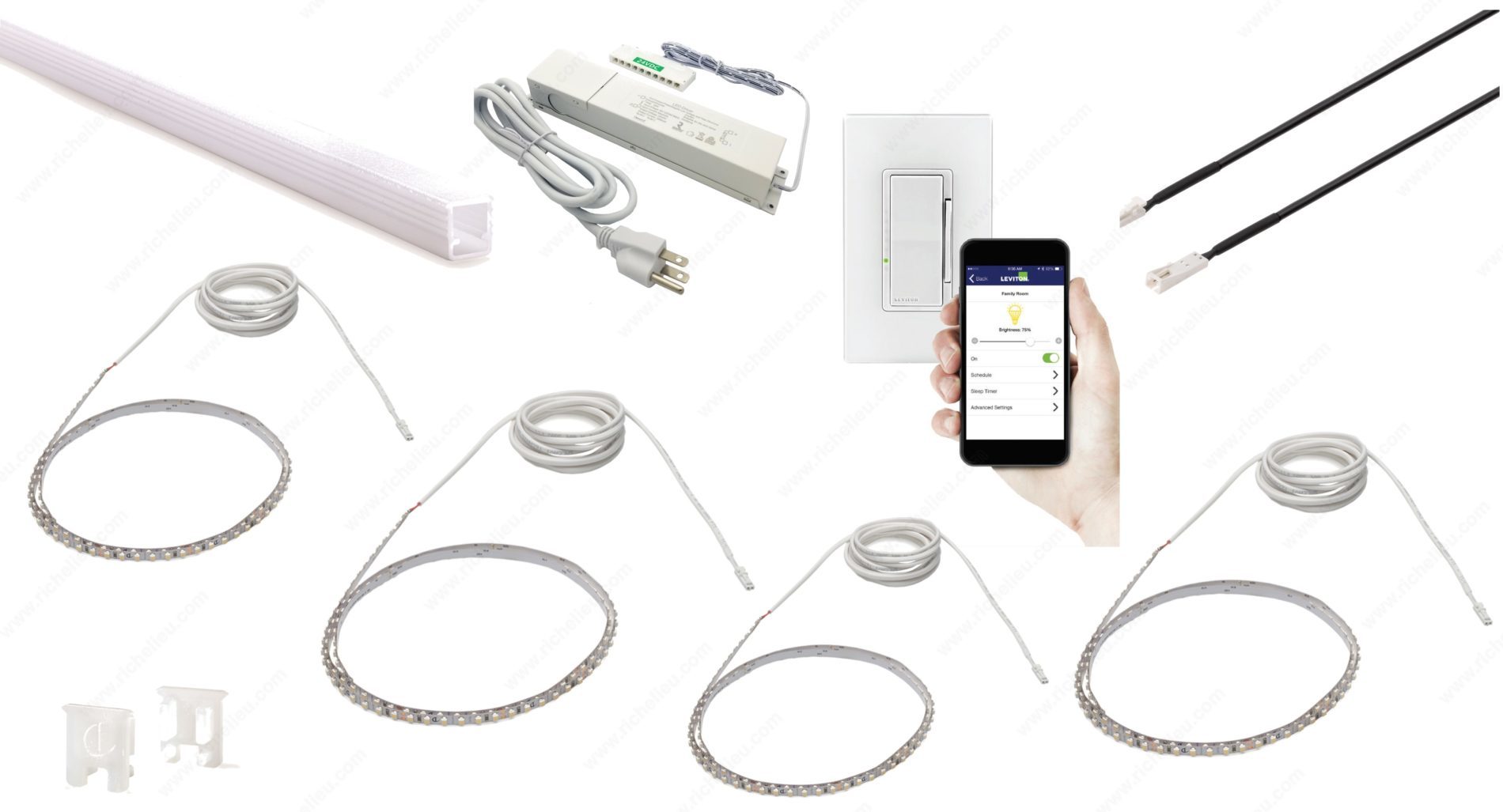

The benefits of this set are:
- Apex profile, available in two lengths: 78 3/4" (2 m) L and 118 1/8" (3 m) L, can be cut easily with a miter saw.
- Apex profile dimensions: 3/8" (9 mm) W x 7/16" (10.5 mm) H.
- FlexyLED HE6 PW is a LED strip with 280 LED/m on a circuit 1/4" (6 mm) W.
- FlexyLED HE6 PW available in fixed lengths (trimmable): 19 11/16" (500 mm), 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (3000 mm).

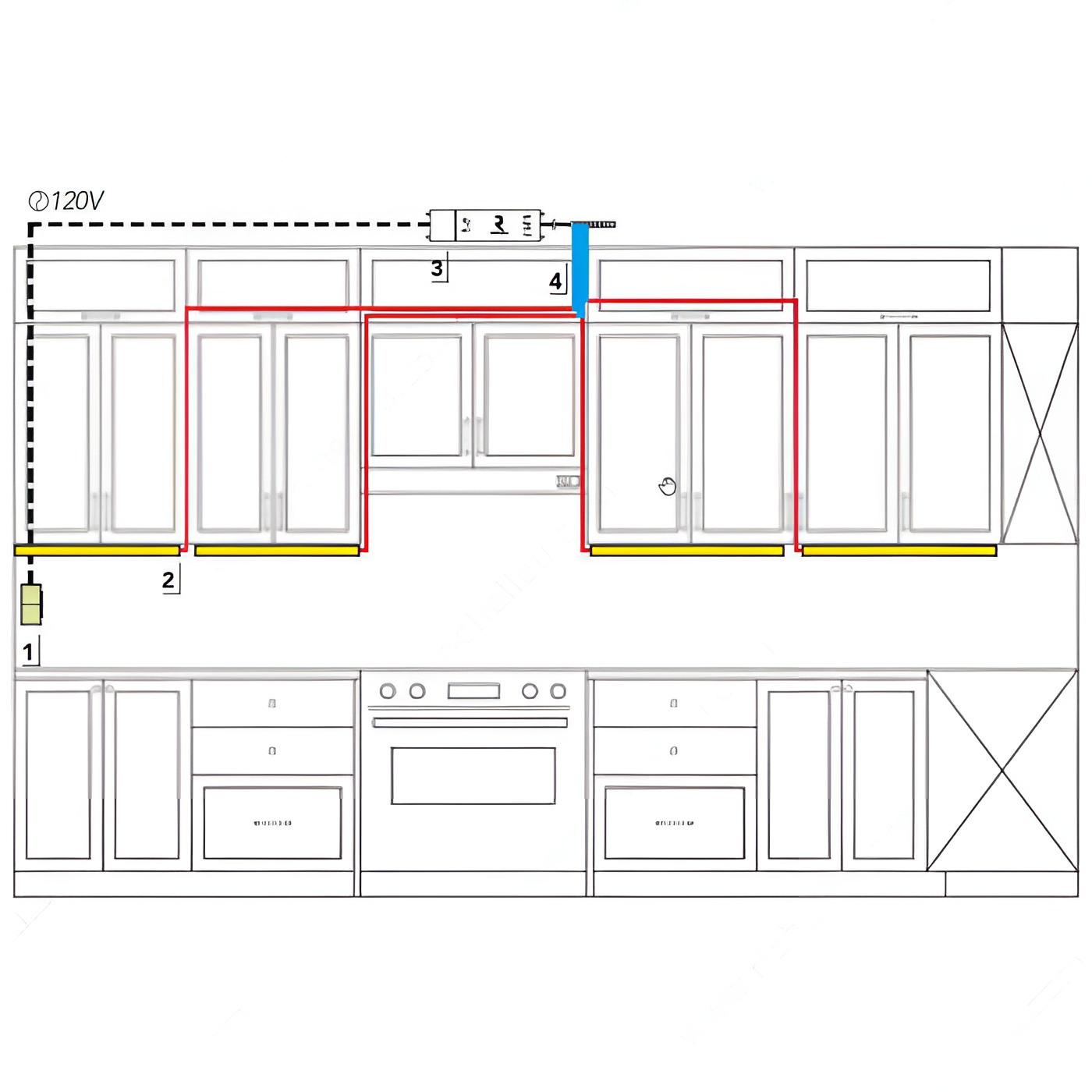

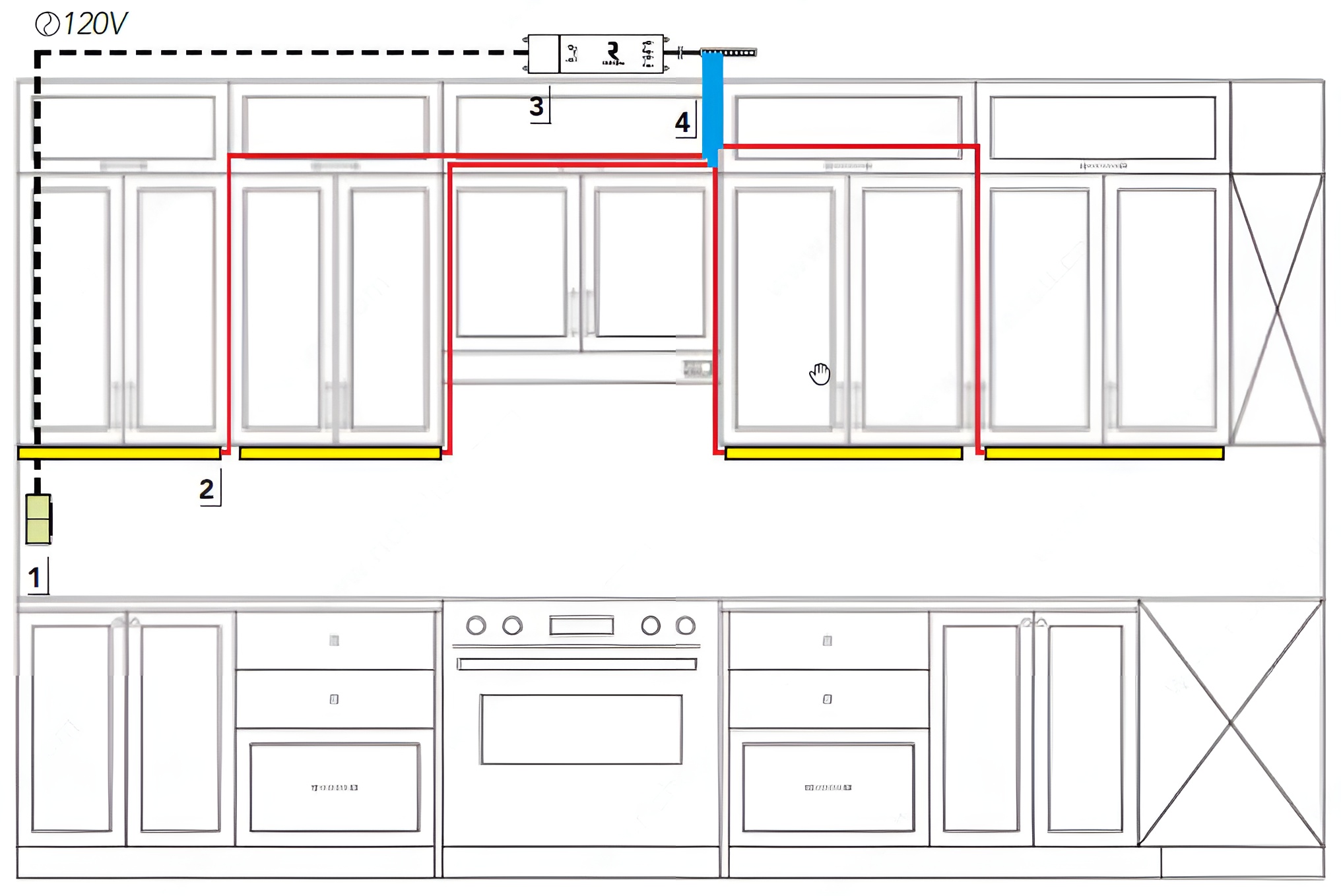

- Kits recommended for a 96" counter.
- 78" power cable is pre-wired to the FlexyLED HE6 PW.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Furniture
CRI ( Color Rendering Index): 80
Compatibility: Micro 24
Connection Type: Micro 24
Control System: Bluetooth
Features: Bluetooth
Finish: White
Group: LED Group A
IP: IP20
Kelvin Color Temperature ( K): 3100 K
Light Color: Warm White
Lighting: Accent, Task
Lighting Type: LED
Location: Under Cabinet
Luminaire: Rigid Linear
Luminous Efficiency: 82 lm/W
Mounting: Recessed
Operation: Smart Technology (Bluetooth) / Wall
Product #: WEBKIT1242914
Product №: WEBKIT1242914
Standards and Certifications: UL, CSA, ETL, CE, cULus
Style: Contemporary
Tension ( V): 24 V
Watts: 5 W
