Richelieu WEBKIT1243026 ATOM LED Puck Light for Under Cabinet LightingRichelieu WEBKIT1243026 ATOM puck LED for Under Cabinet Lighting is designed to enhance your kitchen, living room, or commercial space with efficient and stylish lighting. This versatile lighting solution offers multiple control options, including Wi-Fi app, touch dimmer, Decora Bluetooth wall dimmer, and Switchex® wall dimmer/driver, giving you the flexibility to customize your experience. Recommended for 48" counters, the Atom can be easily installed with a puck light every 15" CTC for longer surfaces. It supports both recessed and surface mounting using an optional trim ring (sold separately). With a pre-wired 78" power cable and available extension cables in 20", 40", and 78" lengths, installation is straightforward. Offering a warm white light at 3000 K and a high CRI of 90, the Atom provides excellent color rendering for accent and task lighting. Its compact design features a 2 11/16" diameter and a recessed depth of 5/16", ensuring it fits seamlessly into your space. With a luminous efficiency of 60 lm/W and a luminous flux of 180 lumens, this LED puck light not only looks great but is also energy efficient. Install according to local electrical codes for optimal safety and performance.
ATOM puck LED for Under Cabinet Lighting - Started Guide

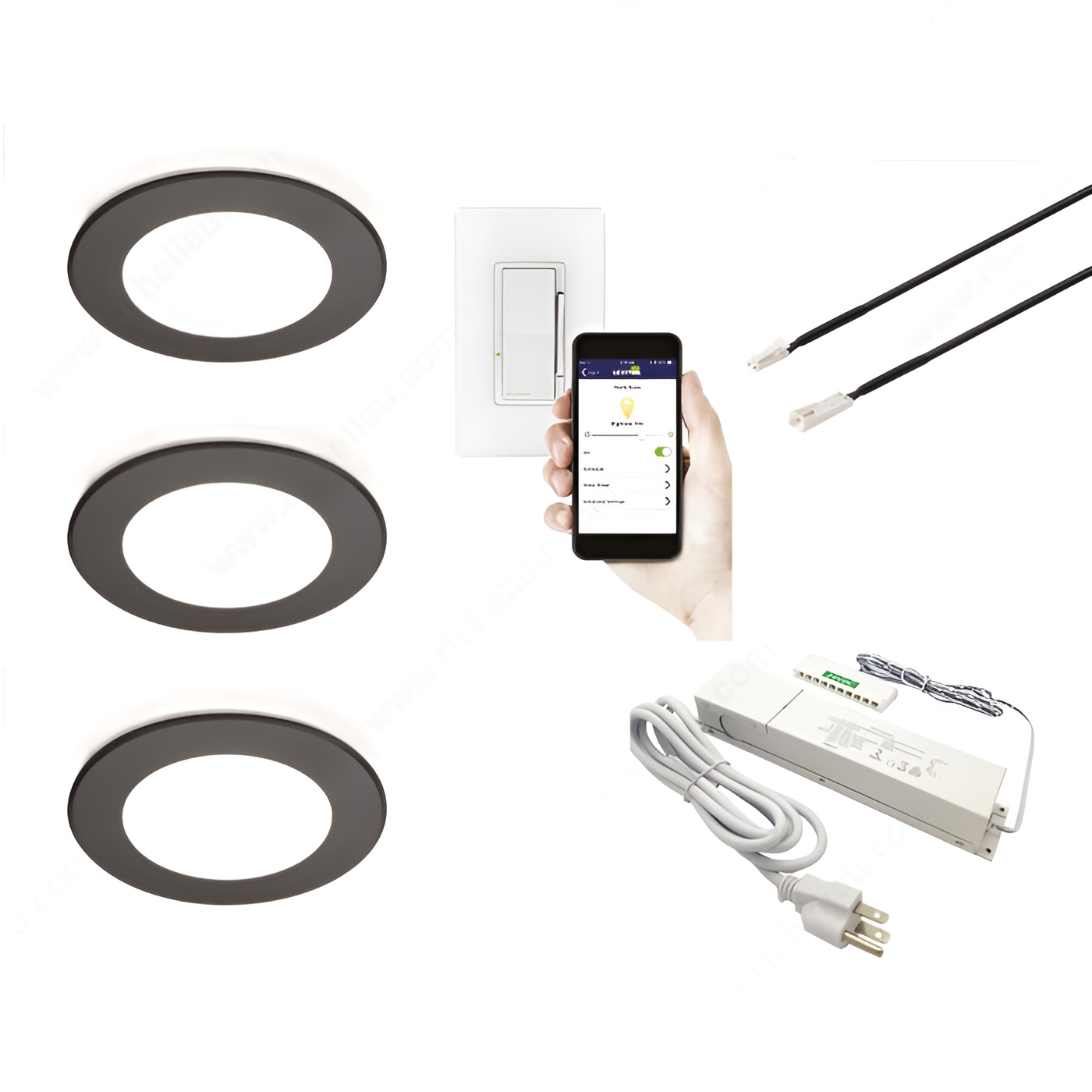

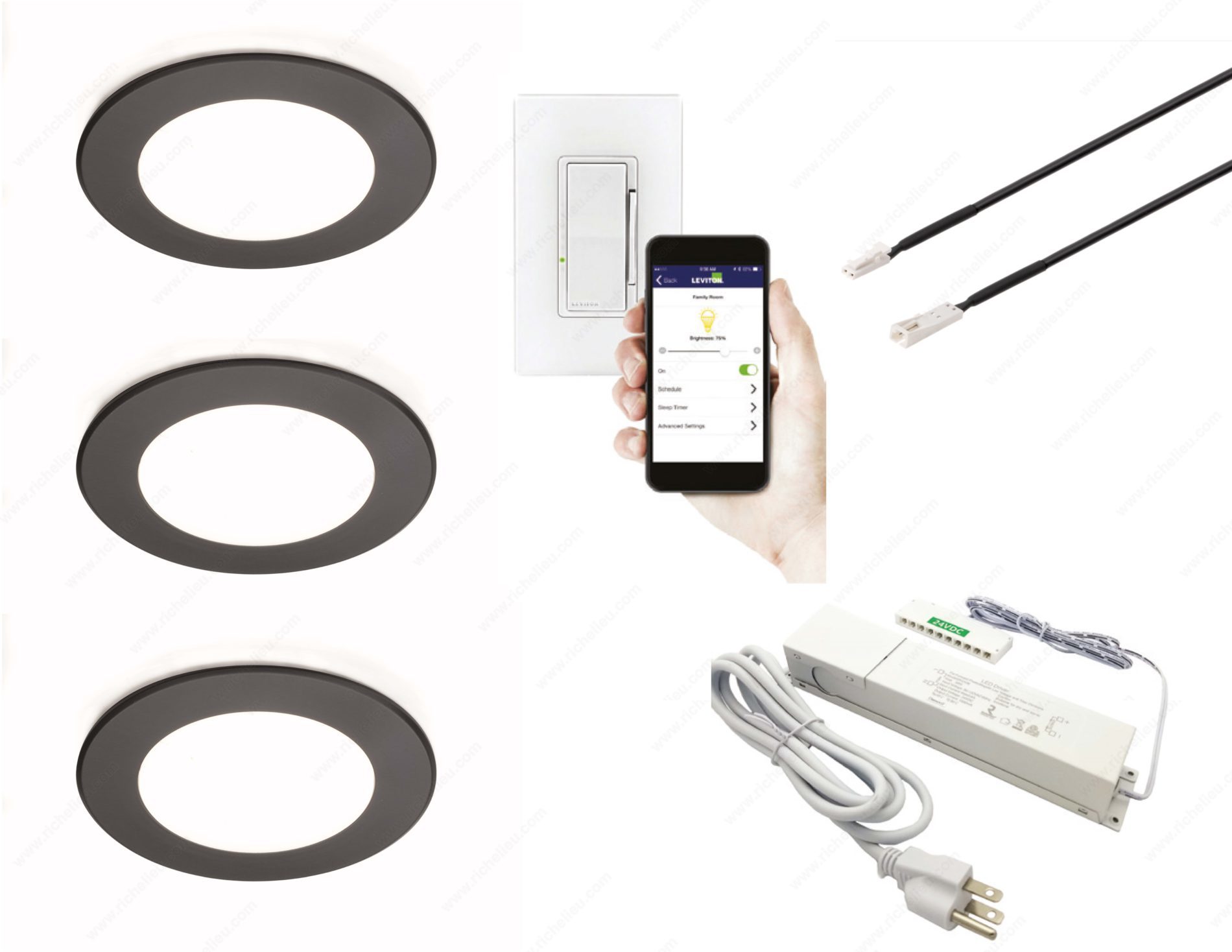

Select your control type:
- Wi-Fi App.
- Touch Me Dimmer
- Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
- Switchex® Wall Dimmer/Driver
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
- Kits recommended for a 48" counter.
- For longer counters, add a puck light every 15" CTC.
- The Atom can be recessed or surface mounted using the trim ring (sold separately).
- 78" power cable is pre-wired to the Atom.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Living Room, Commercial, Furniture
Bore Hole: 2 1/4 in*
CRI ( Color Rendering Index): 90
Compatibility: Micro 24
Connection Type: Micro 24
Control System: Bluetooth / Dimmer
Diameter: 2 11/16 in*
Finish: Black
Group: LED Group A, LED 24 V dc Exclusive
Height: 11/32 in*
IP: IP20
Kelvin Color Temperature ( K): 3000 K
Light Color: Warm White
Lighting: Accent, Task
Lighting Type: LED
Location: Under Cabinet
Luminaire: Fixed Spots
Luminous Efficiency: 60 lm/W
Luminous Flux: 180 Lumen
Mounting: Recessed
Operation: Smart Technology (Bluetooth) / Wall
Product #: WEBKIT1243026
Product №: WEBKIT1243026
Recessed Depth: 5/16 in*
Standards and Certifications: UL, ETL, ULC, CE, cULus
Style: Contemporary
Tension ( V): 24 V
Watts: 3 W
