Richelieu WEBKIT1245612 CINETTO B-MOVED PS40 Motorized Coplanar SystemRichelieu WEBKIT1245612 Cinetto B-MOVED + PS40 Motorized Coplanar System offers a sophisticated solution for creating seamless, hands-free access in your home. This advanced sliding door system is designed for two-door configurations, including bypassing and biparting setups, making it ideal for wardrobes, kitchen pantries, TV and entertainment units, and storage solutions. The system allows for multiple control options: you can easily operate the doors with a push, via remote, or by using the optional WAVE proximity sensor, which reads through materials up to 10 mm thick. Installation is straightforward with a bolt-on motion transmission bar that integrates seamlessly with the PS40 sliding door systems. Designed for door widths ranging from 45 3/8 to 60 inches and accommodating door thicknesses between 3/4 to 1 11/16 inches, the Cinetto B-MOVED boasts a load capacity of up to 132 lbs. It features soft-closing technology and surface track mounting for a clean finish outside the cabinet. For optimal performance, ensure the WAVE sensor is within 10 meters of the receiver, and consult a certified electrician for compatibility with smart home devices. Elevate your space with the convenience and elegance of this innovative coplanar sliding door system from Richelieu.
CINETTO B-MOVED + PS40 Motorized Coplanar System

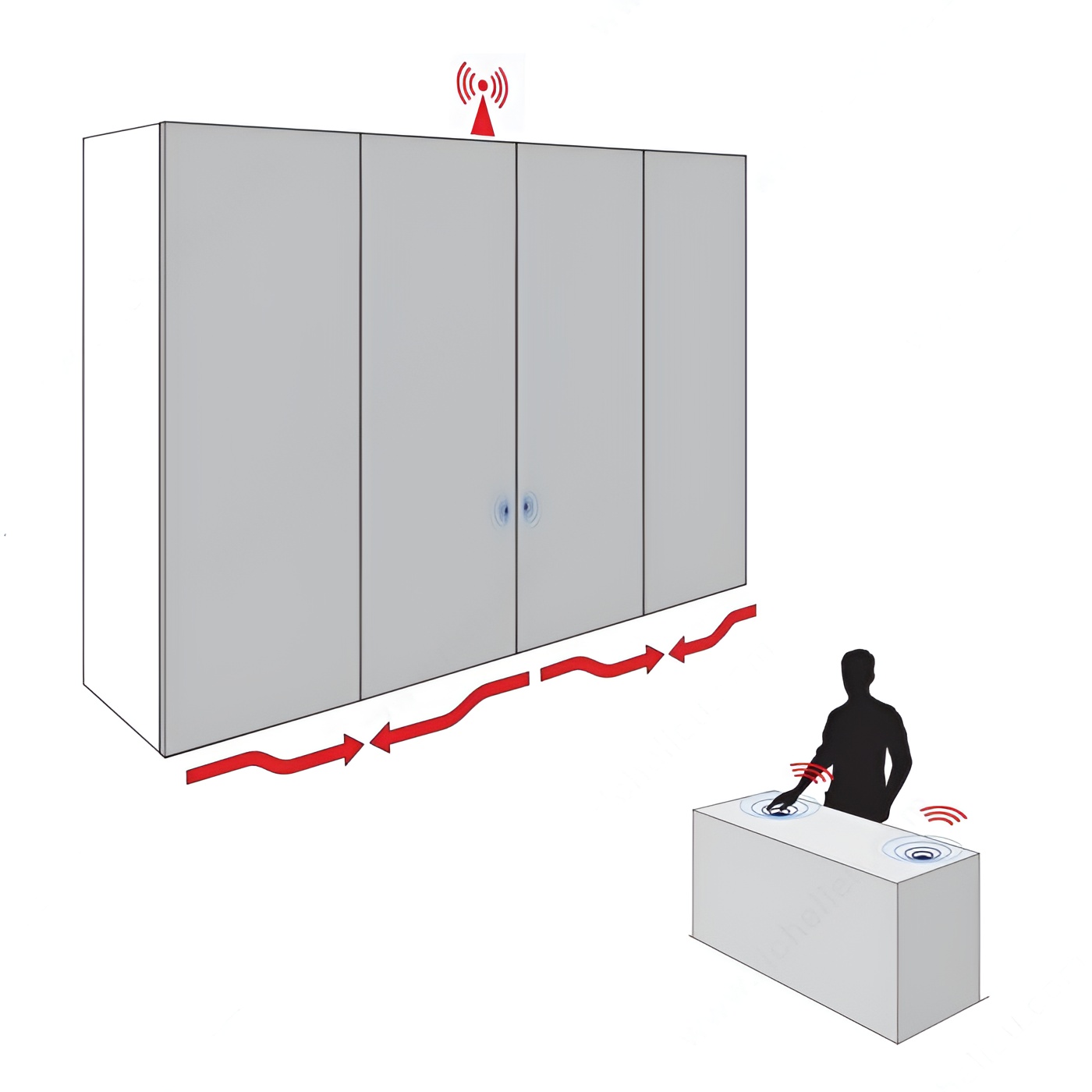

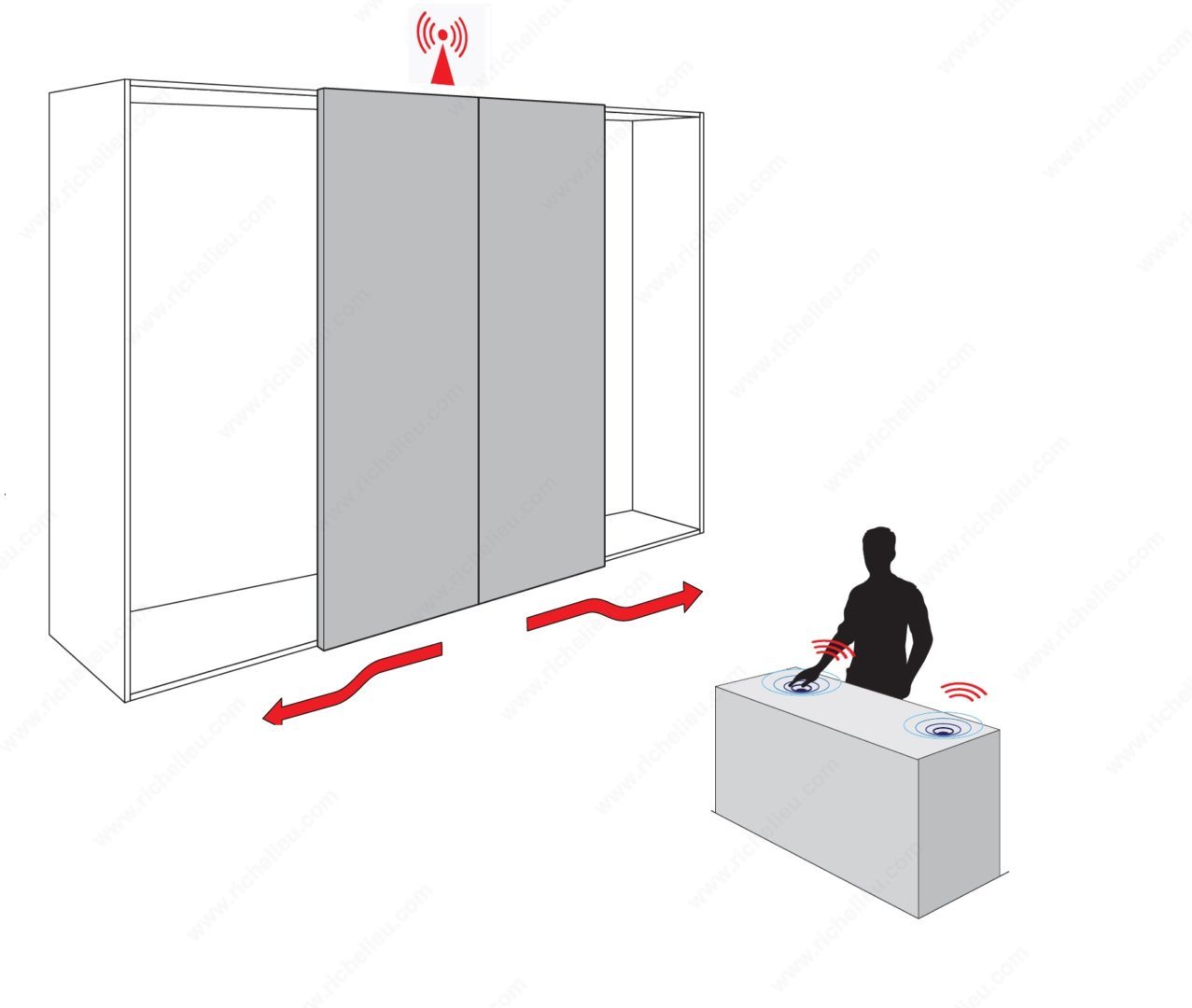

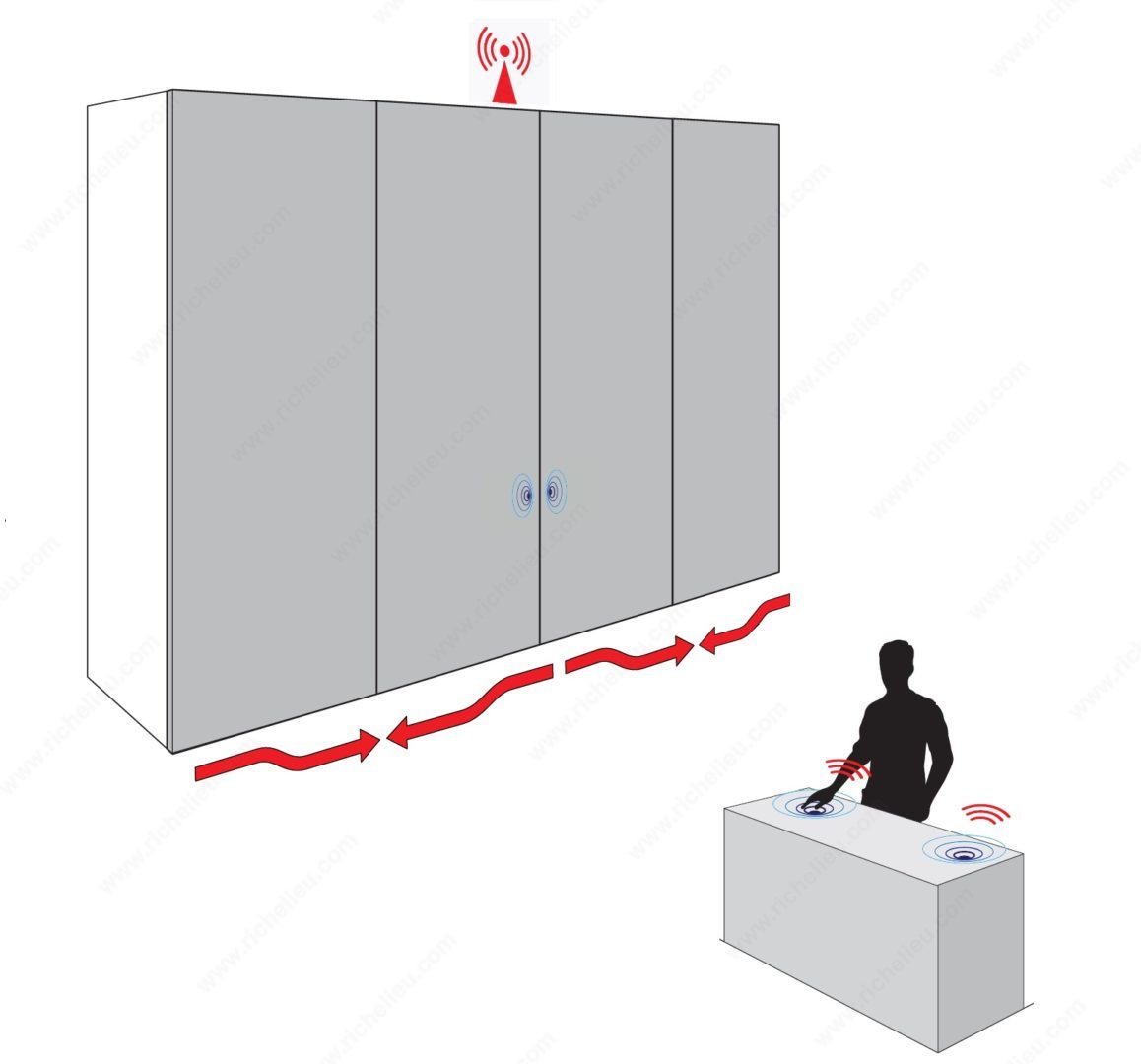

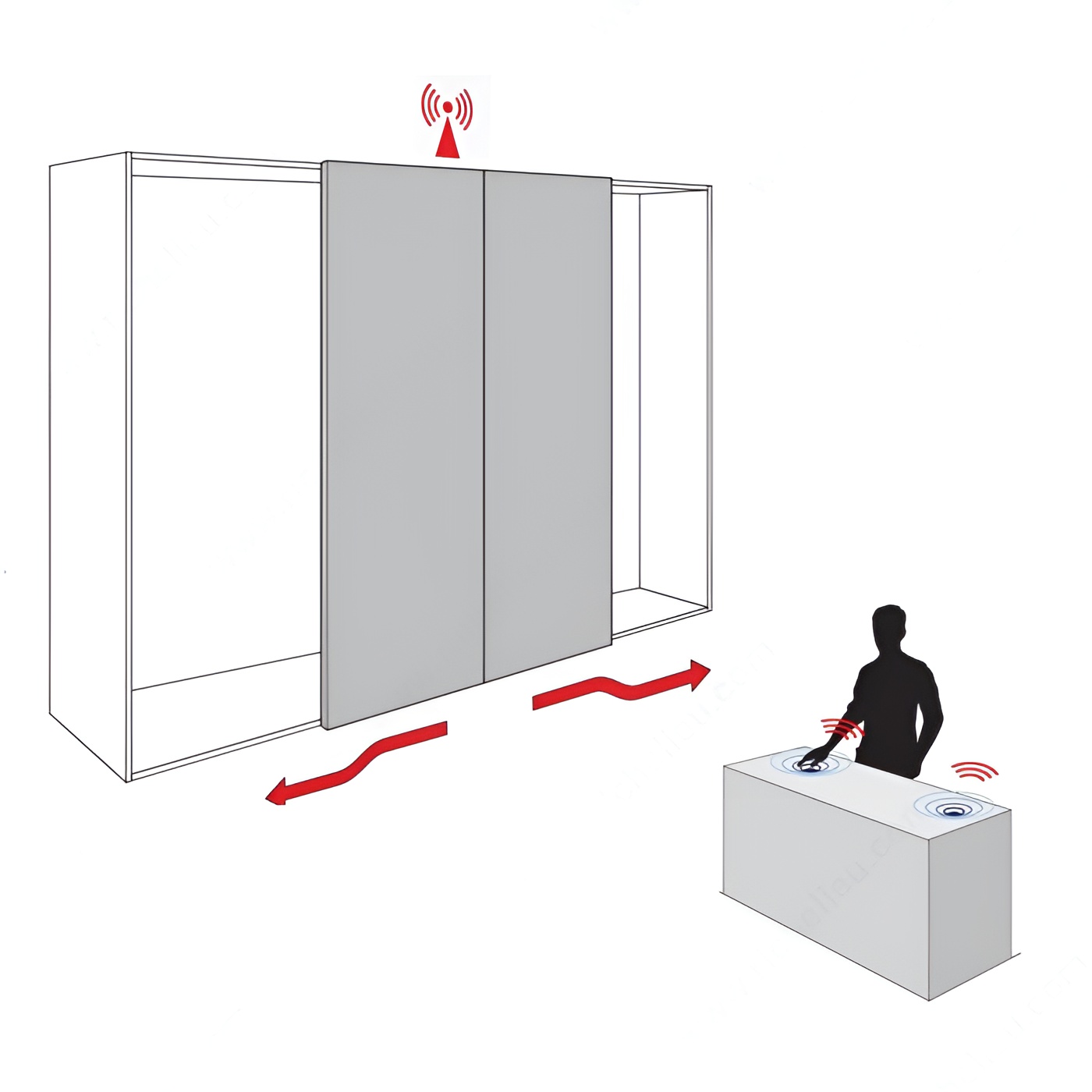

The Cinetto B-MOVED + PS40 Motorized coplanar sliding door System is designed for two-door configurations bypassing or biparting.

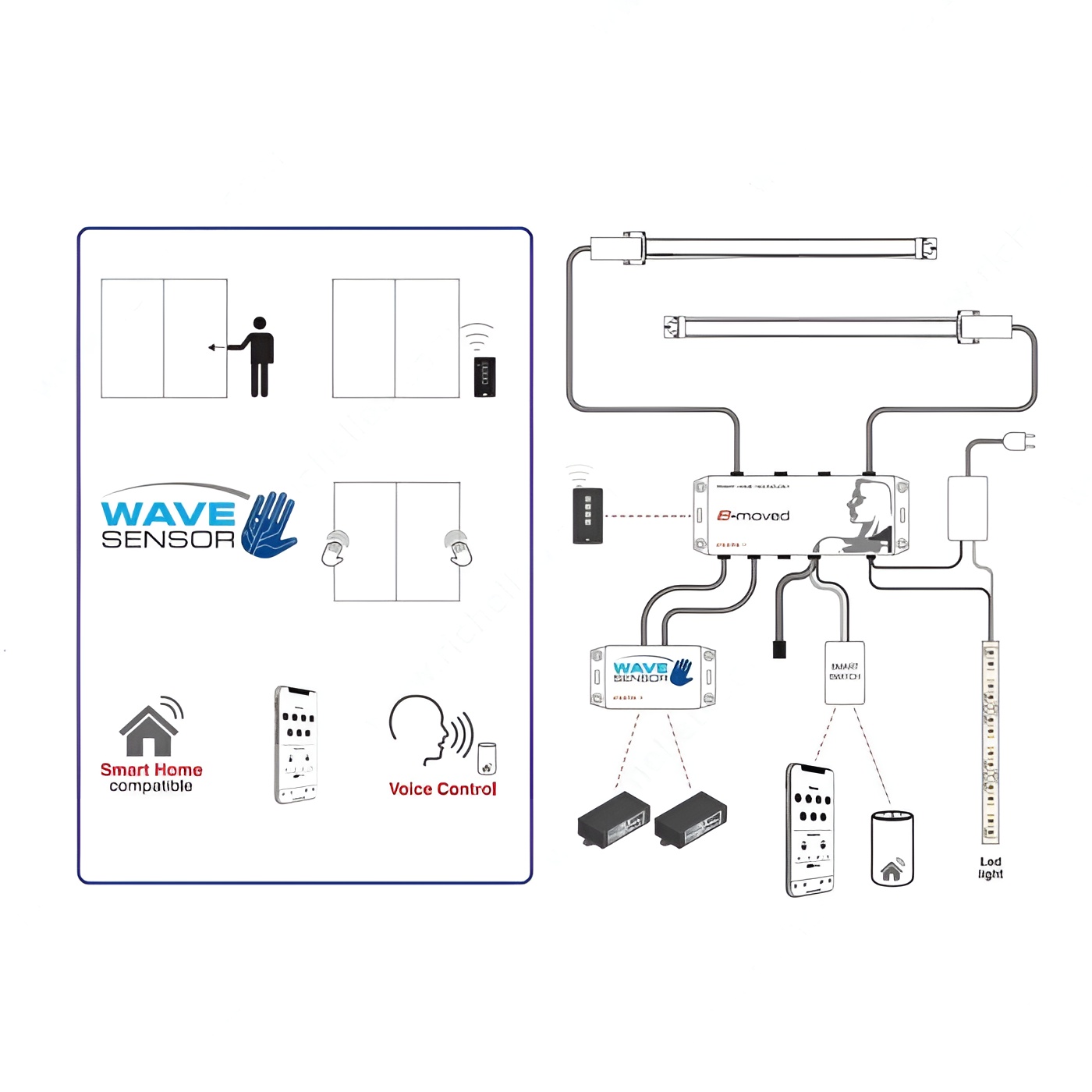

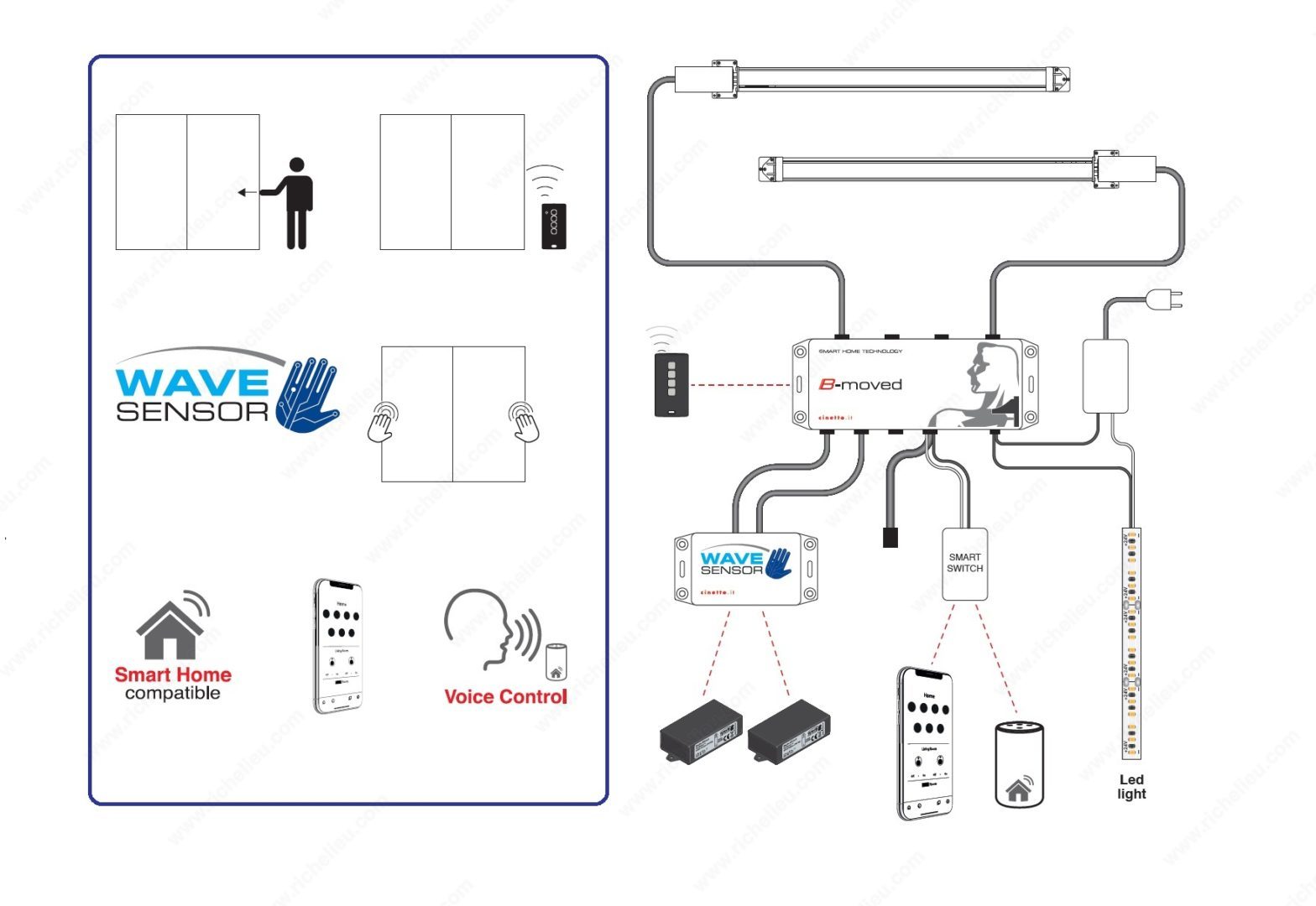

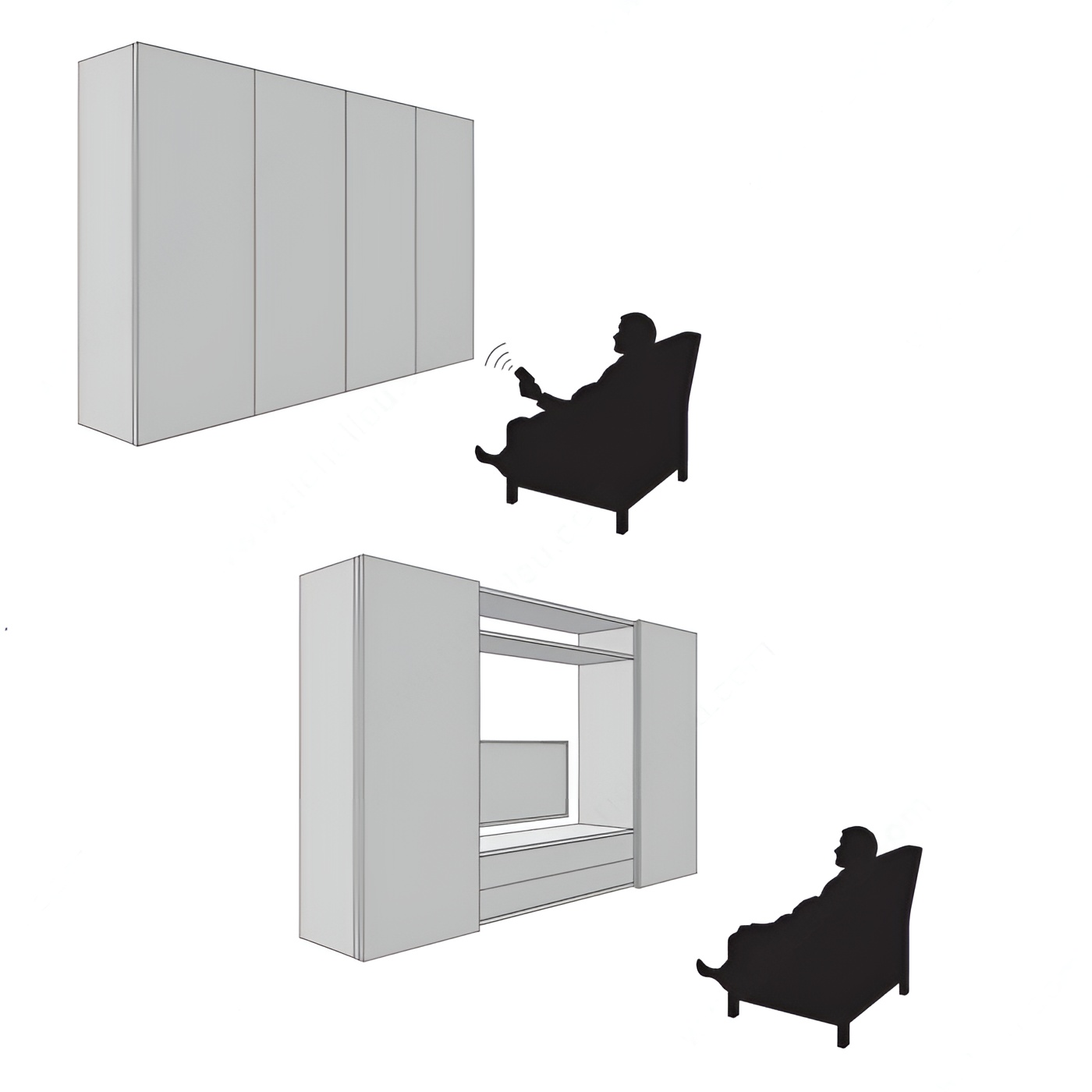

The doors can be moved and controlled hands-free several in ways: push to the door; remote; WAVE proximity sensor (sold separately).
Compatible with Smart Home devices, cellphone AP's, and Voice Control devices (refer to a certified electrician). Installation is simple, with a bolt-on motion transmission bar behind the standard PS40.1 or PS40.2 sliding door systems.
Two door brackets set to links the motion transmission bar to the upper running carriage unit. The control unit is powered by a UL Listed power supply with a standard 3-prong plug for use in a typical North American 120-volt wall outlet.
IMPORTANT: Select the correct motion transmission bar type for the correct door width range. WAVE sensor must be located within 10 meters (32'-0") from the receiver and sensors. WAVE sensors read through a maximum 10 mm (3/8") thick wood, glass, or stone material.
Use metric dimensions for greater accuracy during installation.
Door width range per transmission bar:
Typ A: 888 - 1296 mm Typ B: 1164 - 1800 mm

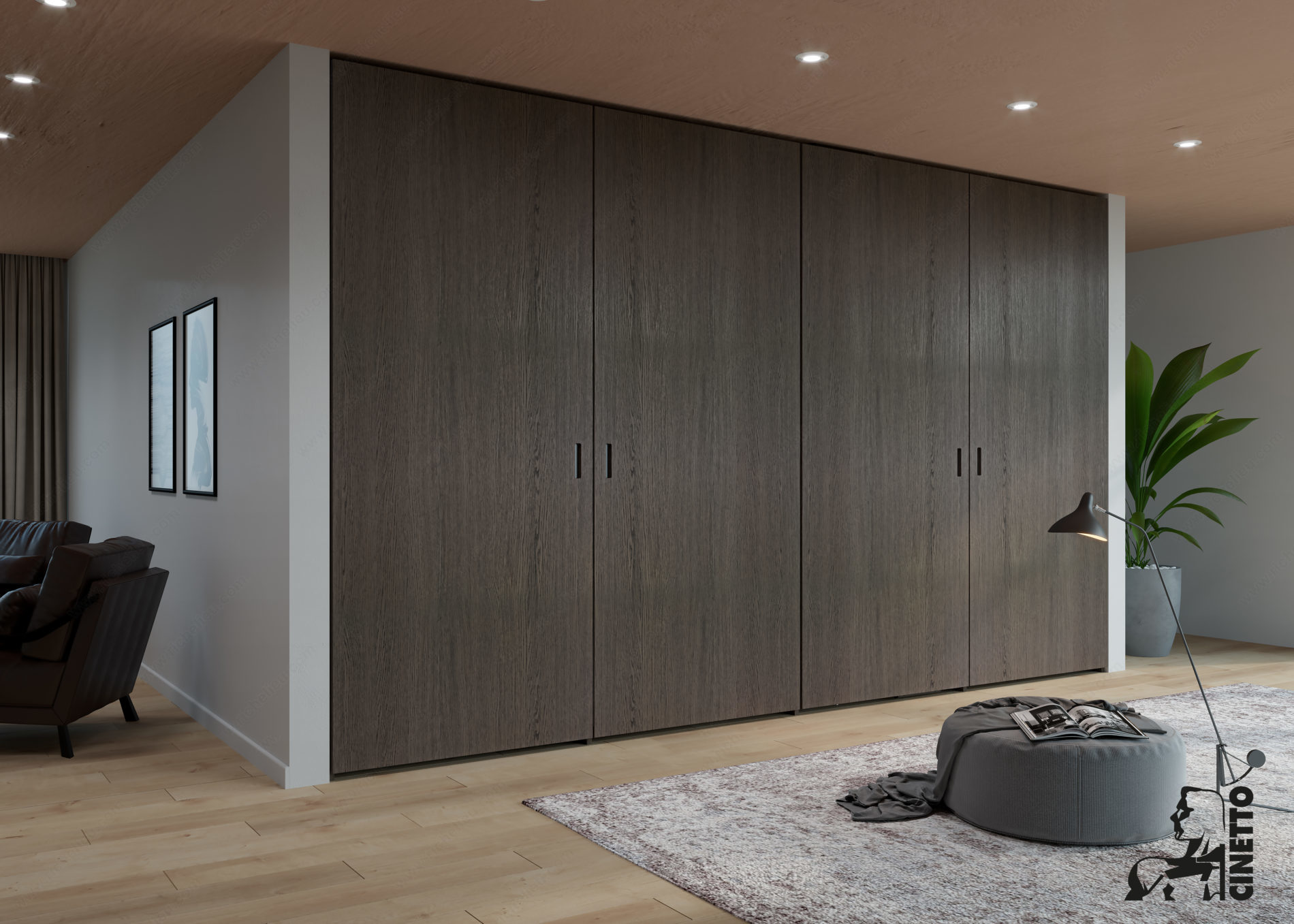

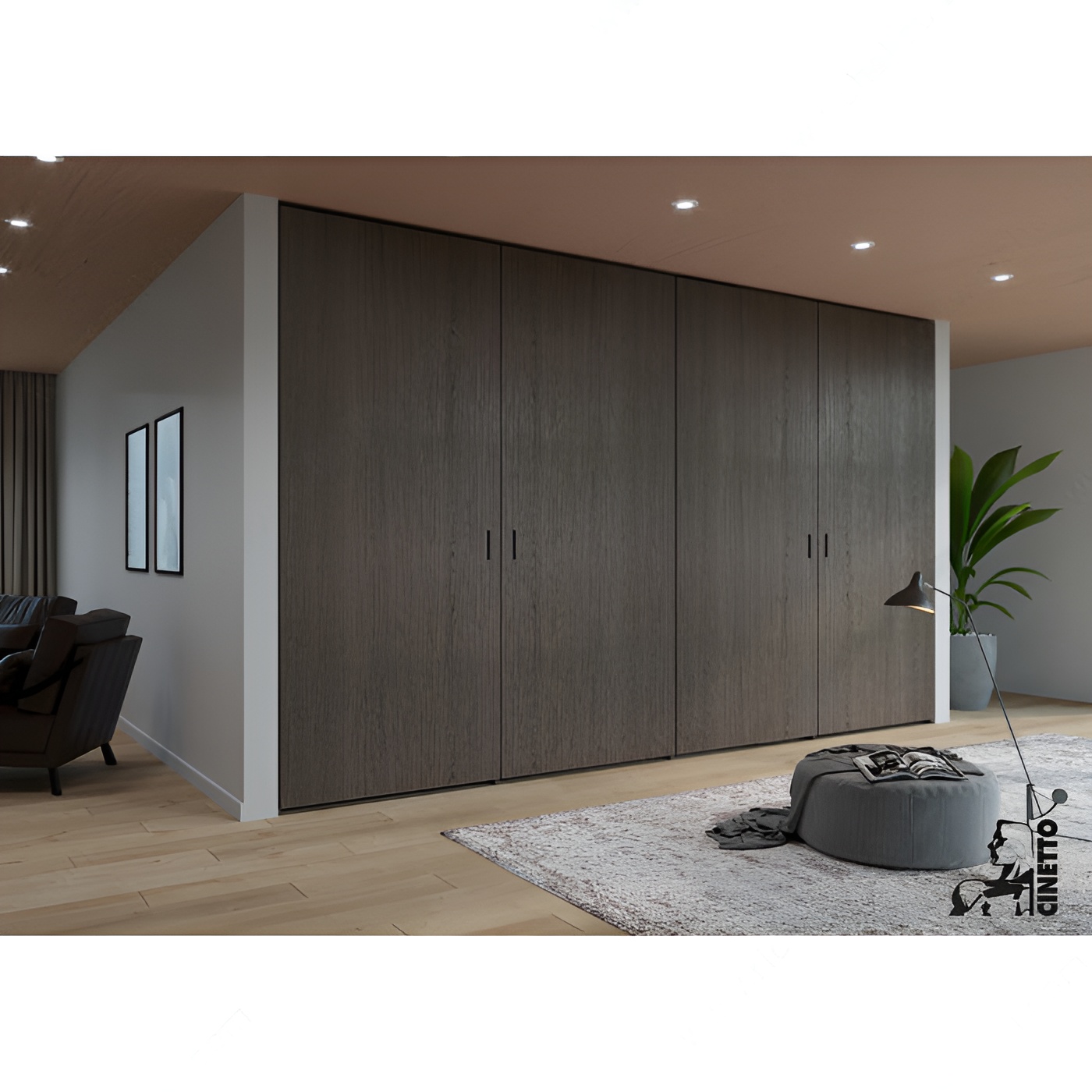

Ideal solution for hands-free and barrier-free applications for wardrobes, kitchen pantries, TV & Entertainment Units, Storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Wardrobe, Pantry, Storage
Brand: B-moved, PS40
Brand Model: Cinetto PS40, Cinetto B-Moved
Detailed Door Movement: Single sliding
Door Height: 47 1/4 to 118 in*
Door Material: Wood
Door Movement: Coplanar
Door Position: Full Overlay
Door Thickness: 3/4 to 1 11/16 in*
Door Width: 1 154 to 1 524 mm
Length - Overall Dimensions: 9 ft 10 in*

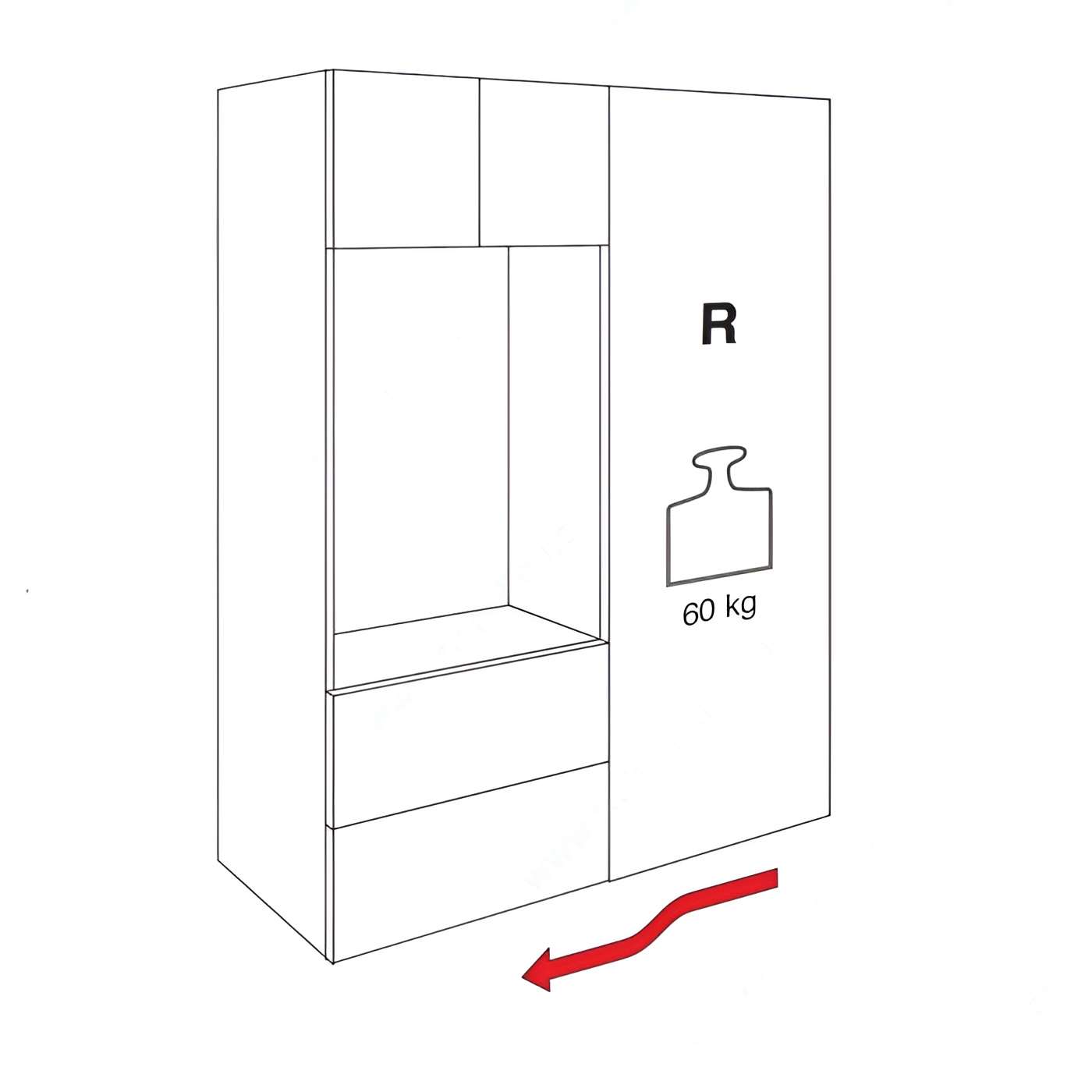

Load Capacity: 66.1 to 132 lb*
Number of Doors: 1
Opening: Remote
Overall Length: 3 000 mm
Product #: WEBKIT1245612
Product №: WEBKIT1245612
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Mounting: Surface - Outside the Cabinet
Weight Capacity per Door: 66.1 to 132 lb*
