Richelieu WEBKIT1245753 APEX Recessed Under Cabinet Profile - Starter GuideRichelieu WEBKIT1245753 APEX RECESSED PROFILE Under Cabinet - Starter Guide offers a sophisticated lighting solution for kitchens and furniture. This versatile profile is available in two lengths, 78 3/4" (2 m) and 118 1/8" (3 m), both of which can be easily cut with a miter saw to fit your specific needs. Designed for under-cabinet installations, the Apex profile dimensions are 3/8" (9 mm) W x 7/16" (10.5 mm) H, ensuring a sleek and unobtrusive fit. Equipped with the FlexyLED HE6 PW LED strip featuring an impressive 280 LEDs per meter, this system provides excellent illumination with a luminous efficiency of 82 lm/W. The LED strip comes in various fixed lengths and is pre-wired with a 78" power cable for convenience. Control options include a remote system, Touch Me Dimmer, or Decora Bluetooth Wall Dimmer, allowing for easy adjustments to light intensity. With a color rendering index (CRI) of 80 and a neutral white light at 4100 K, the APEX profile enhances the beauty of your spaces. Additionally, it meets various standards and certifications, including UL, CSA, and ETL. For optimal performance, it is recommended to maintain a 24-ft distance from the light to the power supply, ensuring compliance with local electrical codes.
APEX RECESSED PROFILE Under Cabinet - Starter Guide
Select your control type:
- X-Driver Remote
- Touch Me Dimmer
- Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
- Switchex® LED Dimmer/Power Supply
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)

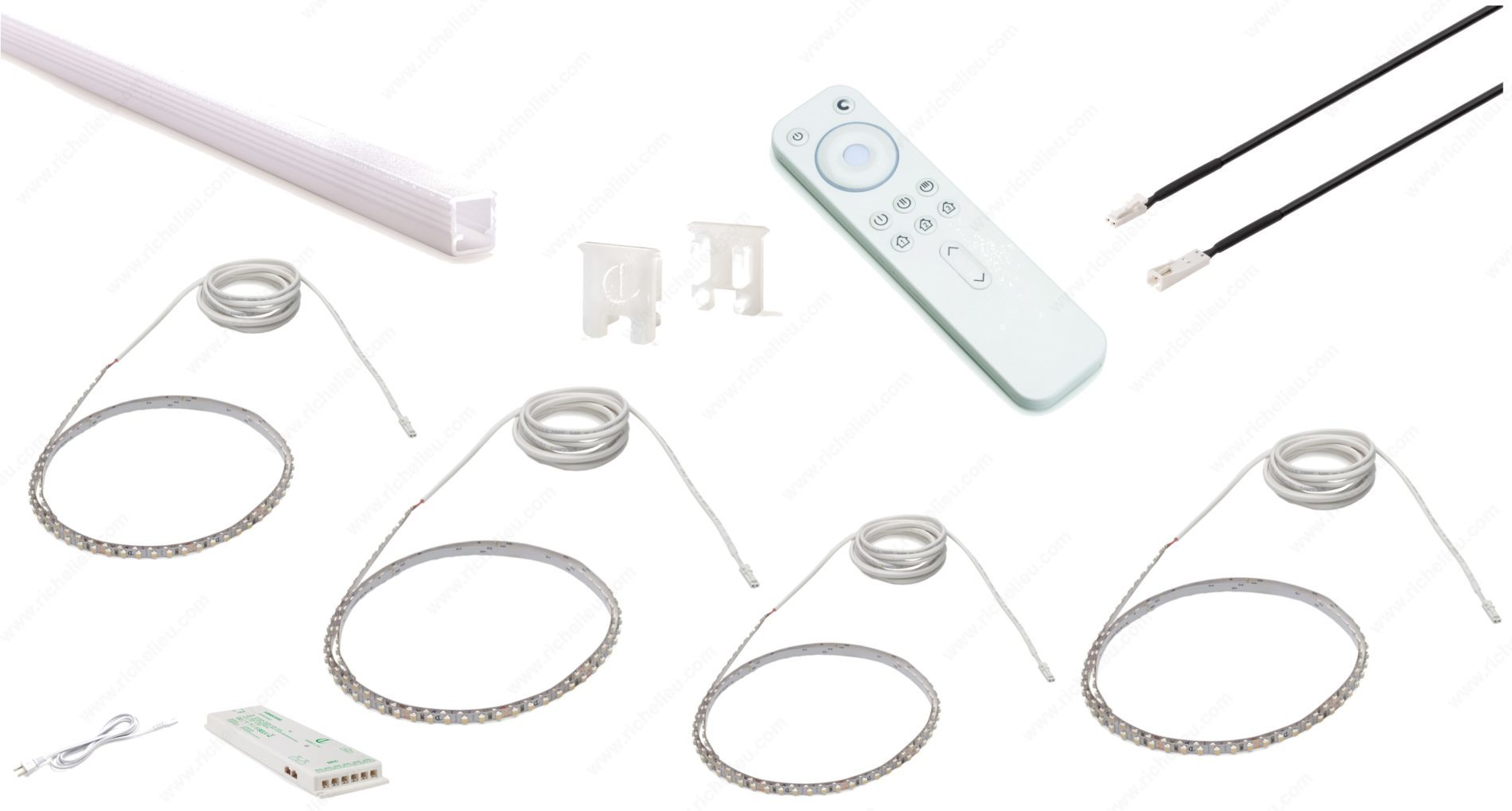

The benefits of this set are:
- Apex profile, available in two lengths: 78 3/4" (2 m) L and 118 1/8" (3 m) L, can be cut easily with a miter saw.
- Apex profile dimensions: 3/8" (9 mm) W x 7/16" (10.5 mm) H.
- FlexyLED HE6 PW is a LED strip with 280 LED/m on a circuit 1/4" (6 mm) W.
- FlexyLED HE6 PW available in fixed lengths (trimmable): 19 11/16" (500 mm), 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (3000 mm).

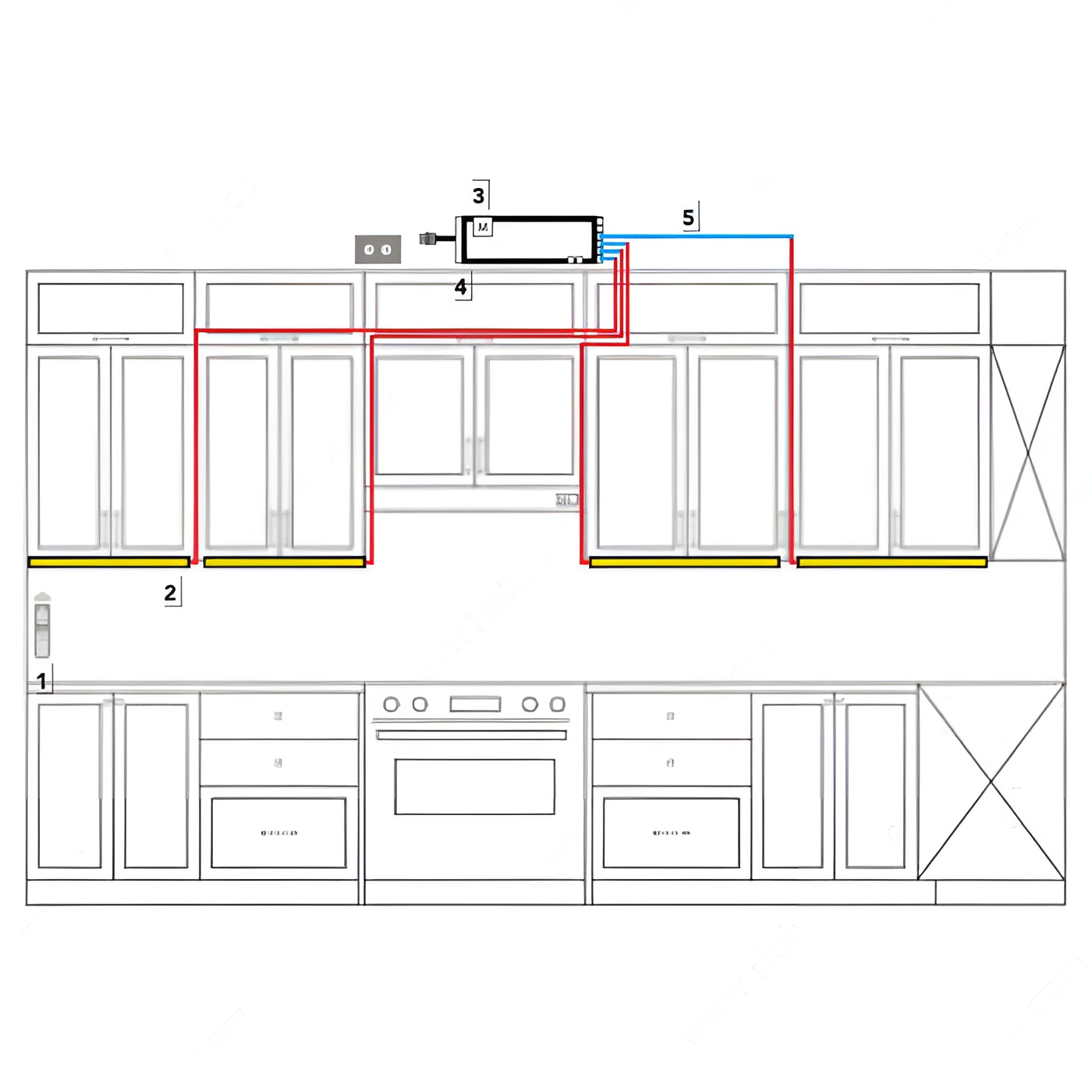

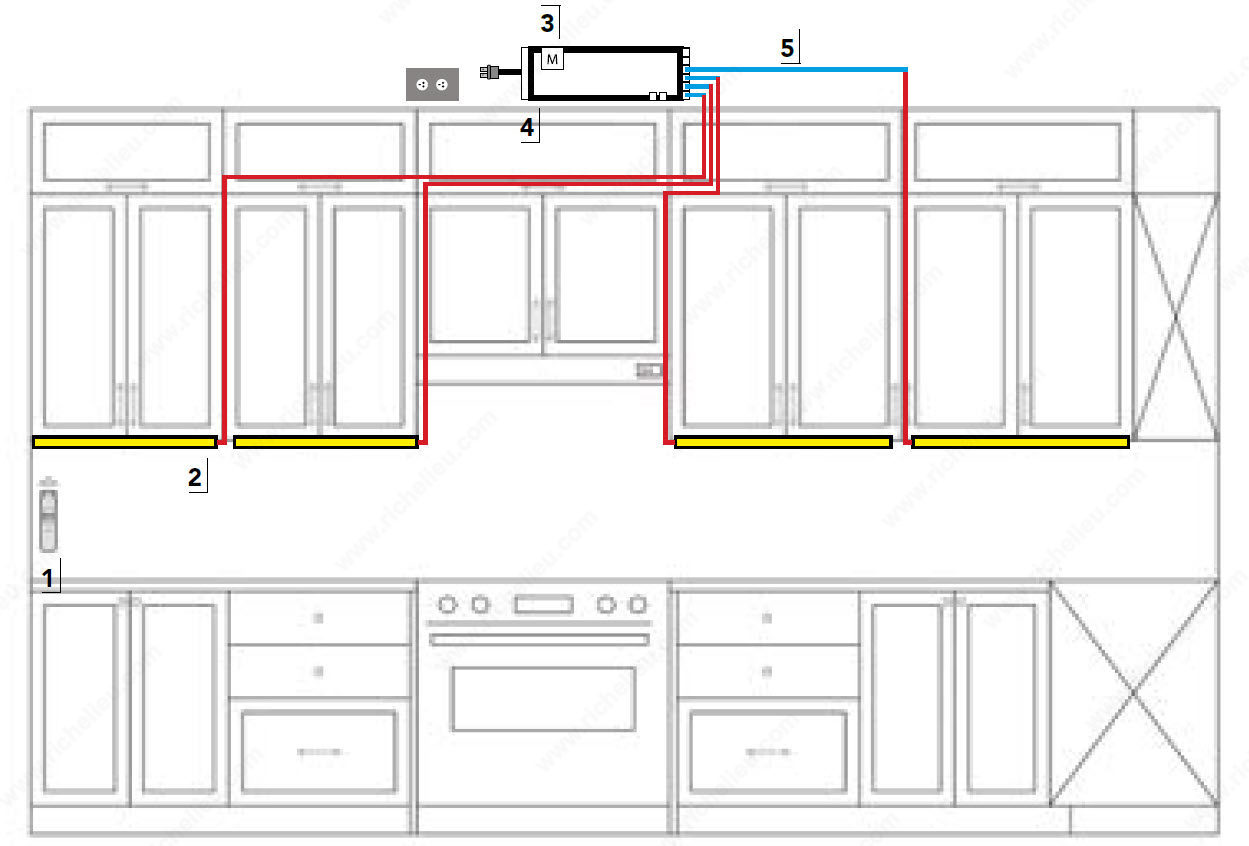

- Kits recommended for a 96" counter.
- 78" power cable is pre-wired to the FlexyLED HE6 PW.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Furniture
CRI ( Color Rendering Index): 80
Compatibility: Micro 24
Connection Type: Micro 24
Control System: Remote
Features: Remote Control
Finish: White
Group: LED Group A
IP: IP20
Kelvin Color Temperature ( K): 4100 K
Light Color: Neutral White
Lighting: Accent, Task
Lighting Type: LED
Location: Under Cabinet
Luminaire: Rigid Linear
Luminous Efficiency: 82 lm/W
Mounting: Recessed
Operation: Remote Control
Product #: WEBKIT1245753
Product №: WEBKIT1245753
Standards and Certifications: UL, CSA, ETL, CE, cULus
Style: Contemporary
Tension ( V): 24 V
Watts: 5 W
