Richelieu WEBKIT1245764 BLADE Under Cabinet Surface Profile Starter GuideRichelieu WEBKIT1245764 BLADE SURFACE PROFILE is an innovative under-cabinet lighting solution designed for both residential and commercial applications. This starter guide provides various control options, including the X-Driver Wi-Fi, Touch Me Dimmer, and Decora Bluetooth Wall Dimmer, ensuring flexibility in installation. The power supply supports optional plug-in installation with a detachable power cable, while the Switchex® LED Dimmer conveniently mounts in a standard in-wall switch box. The blade profile measures 78 3/4" (2 m) in length and can be easily cut with a miter saw to fit your specific needs. With dimensions of 13/16" (21 mm) W x 3/8" (10 mm) H, it is unobtrusive yet stylish. The FlexyLED UHE6B PW LED strip features a dense array of 280 LEDs per meter, delivering vibrant lighting at a color temperature of 3000 K, perfect for accent and task lighting. The system is designed for a maximum distance of 24 feet from the light to the power supply, with extension cables available in various lengths. Ideal for a 96" counter, the pre-wired 78" power cable enhances convenience during installation. Enhance your kitchen, living room, or commercial space with the contemporary elegance of this lighting solution.

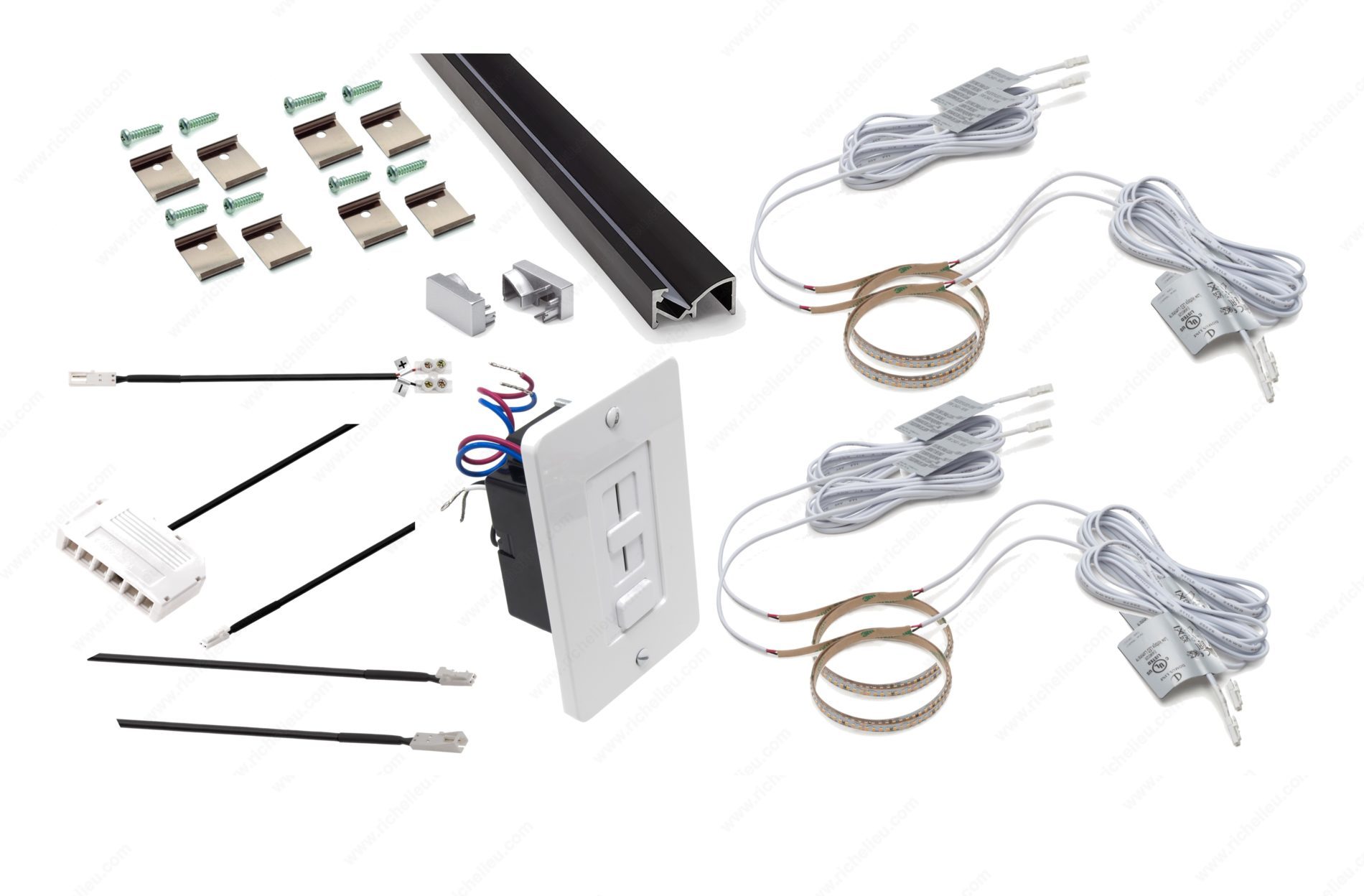

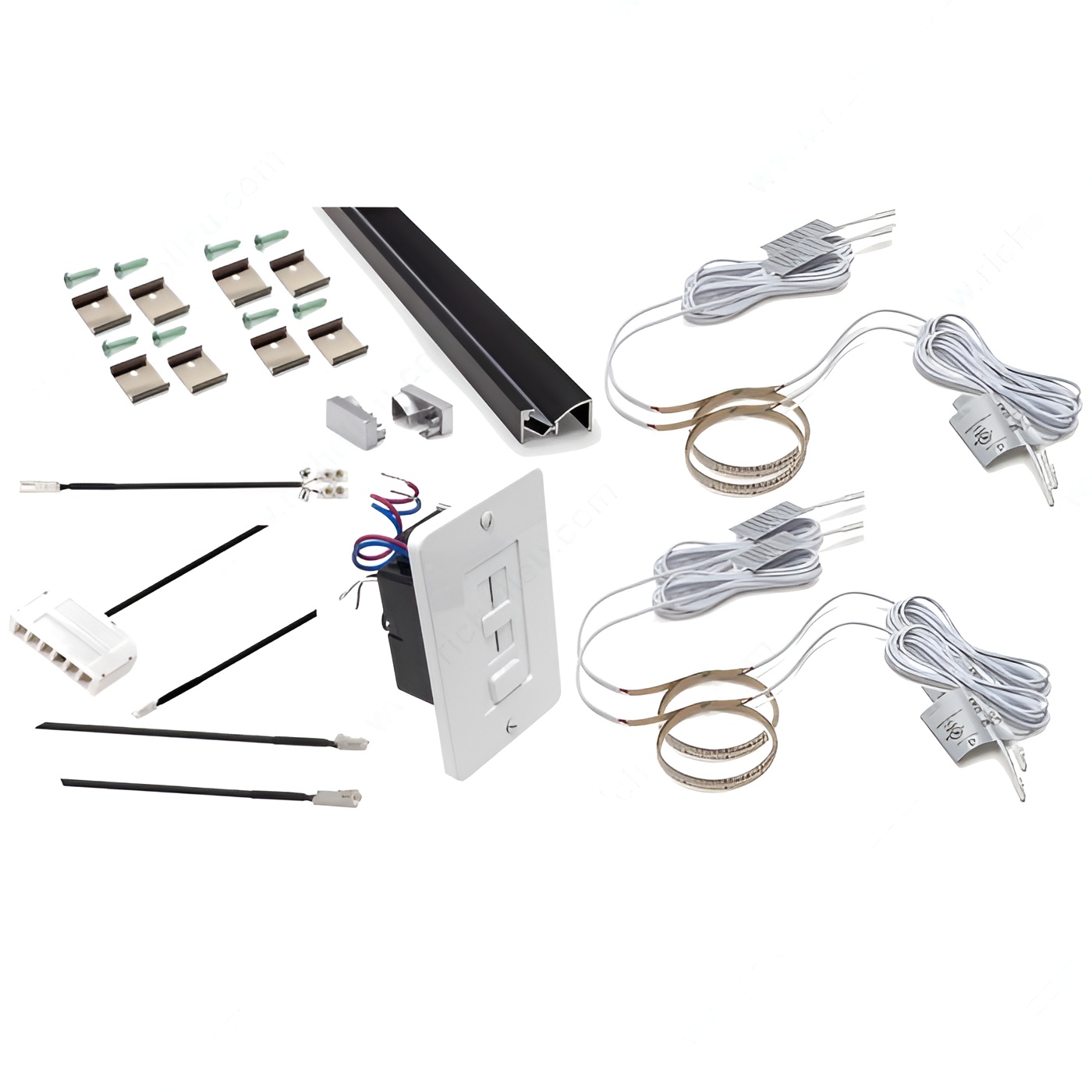

BLADE SURFACE PROFILE Under Cabinet - Starter Guide
Select your control type:
- X-Driver Wi-Fi
- Touch Me Dimmer
- Decora Bluetooth Wall Dimmer
(Power supply features optional plug-in installation with detachable power cable.)
- Switchex® LED Dimmer/Power Supply
(Switchex® mounts in a standard in-wall switch box, accepts 120 Vac and converts to low voltage dc.)
The benefits of this set are:
- Blade profile, 78 3/4" (2 m) L, easily cut with a miter saw.
- Blade profile dimensions: 13/16" (21 mm) W x 3/8" (10 mm) H.
- FlexyLED UHE6B PW is a LED strip with 280 LED/m on a circuit 1/4" (6 mm) W.
- FlexyLED UHE6B PW available in fixed lengths (trimmable): 19 11/16" (500 mm), 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm).

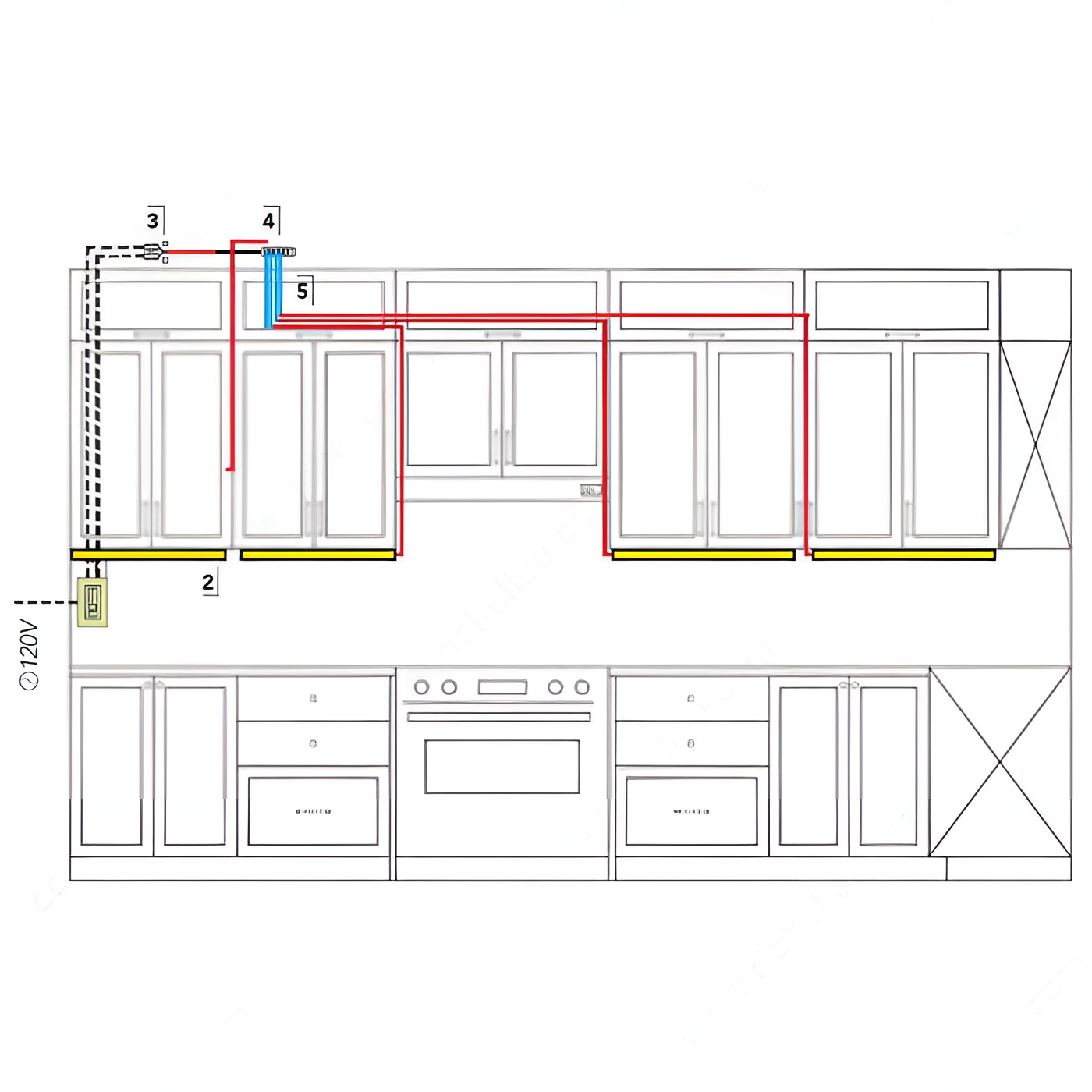

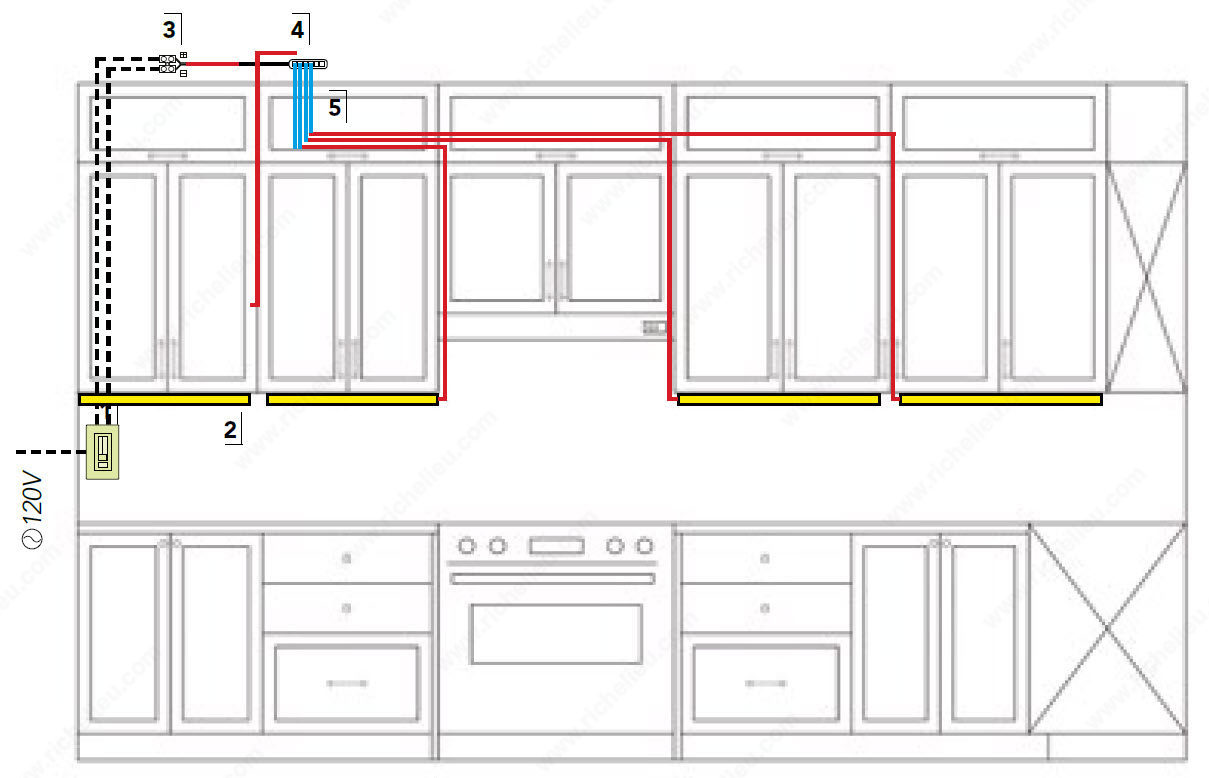

- Kits recommended for a 96" counter.
- 78" power cable is pre-wired to the FlexyLED UHE6B PW.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Living Room, Commercial, Furniture
Compatibility: Micro 24
Control System: Dimmer
Finish: Black
Group: LED Group A, LED 24 V dc Exclusive
Kelvin Color Temperature ( K): 3000 K
Lighting: Accent, Task
Lighting Type: LED
Location: Under Cabinet
Luminaire: Rigid Linear
Mounting: Recessed
Operation: Touch / Wall
Product #: WEBKIT1245764
Product №: WEBKIT1245764
Style: Contemporary
Tension ( V): 24 V
Watts: 5 W
