Richelieu WEBKIT1245792 FLEXYLED SEH4 Wired Starter Guide for Interior CabinetsRichelieu WEBKIT1245792 FLEXYLED SEH4 Interior Cabinet - Starter Guide - Wired offers an innovative lighting solution designed specifically for recessed applications in various settings, including kitchens, living rooms, bedrooms, and offices. This flexible linear LED system is engineered for convenience, featuring fixed lengths that can be trimmed to fit your specific needs: 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (2500 mm), and 118 1/8" (3000 mm). Equipped with a silicone-coated LED that provides 180 LEDs per meter and a power consumption of just 9.6 watts per meter, this system delivers exceptional brightness while maintaining efficiency. The IR-XD3 wired sensor operates seamlessly within a recessed 13/32" (10 mm) hole, ensuring a flush installation. With a warm white color temperature of 3100 K and a high Color Rendering Index (CRI) of 90, the FLEXYLED enhances the aesthetic appeal of any space. The 78" pre-wired power cable simplifies installation, while extension cables are available in various lengths for added flexibility. Certified with UL and CE standards, this system promises reliability and safety. Embrace contemporary design with Richelieu's FLEXYLED solution, transforming your interior spaces effortlessly.

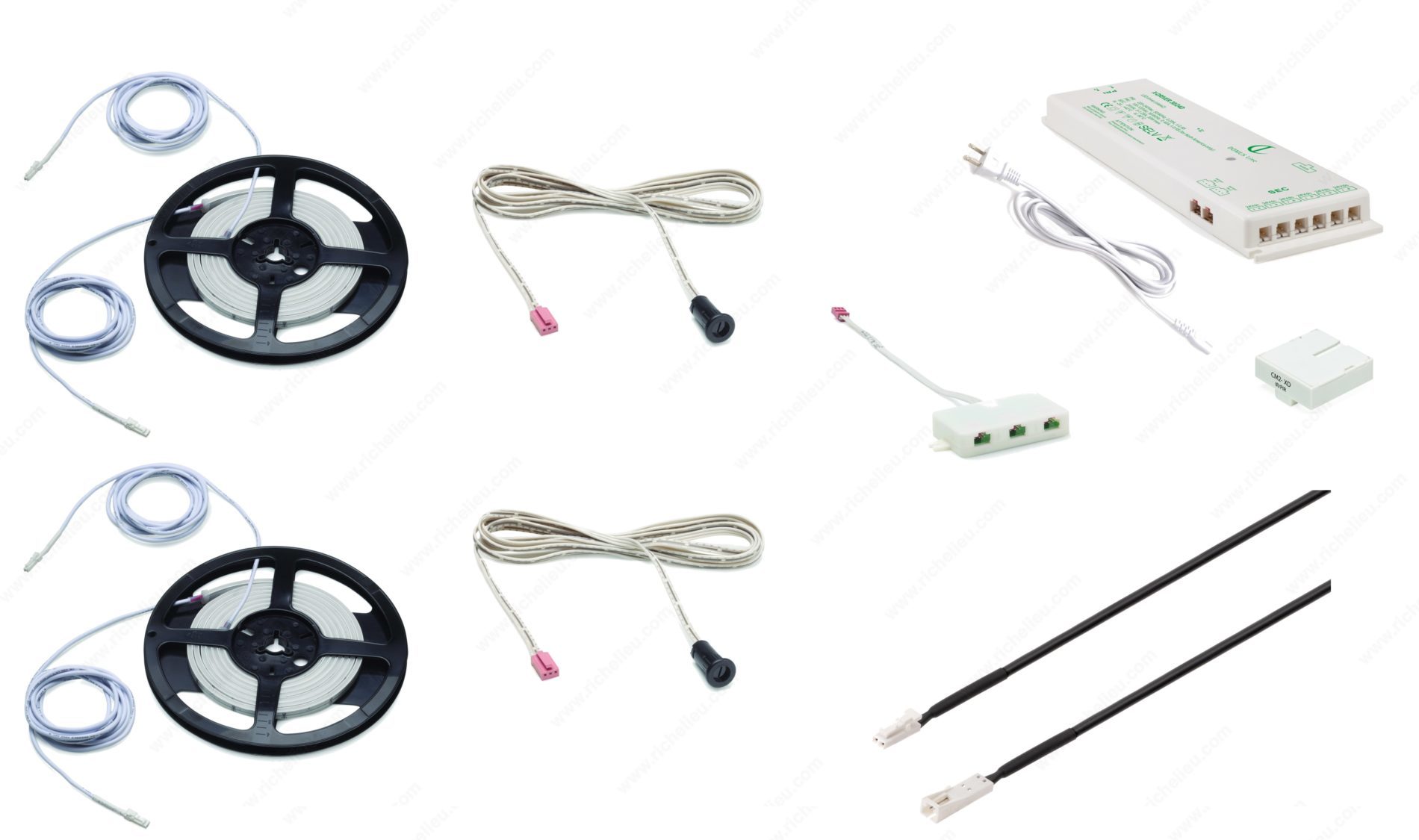

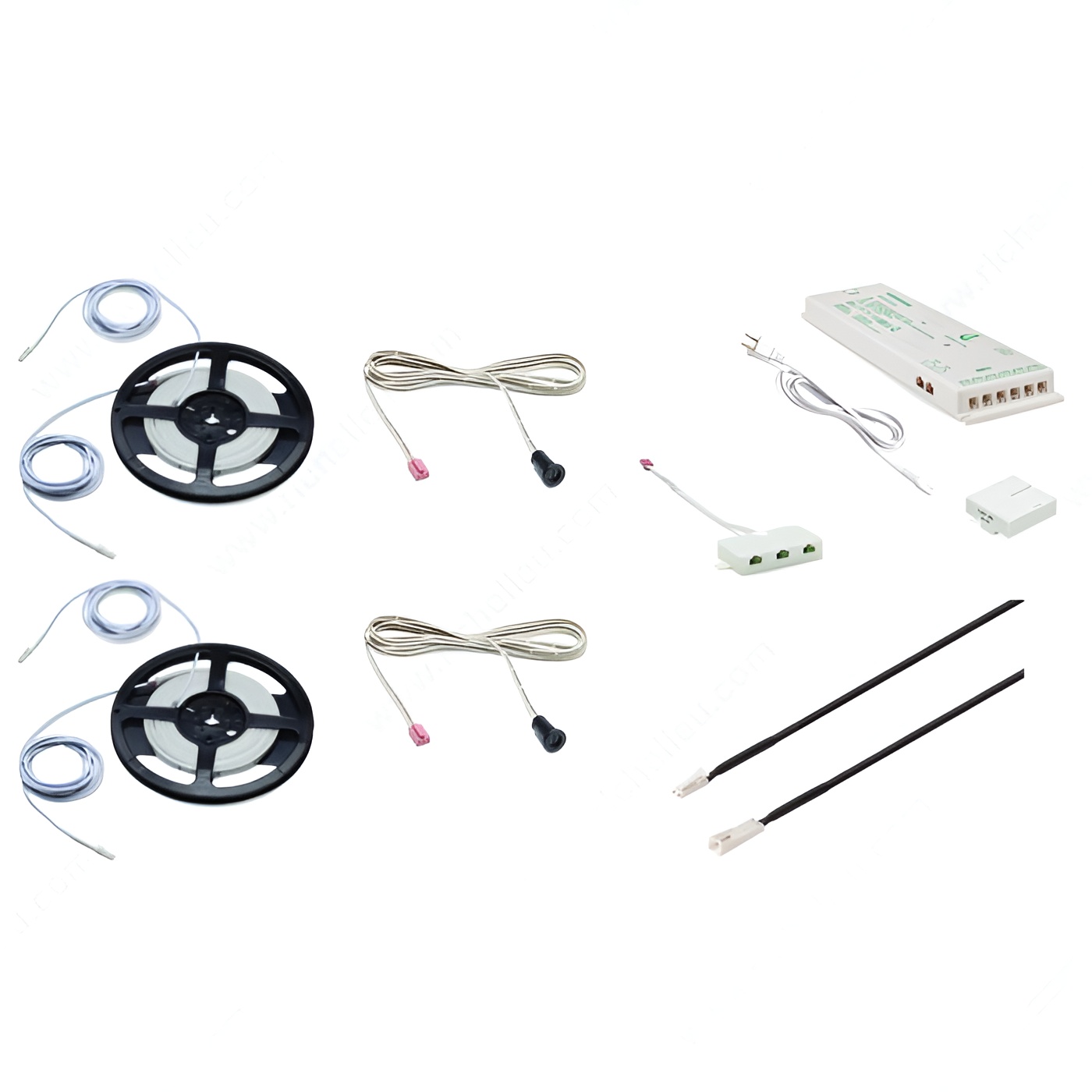

FLEXYLED SEH4 Interior Cabinet - Starter Guide - Wired
Control type:
- X-Driver IR-XD3 Wired Sensor
The benefits of this set are:
- Available in fixed lengths (trimmable): 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (2500 mm), 118 1/8" (3000 mm).
- Silicone coated LED with 180 LED/meter; 9.6 watts/meter.
- Recess into a groove measuring 4 mm wide x 8 mm deep.
- 78" power cable is pre-wired at each end of the roll. Cut off unused wire at designated marks.
- Extension cables are available in 20", 40" and 78".
- IR-XD3 is recessed in a 13/32" (10 mm) hole, flush to the door.
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen, Living Room, Bedroom, Bathroom, Office, Furniture, Closet
CRI ( Color Rendering Index): 90
Compatibility: Micro 24
Connection Type: Micro 24
Control System: IR
Features: Bluetooth, Wi-Fi
Group: LED Group A
IP: IP20
Kelvin Color Temperature ( K): 3100 K
Light Color: Warm White
Lighting: Functional
Lighting Type: LED
Location: Inside Cabinet
Luminaire: Flexible Linear
Mounting: Recessed
Product #: WEBKIT1245792
Product №: WEBKIT1245792
Recessed Depth: 13/32 in*
Standards and Certifications: UL, CE
Style: Contemporary
Tension ( V): 24 V
Watts: 14.4 W
Width: 5/32 in*
