Richelieu WEBKIT1245794 APEX Recessed Profile Corner Cabinet Starter GuideRichelieu WEBKIT1245794 APEX RECESSED PROFILE Corner Cabinet - Starter Guide offers a sophisticated lighting solution for modern cabinetry. Designed with an Apex profile, it is available in two convenient lengths-78 3/4" (2 m) and 118 1/8" (3 m)-and can be effortlessly cut to fit with a miter saw. The profile dimensions are 3/8" (9 mm) wide by 7/16" (10.5 mm) high, ensuring a sleek integration into your cabinetry. The FlexyLED HE6 PW LED strip, featuring 280 LEDs per meter, provides an impressive luminous efficiency of 82 lm/W while consuming just 9.6 watts per meter. Available in various fixed lengths, including 19 11/16" (500 mm) and up to 98 7/16" (3000 mm), this dimmable lighting option allows for customizable illumination. The warm white light, with a color temperature of 3100 K, enhances the aesthetics of your space. Equipped with an IR WI-XD wireless proximity sensor, this lighting system is self-powered and designed for easy installation. A pre-wired 78" power cable ensures a seamless connection. Please note that installation must adhere to local electrical codes, and it is advisable to consult an electrician. With UL, CE, and cULus certifications, this product combines functionality and safety, making it an ideal choice for any interior project.
APEX RECESSED PROFILE Corner Cabinet - Starter Guide
Control type:
- X-Driver IR WI-XD Wireless Sensor

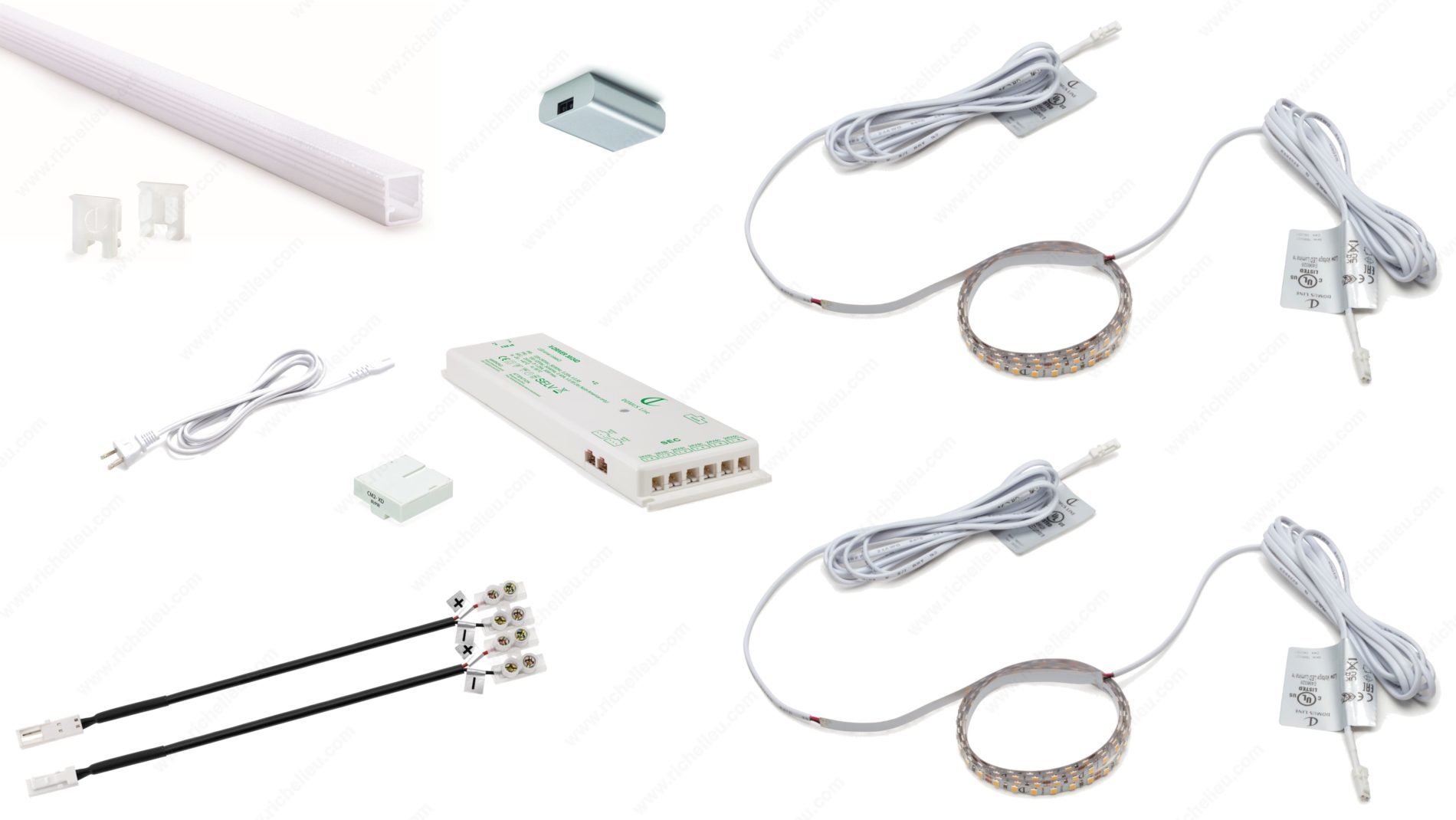

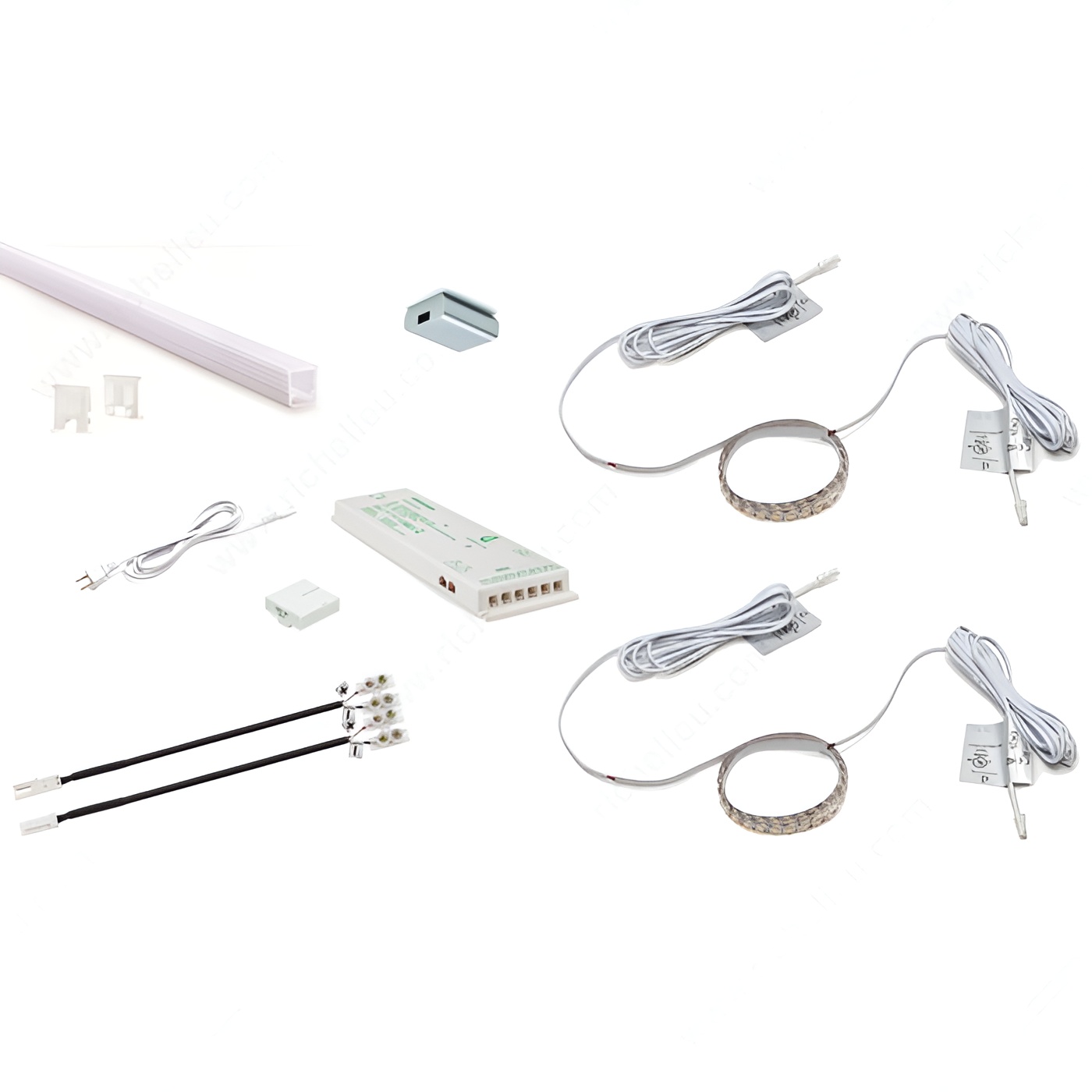

The benefits of this set are:
- Apex profile, available in two lengths: 78 3/4" (2 m) and 118 1/8" (3 m), can be cut easily with a miter saw.
- Apex profile dimensions: 3/8" (9 mm) W x 7/16" (10.5 mm) H.
- FlexyLED HE6 PW is a LED strip with 280 LED/meter on a circuit 1/4" (6 mm) wide; 9.6 watts/meter.
- FlexyLED HE6 PW available in fixed lengths (trimmable): 19 11/16" (500 mm), 39 3/8" (1000 mm), 59 1/16" (1500 mm), 78 3/4" (2000 mm), 98 7/16" (3000 mm).
- 78" power cable is pre-wired to the FlexyLED HE6 PW.
- Kits recommended for a 34 1/2" height base cabinet.
- IR WI-XD is a self-powered wireless proximity sensor (with lithium battery CR2450).
- Recommended to only go a distance of 24-ft from the light to the power supply.
- Run low voltage wiring between the LED and power supply (supplied by others). Terminal connectors are included.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Important information
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
CRI ( Color Rendering Index): 80
Compatibility: Micro 24
Connection Type: Micro 24
Features: Dimmable, Bluetooth, Wi-Fi
Group: LED Group A
IP: IP20
Kelvin Color Temperature ( K): 3100 K
LED Strip Length: 39 3/8 in*
Light Color: Warm White
Lighting: Functional
Location: Inside Cabinet
Luminaire: Rigid Linear
Luminous Efficiency: 82 lm/W
Mounting: Recessed
Power Cable: Double
Power Cable Length: 78 3/4 in*
Product #: WEBKIT1245794
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: UL, CE, cULus
Tension ( V): 24 V
Watts: 9.6 W
