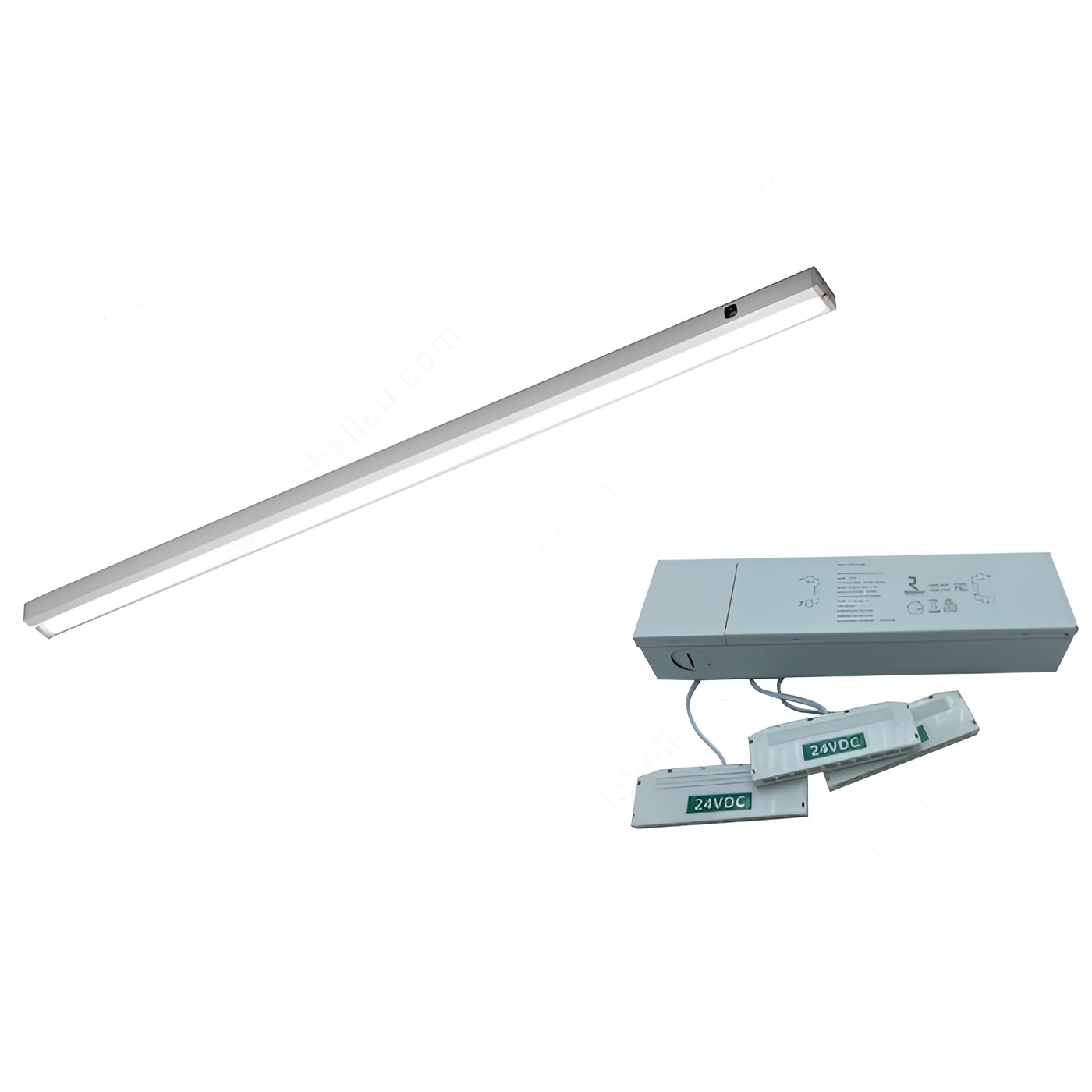

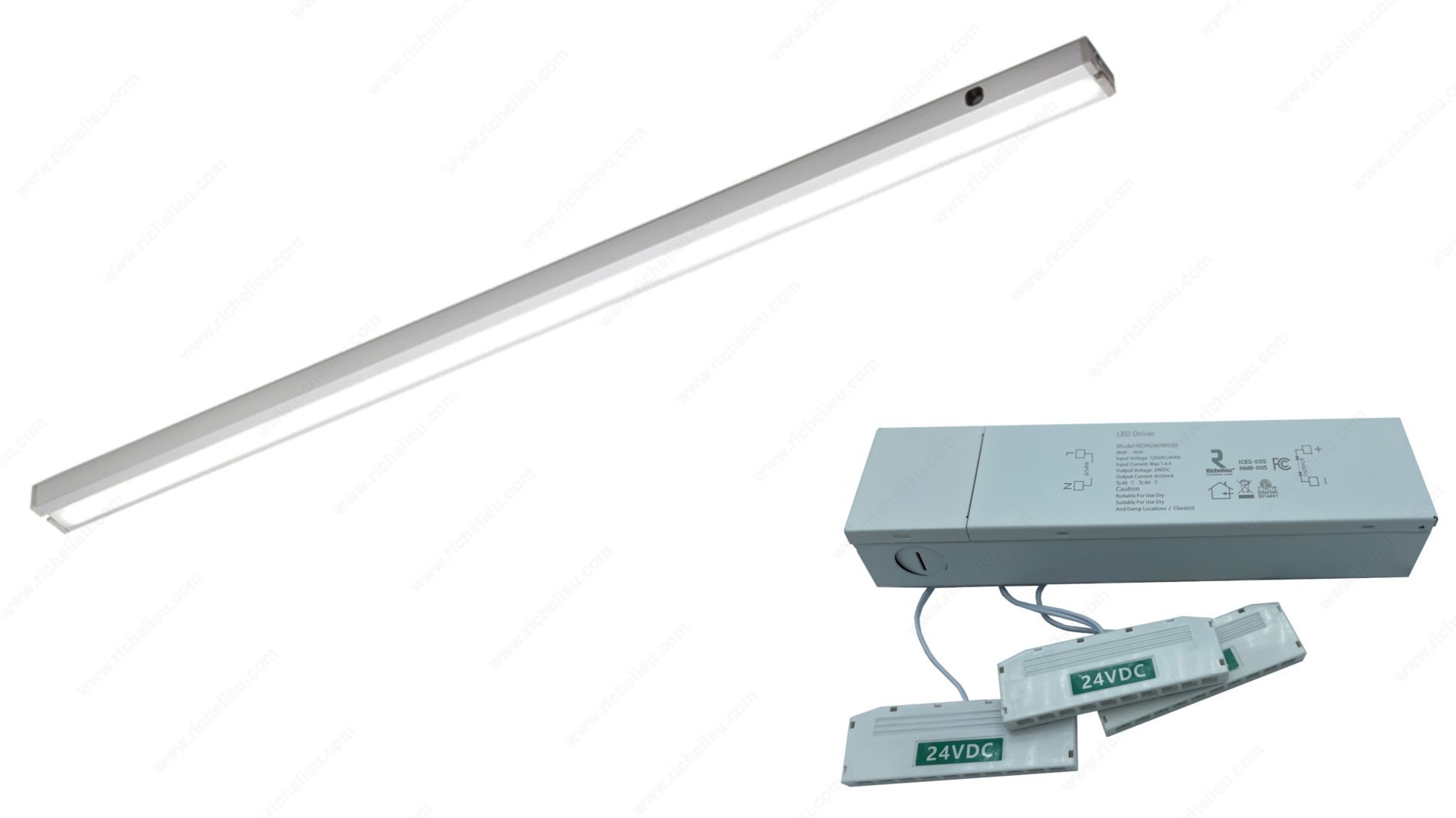

Richelieu WEBKIT1246076 BASKI LED Drawer Cabinet Starter GuideRichelieu WEBKIT1246076 BASKI LED Drawer Cabinet - Starter Guide offers an innovative lighting solution designed specifically for kitchen base units. This cutting-edge LED profile features a built-in sensor that automatically activates the light when cabinet doors are opened and turns it off when closed, enhancing convenience and energy efficiency. Available in sleek aluminum or sophisticated black finishes, the Baski light comes in multiple fixed lengths: 18", 24", 30", 36", and 48". It is compatible with frame thicknesses of 5/8", 23/32", and 3/4" (16mm, 18mm, 19mm), ensuring seamless installation in various cabinetry designs. The pre-wired 78" power cable simplifies the setup process, while additional extension cables are offered in lengths of 20", 40", and 78". With a luminous efficiency of 85 lm/W and a color rendering index (CRI) of 80, this LED luminaire provides exceptional task and functional lighting at a warm color temperature of 3000 K. Built to meet UL and ETL standards, the Baski LED Drawer Cabinet light is a reliable choice for modern kitchens. Please ensure installation complies with local electrical codes for optimal safety and performance.
BASKI LED Drawer Cabinet - Starter Guide
Control type:
- Built-in Sensor
The benefits of this set are:
- Baski is an LED designed for application in kitchen base units.
- The profile integrates one sensor to switch it on and off automatically when the door is opened and closed.

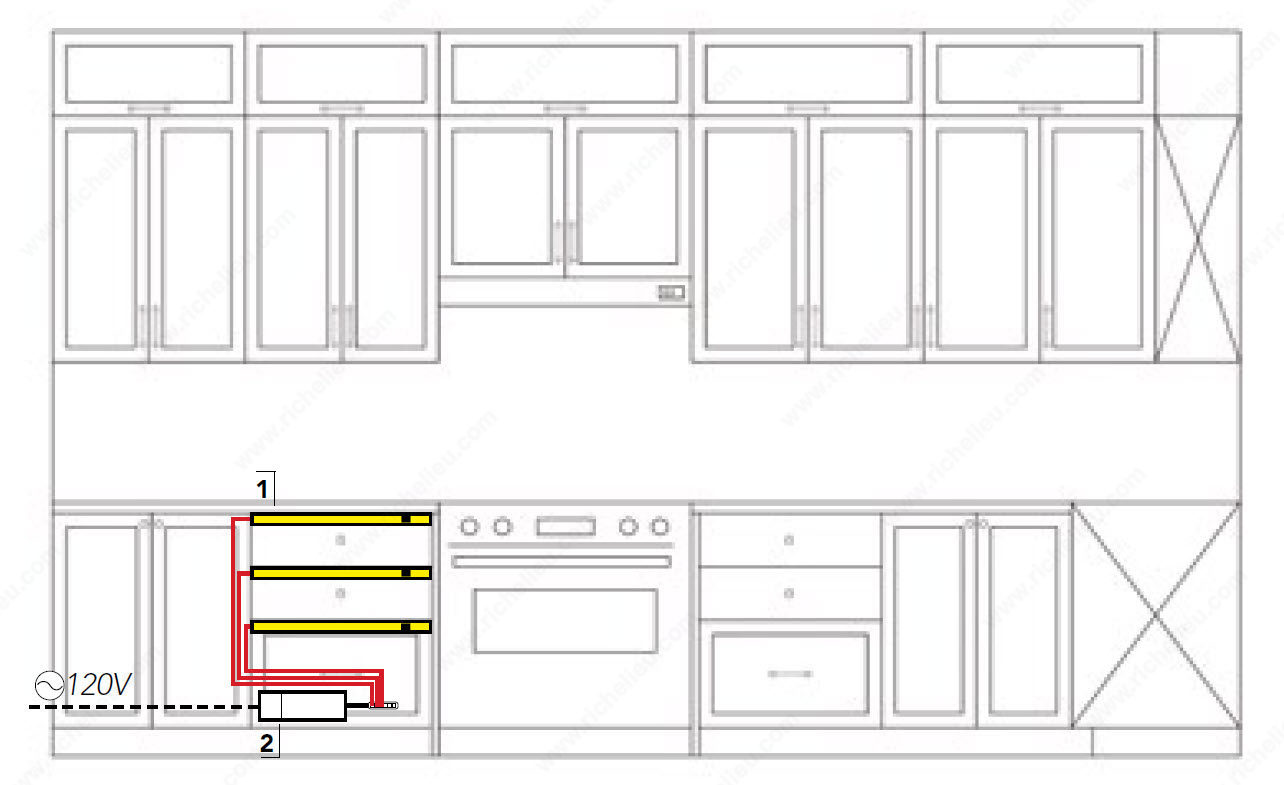

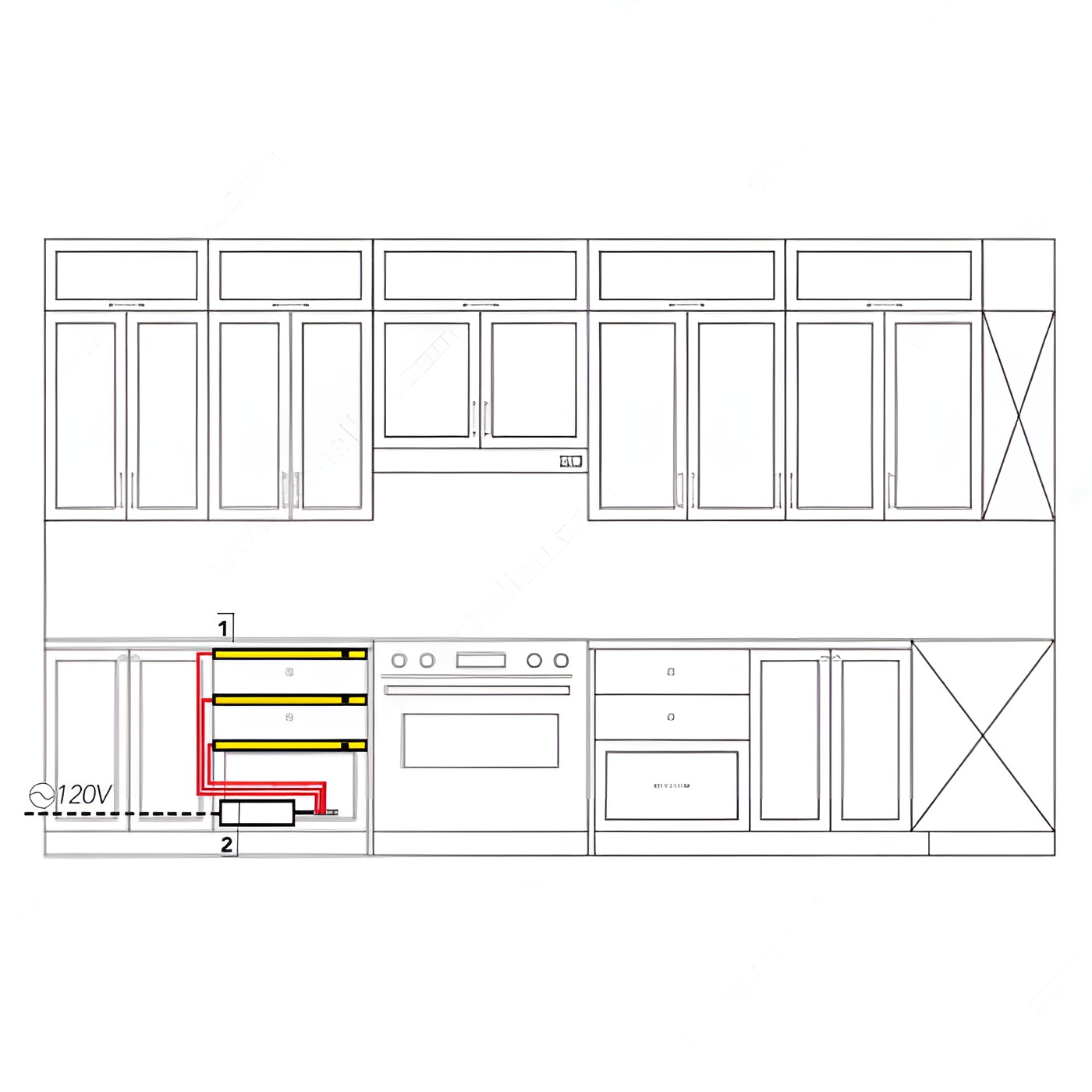

- It is installed on the side of the frame with thicknesses of 5/8", 23/32", 3/4" (16mm, 18mm, 19mm).
- Available in two finishes: aluminum and black.
- Available in fixed lengths: 18" (457 mm), 24" (609 mm), 30" (762 mm), 36" (914 mm), 48" (1219 mm).
- Includes a pre-wired 78" power cable.
- Extension cables are available in 20", 40" and 78".
- Recommended to only go a distance of 24-ft from the light to the power supply.
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Important information
WARNING:
Product installation must be done in accordance with local electrical codes, please confirm with an electrician or inspection office.
Attributes
Application: Kitchen
CRI ( Color Rendering Index): 80
Compatibility: Micro 24
Connection Type: Micro 24
Control System: IR
Finish: Aluminum
IP: IP20
Kelvin Color Temperature ( K): 3000 K
Length: 30 in*
Lighting: Task, Functional
Lighting Type: LED
Location: Inside Cabinet
Luminaire: Rigid Linear
Luminous Efficiency: 85 lm/W
Operation: Door
Product #: WEBKIT1246076
Standards and Certifications: UL, ETL
Style: Contemporary
Tension ( V): 24 V
Watts: 6.2 W
